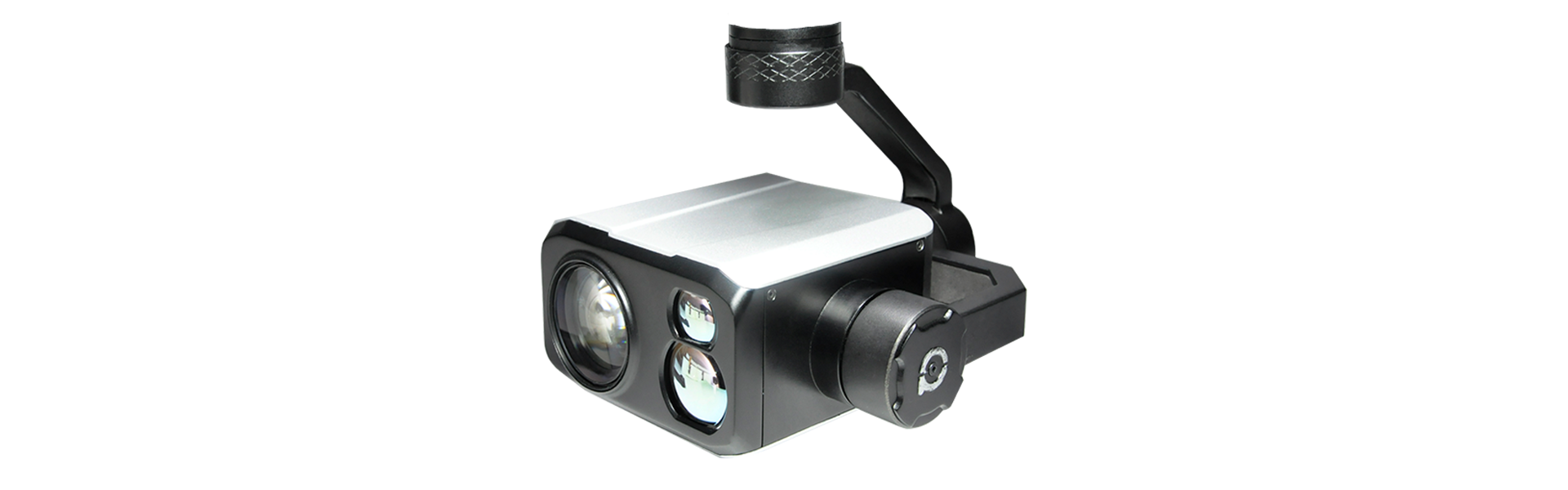

Stabilized theZ30TM is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.02° powered by a dedicated processor. Rather than rely on electrical slip rings - as is common with many gimbals - the Z30TM uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video.
30x Optical Zoom Camera
Stabilizing the Z30TM is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. 360°rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even at high speed movement.
Camera Object Tracking
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.
GPS Location Resolving
The advanced location calculating algorithm is used to calculate the distance of the object within 1500 meters, accurately analyze the longitude and latitude of the object, and display the on the screen.
Multi Output Methods Optional
Z30TM supports both HDMI output, Ethernet/IP output. HDMI and output are 1080p, Ethernet output default as 1080P and record is 1080p. IP output and SDI output versions will support 360 degree enless pan.
Multi Control Methods
Default PWM and Serial port TTL control, SBUS is optional. With Viewpro software Viewlink you can fulfill IP output, TTL control.
Control box signal interfaces:
Compatible with Viewport
Z30TM is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.
For more information about Viewport, please check below video instruction:
Applications
"Our primary focus is on supplying equipment for various purposes such as firefighting, power tower maintenance, pipeline inspection, and search and rescue operations. Emergency situations demand a broad spectrum of monitoring and search capabilities to swiftly assess the situation and enhance response efficiency."
Specifications
Hardware Parameter | |
Working voltage | 16V |
Input voltage | 4S ~ 6S |
Output voltage | 5V (connect with PWM) |
Dynamic current | 530~1300mA @ 16V |
Working environment temp. | -20℃ ~ +60℃ |
Output | micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps) / SDI (1080P 30fps)/ Skyport |
Local-storage | TF card (Up to 512G, class 10, FAT32) |
Photo storage format | JPG(1920*1080) |
Video storage format | MP4 (1080P 30fps) |
Card reading online | SMB read / HTTP read |
Control method | PWM / TTL / S.BUS / TCP(IP output) /DJI Pilot/UDP(IP output version) |
Geotagging | Support, display time and GPS coordinate in picture exif |
Gimbal Spec | |
Mechanical Range | Pitch/Tilt: -60°~120°, Roll: ±60°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
Controllable Range | Pitch/Tilt: -45°~115°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
Vibration angle | Pitch/Roll: ±0.02°, Yaw:±0.02° |
One-key to center | √ |
Camera Spec | |
Imager Sensor | SONY 1/2.8" "Exmor R" CMOS |
Picture quality | Full HD 1080 (1920*1080) |
Effective pixel | 2.13MP |
Lens optical zoom | 30x, F=4.3~129mm |
Digital zoom | 12x (360x with optical zoom) |
Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
Horizontal viewing angle | 1080p mode: 63.7°(wide end) ~ 2.3°(tele end) |
Sync system | Internal |
S/N ratio | more than 50dB |
Min illumination | Color 0.01lux@F1.6 |
Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
Shutter speed | 1/1s to 1/10,000s, 22 steps |
Backlight compensation | Yes |
Aperture control | 16 steps |
Defog | Yes |
OSD | Yes |
Camera Object Tracking | |
Update rate of deviation pixel | 50Hz |
Output delay of deviation pixel | 5ms |
Minimum object contrast | 5% |
SNR | 4 |
Minimum object size | 32*32 pixel |
Maximum object size | 128*128 pixel |
Tracking speed | ±48 pixel/frame |
Object memory time | 100 frames (4s) |
The mean square root values of pulse noise in the object position | < 0.5 pixel |
IR Laser Rangefinder | |
Range | 5~2000 meters |
Resolution | 0.5m |
Working current: | 80mA (max) |
Light Beam | 905nm pulse laser |
Divergent Angle | 3 mrad |
Laser pulse frequency | 1HZ |
Power | < 1 mW (safe for eye) |
Ranging mode | Pulse |
Location Resolving | Latitude and longitude of target |
Ranefinder | Target distance measuring |
Packing Information | |
N.W. | 673g / 912g(Viewport Version) |
Product meas. | 145.9*138*160mm / 146*138*165.7mm(Viewport version) |
Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion |
G.W. | 3017g |
Package meas. | 300*250*200mm |
