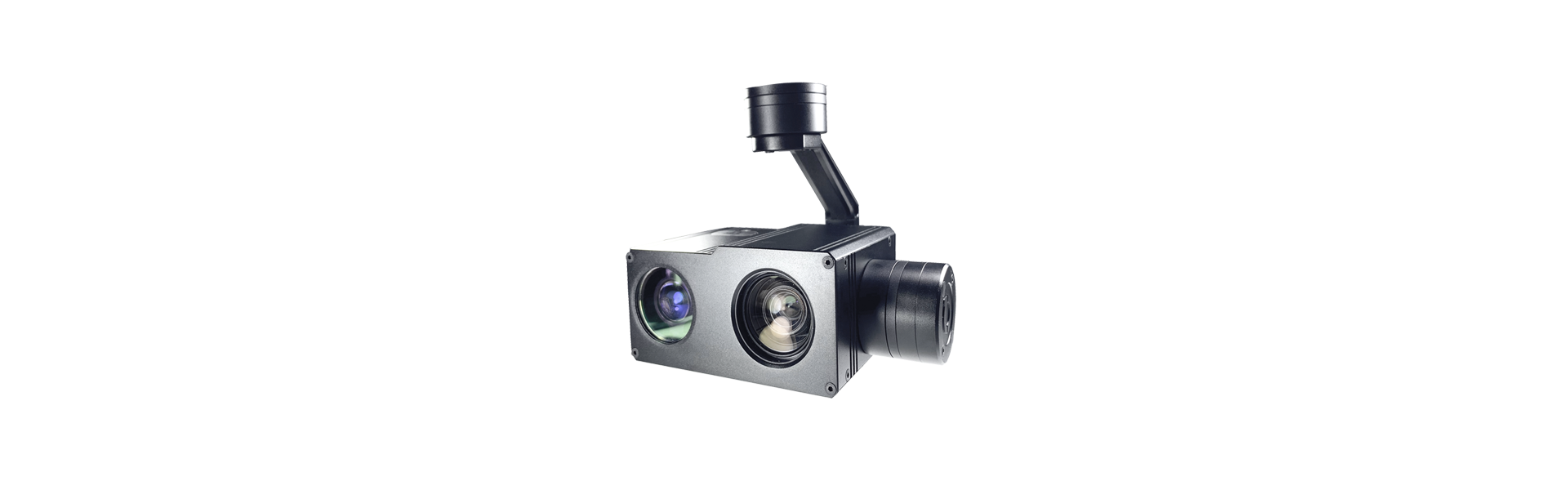

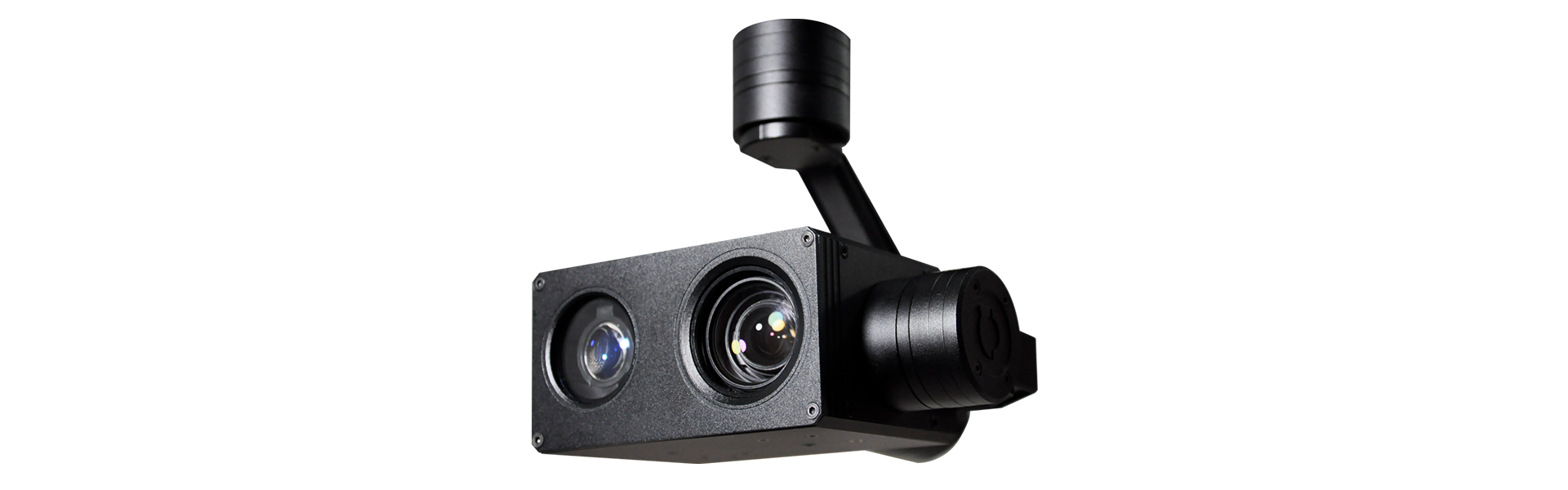

Z10TL is a high-precision professional 3-axis gimbal camera which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor. Ican fulfill many powerful functions, such as: shoots or records with 10 times optical zoom, object tracking, IR laser night vision and so on. The speed of Z10TL gimbal is adjustable, LOW speed mode for tele end, the control will be more accurate. Fast mode for wide end, which makes the gimbal control sensitive and quick. Also the one-key to center function will allow the gimbal return to initial position automatically and rapidly.





10x Optical Zoom Camera, 300m IR Laser Light

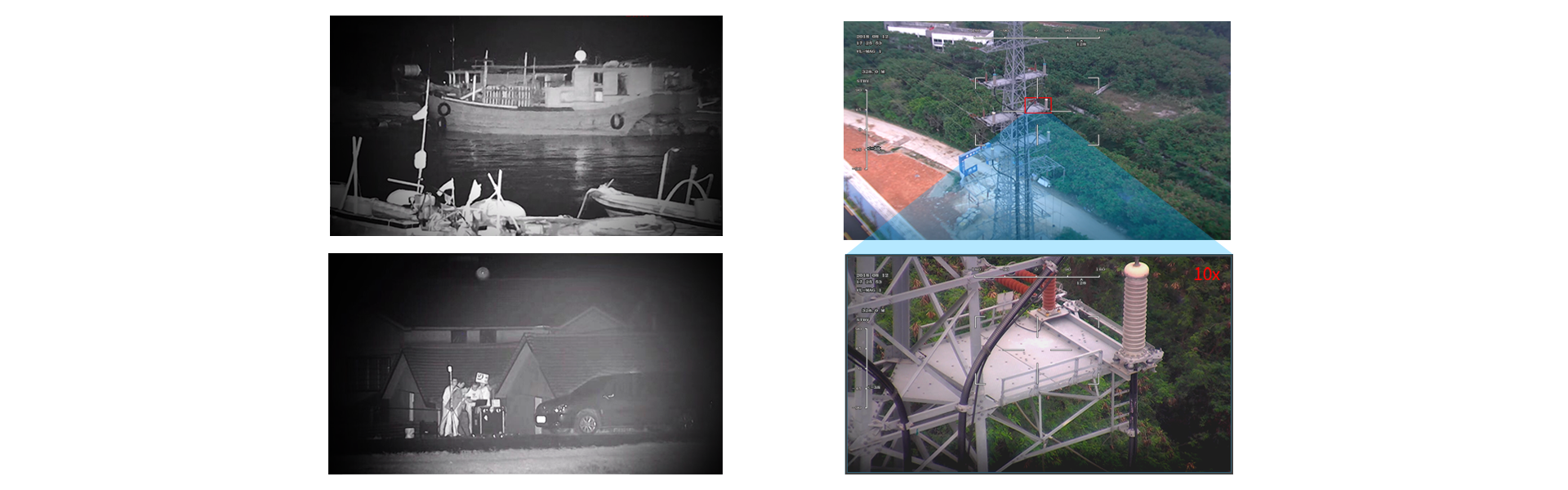

Powered by 1/2.9" CMOS, with color 0.05lux@F1.6, ultra low illumination, Z10TL can still clearly display image features in utter poor light environment. 2mega effective pixel and 1080p HD image quality, combined with powerful optical zoom technology, and 300 meter laser light supplement, the observation range is up to 300 meters even at a pitch black night, which can meet the application requirements of various domains.


Camera Object Tracking

Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.

Applications

"Our primary focus is on supplying equipment for various purposes such as firefighting, power tower maintenance, pipeline inspection, and search and rescue operations. Emergency situations demand a broad spectrum of monitoring and search capabilities to swiftly assess the situation and enhance response efficiency."



Specifications





Hardware Parameter
Working voltage 14V ~ 16V
Input voltage 3S ~ 4S
Dynamic current 1100mA @ 12V
Idle current 800mA @ 12V
Power consumption ≤ 13.2W
Working environment temp. -40 ~ +60
Output  micro HDMI(HD output 1080P 60fps) / Skyport
Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method PWM  / TTL / S.BUS / DJI Polit
Gimbal Spec
Pitch/Tilt ±90°
Roll ±85°
Yaw/Pan ±150° / ±360° (IP/SDI output)
Vibration angle Pitch/Roll: ±0.02°, Yaw±0.03°
One-key to center
Camera Spec
Imager Sensor 1/2.8inch CMOS
Total pixel 2.43MP
Dynamic range 65dB
Lens 5MP
Optical zoom 10x, F=4.7~47mm
Digital zoom 6x
Min object distance 1.5M
Viewing angle Horizontal: 58.7°(Wide end) ~ 3.2°(Tele end)
Vertical: 45°(wide end) ~ 2.4°(tele end)
Focus: 70.9°(wide end) ~ 7.1°(tele end)
Sync system Progressive scanning
Local video 1080P 30fps local TF card
HD output 1080P/720/480P 60fps HDMI1.4
AV output Standard CVBS 1Vp-p
S/N ratio ≥52dB
Min illumination Color 0.05lux@F1.6
Backlight compensation Backlight compensation/strong light inhibition
Gain Auto
White balance Auto/Manual
Shutter speed Auto
Control system UART/IR/PWM
Communication protocol PELCO-D, Hitachi protocol or VISCA
Focus Auto
Focus speed 2s
Lens initialization Built-in
User presetting bit 20 sets
Image rotation 180°, Horizontal/Vertical mirror image
Defog Yes
OSD Yes
Fotoformate JPEG
Videoformate MP4
Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel <10ms
Minimum object contrast 5%
SNR 4
Minimum object size 16*16 pixel
Maximum object size 160*160 pixel
Tracking speed ±32 pixel/frame
Object memory time 100 frames (4s)

The mean square root values of pulse noise in the object position

< 0.5 pixel
Light Supplement
Effective range 300 meters
Light wave length 850 ± 10nm (940nm, 980nm)
Illumination angle power zoom synchronously, 70°~2.0° adjustable
Zoom time 2s (wide end - tele end)
Power consumption of laser chipset 2 ± 0.2W
Illumination angle Tele end 2.0°: effective range 300 meters, spot diameter < 20 meters
Wide end 70°: effective range  40 meters
Working voltage DC12V ± 10%
Power consumption in total < 11W
Control system PWM/TTL
Communication system UART_TTL
Communication protocol PELCO-D (defualt baud rate 9600bps)
Packing Information
N.W. 543g
Product meas. 129.8*117.1*119.8mm
