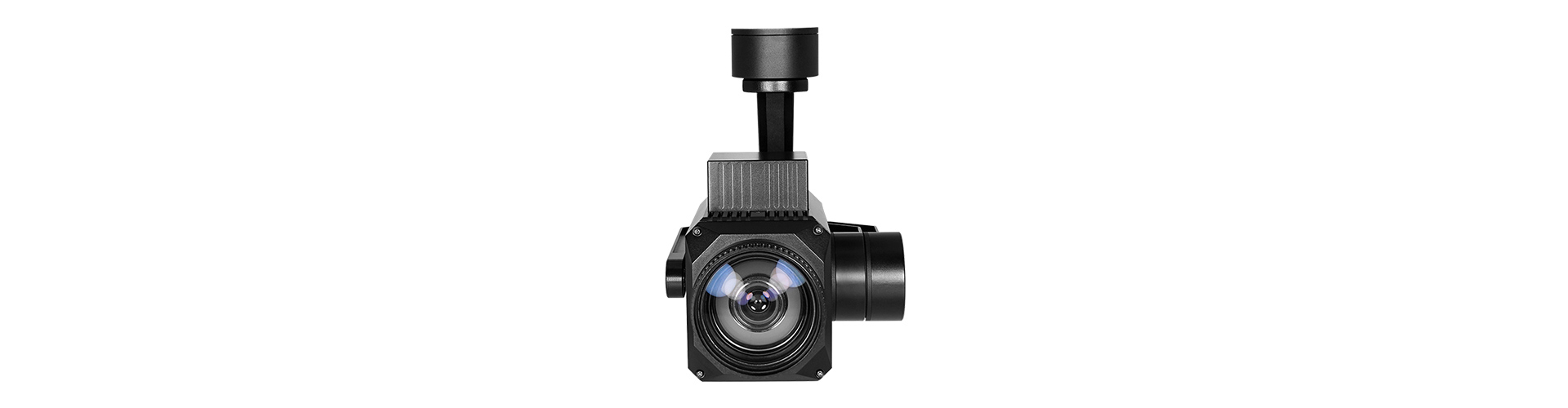

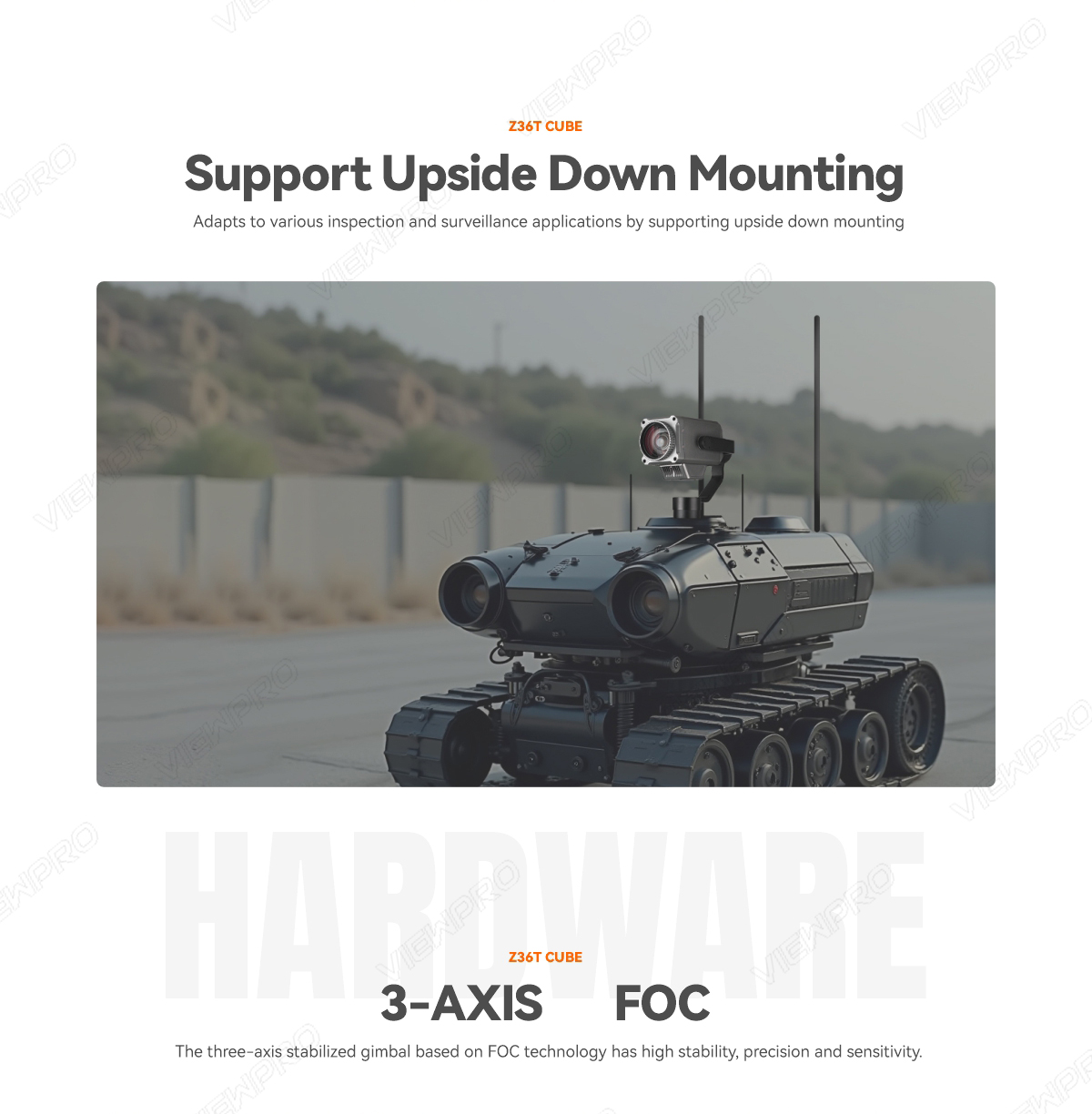

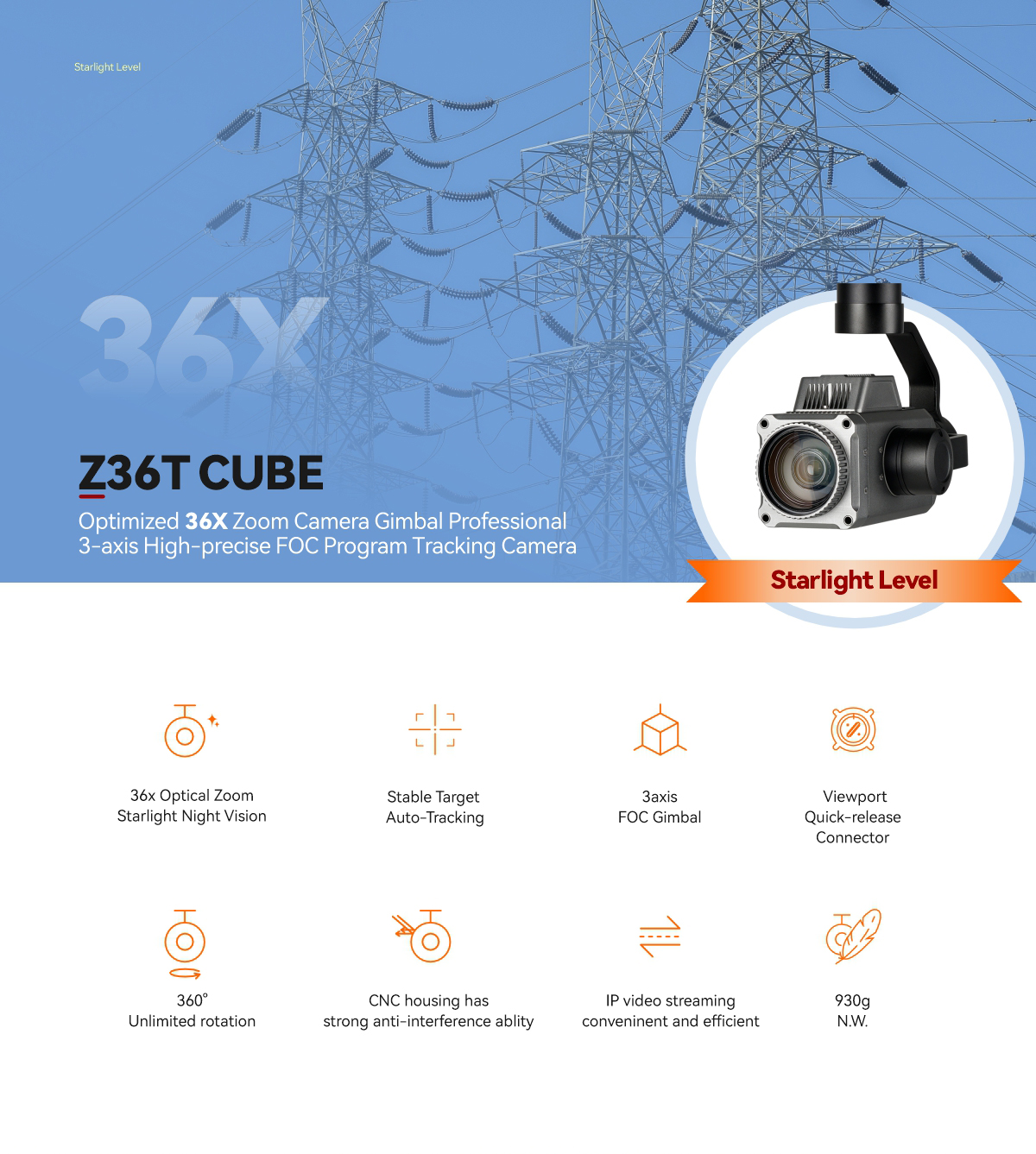

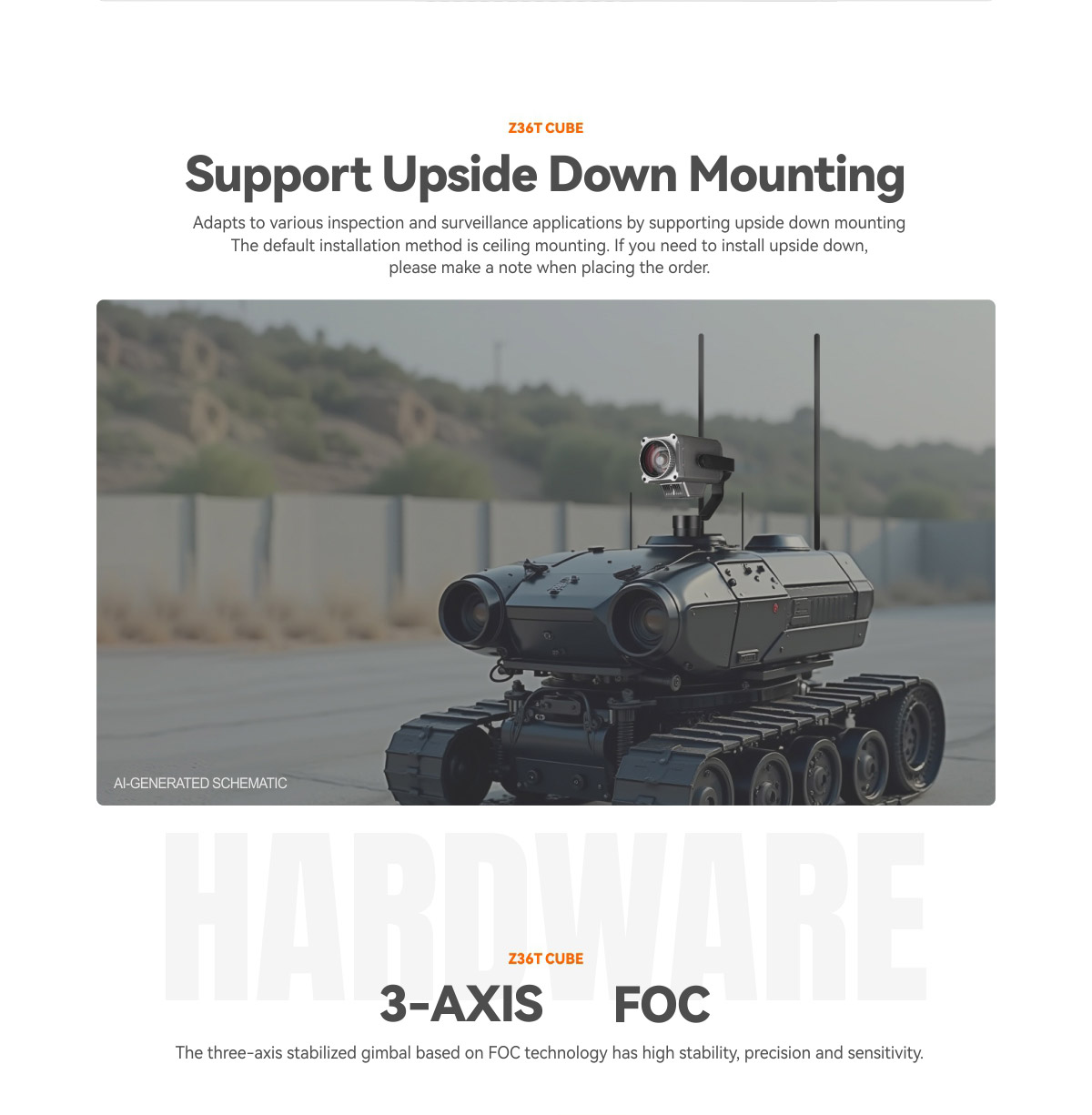

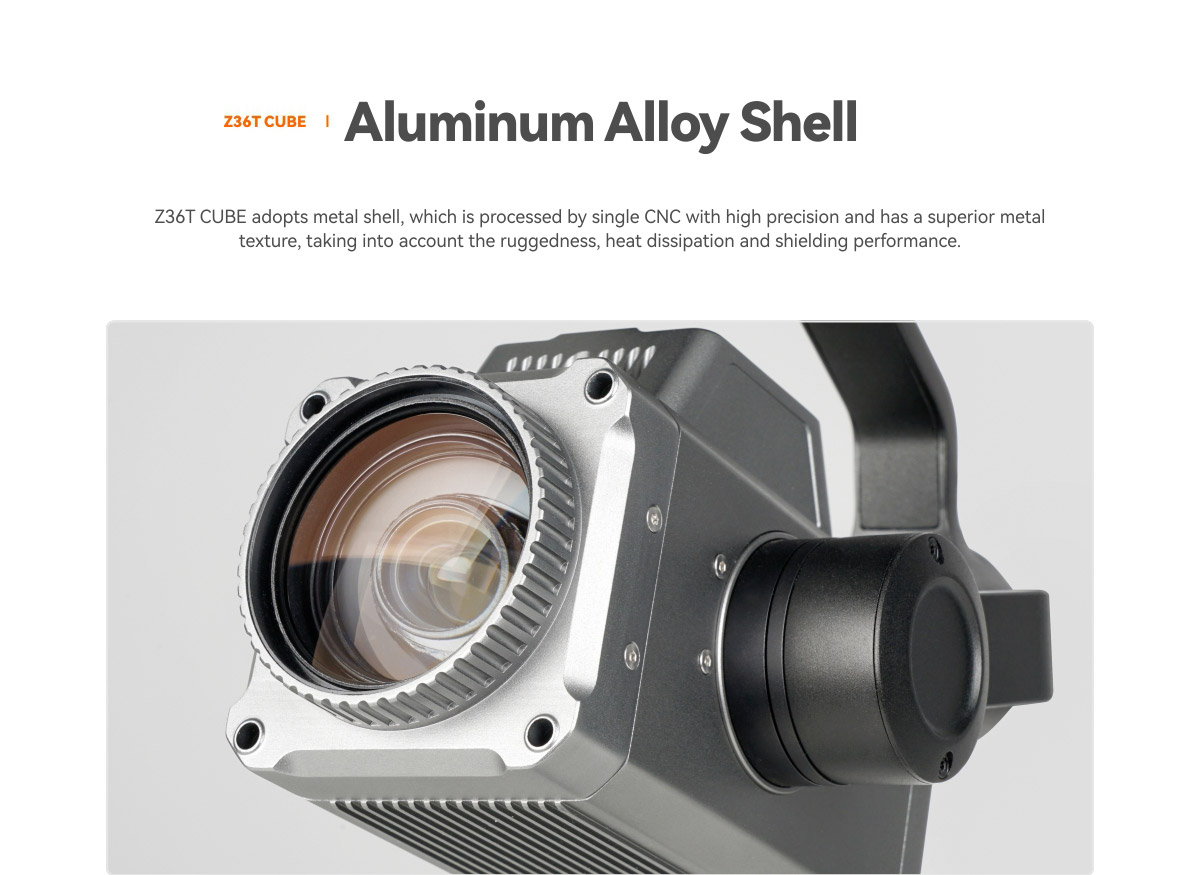

Professional 3-axis High-precise FOC Program

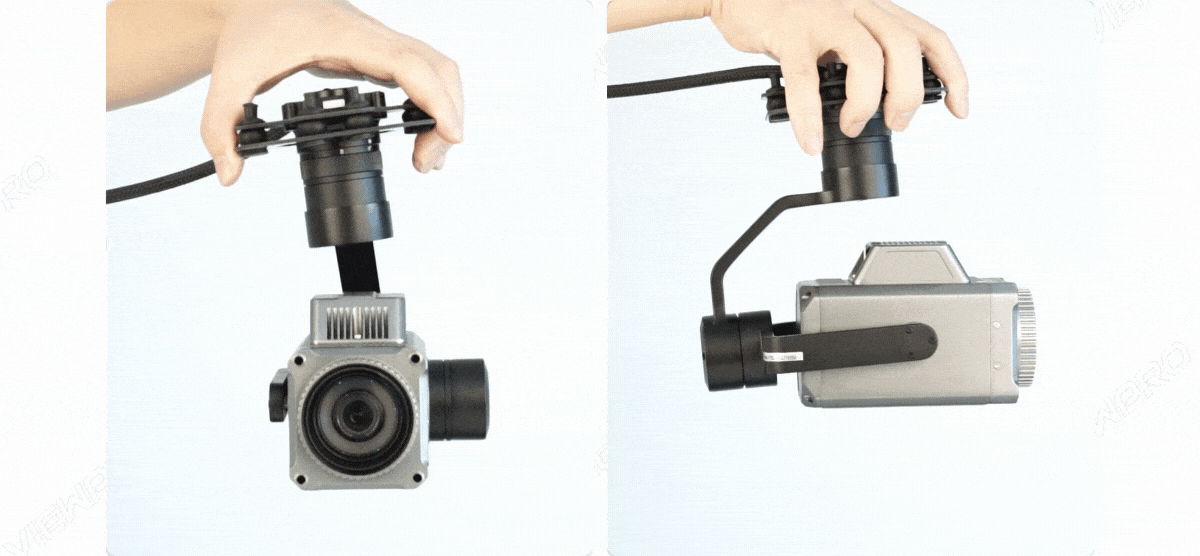

Stabilizing the Z36T cube is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. Rather than rely on electrical slip rings - as is common with many gimbals - the Z36T cube uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video 360°rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even at high speed moving.

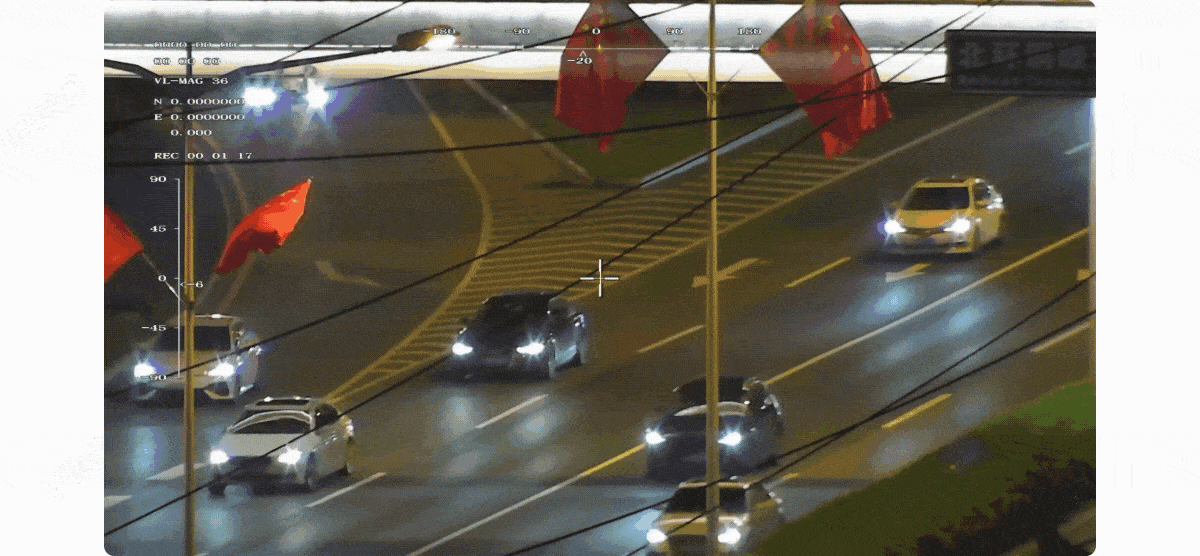

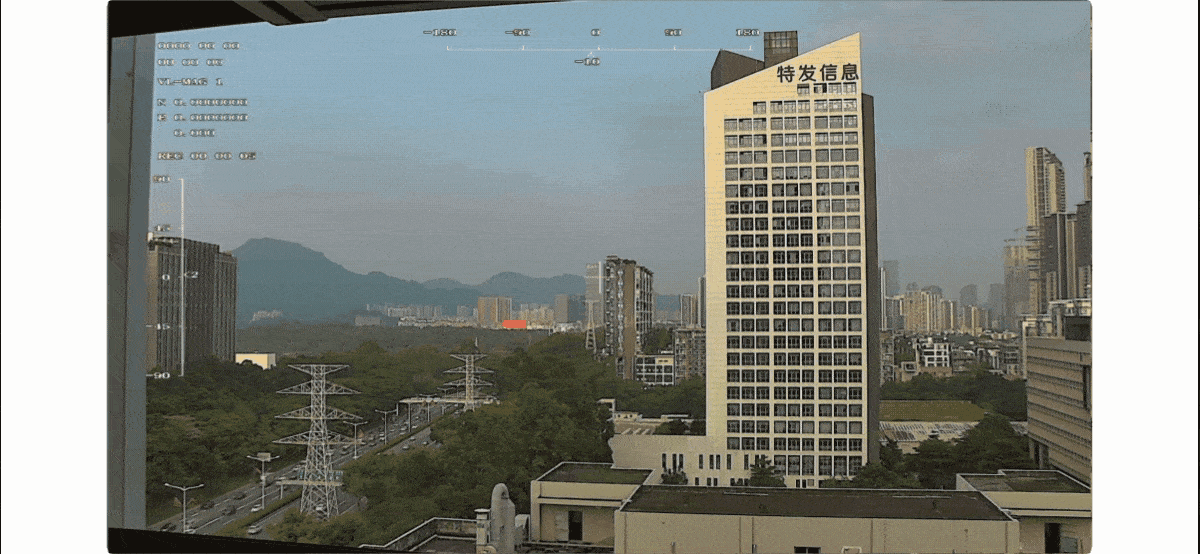

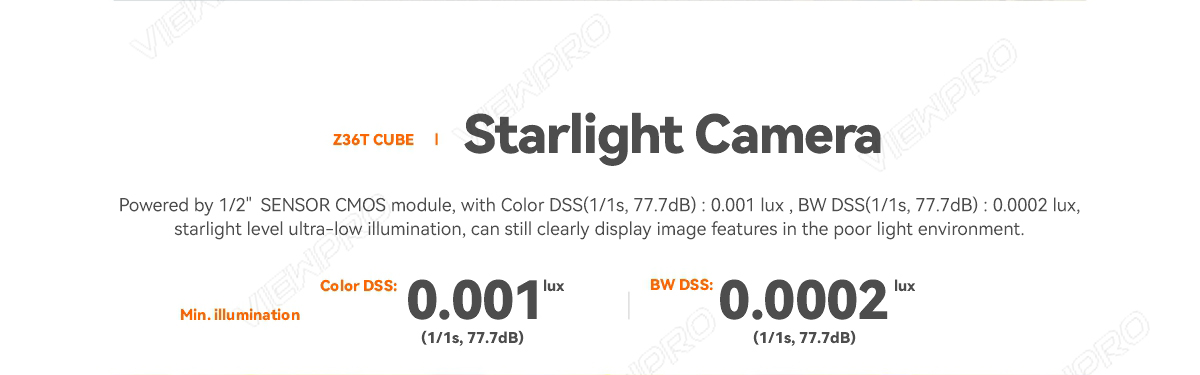

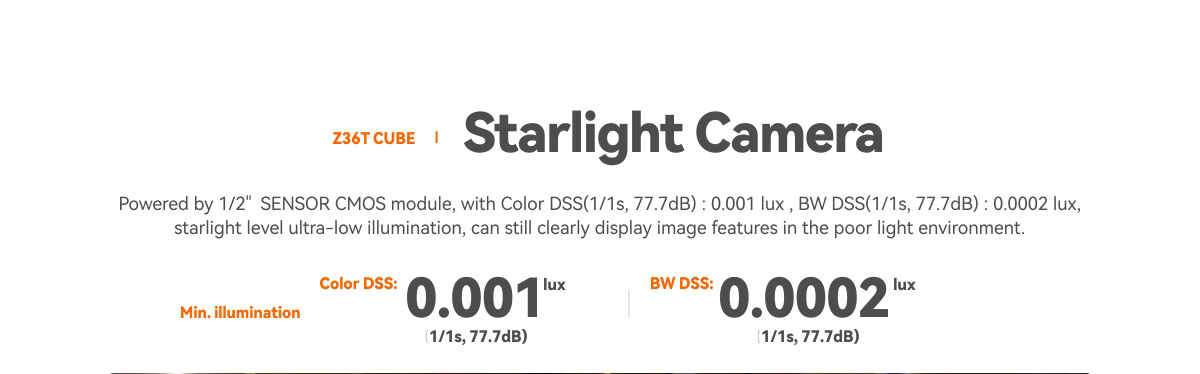

36x Optical Zoom Starlight Camera

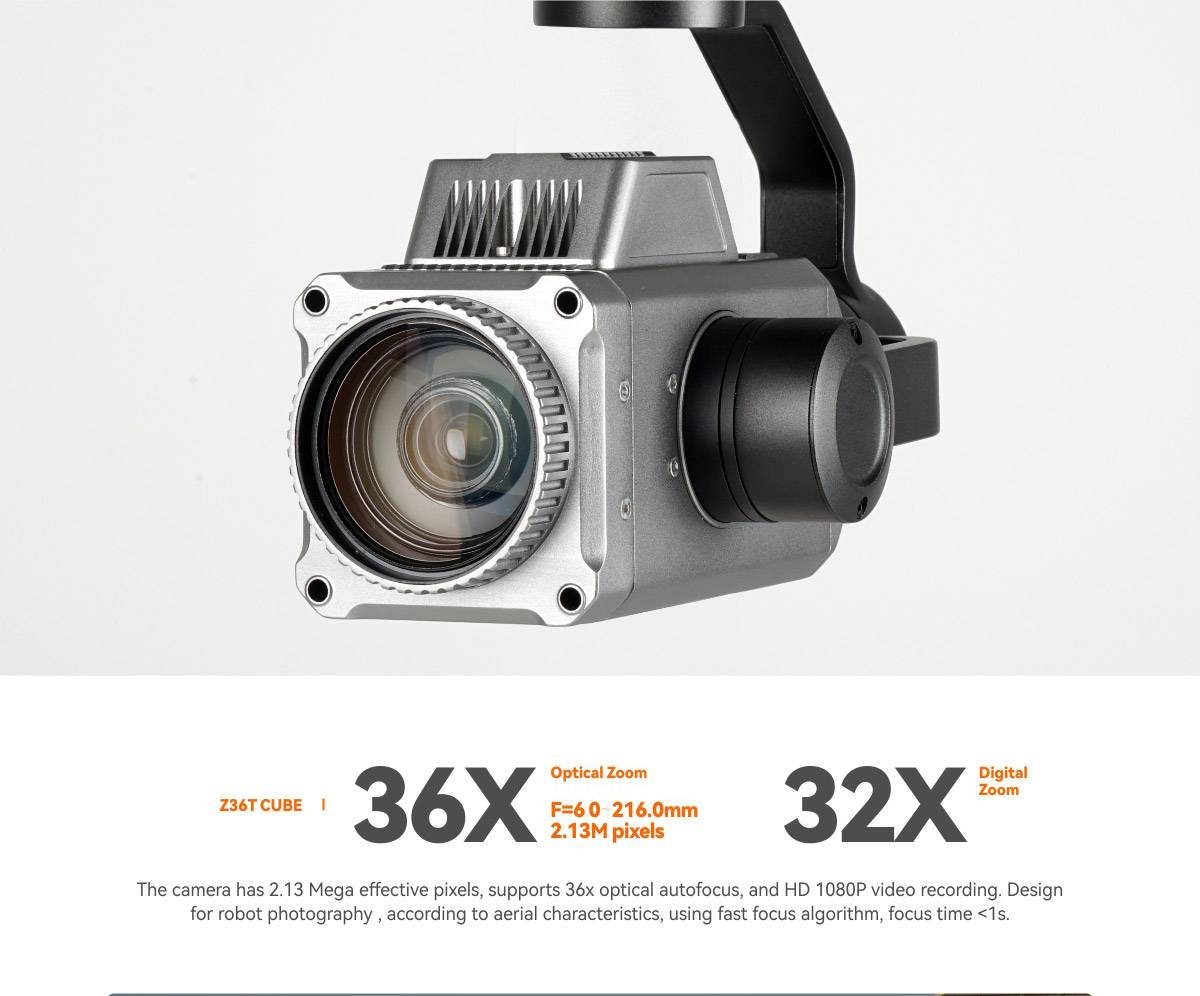

Powered by 1/2’’ Sony IMX385LQR-C SENSOR CMOS module, with color 0.001Lux, B/W 0.0002Lux(1/1s,77.7dB), starlight level ultra-low illumination, can still clearly display image features in the poor light environment.The camera has 2.13 Mega effective pixels, supports 36x optical autofocus, and HD 1080P video recording.

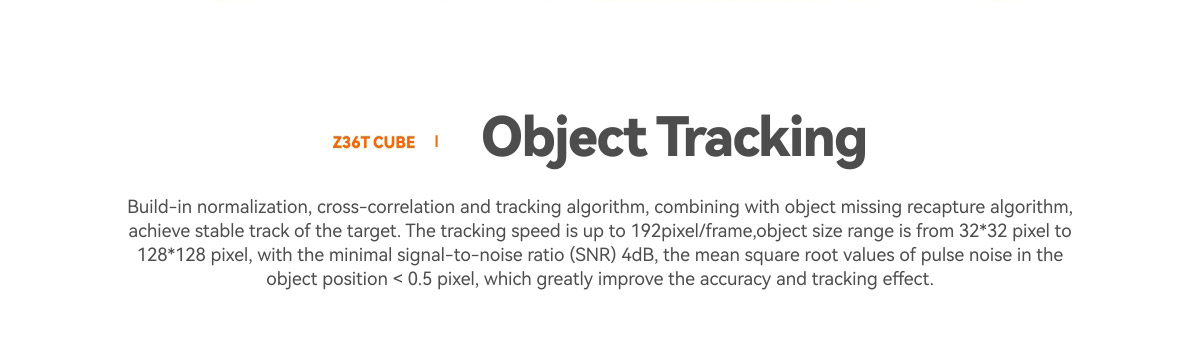

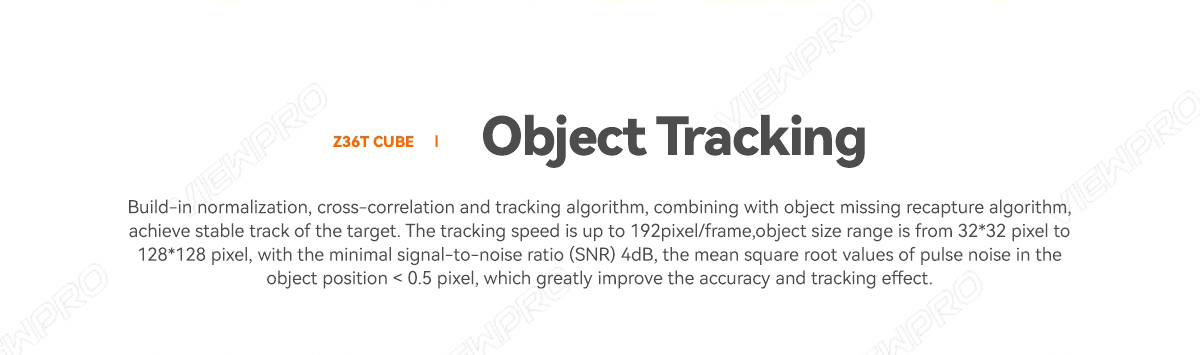

Single Sensor Visible Light Camera Object Tracking

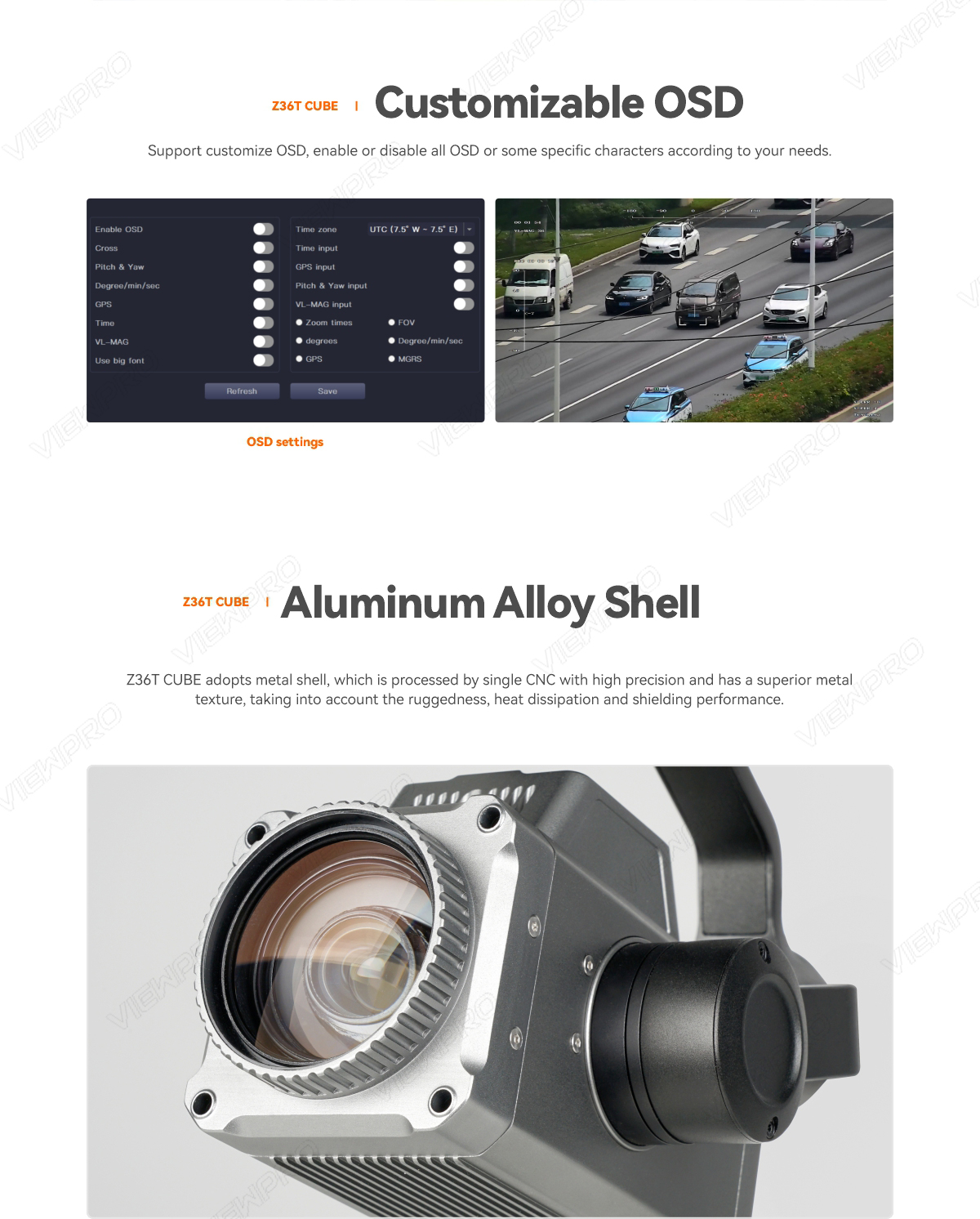

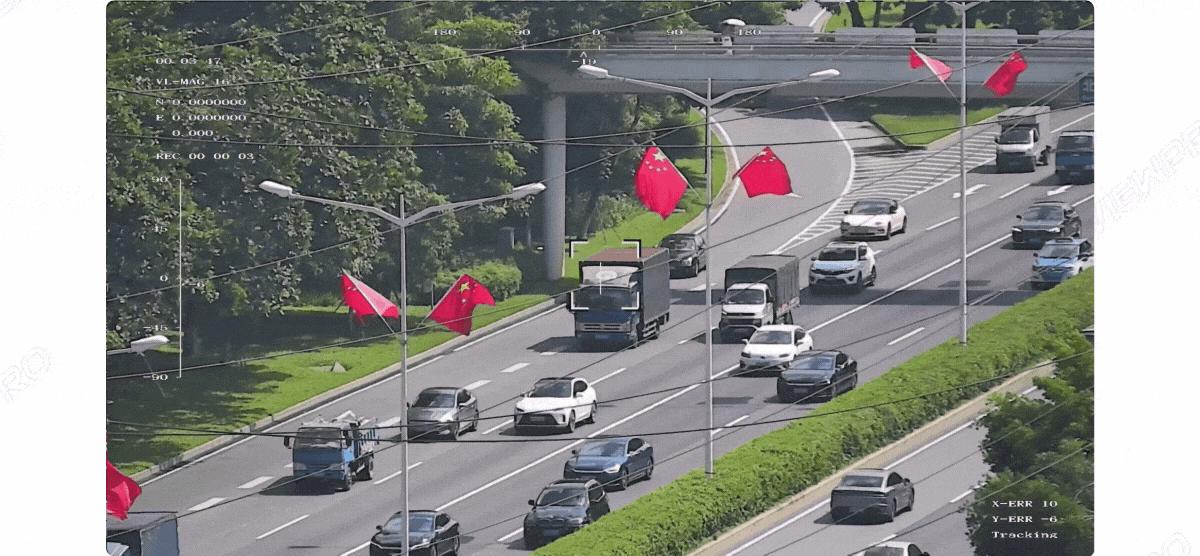

Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 32*32 pixel to 128*128 pixel, with the minimal signal-to-noise ratio (SNR) 4dB, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.

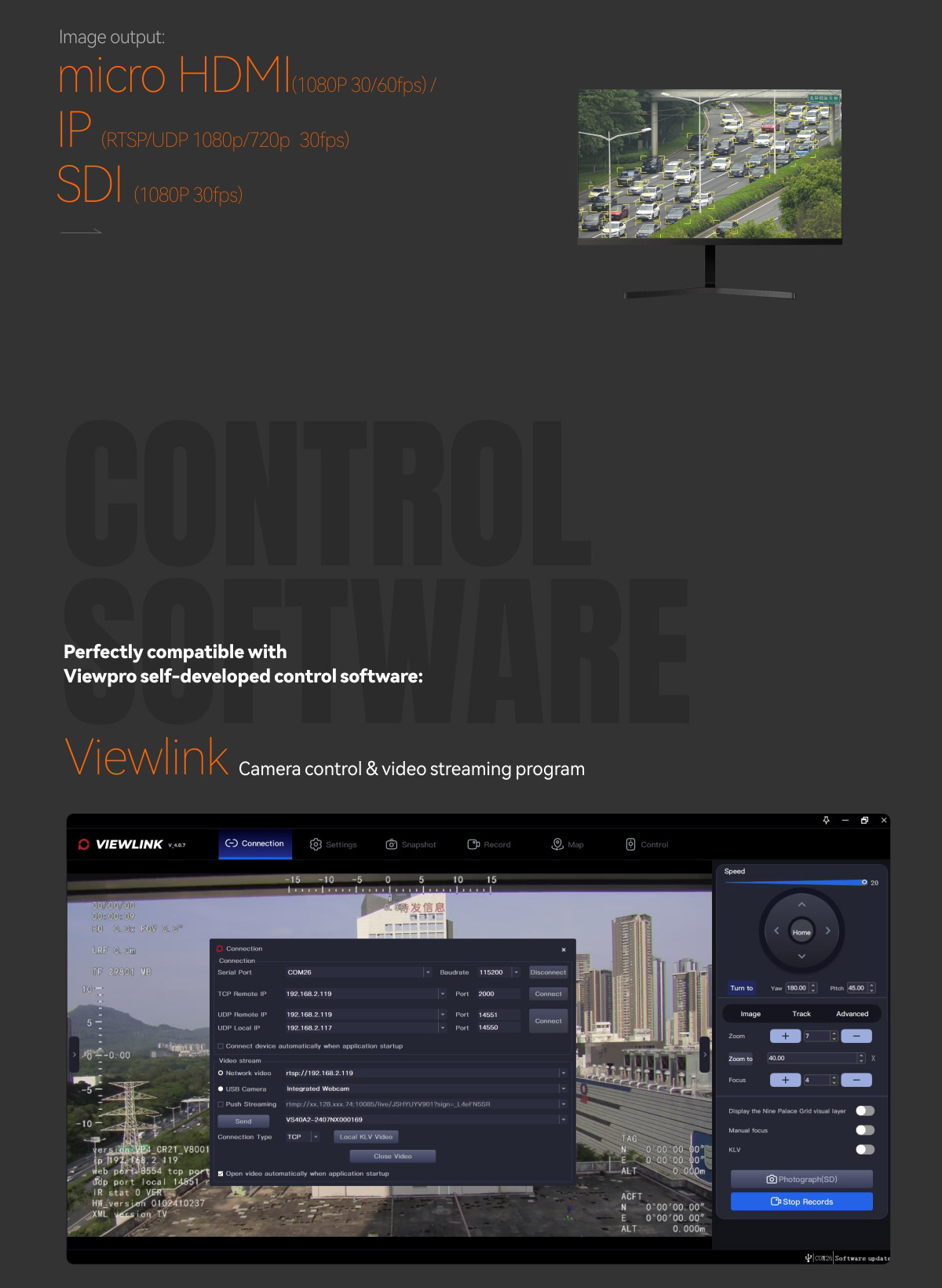

Multi Output Methods Optional



Z36T cube support both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.



Multi Control Methods

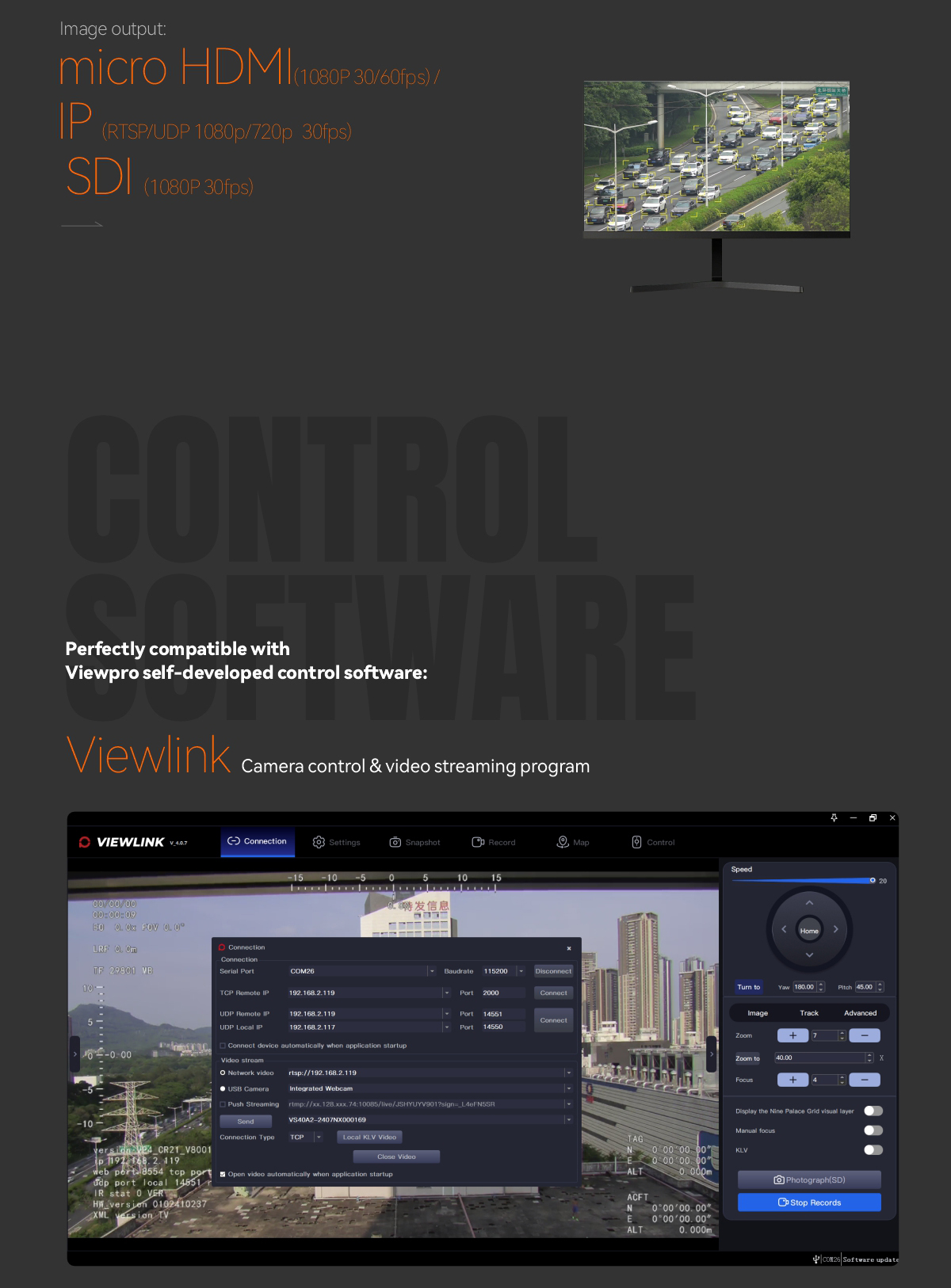

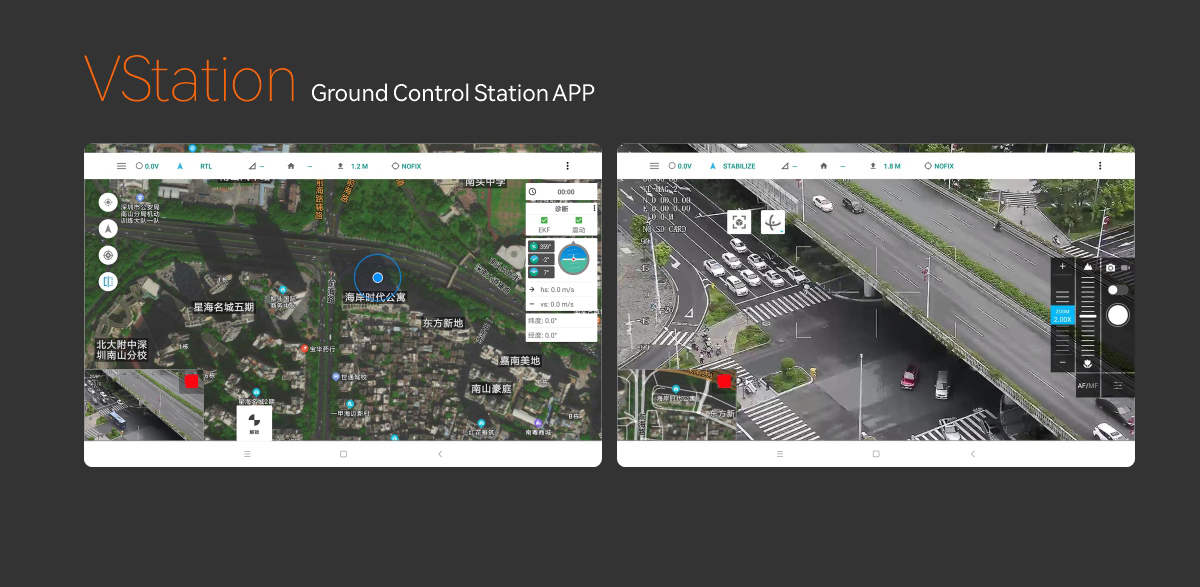

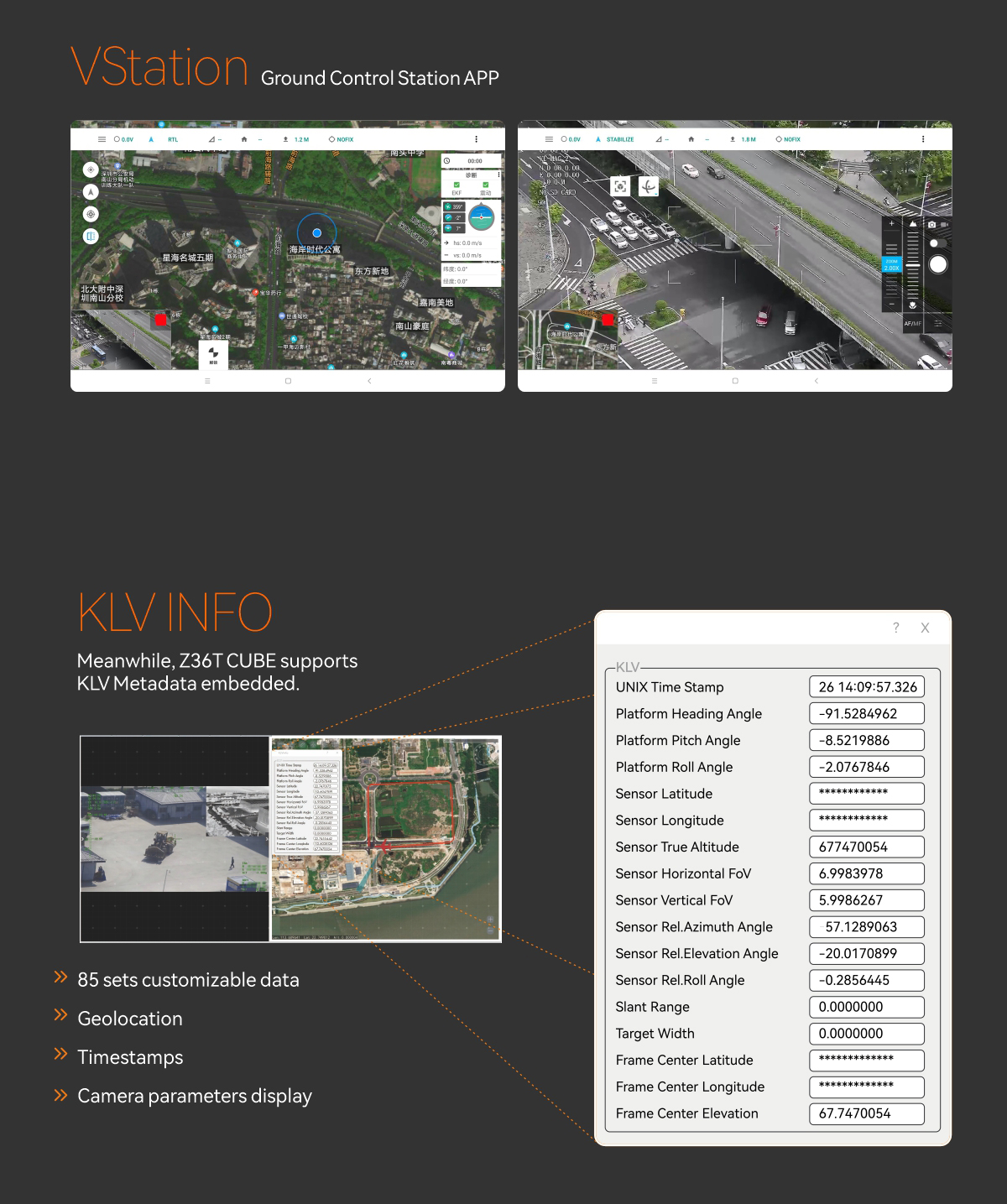

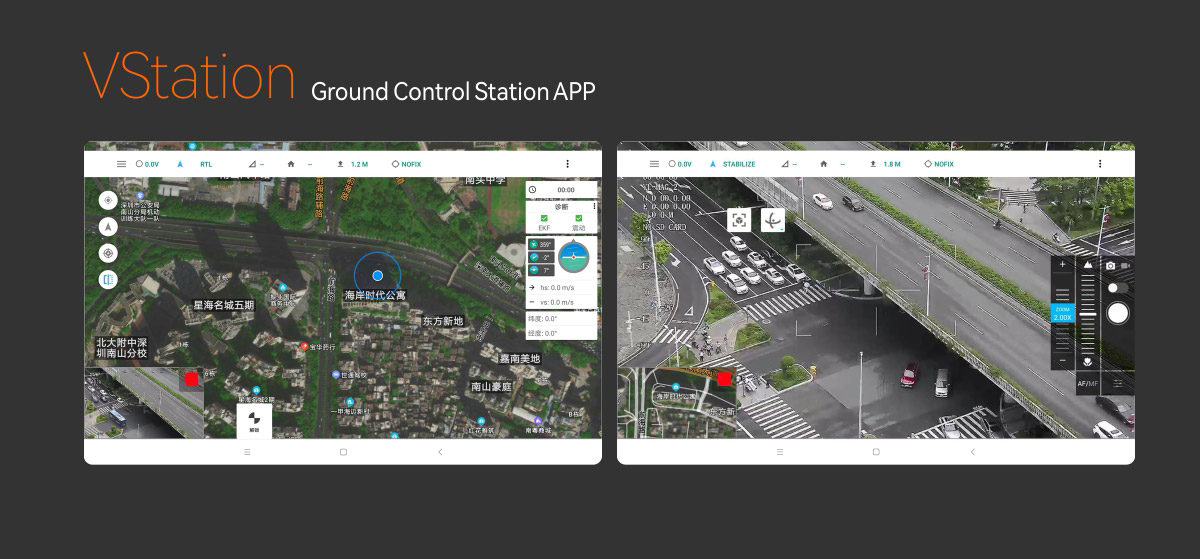

Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.

Control box signal interfaces:

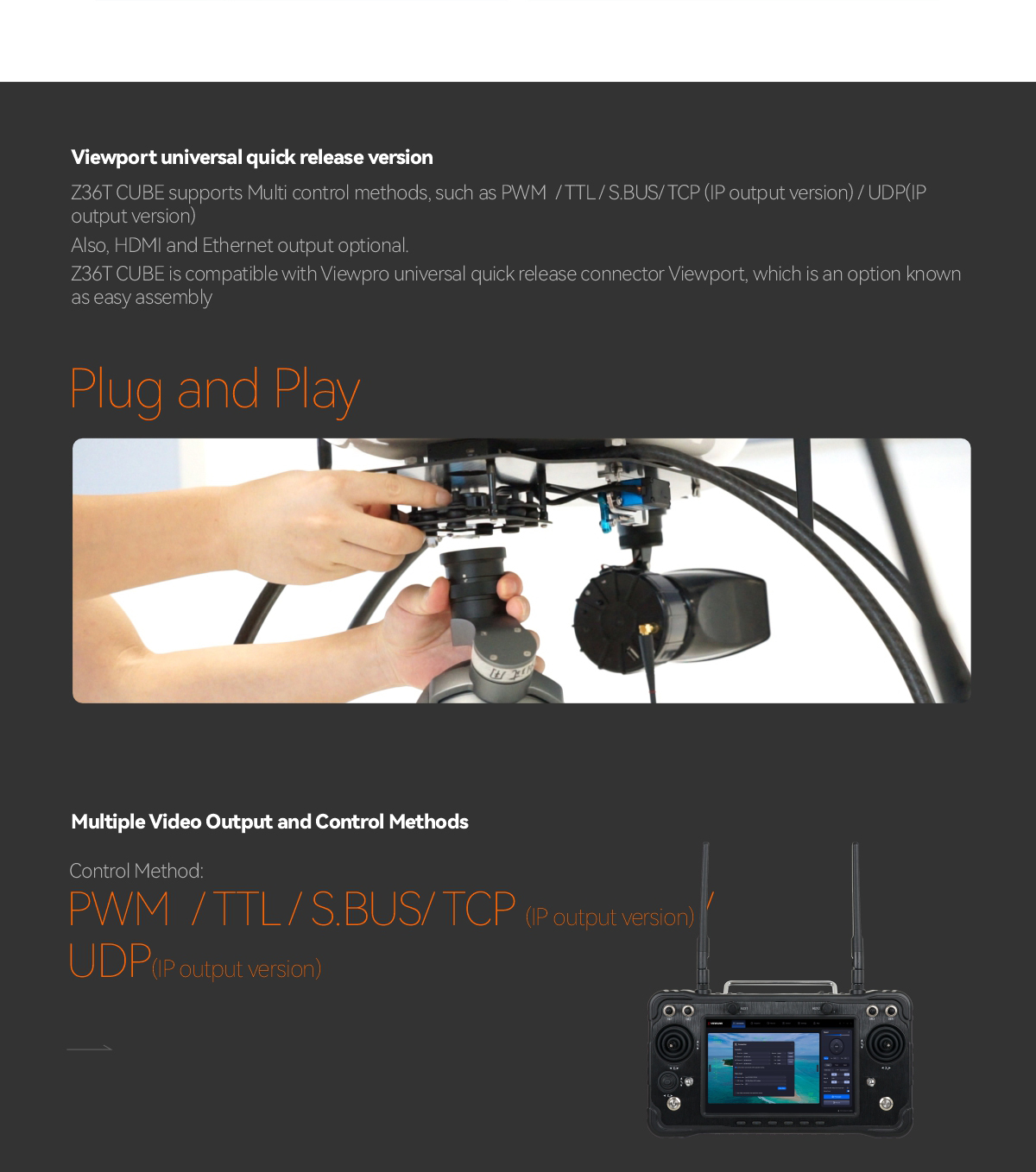

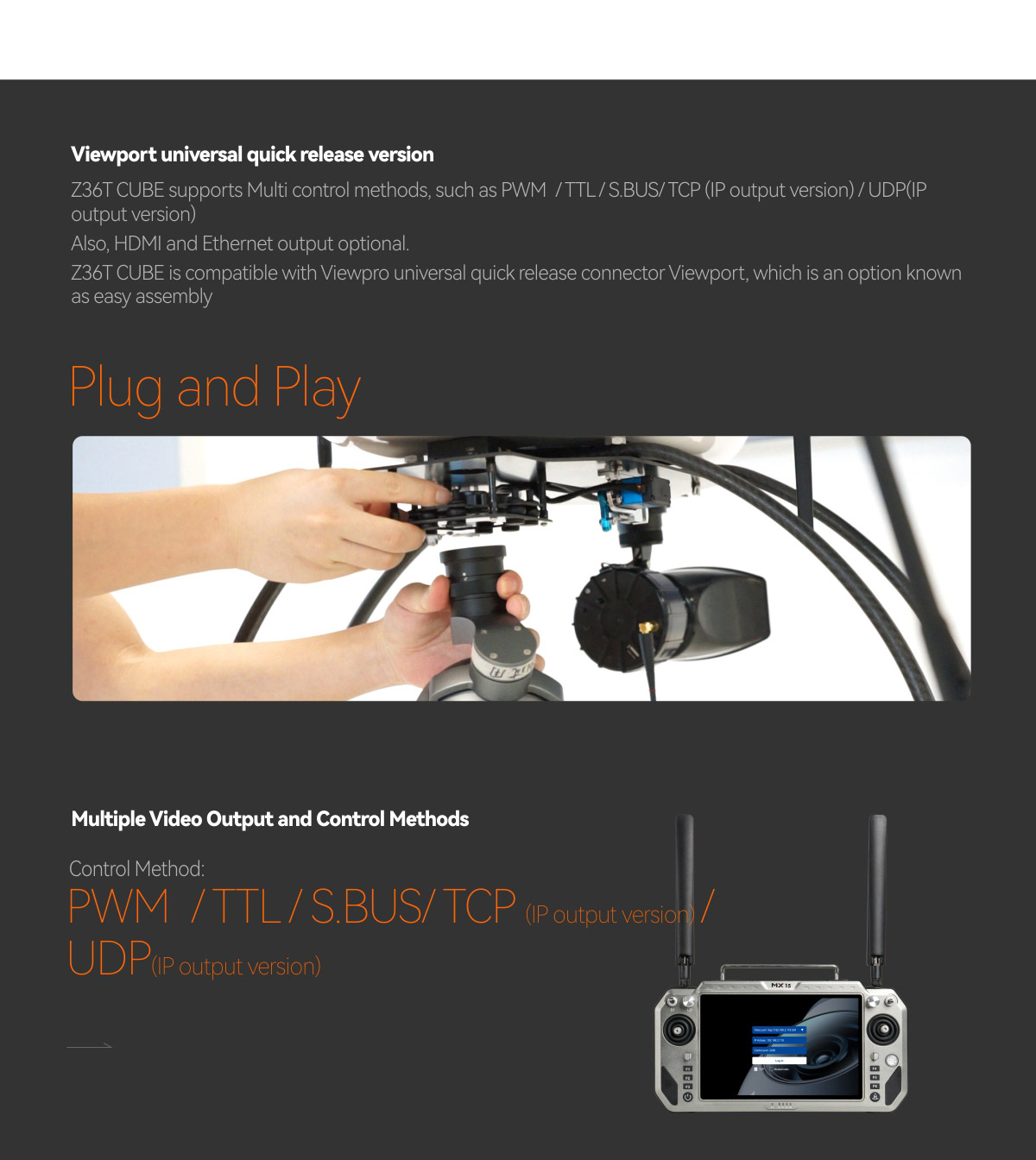

Compatible with Viewport



Z36T cube is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.





Applications

"Our primary focus is on supplying equipment for various purposes such as firefighting, power tower maintenance, pipeline inspection, and search and rescue operations. Emergency situations demand a broad spectrum of monitoring and search capabilities to swiftly assess the situation and enhance response efficiency."

Specifications


Hardware Parameter
Working voltage 16V
Input voltage 4S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 580~1150mA @ 16V
Working environment temp. -20 ~ +60
Output  micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p  25fps/30fps) / SDI (1080P 30fps)
Local-storage SD card (Up to 512G,class 10, FAT32 format)
Photo storage format JPG(1920*1080)
Video storage format MP4  (1080P 30fps)

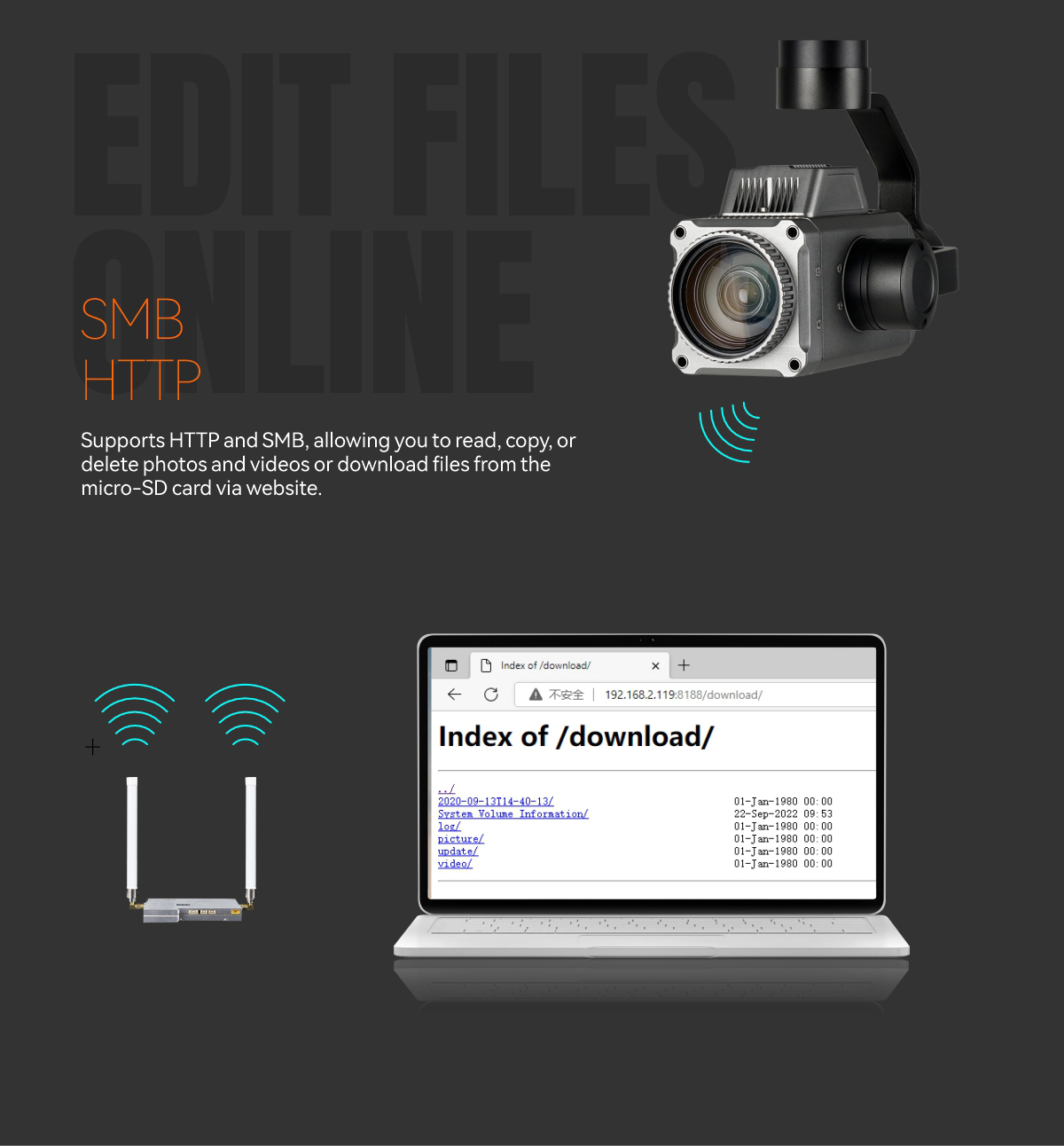

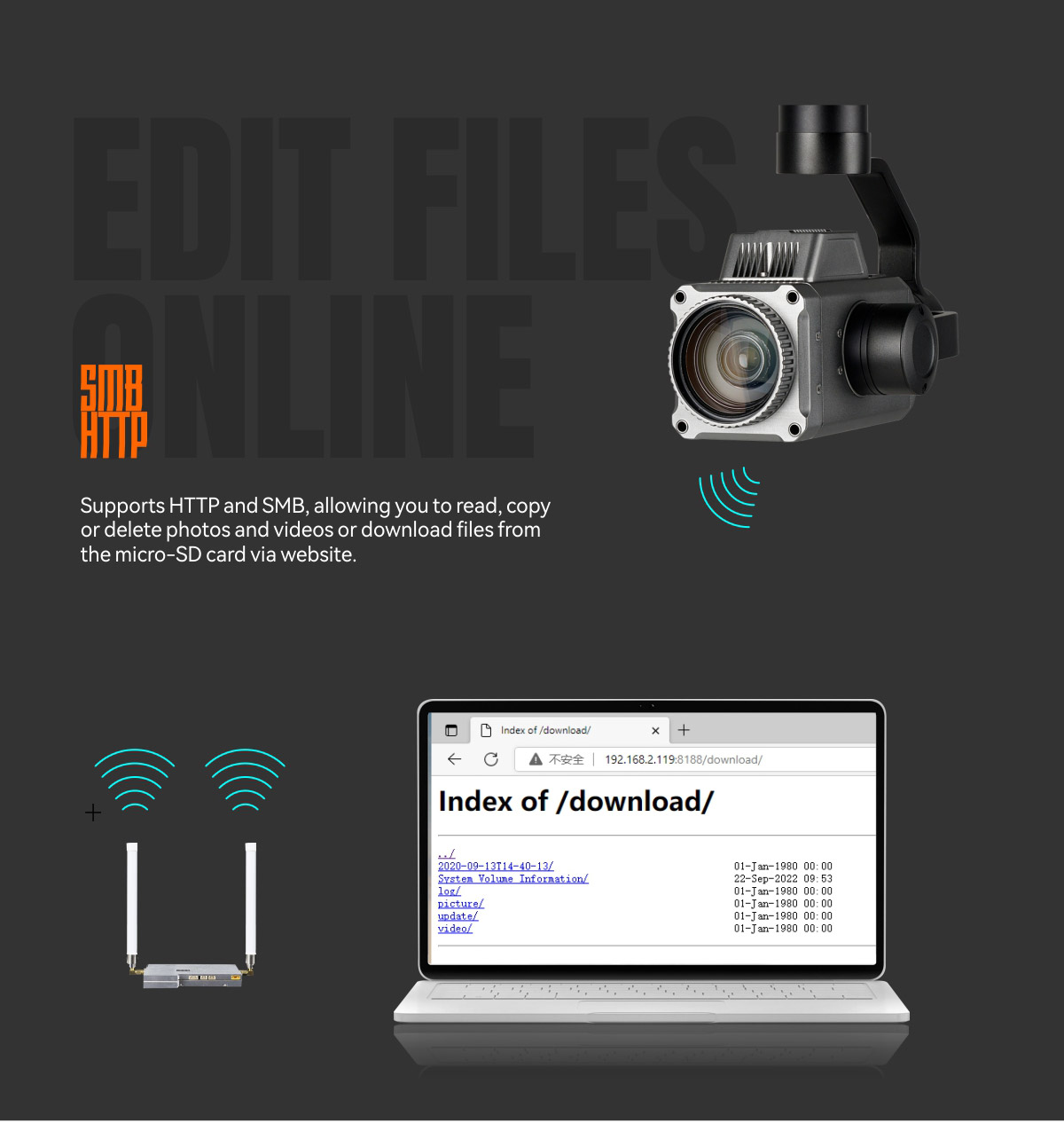

Card reading online SMB read /  HTTP read
Control method PWM  / TTL / S.BUS/ TCP (IP output version) / UDP(IP output version)
Geotagging Support, display time and GPS coordinate in picture exif
Gimbal Spec
Mechanical Range Pitch/Tilt: ±120°,      Roll: ±70°,    Yaw/Pan: ±300° / ±360°*N (IP  output version)
Controllable Range Pitch/Tilt: -45°115°,   Yaw/Pan: ±290° / ±360°*N (IP  output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw±0.02°
One-key to center
Camera Spec
Imager Sensor 1/2" Sony IMX385LQR-C CMOS Sensor
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13M pixels
Lens optical zoom 36x, F= 6.0mm ~ 216.0mm
Digital zoom Digital x32 Zoom
Angle of View (D, H, V) Wide:  63.31°     56.5°     33.63°
Tele:    2.44°       2.12°     1.19°
Sync system Progressive scanning
S/N ratio more than 50dB (AGC off)
Min. illumination (50%) Color(1/30s, 77.7dB) : 0.01 lux , BW(1/30s, 77.7dB) : 0.002lux
Color DSS(1/1s, 77.7dB) : 0.001 lux , BW DSS(1/1s, 77.7dB) : 0.0002 lux
Gain Auto
White balance Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext
Shutter speed 1/30(25) ~ 1/60,000 sec
Brightness 0 ~ 20 steps
Aperture control 0 ~ 20 steps
Defog Yes
OSD Yes
Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel 5ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed ±48 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel

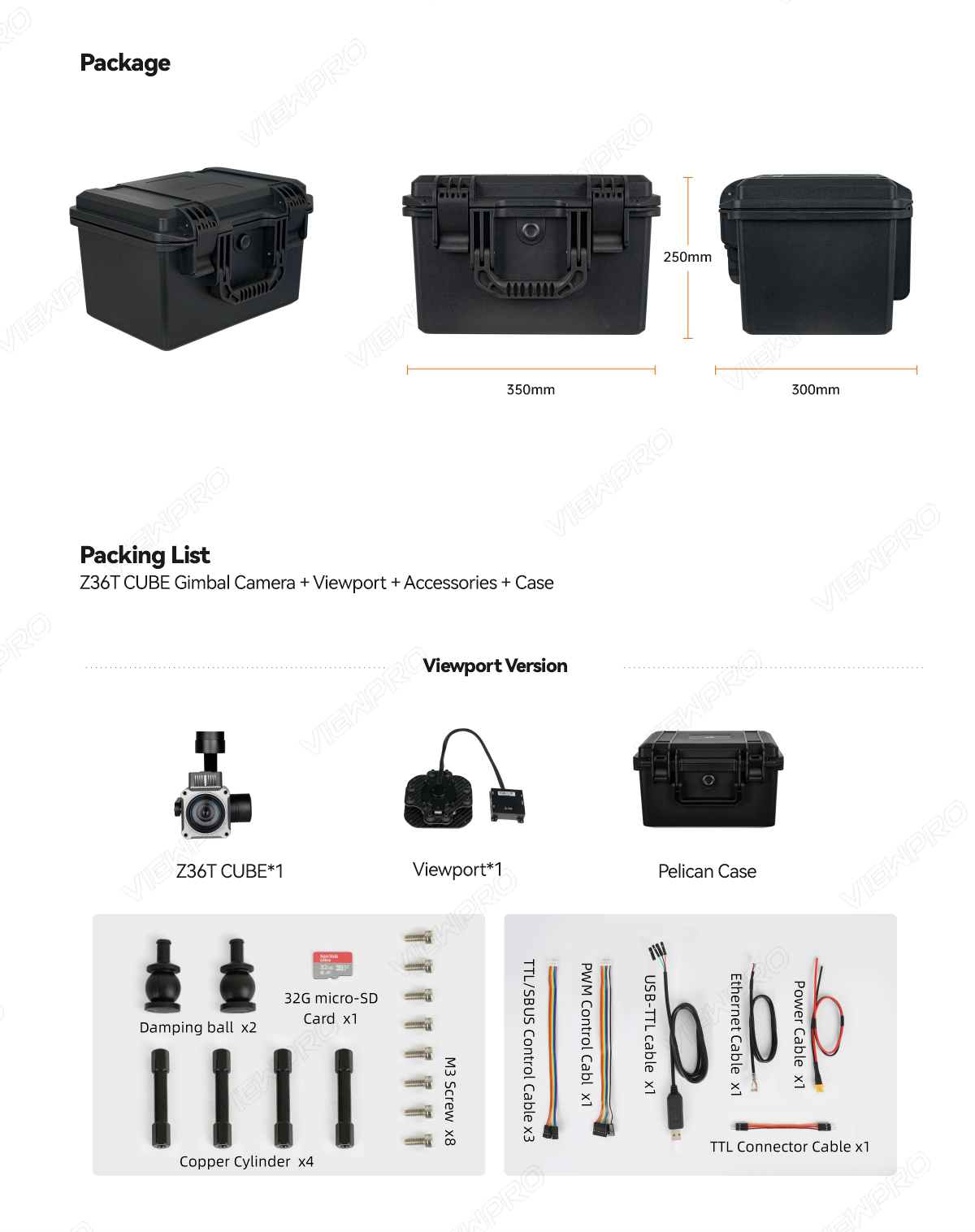

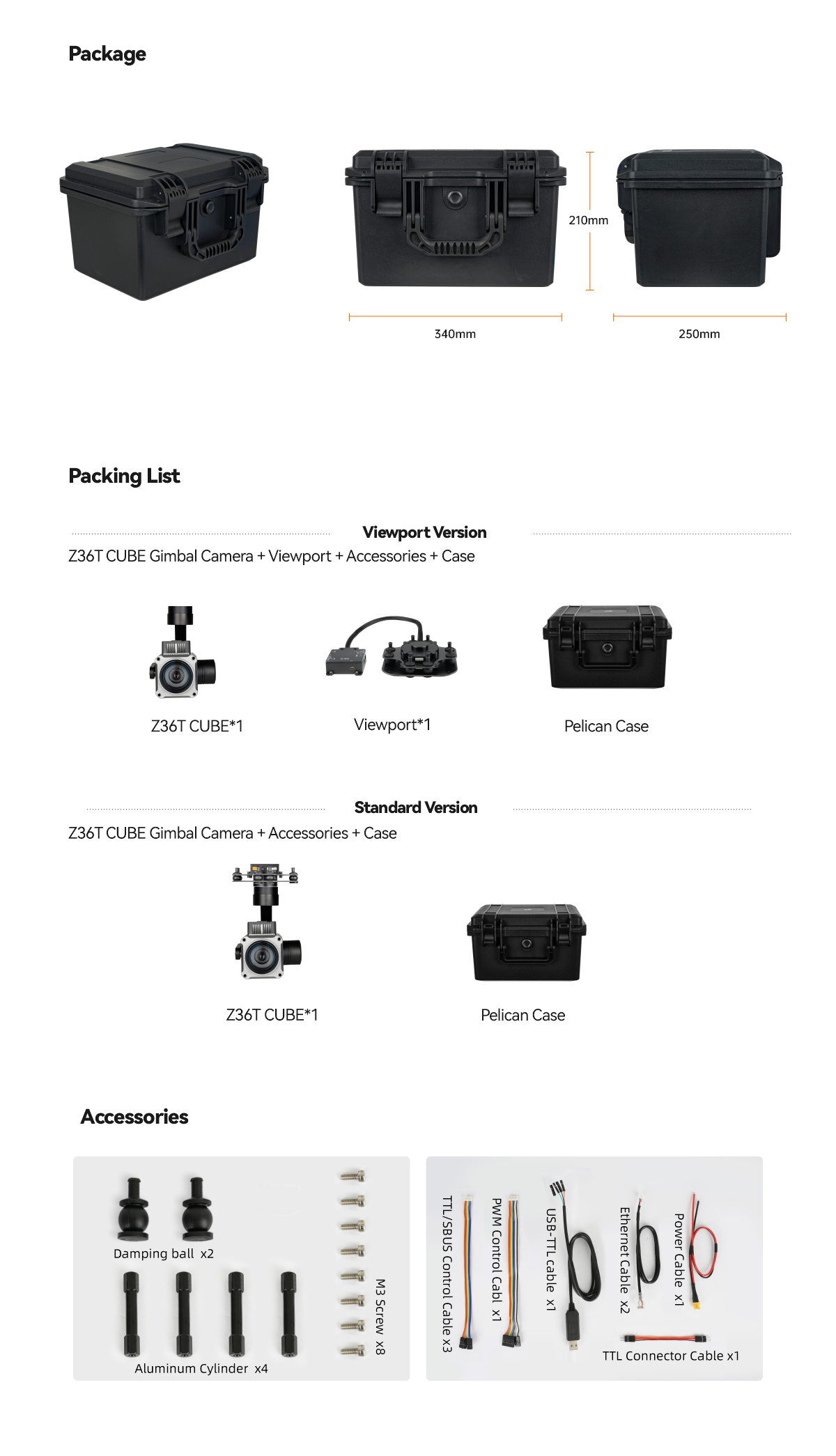

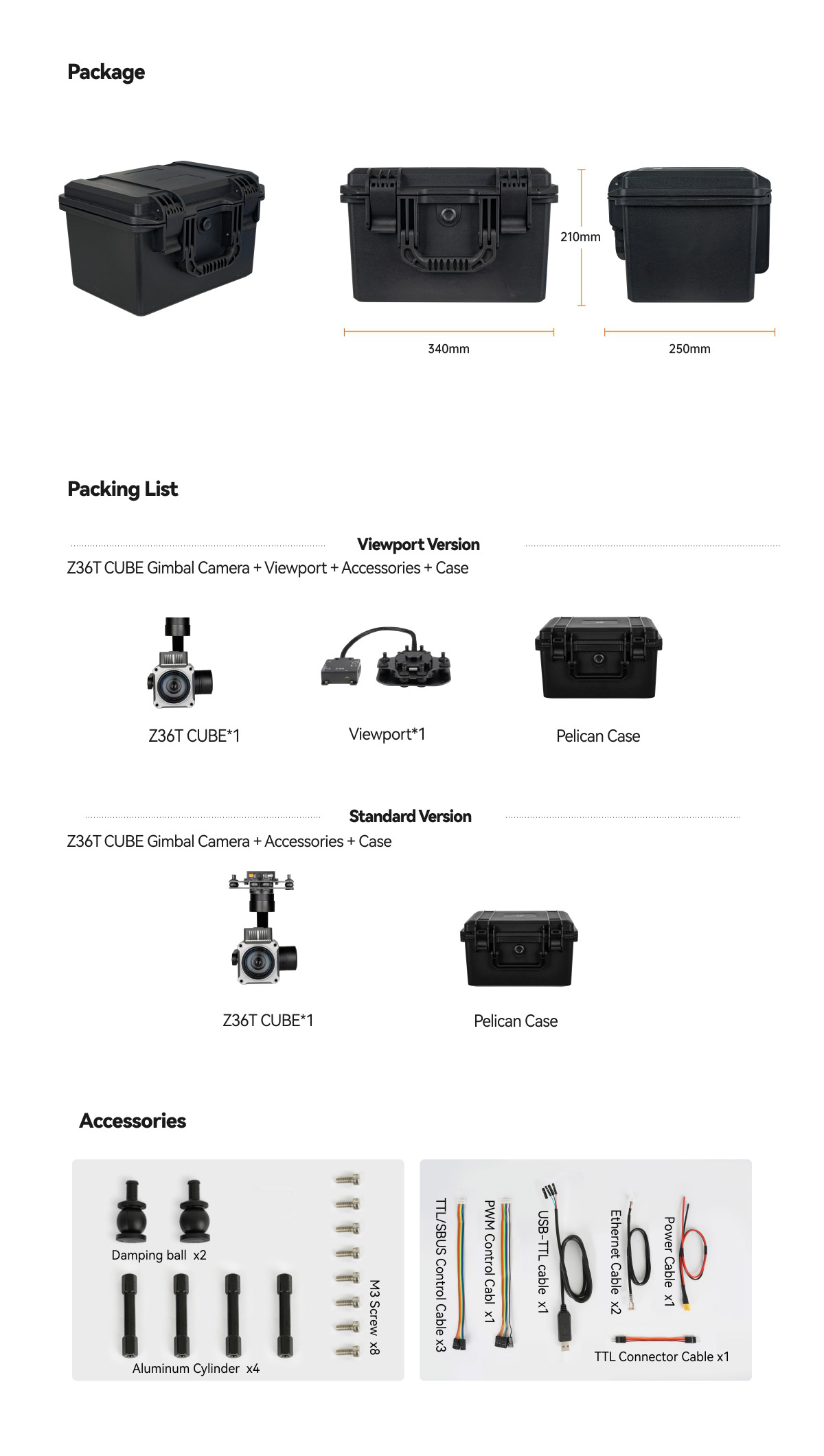

Packing Information
N.W. 930g / 992g(Viewport Version)

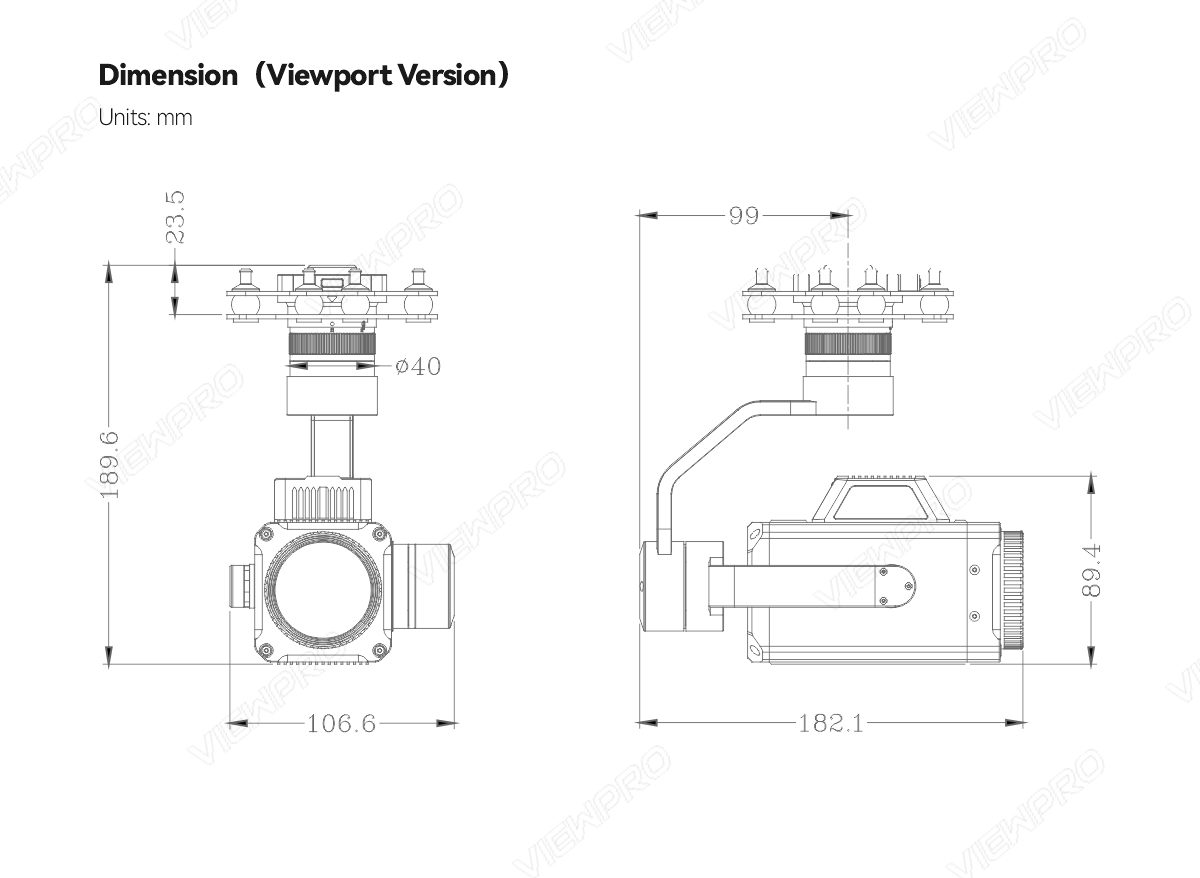

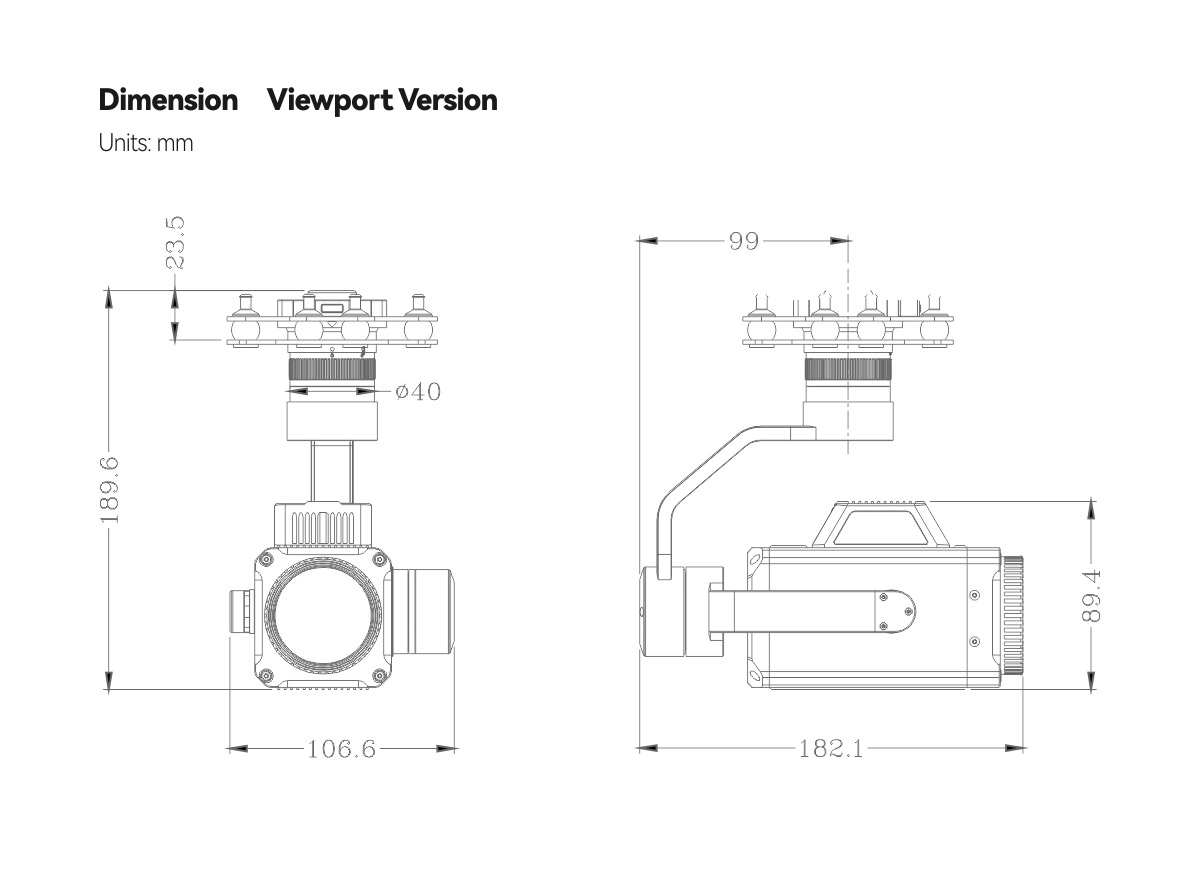

Product meas. 187.6*105.3*180.6mm /187.6*105.3*186.3mm(Viewport Version)
Accessories 1pc gimbal camera device, 16pcs screws,  4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic box with foam cushion
G.W. 3112g
Package meas. 360*300*250mm
