Professional 3-axis High-precise FOC program


Stabilizing the Z30TE is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.02℃ powered by a dedicated processor. Z30TE uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamless smooth video. 300° rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even at high speed movement.

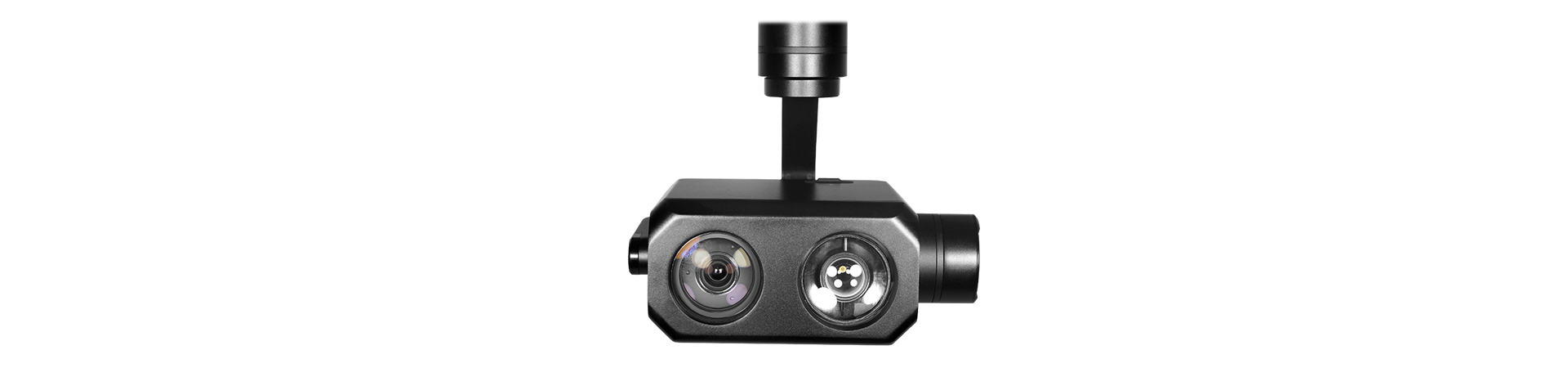

30x Zoom SONY EO Camera

Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, Z30TE can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with powerful 30x optical zoom technology, the observation range is up to 6.5Km.




300m LED Spotlight Illuminaion



Led light supplement combined with 30x optical zoom, the observation range for Z30TE is up to 300 meters, it's easy to find a target and determine its position even at pitch dark night environment. which can meet the application requirements of various domains such as night surveillance, research&rescue, obtain evidence...







Built-in Object Tracking


Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.



Multi Output Methods Optional



Z30TE supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.



Multi Control Methods



Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.



Control box signal interfaces:




Compatible with Viewport



Z30TE is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.







Signal interfaces of Viewport control box:

For more information about Viewport, please check below video instruction:





Applications

"Our primary focus is on supplying equipment for various purposes such as firefighting, power tower maintenance, pipeline inspection, and search and rescue operations. Emergency situations demand a broad spectrum of monitoring and search capabilities to swiftly assess the situation and enhance response efficiency."

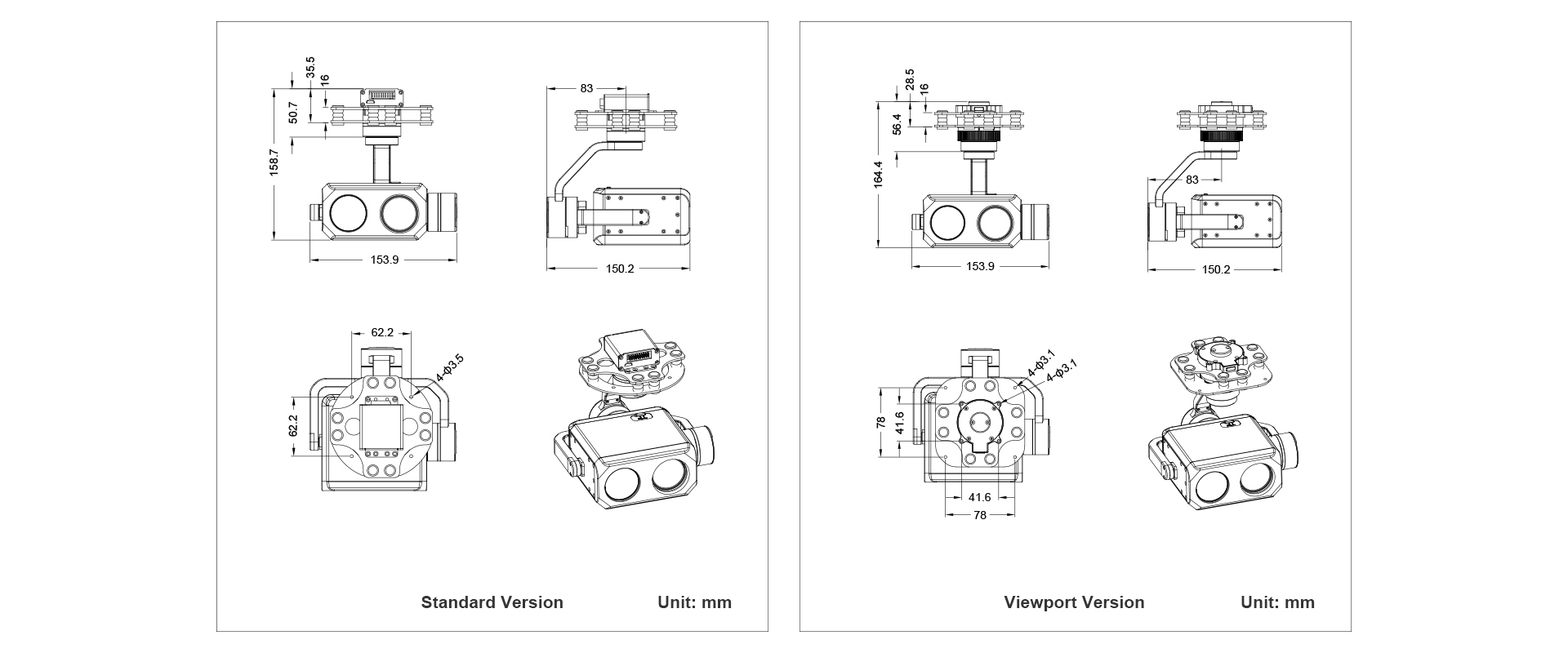

        Dimensions




     Specifications


Hardware Parameter
Working voltage 12V
Input voltage 3S~6S
Output voltage 5V (connect with PWM)
Dynamic current 1700mA @ 12V
Idle current 770mA @ 12V
Working environment temp. -20 ~ +60
Output  micro HDMI(HD output 1080P 60fps) / IP(720P) / DJI Skyport
Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Photo storage format JPG(1920*1080)
Video storage format MP4  (1080P/720P 25fps/30fps)
Control method PWM  / TTL / S.BUS / TCP / DJI Pilot
Gimbal Spec
Angle range of structure design Pitch/Tilt: -50°110°,      Roll: ±55°,    Yaw/Pan: ±300° / ±360°*N (IP  output version)
Angle range of software design Pitch/Tilt: -45°90°,   Yaw/Pan: ±290° / ±360°*N (IP  output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw±0.02°
One-key to center
Camera Spec
Imager Sensor SONY 1/2.8" "Exmor R" CMOS
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13MP
Lens optical zoom 30x, F=4.3~129mm
Digital zoom 12x (360x with optical zoom)
Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle 1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
Sync system Internal
S/N ratio more than 50dB
Min illumination Color 0.01lux@F1.6
Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/
Auto/Outdoor Auto)
Shutter speed 1/1s to 1/10,000s, 22 steps
Backlight compensation Yes
Aperture control 16 steps
Defog Yes
OSD Yes
Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel 5ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed 32 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel
LED Light Supplement
Effective range ≤300 meters
Light color White  6500K    R90
Illumination angle power zoom synchronously, 70°~6.0° adjustable
Zoom time ≤3s (wide end - tele end)
LED power consumption 5W
Lumen value >1000Lm
Illumination angle Tele end 6.0°: effective range <300 meters, spot diameter < 30 meters
Wide end 70°: effective range  40 meters
Working voltage DC12V ± 10%
Power consumption in total <10.0W
Communication system UART_TTL
Communication protocol PELCO-D
Packing Information
N.W. 827g
Product meas. 153.9*150.2*146.8mm
Accessories 1pc gimbal camera device, screws,  copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion
