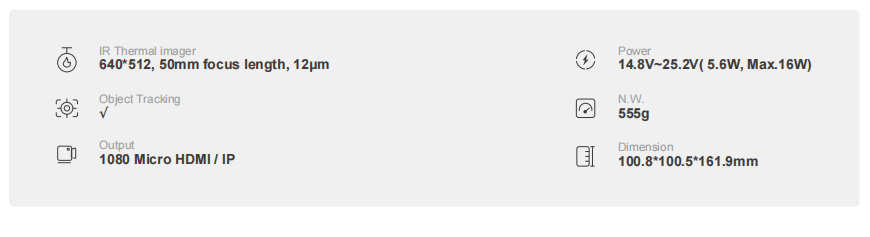

UAT50 is a 50mm thermal imaging 2-axis AI tracking gimbal camera with a thermal imager specification of 640*512, 50mm focal length, and 12μm. It is widely applicable to various industrial and commercial scenarios.
Specification
| Overall Specifications | |
| N.W. | 555g |
| Product meas. | 100.8*100.5*161.9mm |
| Input voltage | 14.8V~25.2V |
| Dynamic current | 350mA~1000mA @ 16V |
| Power consumption | Average 5.6W, Max 16W |
| Working environment temp. | -20℃ ~ +50℃ |
| IP Rating | IP4X |
| Output | Micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps H264/H265) |
| Storage | TF card (Up to 256G,class 10, FAT32) |
| Picture in TF Card | JPG(1920*1080) |
| Video in TF Card | MP4(1080P@30fps) |
| Control method | PWM / S.BUS / UART (TTL) / TCP / UDP |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: ±120°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range | Pitch/Tilt: -45°(Up)～100°(Down), Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Yaw: ±0.02° |
| One-key to center | √ |
| IR Thermal Imager Spec | |
| Focus Length | 50mm |
| Horizontal FOV | 8.8° |
| Vertical FOV | 7.0° |
| Diagonal FOV | 11.2° |
| Detective Distance (Man: 1.8x0.5m) | 2083 meters |
| Recognize Distance (Man: 1.8x0.5m) | 521 meters |
| Identification Distance (Man: 1.8x0.5m) | 260 meters |
| Detective Distance (Car: 4.2x1.8m) | 6389 meters |
| Recognize Distance (Car: 4.2x1.8m) | 1597 meters |
| Identification Distance (Car: 4.2x1.8m) | 799 meters |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel pitch | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤35mK@F1.0 @25℃ |
| Color palette | White hot,black hot,Iron red |
| Digital zoom | 1x ~ 8x |
| Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixels (at 1080P resolution). The target size is positively correlated with the resolution. |
| Maximum object size | Unrestricted |
| Tracking speed | ≤ 0.25 * target size / frame |
| Object memory time | Default is 2 seconds (customizable, 2-4 seconds recommended) |
| Camera AI Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | ≥ 100 targets |
| Min contrast ratio | 5% |
| Min target size | 20*10 pixels (at 1080P resolution), the recognized target size is linearly and positively correlated with the resolution. |
| Car detection rate | ≥85% |
| False alarm rate | ≤10% |
