| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S (14.8V~25.2V) |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 650~1250mA @ 16V |
| Power consumption | Average 10.4W, Max 20W |

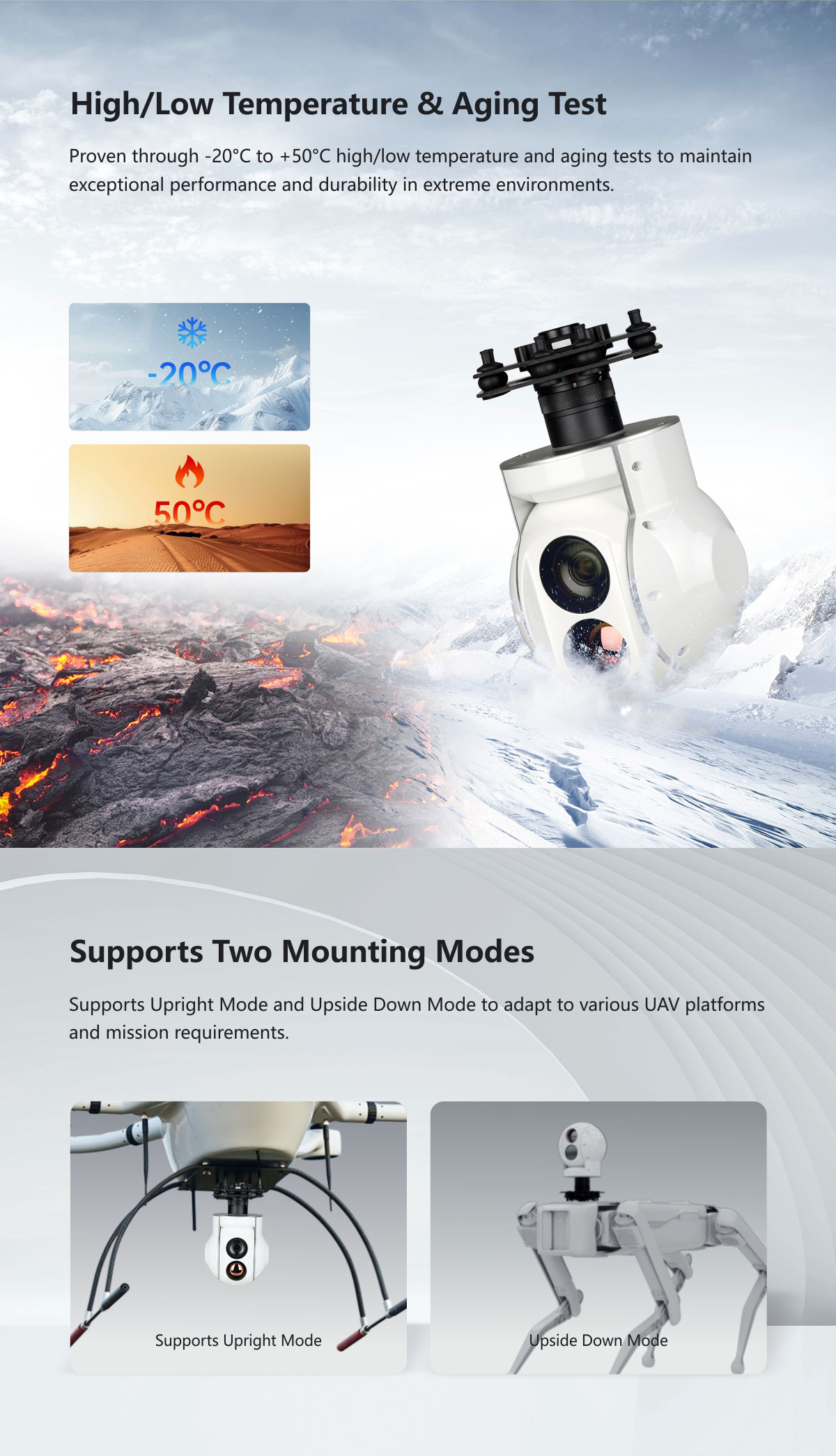

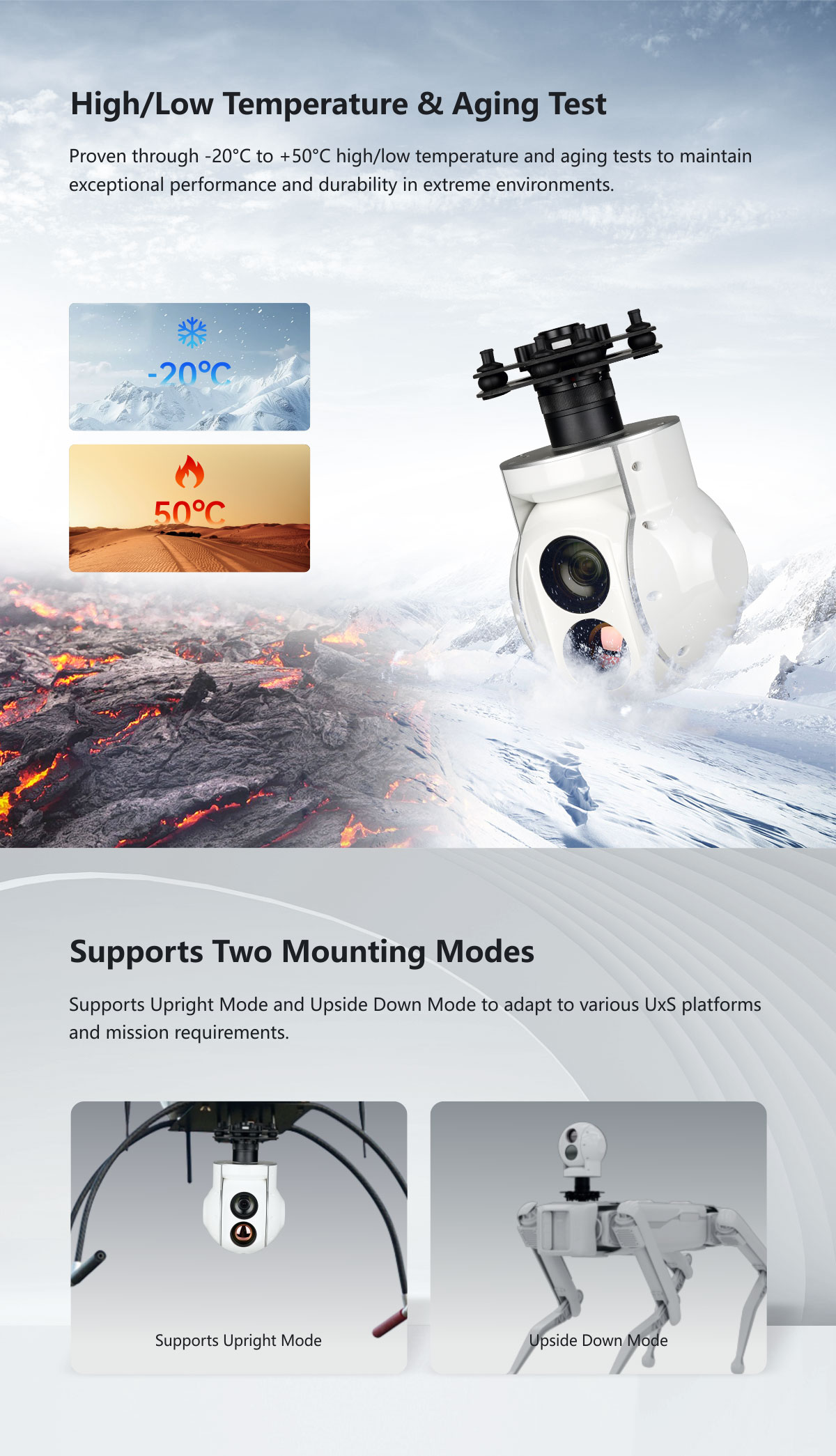

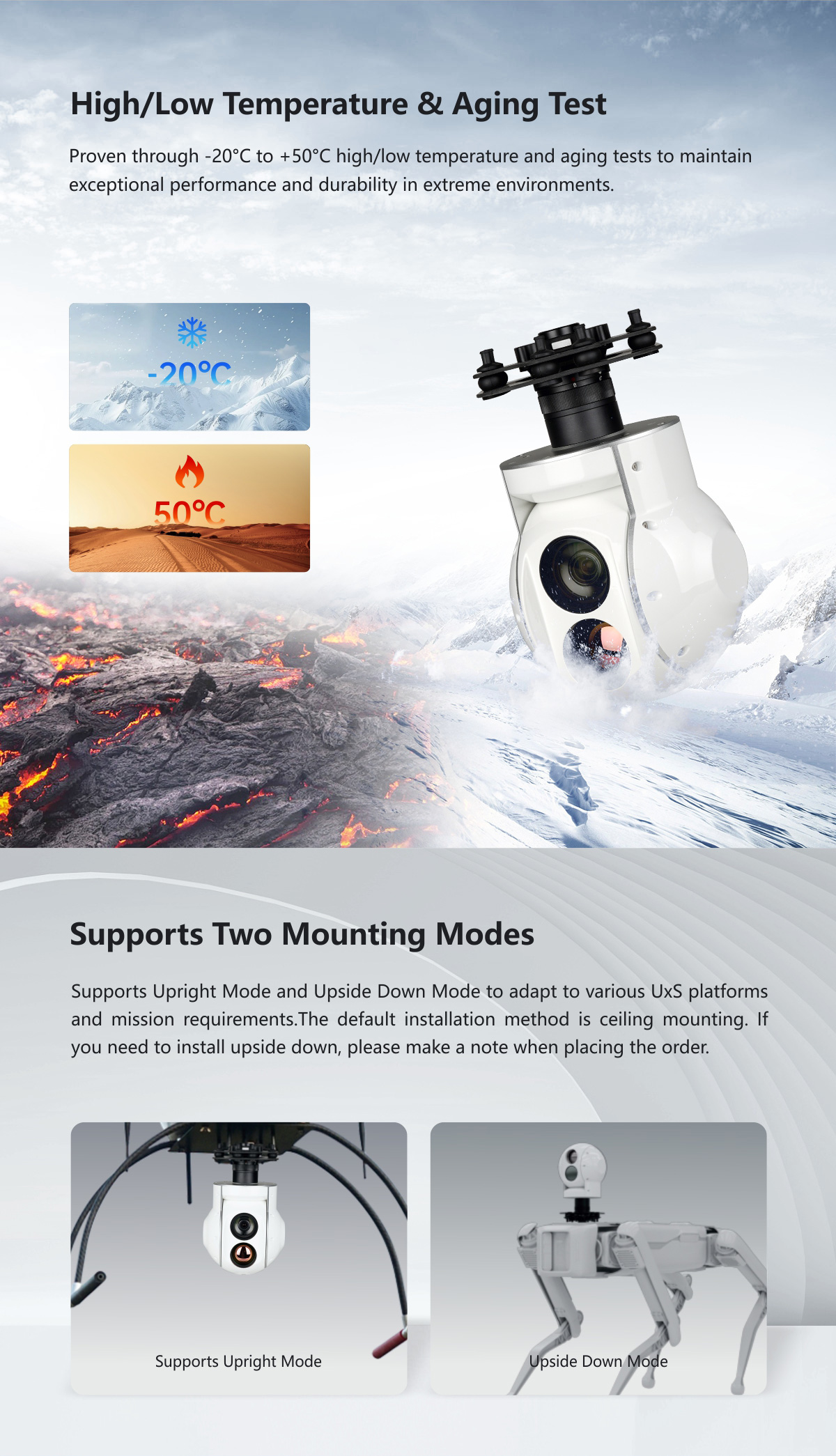

| Working environment temp. | -20℃ ~ +50℃ |
| Output (optional) | Micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps H264/H265) |
| Local-storage | TF card (Up to 512G,class 10, FAT32 format) |
| Picture storage format in TF card | JPG(1920*1080) |
| Video storage format in TF card | MP4(1080P 30fps) |

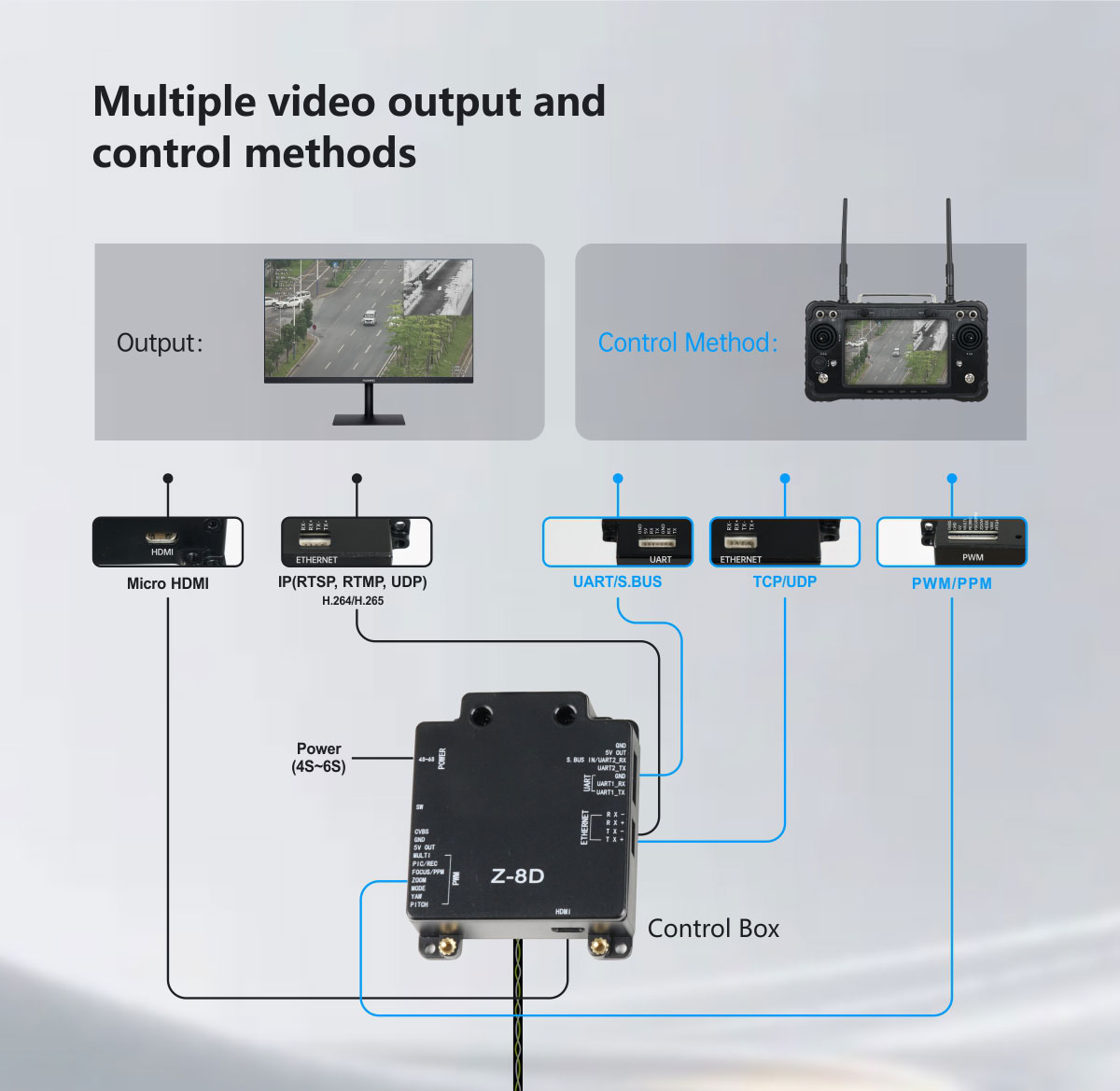

| Control method | PWM / TTL / S.BUS / TCP / UDP |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt:-45°(Up)～120°(Down), Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range | Pitch/Tilt: -30°～115°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |

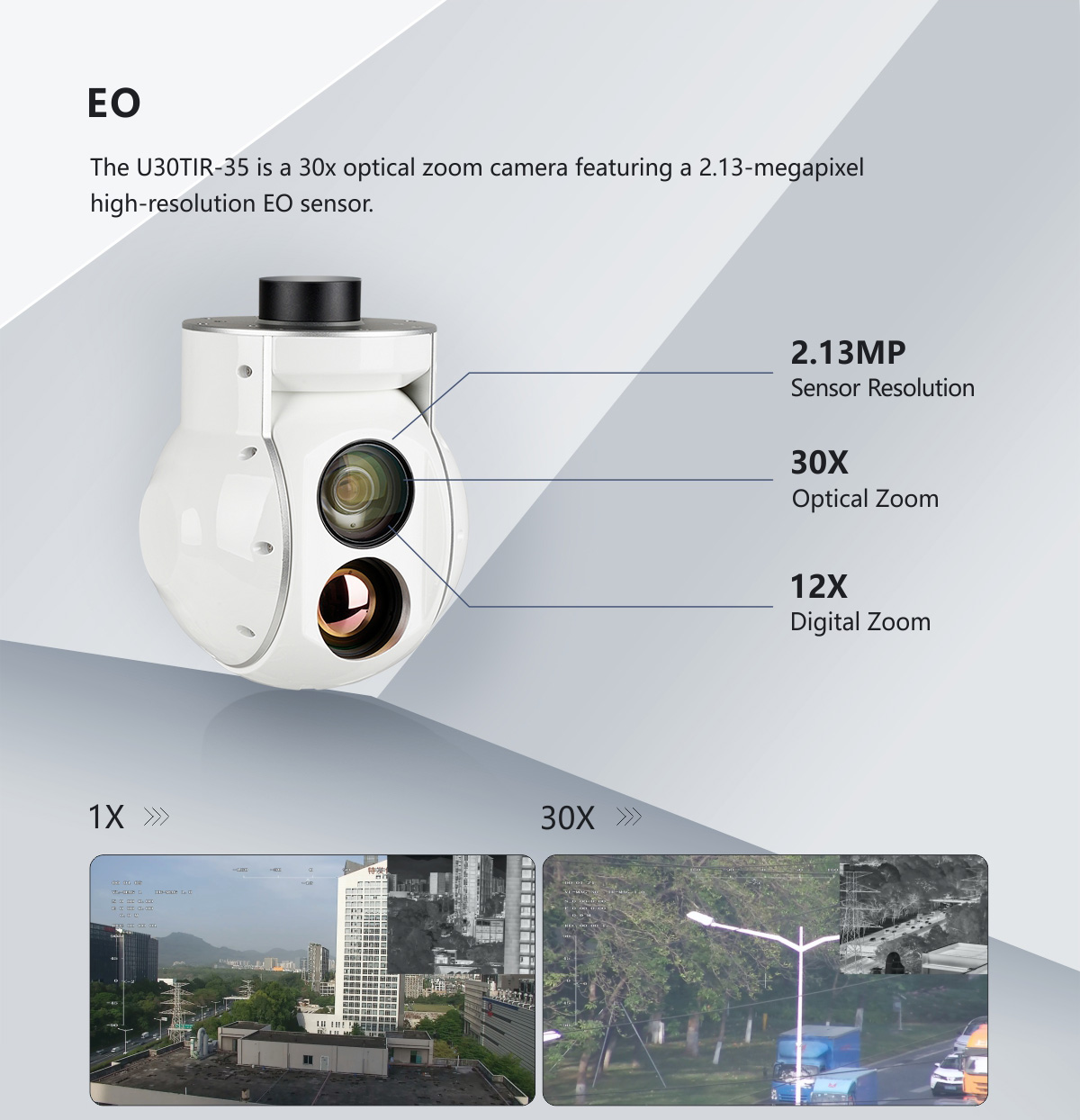

| EO Camera spec | |
| Imager Sensor | 1/2.8 Type STARVIS2 CMOS Sensor |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end) |
| Horizontal viewing angle | 64.0°(wide end) ~ 2.4°(tele end) |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.009 lux (1/30 sec, 50%, High Sensitivity mode On) |
| Color 0.09 lux (1/30 sec, 50%, High Sensitivity mode Off ) | |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Defog | Yes |
| IR Thermal Imager Spec | |
| Focus Length | 35mm |
| Horizontal FOV | 12.5° |
| Vertical FOV | 10.0° |
| Diagonal FOV | 16.0° |

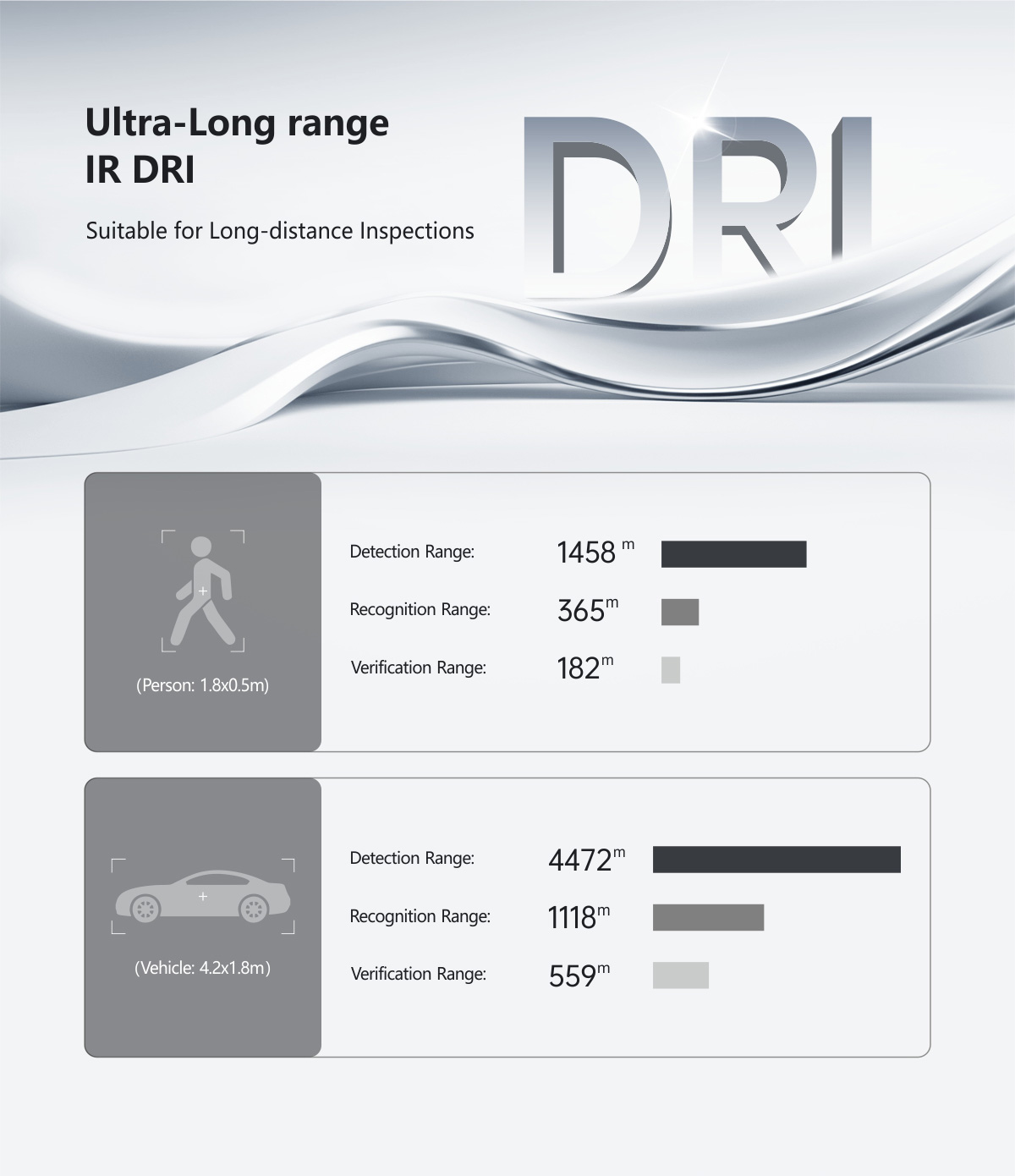

| Detective Distance (Man: 1.8x0.5m) | 1458 meters |
| Recognize Distance (Man: 1.8x0.5m) | 365 meters |
| Verified Distance (Man: 1.8x0.5m) | 182 meters |
| Detective Distance (Car: 4.2x1.8m) | 4472 meters |
| Recognize Distance (Car: 4.2x1.8m) | 1118 meters |
| Verified Distance (Car: 4.2x1.8m) | 559 meters |

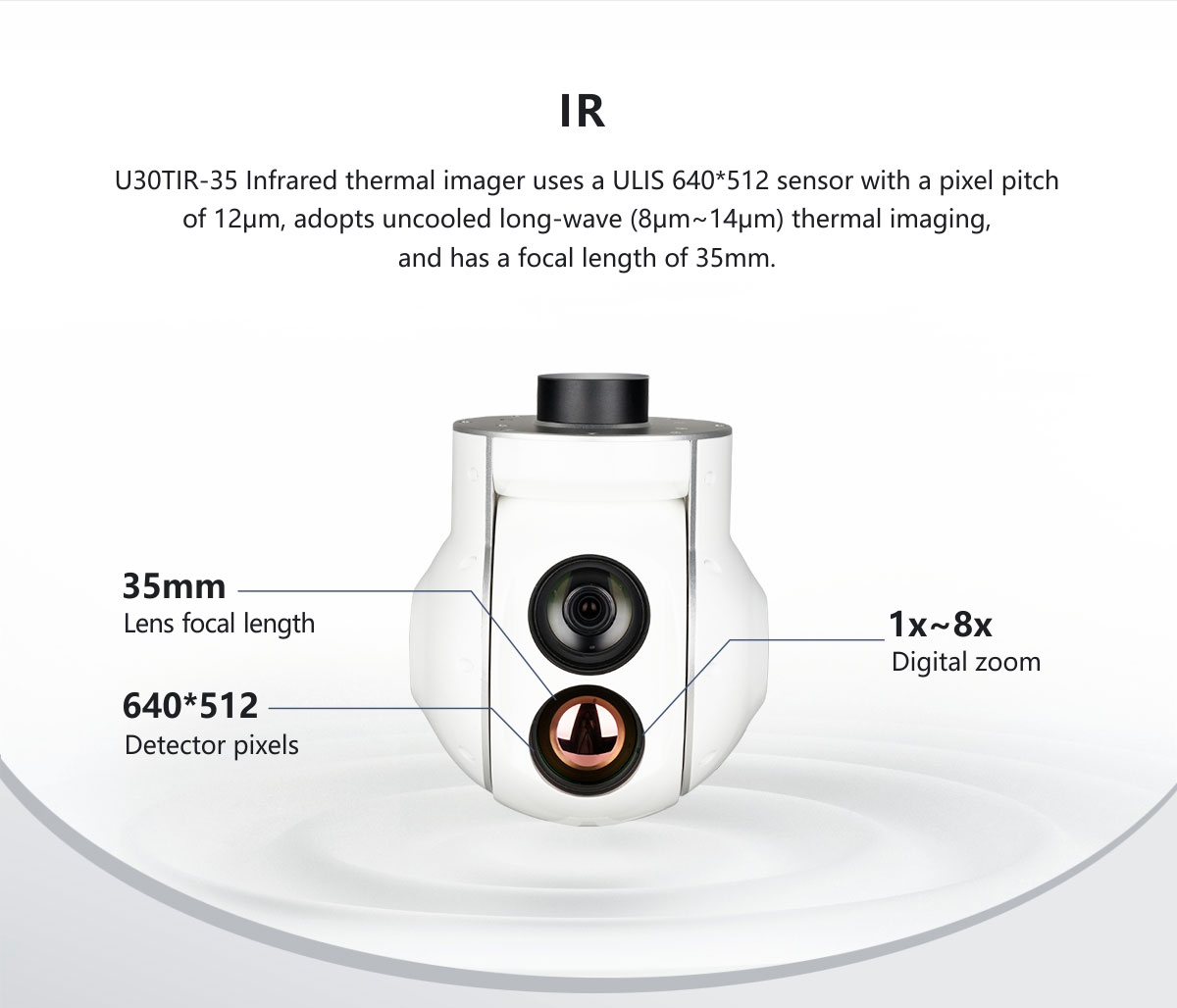

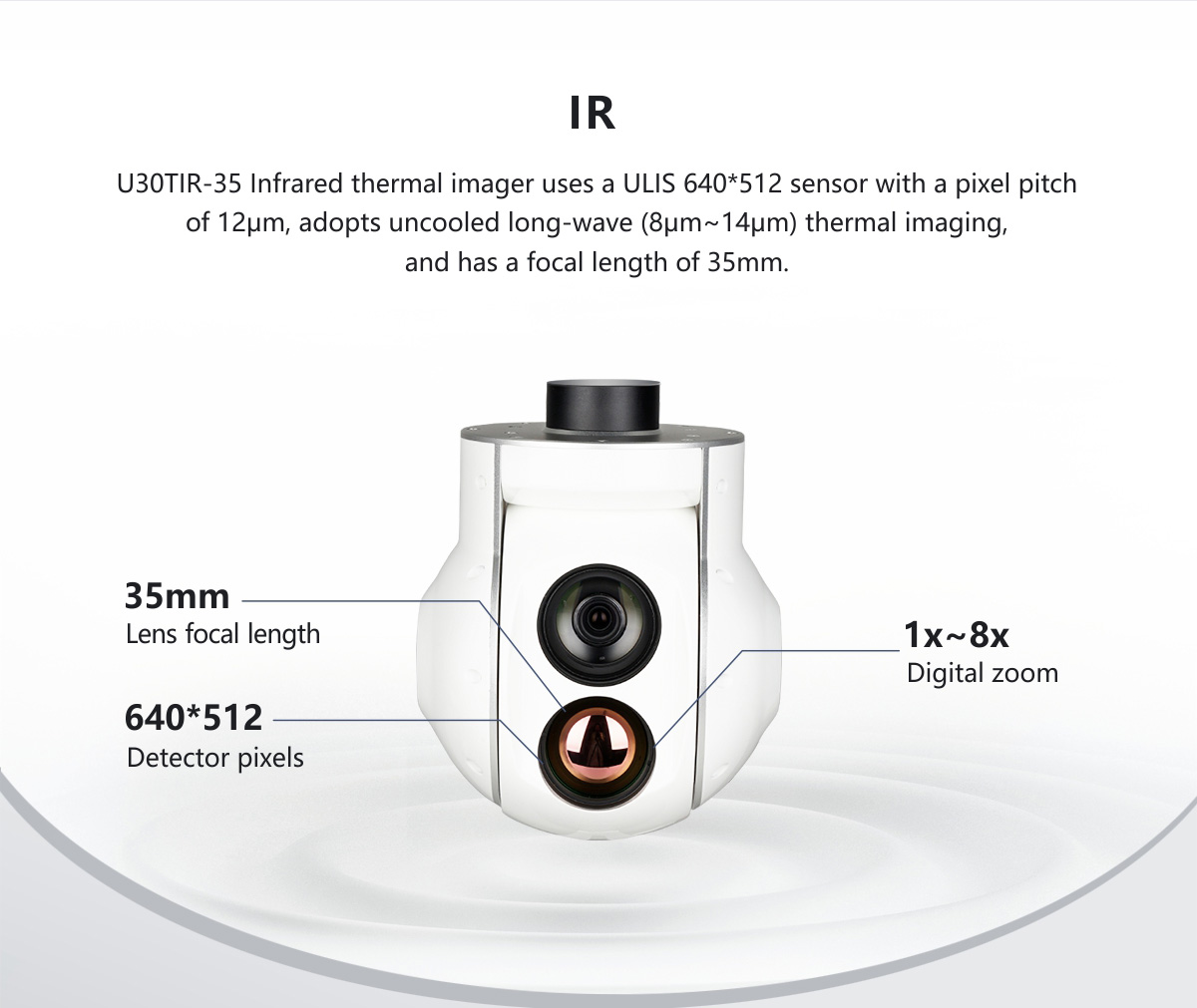

| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel pitch | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤50mK@F1.0 @25℃ |

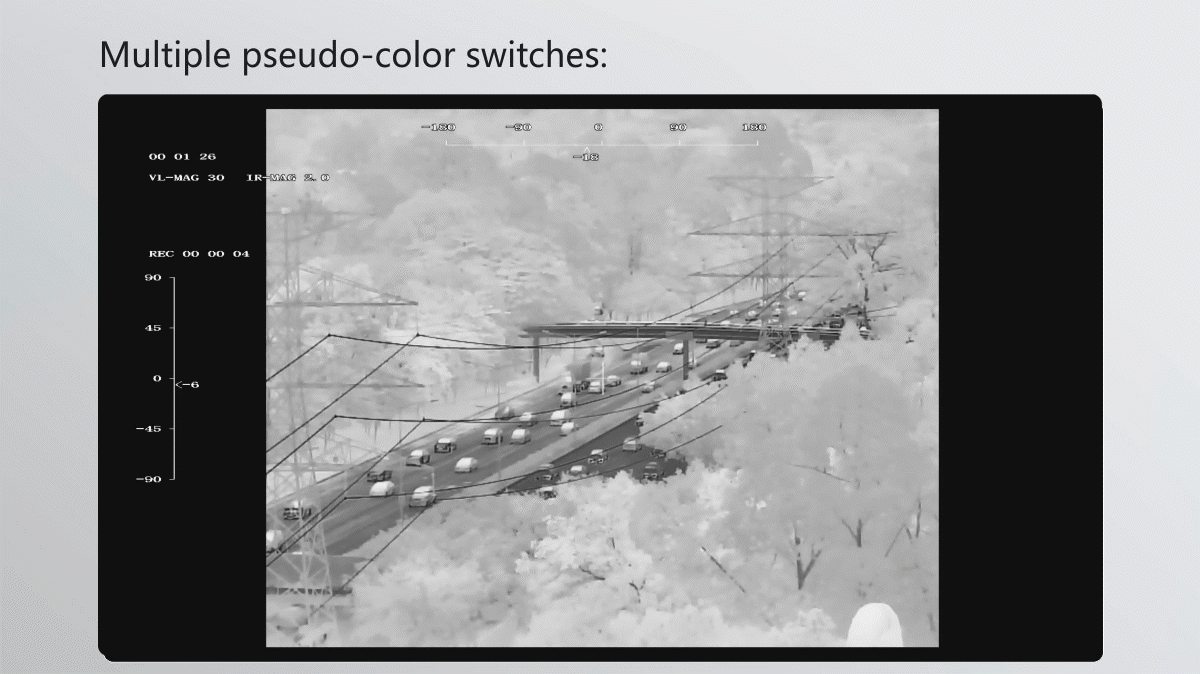

| Color palette | White, iron red, pseudo color |
| Digital zoom | 1x ~ 8x |

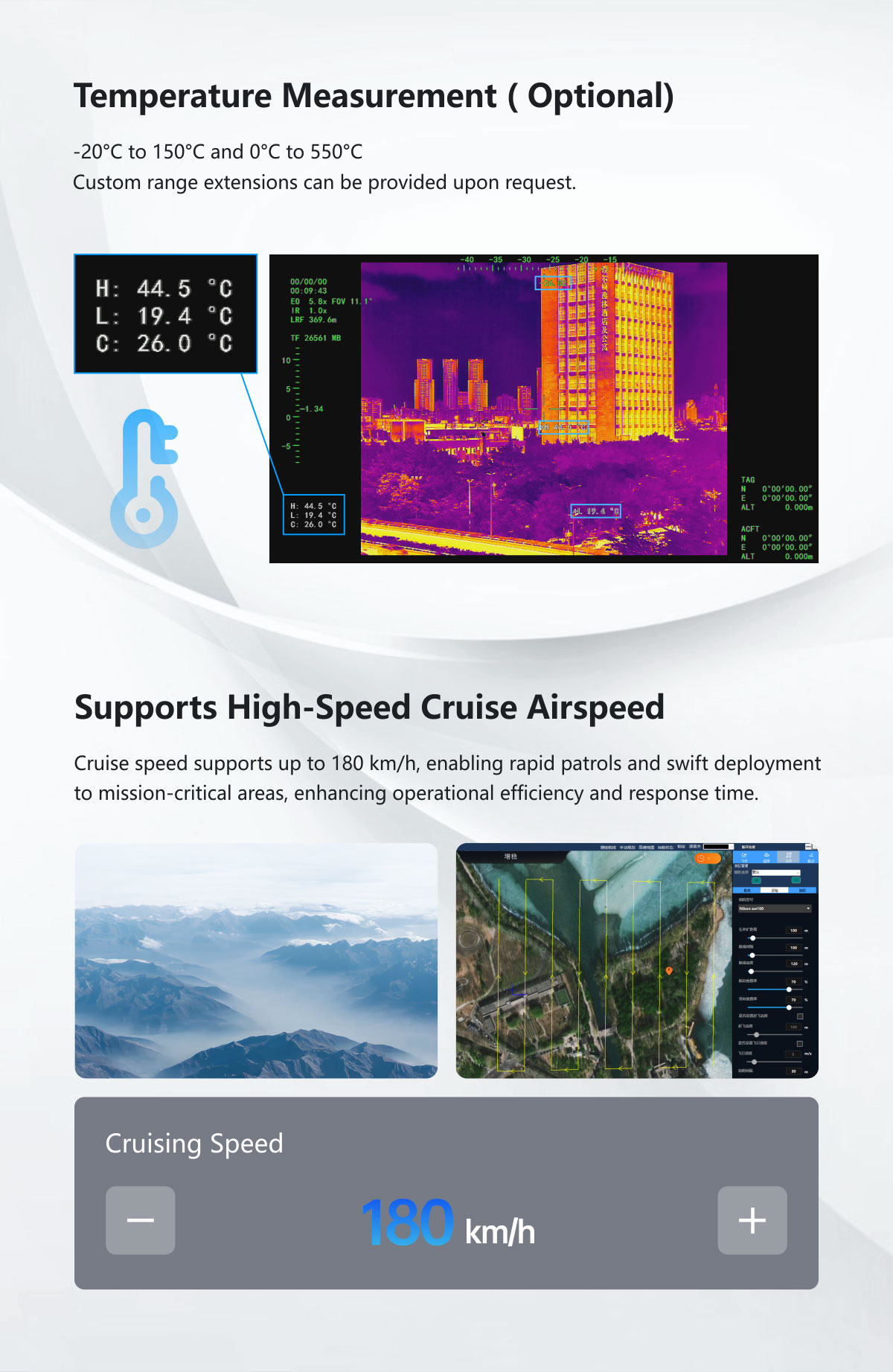

| Radiometric function(optional) | Thermometry range optional：-20℃~+150℃, 0℃~+550℃ |
| Thermometry accuracy: ±3℃ or +3%(take larger value)@23℃±3℃, Thermometry range 5m | |
| EO/IR Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Features | |
| OSD | Display the gimbal’s yaw and pitch angle, magnification, card recording duration, aircraft GPS and altitude, date and time |
| Geotagging | Display time and GPS coordinate in picture exif |

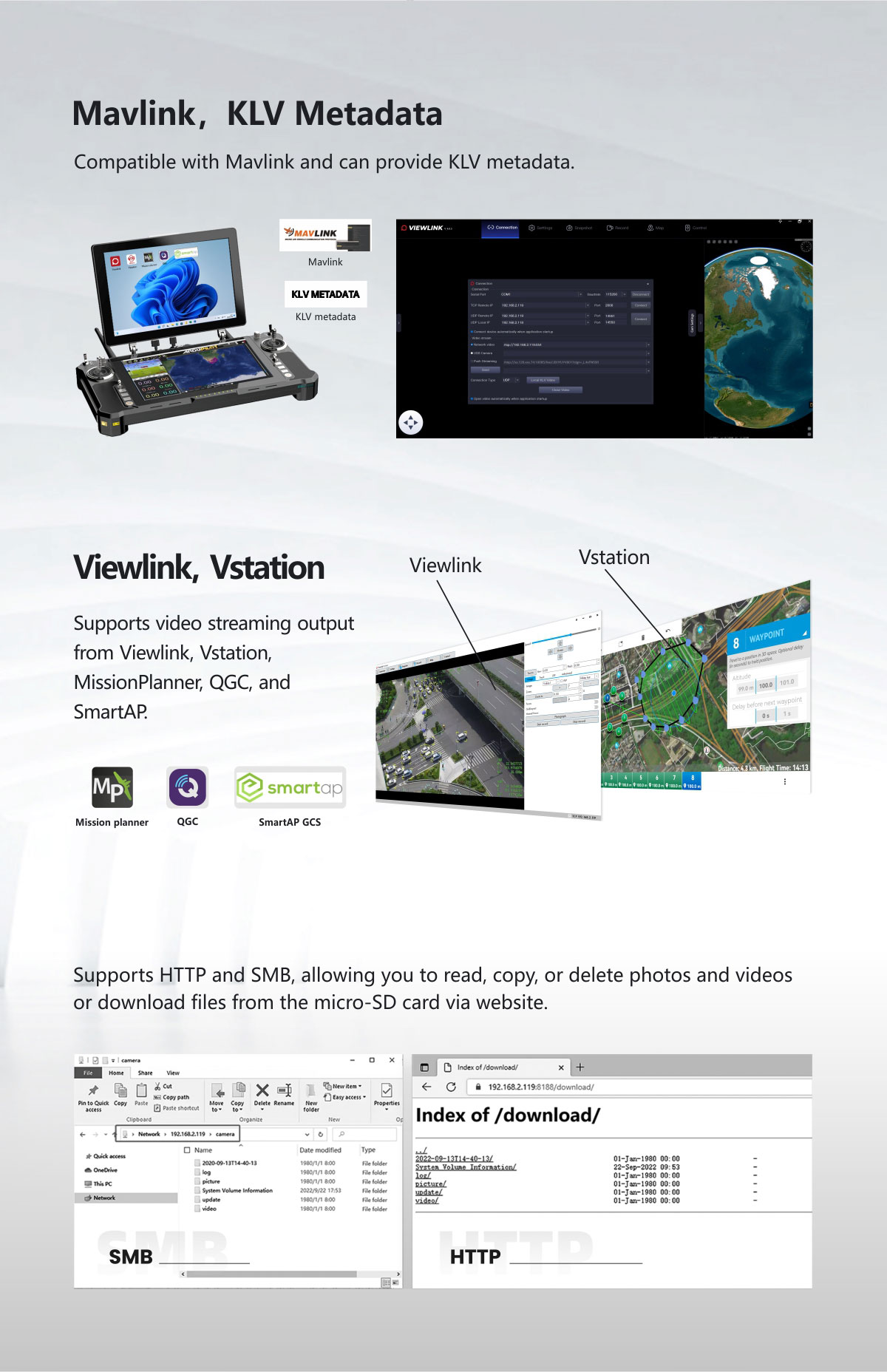

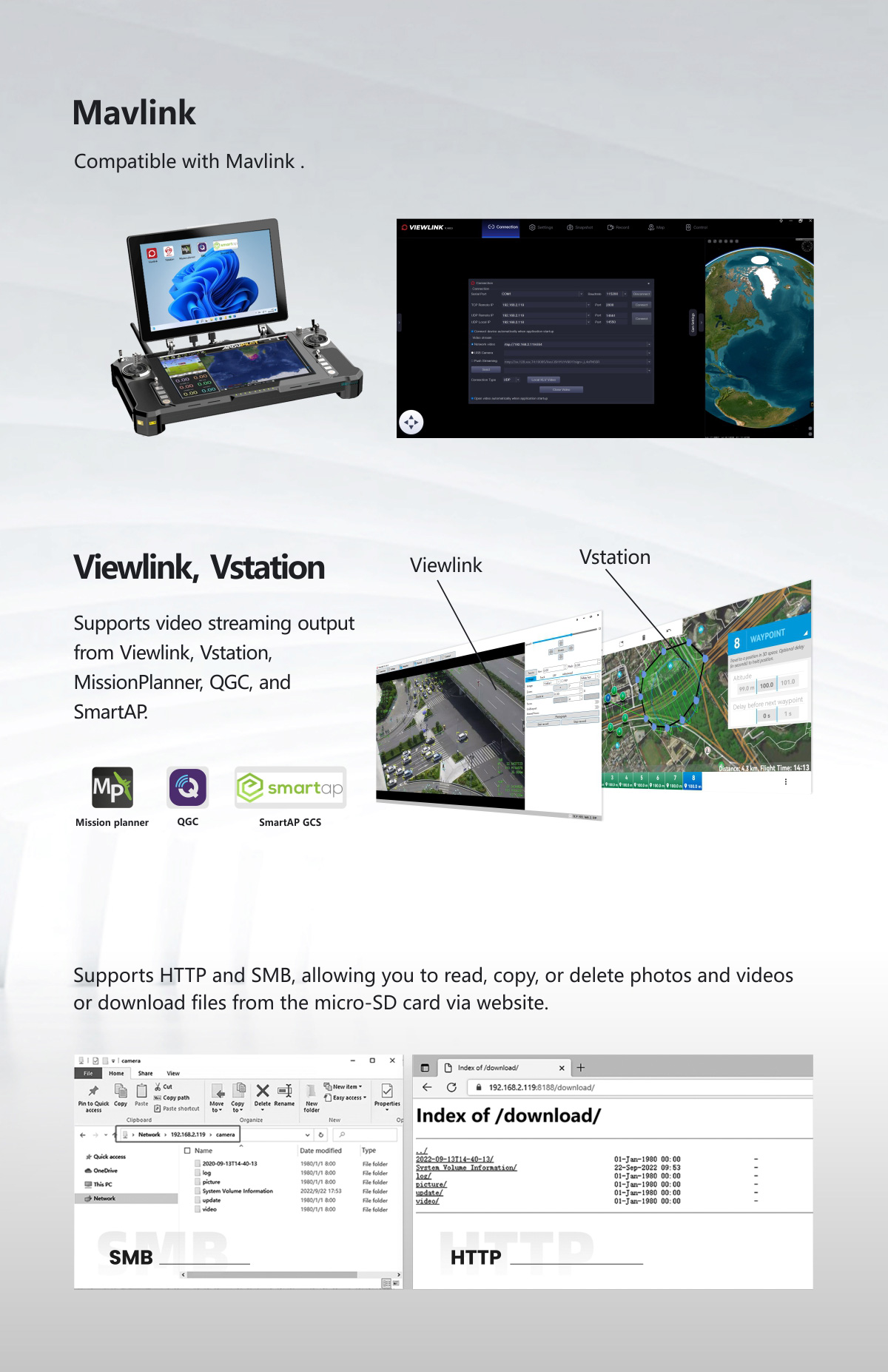

| Card reading online | SMB read pictures or videos / HTTP read pictures or videos |
| KLV (UDP) | Card recording or Viewlink video playback |
| ArduPilot / PX4 | Support(Mavlink protocol ) |

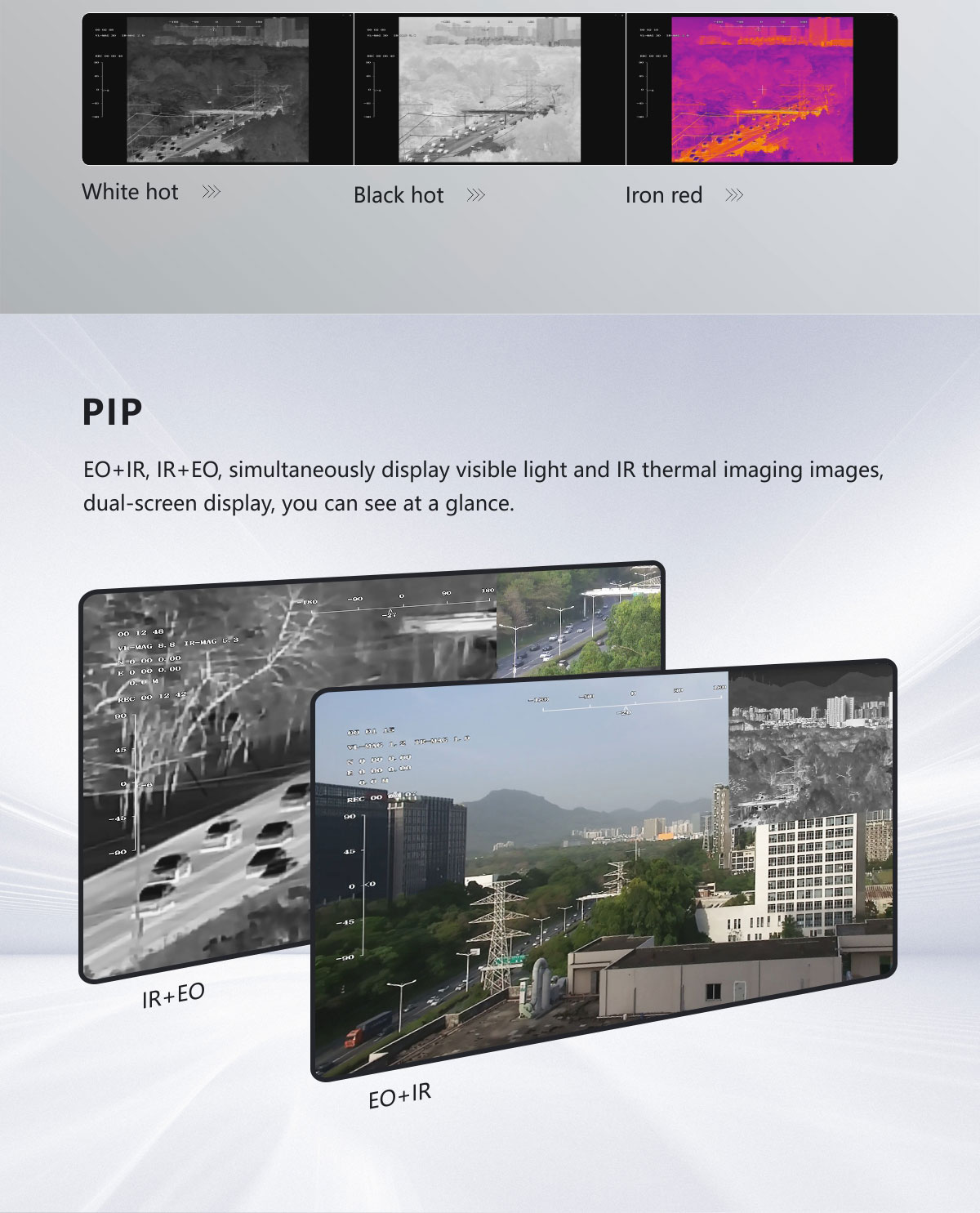

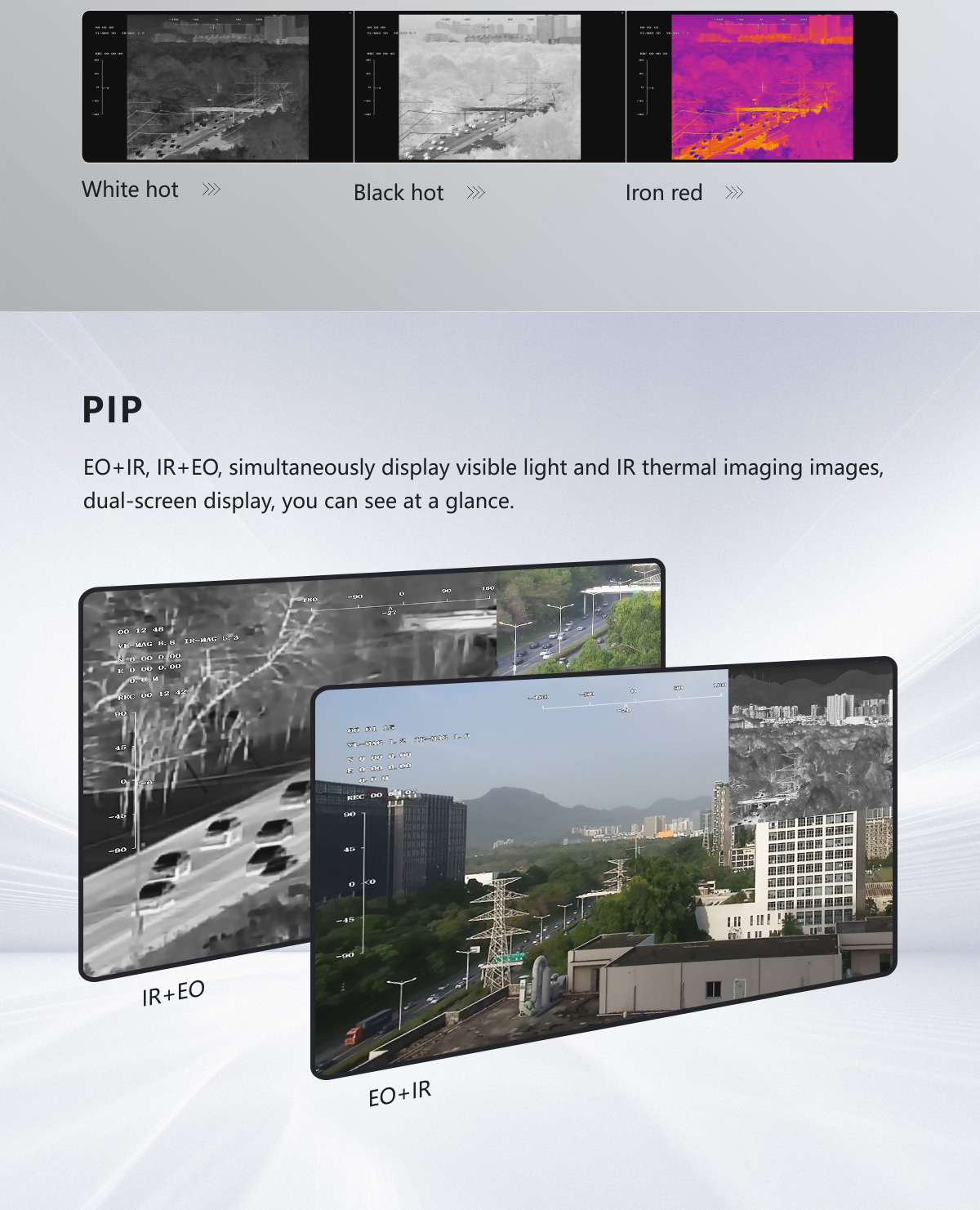

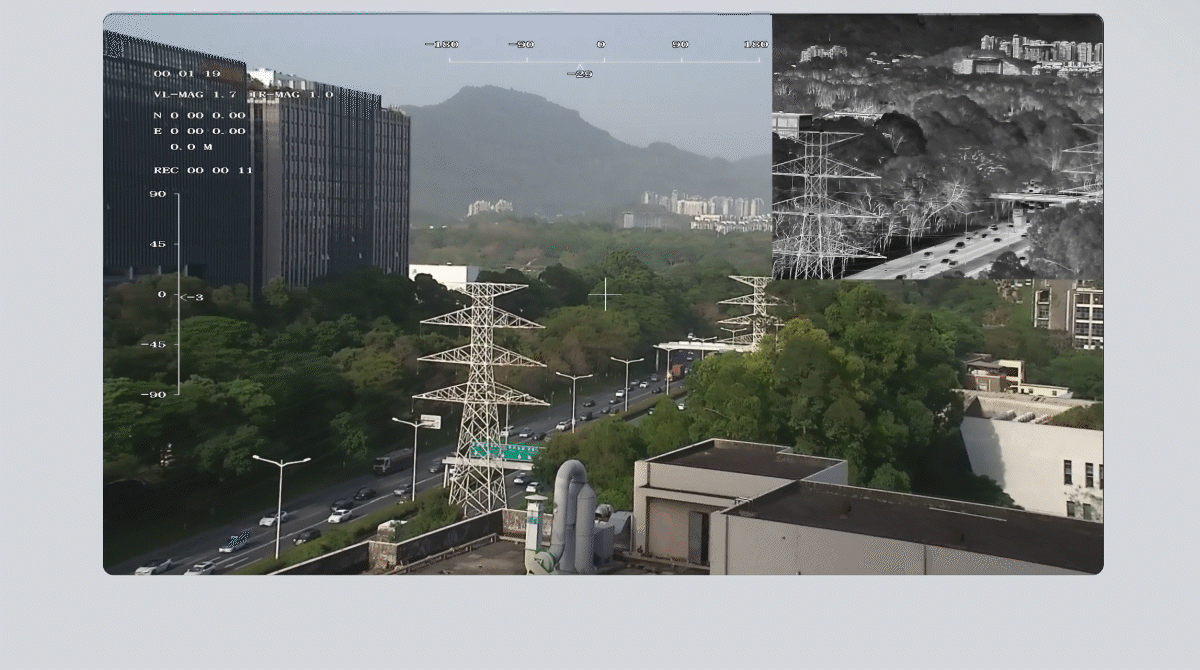

| Video switching | EO+IR /IR+EO /EO /IR |
| Dual video stream output | Not support(EO and IR two stream output) |
| Packing Information | |
| N.W. | 1085±10g(Viewport version with Viewport) |

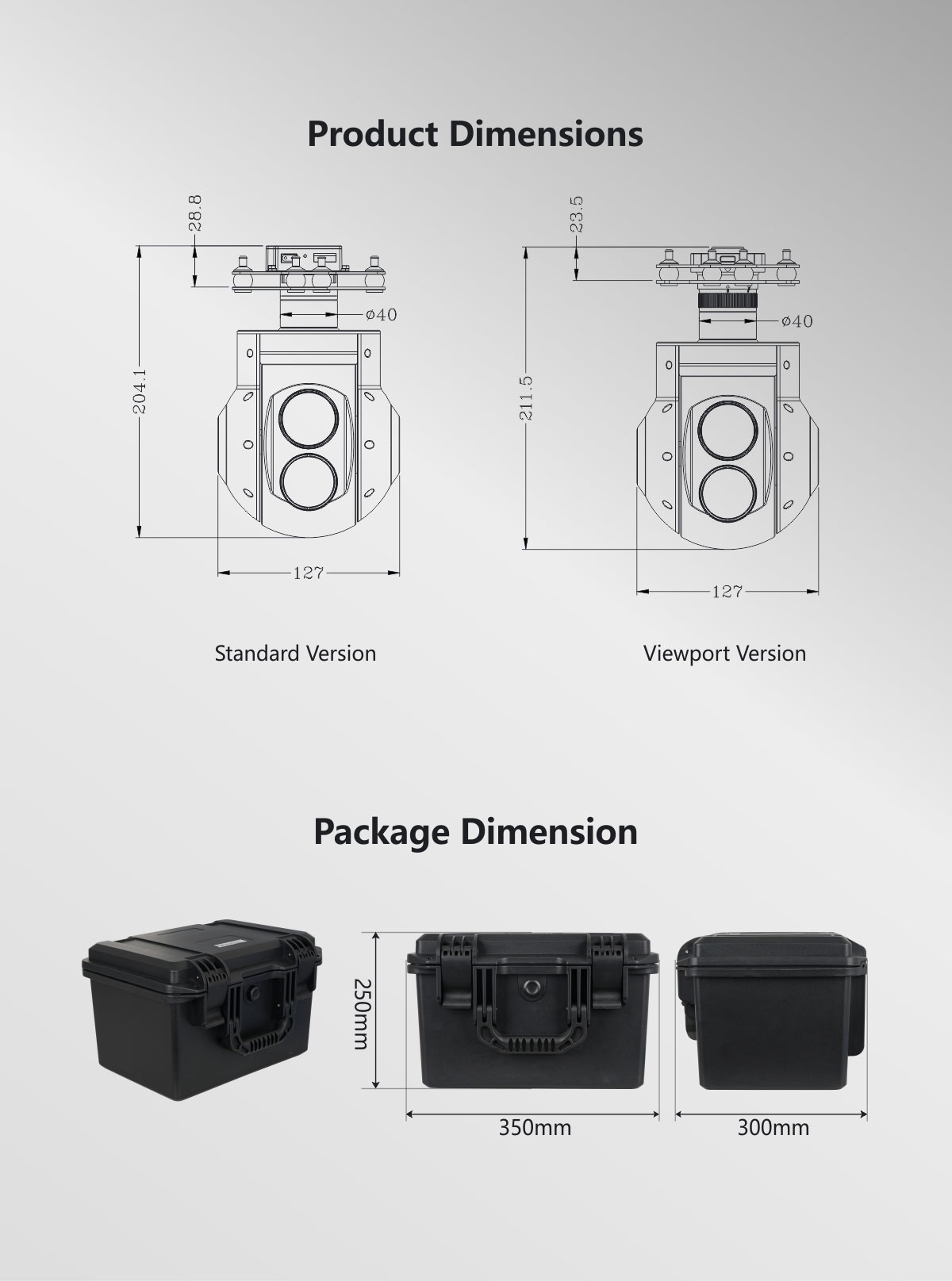

| Product meas. | 127*130*202.5mm / 127*130*211.5mm (Viewport version with Viewport) |

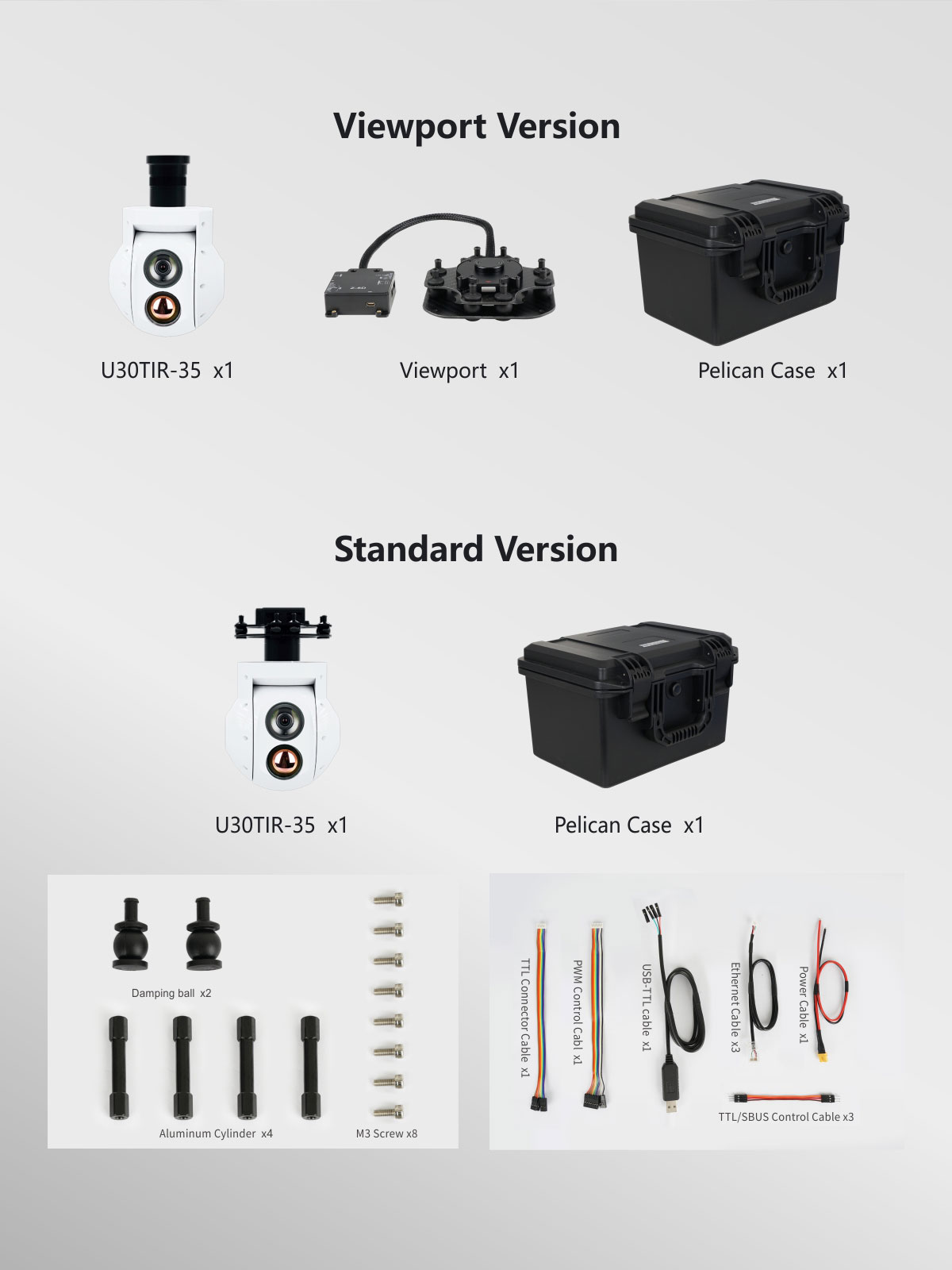

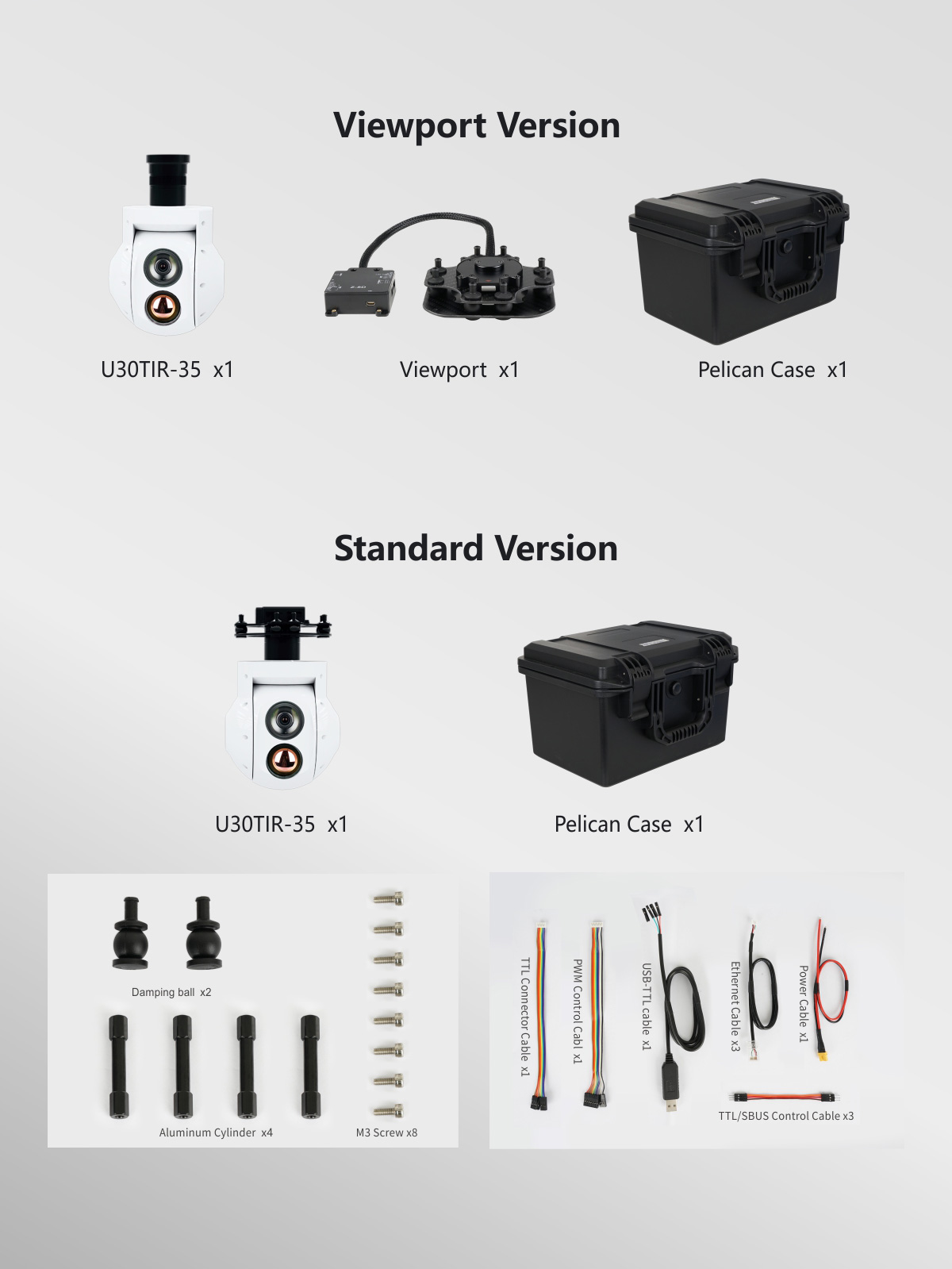

| Accessories | 1pc gimbal camera device, screws, aluminum cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | About 2185g |
| Package meas. | 300*250*200mm |
