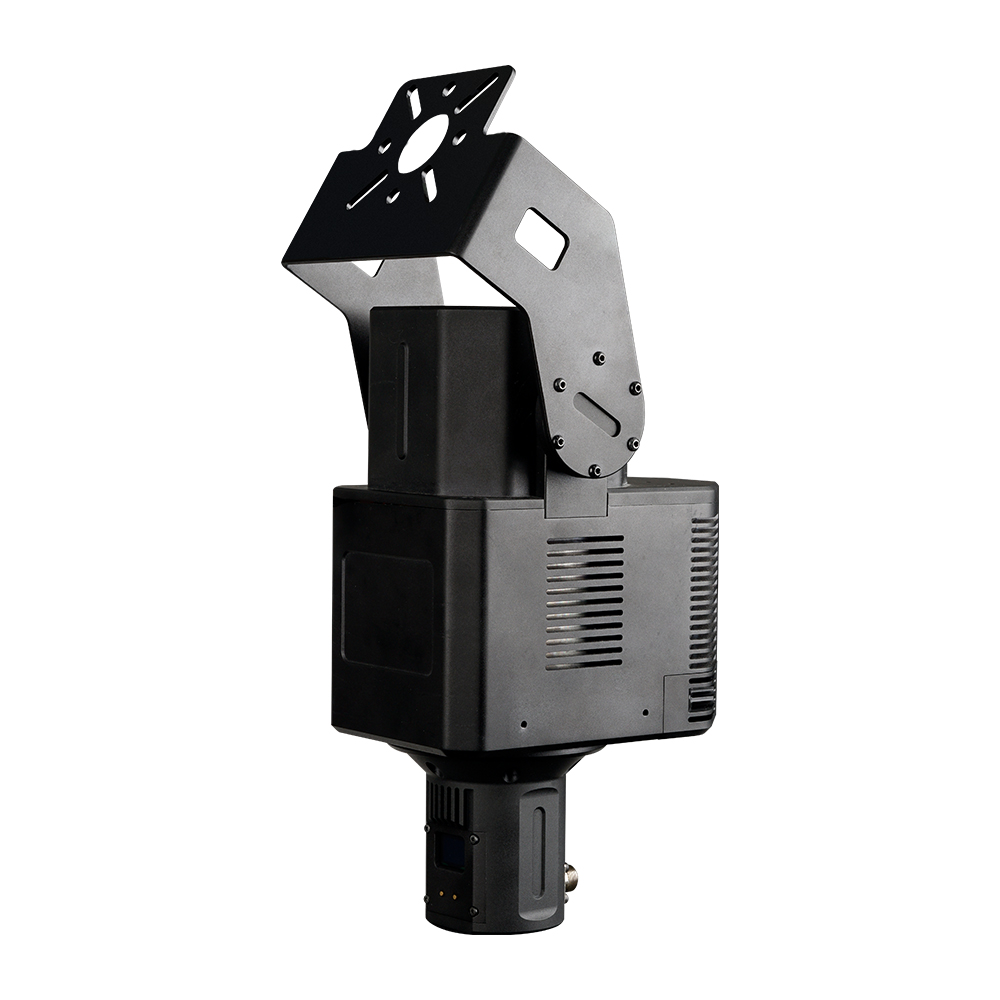

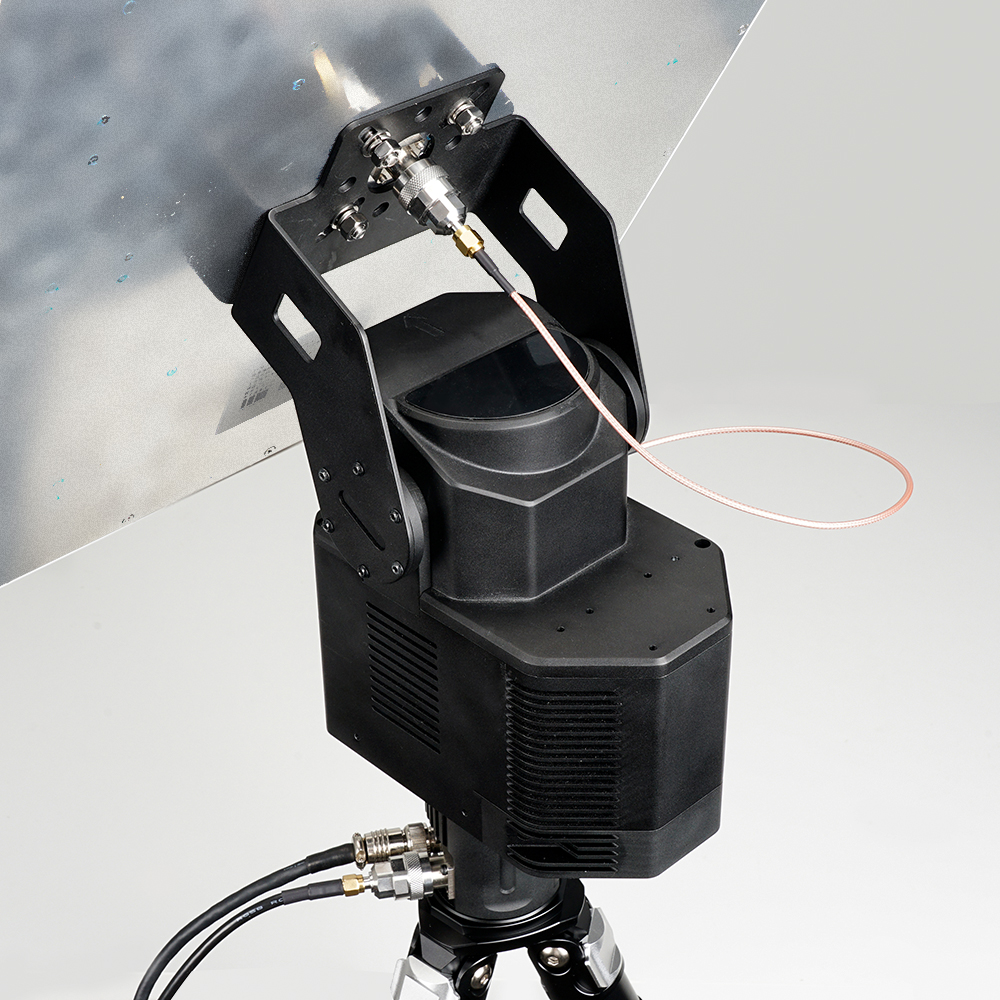

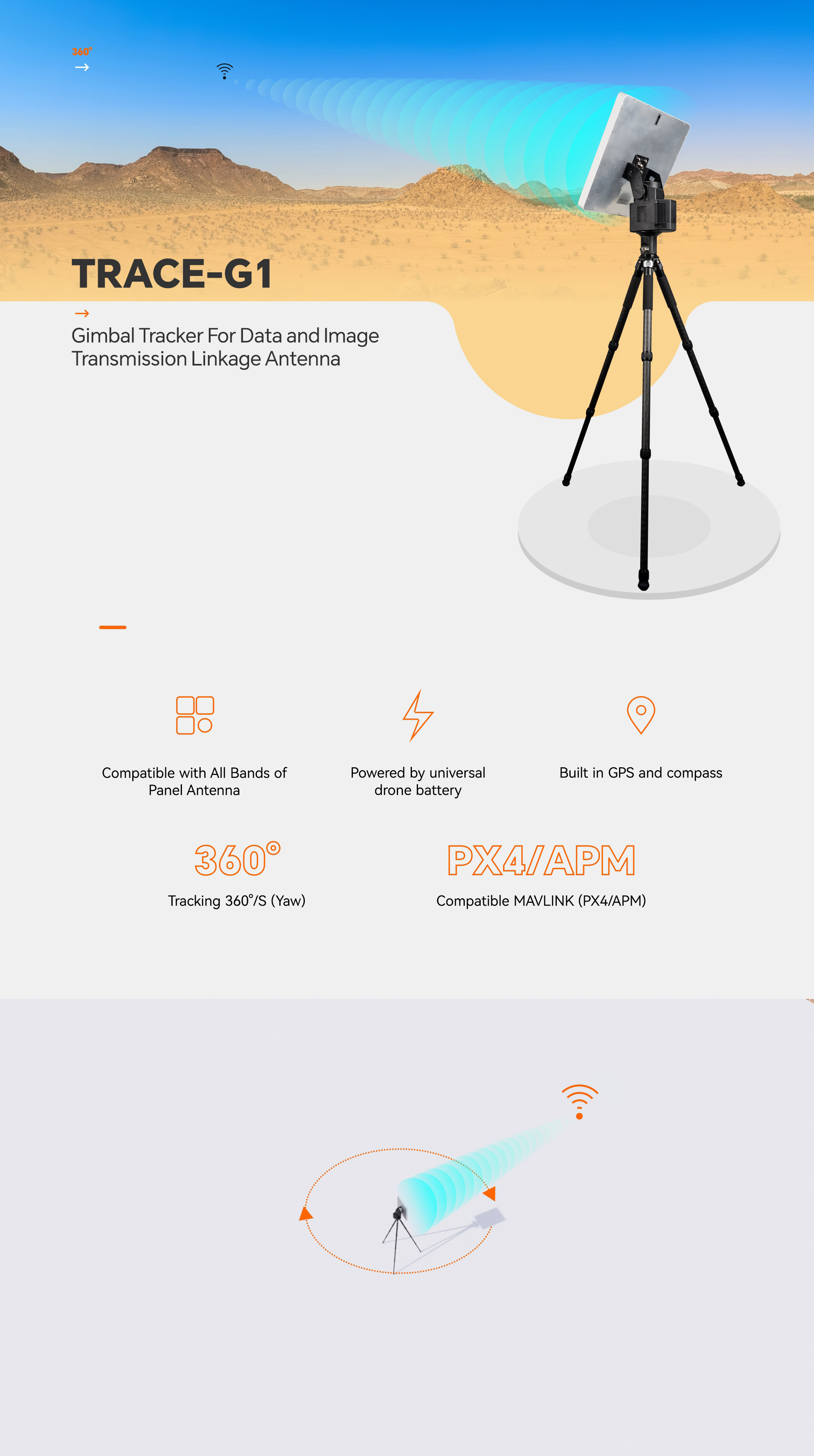

Trace-G1 Tracking Gimbal For Data and Image Transmission Linkage Antenna

Specification

Model No.: Trace-G1 Tracking Gimbal

Weight: 3.2KGS

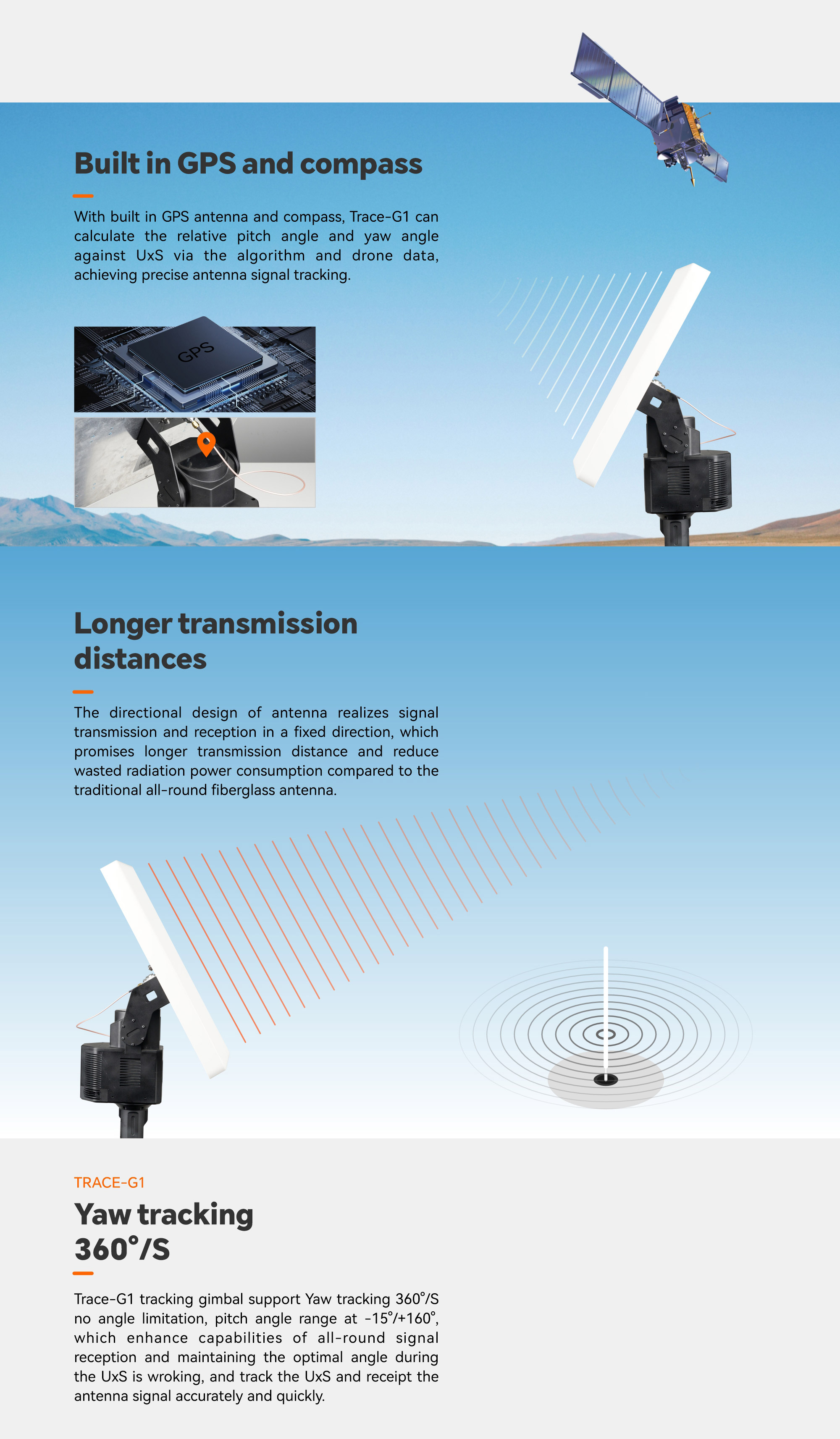

Yaw track speed: ≤ 360°/s

Pitch track speed: ≤65°/s

Yaw tracking angle: 360°

Pitch tracking angle: -15°~160°

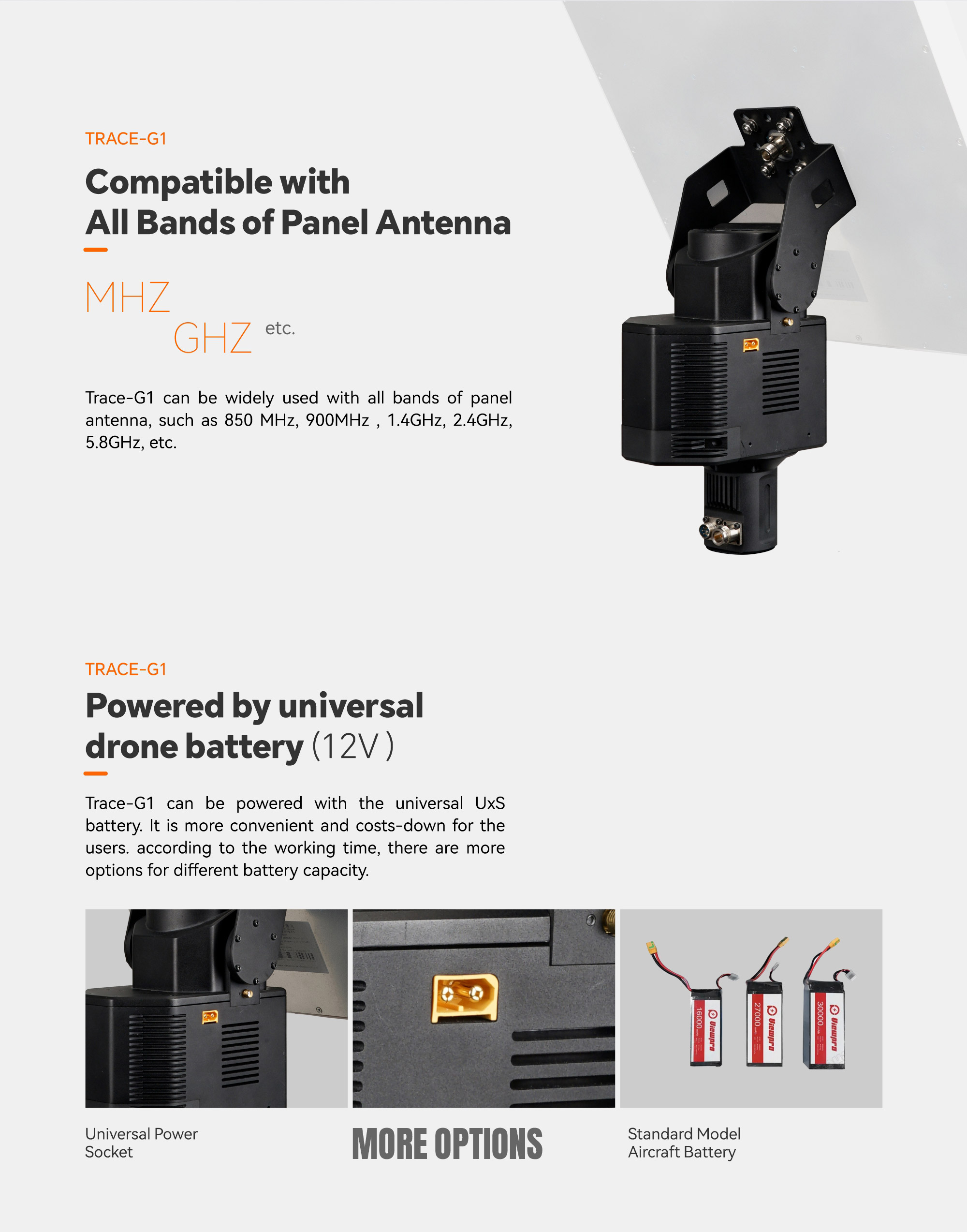

Voltage DC: 12V~15V

Operating temperature： -20°~60°

Average power consumption: ≤ 15W

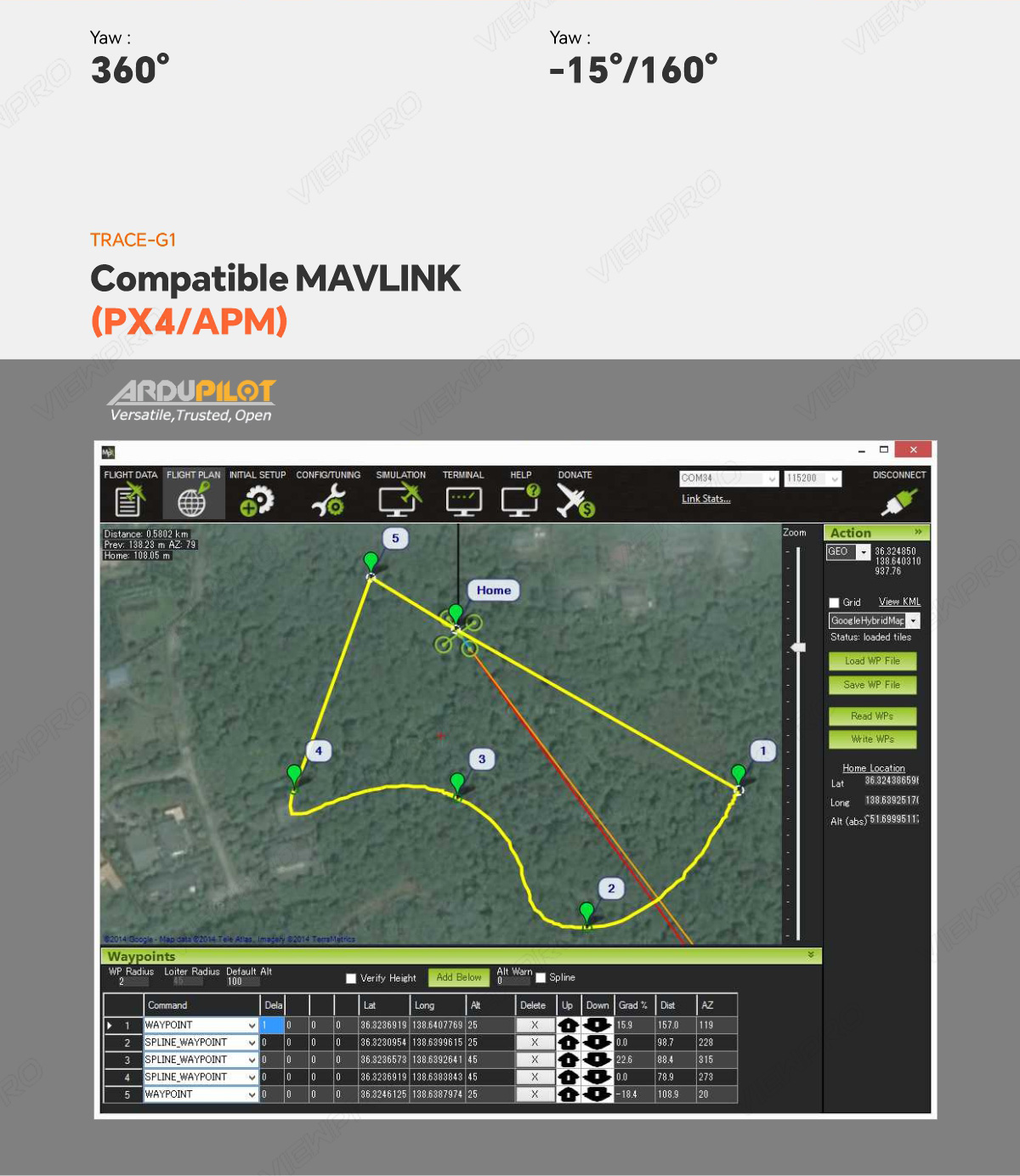

MAVLINK: Compatibility with PX4/APM

Video Center: Object Tracking; IR Illumination Night Vision; IR Thermal Imaging; GPS Location Resolving
