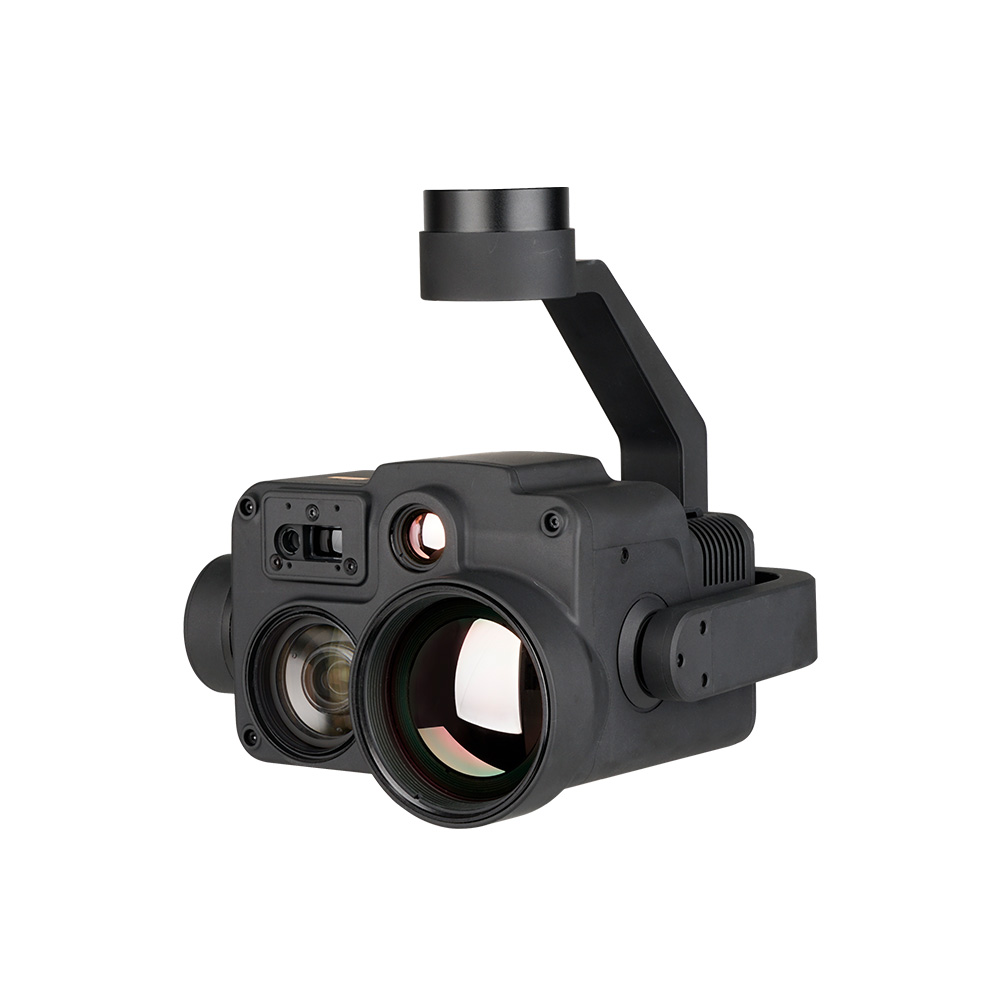

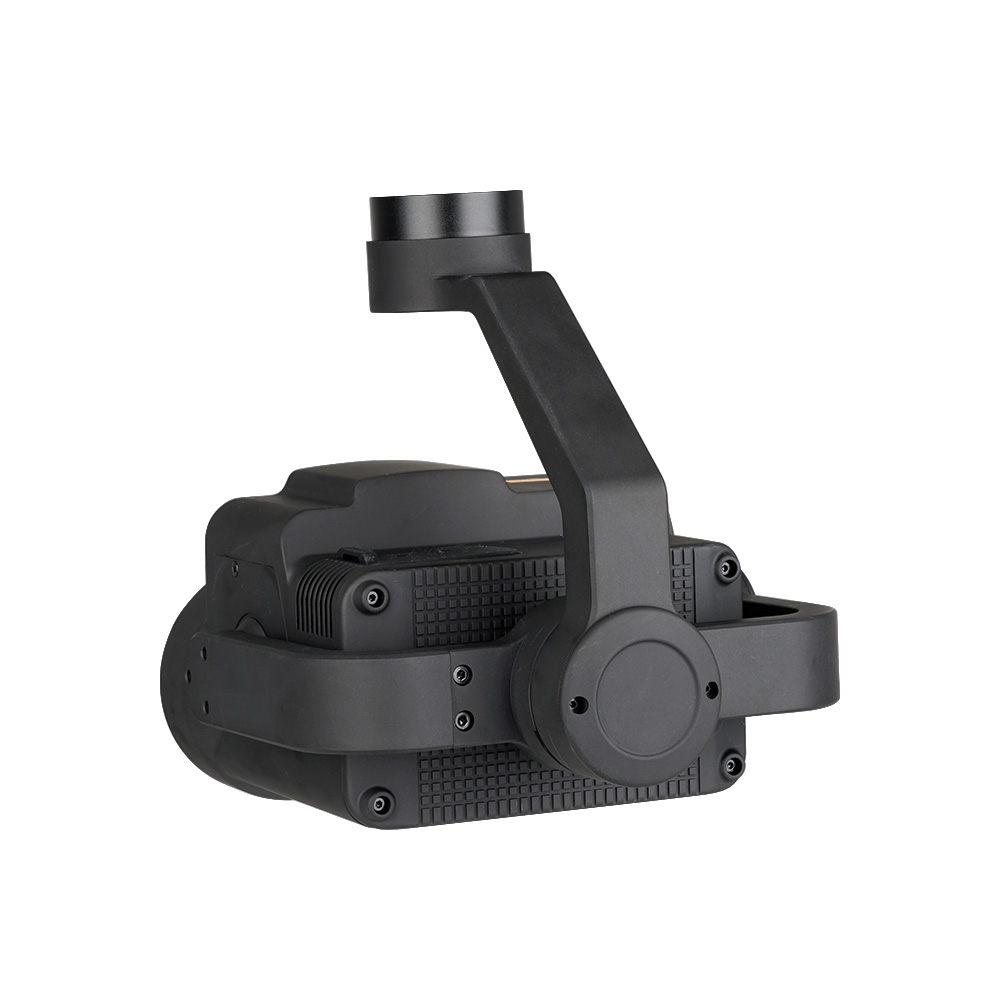

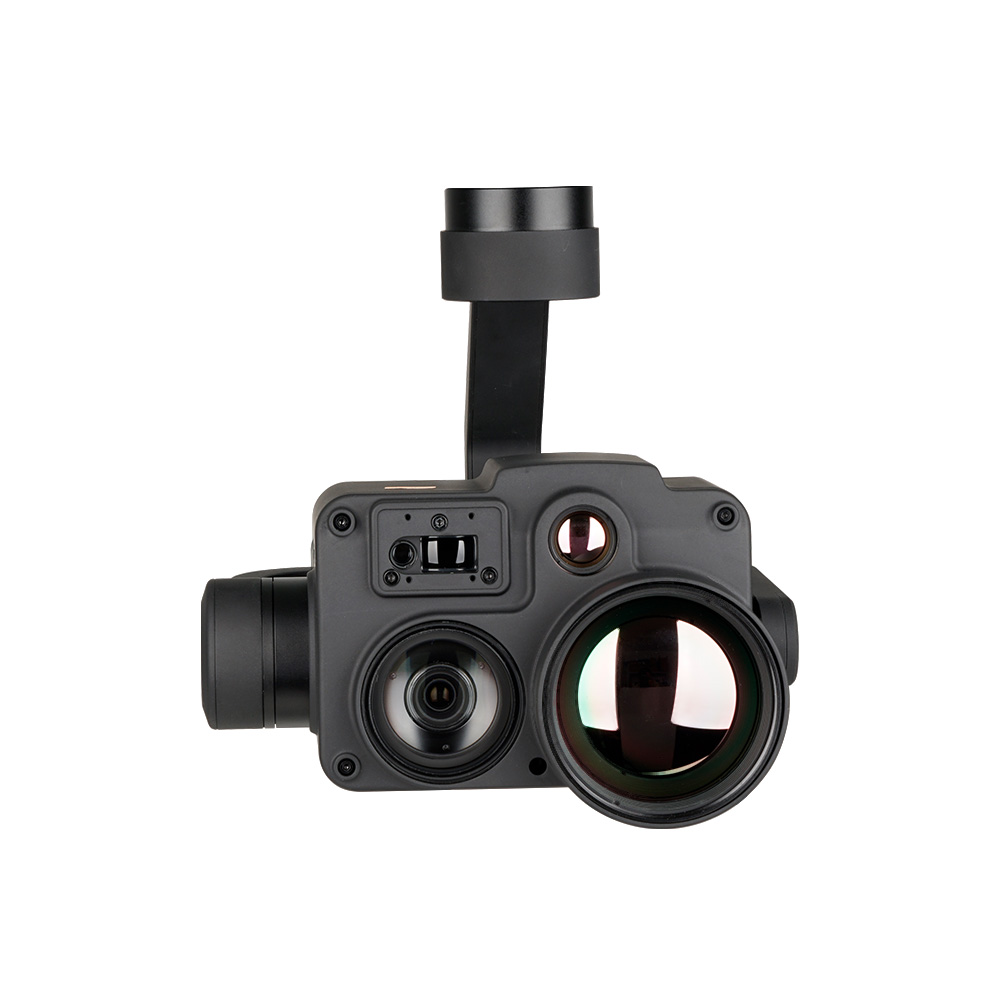

Z30TIRM-1352
| Specification | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S (14.8V~25.2V) |
| Output voltage | 5V (PWM control connection) |
| Dynamic current | 820~1500mA @ 16V |
| Power consumption | 13.1W ~ 24W |
| Working environment temp. | -20℃ ~ +50℃ |
| Output | IP (RTSP/UDP 720p/1080p 25fps/30fps H264/H265) |
| Local-storage | TF card (Up to 512G,class 10, FAT32 format) |
| Image storage format in TF card | JPG(1920*1080) |
| Video storage format in TF card | MP4(1080P 30fps) |
| Control mode | PWM / S.BUS / TTL / TCP / UDP |
