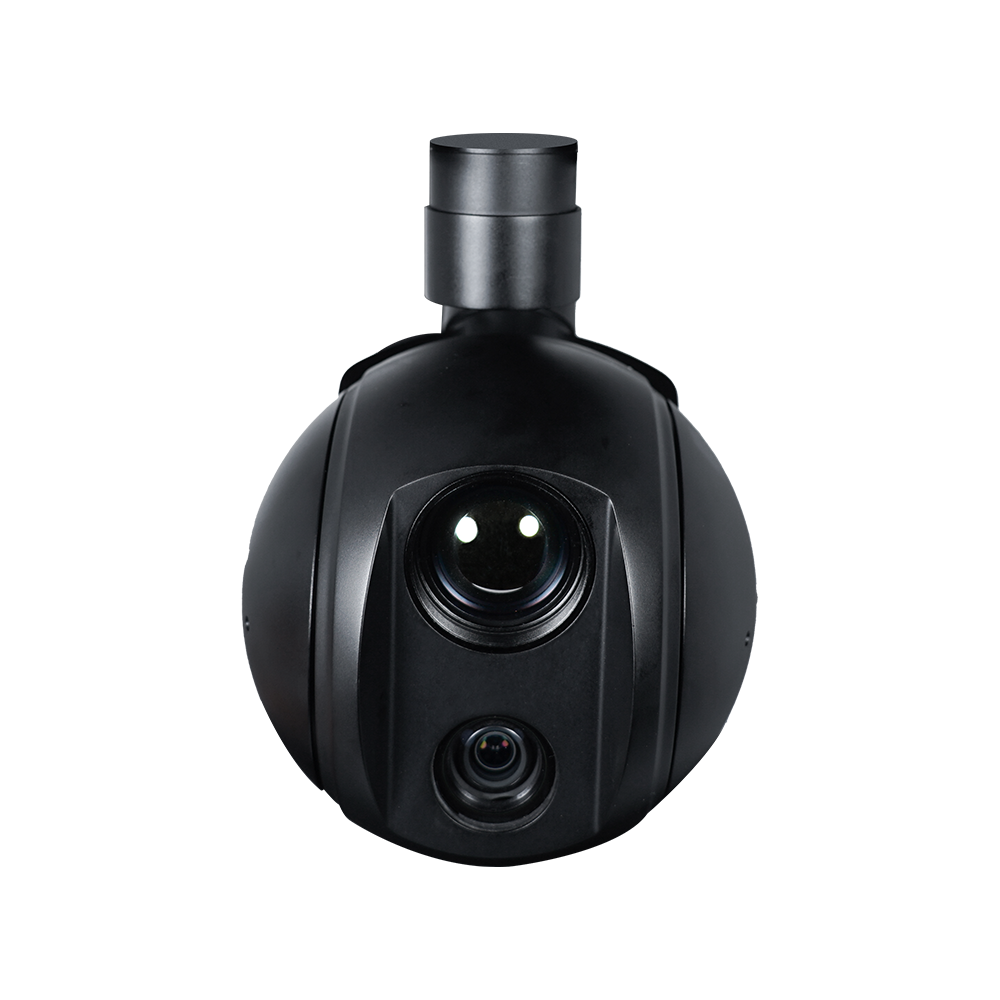

Q20KTIR PRO
| Hardware Parameter | |
| Working voltage | 12V |
| Input voltage | 3S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 1250~1900mA @ 12V |
| Idle current | 1250mA @ 12V |
| Working environment temp | -20℃ ~ +60℃ |
| Output | micro HDMI(1080P25/30fps) / IP(4K/1080p 25/30fps ) |
| Local-storage | SD card (Up to 128G,class10, FAT32 or ex FAT format) |
| Photo storage format | JPG (4K:3840*2160) |
| Video storage format | MP4 (1080P/4K 30fps) |
| Control method | PWM / SBUS / TTL |
| Gimbal Spe | |
| Mechanical Range | Pitch/Tilt: -60°～135°, Roll: ±50°,Yaw/Pan: ±300° / ±360°*N(IP output version) |
| Controllable Range Pitch/Tilt: | -45°～90°, Yaw/Pan: ±290° /±360°*N (IP output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
