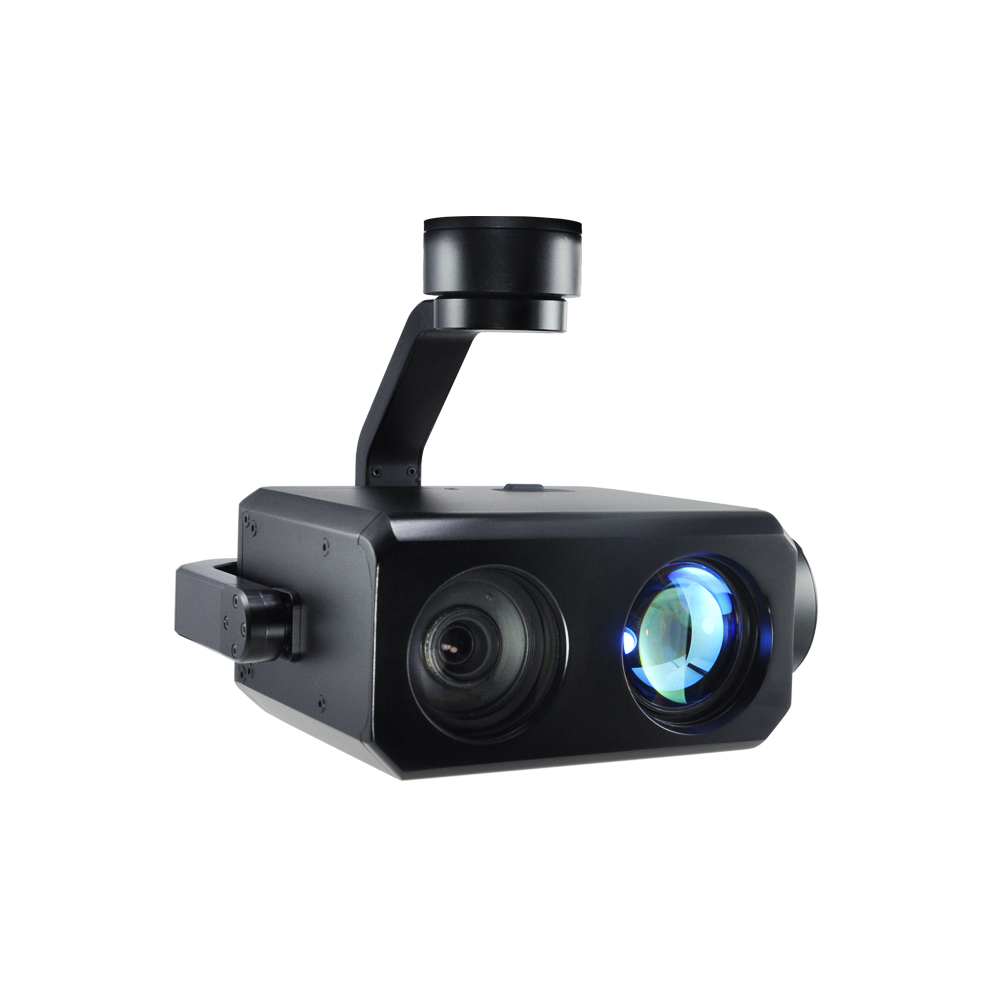

Z30TL Night vision SONY 30x Zoom camera with laser Illumination sensor

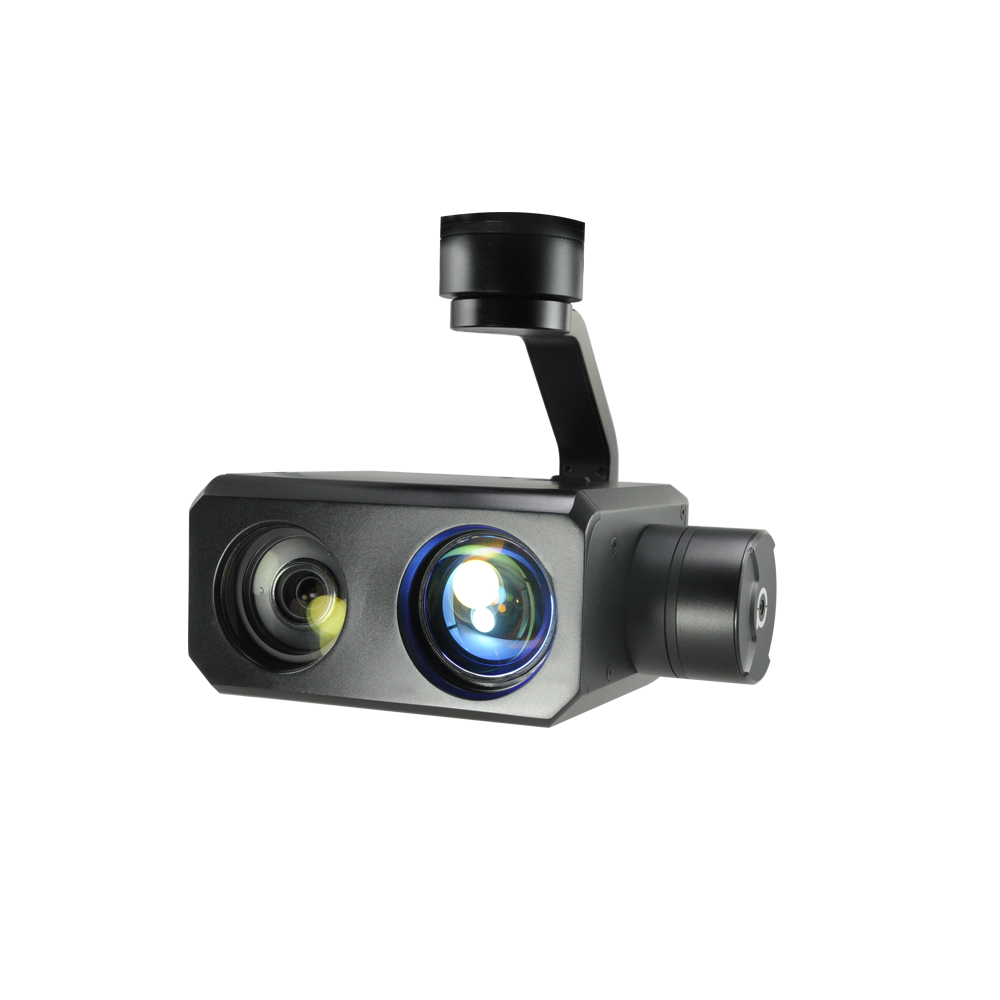

Z30TE 3-axis stabilized gimbal 30x zoom LED Night Vision camera
Nighthawk series are specially designed night vision cameras. The 3-axis gimbal integrates SONY 30x optical zoom SONY sensor, It supports visible optical zoom, photography and video, target tracking, Illumination night vision.
Combined with 500-meter supplementary illuminator and 30x optical zoom, the observation distance of Z30TL can reach 500 meters in a dark environment. Led light supplement combined with 30x optical zoom, Z30TE has an observation range of 300 meters, and can easily find targets and determine their positions even in the dark night environment.
Z30TL/Z30TE is widely used in night surveillance, search and rescue, and other industrial applications.
Specifications
| Hardware Parameter | |
| Working voltage | 14V ~ 16V |
| Input voltage | 4S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 1000mA @ 12V |
| Idle current | 800mA @ 12V |
| Power consumption | ≤ 12W |
| Working environment temp. | -40℃ ~ +60℃ |
| Output | 1080p micro HDMI / IP / SDI |
| Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |

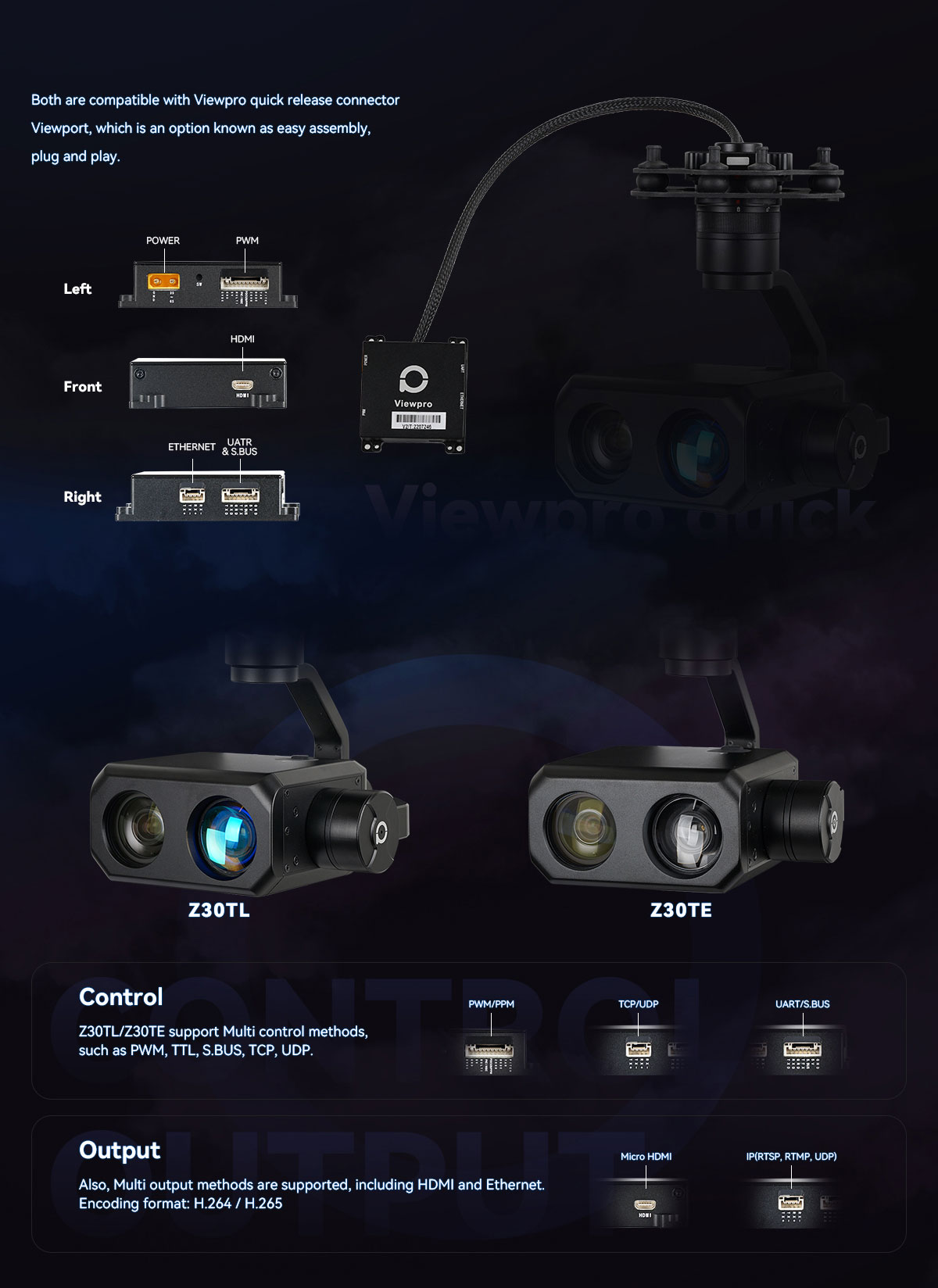

| Control method | PWM / TTL / SBUS / TCP (IP output version) |
| Gimbal Spec | |
| Pitch/Tilt | -65°~+90° |
| Roll | ±85° |
| Yaw/Pan | ±360°*N |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.03° |
| One-key to center | √ |
| Camera Spec | |
| Imager Sensor | SONY 1/2.8" "Exmor R" CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle | 1080p mode: 63.7°(wide end) ~ 2.3°(tele end) |
| 720p mode: 63.7°(wide end) ~ 2.3°(tele end) | |
| SD: 47.8°(wide end) ~ 1.7°(tele end) | |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.01lux@F1.6, AGC on, 1/30s |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |
| Fotoformate | JPEG |
| Videoformate | MP4 |
| Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | <15ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 160*160 pixel |
| Tracking speed | ±32 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Laser Light Supplement | |
| Effective range | 500 meters |
| Light wave length | 850 ± 10nm (940nm, 980nm) |
| Illumination angle | power zoom synchronously, 70°~2.0° adjustable |
| Zoom time | 2s (wide end - tele end) |
| Power consumption of laser chipset | 2 ± 0.2W |
| Illumination angle | Tele end 2.0°: effective range 500 meters, spot diameter < 20 meters Wide end 70°: effective range ＞ 40 meters |
| Working voltage | DC12V ± 10% |
| Power consumption in total | < 11W |
| Control system | PWM/TTL |
| Communication system | UART_TTL |
| Communication protocol | PELCO-D (defualt baud rate 9600bps) |

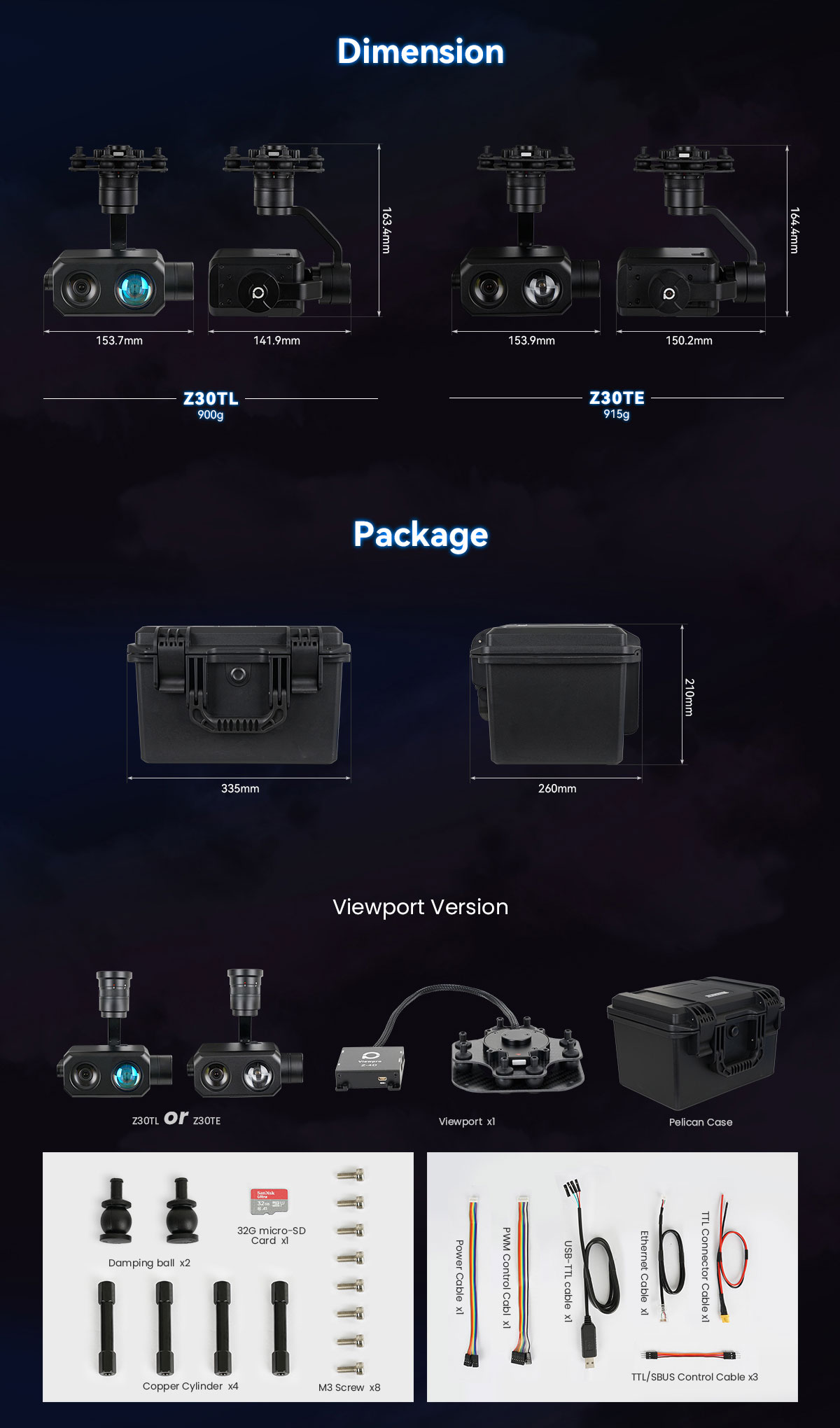

| Packing Information | |
| N.W. | 778g (Viewport version) |
| Product meas. | 153*141.9*138mm/153*141.9*163.4mm(Viewport Version) |

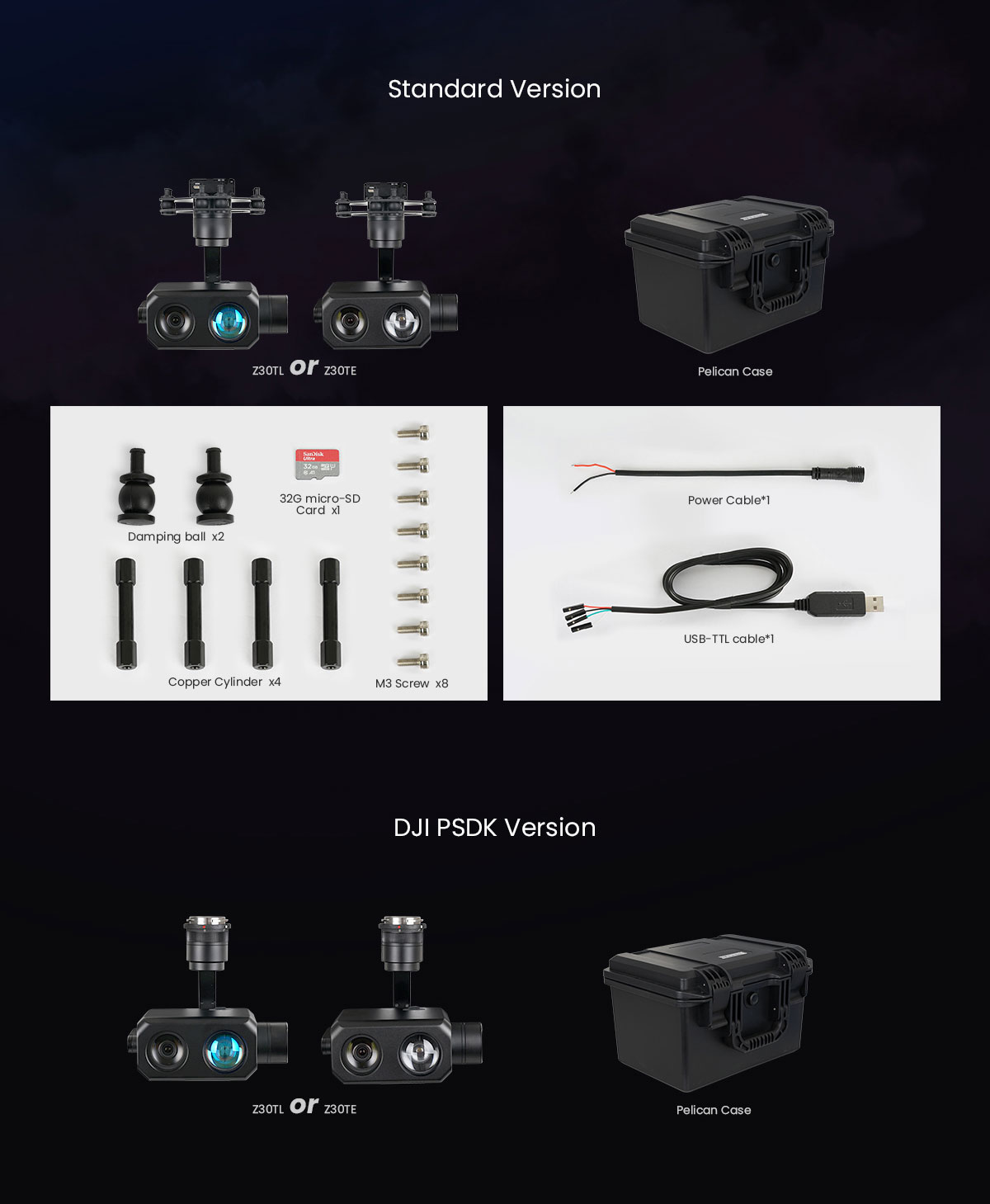

| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion |
