Z10TL

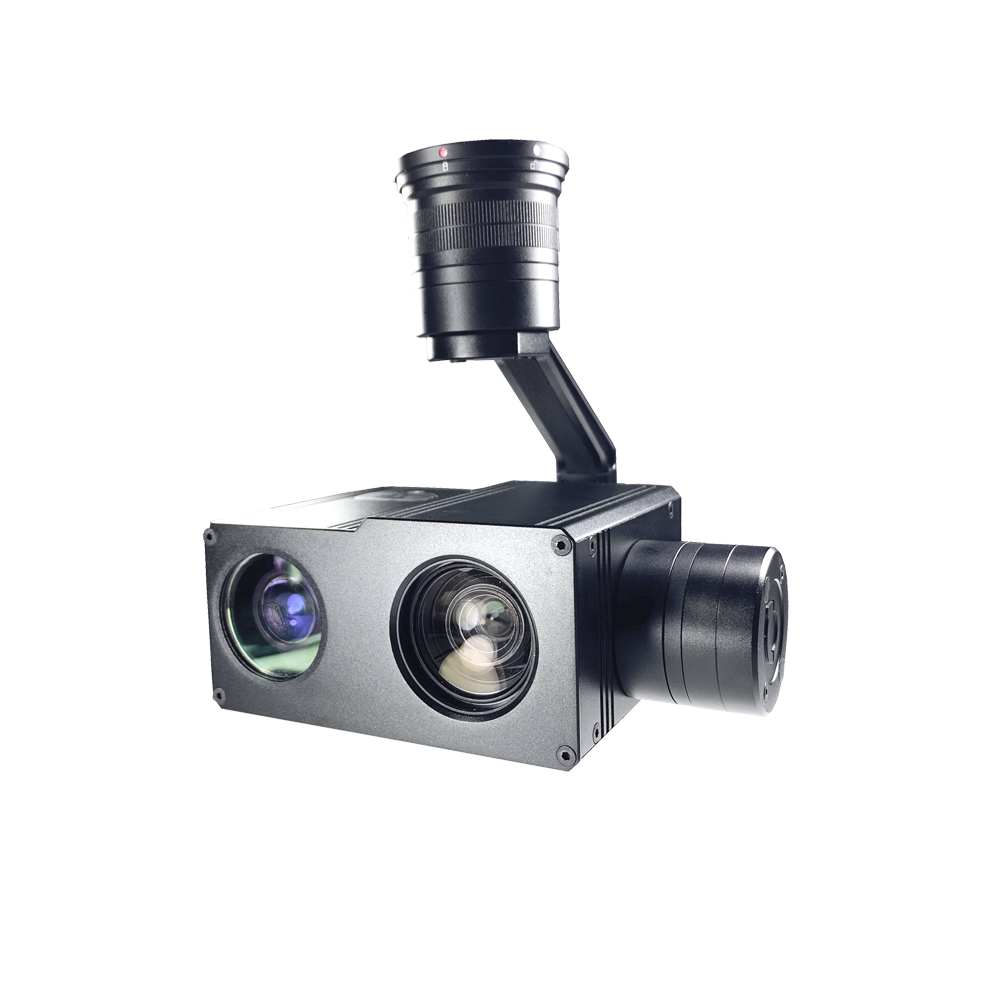

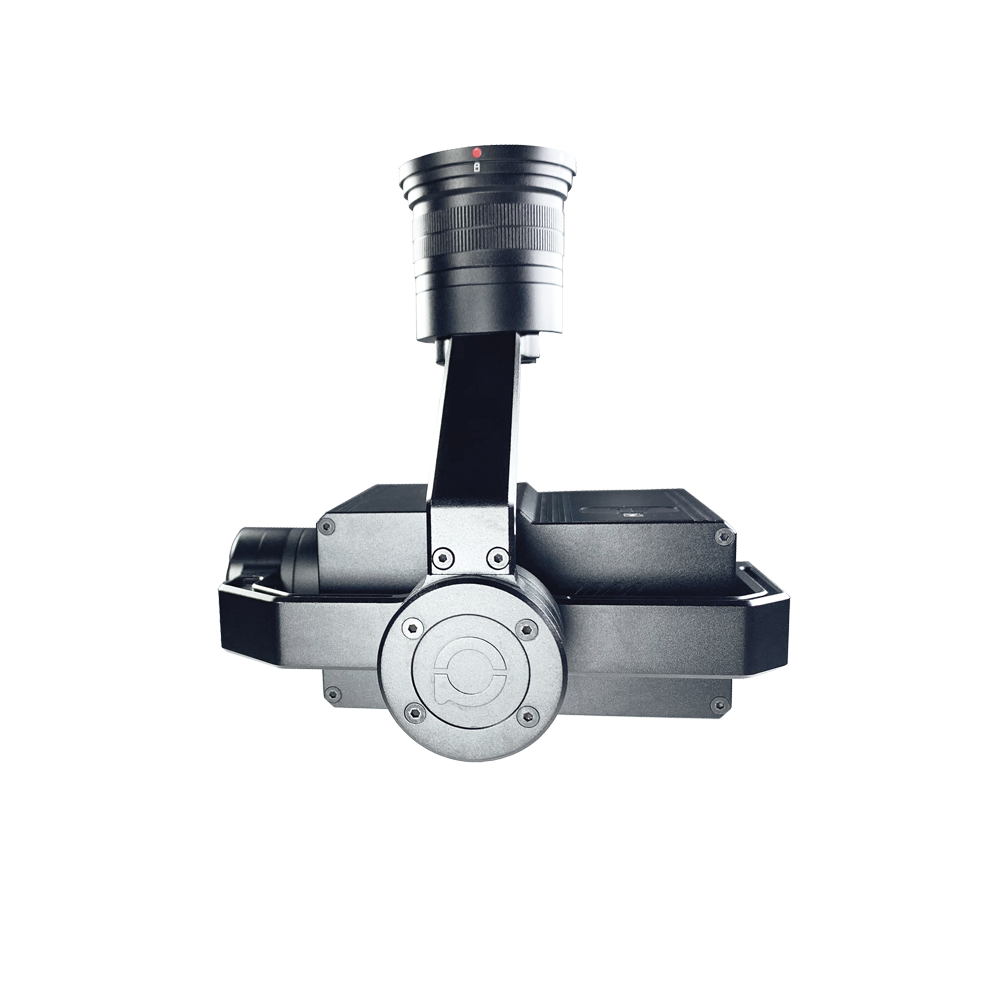

Z10TL is a high-precision professional 3-axis gimbal camera which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor. It can fulfill many powerful functions, such as: shoots or records with 10 times optical zoom, object tracking, IR laser night vision and so on. The speed of Z10TL gimbal is adjustable, LOW speed mode for tele end, the control will be more accurate. Fast mode for wide end, which makes the gimbal control sensitive and quick. Also the one-key to center function will allow the gimbal return to initial position automatically and rapidly.
10x Optical Zoom Camera, 300m IR Laser Light
Powered by 1/2.9" CMOS, with color 0.05lux@F1.6, ultra low illumination, Z10TL can still clearly display image features in utter poor light environment. 2mega effective pixel and 1080p HD image quality, combined with powerful optical zoom technology, and 300 meter laser light supplement, the observation range is up to 300 meters even at a pitch black night, which can meet the application requirements of various domains.
Camera Object Tracking
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.
Applications
"Our primary focus is on supplying equipment for various purposes such as firefighting, power tower maintenance, pipeline inspection, and search and rescue operations. Emergency situations demand a broad spectrum of monitoring and search capabilities to swiftly assess the situation and enhance response efficiency."
Specifications
| Hardware Parameter | |
| Working voltage | 14V ~ 16V |
| Input voltage | 3S ~ 4S |
| Dynamic current | 1100mA @ 12V |
| Idle current | 800mA @ 12V |
| Power consumption | ≤ 13.2W |
| Working environment temp. | -40℃ ~ +60℃ |
| Output | micro HDMI(HD output 1080P 60fps) / Skyport |
| Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Control method | PWM / TTL / S.BUS / DJI Polit |
| Gimbal Spec | |
| Pitch/Tilt | ±90° |
| Roll | ±85° |
| Yaw/Pan | ±150° / ±360° (IP/SDI output) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.03° |
| One-key to center | √ |
| Camera Spec | |
| Imager Sensor | 1/2.8inch CMOS |
| Total pixel | 2.43MP |
| Dynamic range | 65dB |
| Lens | 5MP |
| Optical zoom | 10x, F=4.7~47mm |
| Digital zoom | 6x |
| Min object distance | 1.5M |
| Viewing angle | Horizontal: 58.7°(Wide end) ~ 3.2°(Tele end) |
| Vertical: 45°(wide end) ~ 2.4°(tele end) | |
| Focus: 70.9°(wide end) ~ 7.1°(tele end) | |
| Sync system | Progressive scanning |
| Local video | 1080P 30fps local TF card |
| HD output | 1080P/720/480P 60fps HDMI1.4 |
| AV output | Standard CVBS 1Vp-p |
| S/N ratio | ≥52dB |
| Min illumination | Color 0.05lux@F1.6 |
| Backlight compensation | Backlight compensation/strong light inhibition |
| Gain | Auto |
| White balance | Auto/Manual |
| Shutter speed | Auto |
| Control system | UART/IR/PWM |
| Communication protocol | PELCO-D, Hitachi protocol or VISCA |
| Focus | Auto |
| Focus speed | 2s |
| Lens initialization | Built-in |
| User presetting bit | 20 sets |
| Image rotation | 180°, Horizontal/Vertical mirror image |
| Defog | Yes |
| OSD | Yes |
| Fotoformate | JPEG |
| Videoformate | MP4 |
| Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | <10ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 160*160 pixel |
| Tracking speed | ±32 pixel/frame |
| Object memory time | 100 frames (4s) |
|
The mean square root values of pulse noise in the object position |
< 0.5 pixel |
| Light Supplement | |
| Effective range | 300 meters |
| Light wave length | 850 ± 10nm (940nm, 980nm) |
| Illumination angle | power zoom synchronously, 70°~2.0° adjustable |
| Zoom time | 2s (wide end - tele end) |
| Power consumption of laser chipset | 2 ± 0.2W |
| Illumination angle | Tele end 2.0°: effective range 300 meters, spot diameter < 20 meters Wide end 70°: effective range ＞ 40 meters |
| Working voltage | DC12V ± 10% |
| Power consumption in total | < 11W |
| Control system | PWM/TTL |
| Communication system | UART_TTL |
| Communication protocol | PELCO-D (defualt baud rate 9600bps) |
| Packing Information | |
| N.W. | 543g |
| Product meas. | 129.8*117.1*119.8mm |
