Mini Z10TIRM

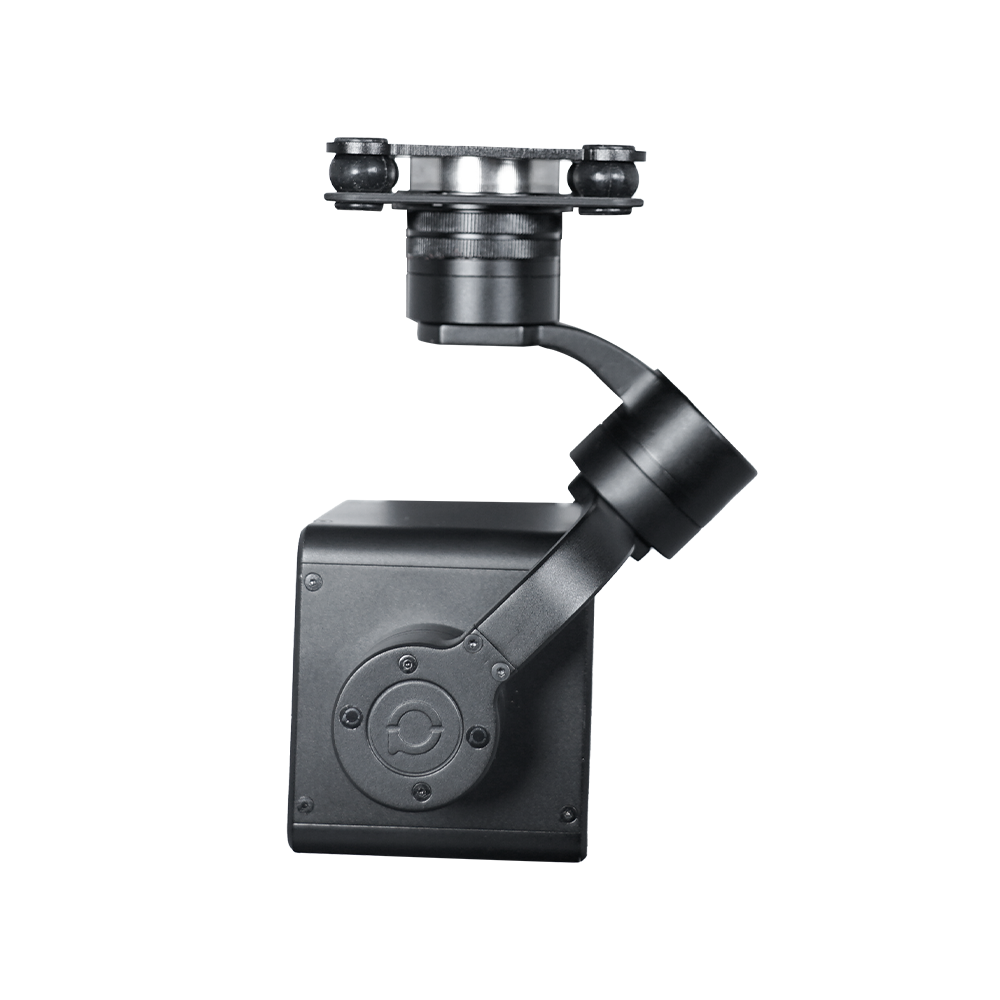

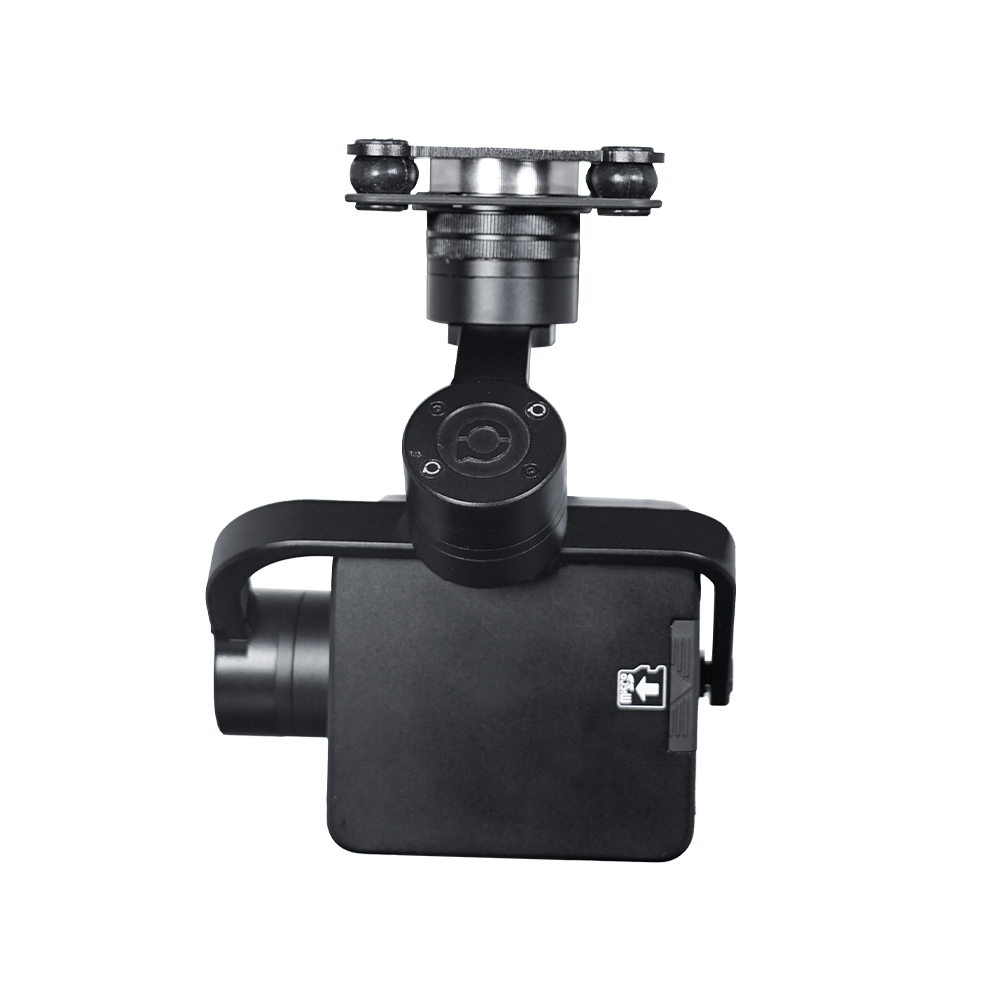

Stabilizing the Mini Z10TIRM is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. Mini Z10TIRM uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video. 360°rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even at high speed movement.
10x Optical Zoom Camera
Powered by 1/3" CMOS module,the camera has 4.08 Mega valid pixels, supports 10 times optical focus FHD 1080P video. Designed according to the characteristics of aerial photography application. Fast auto-focus, multi functional, small size, and support TCP and TTL serial control.
IR+EO Dual Sensors Object Tracking
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 48pixel/frame, object size range is from 32*32 pixel to 128*128 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.
GPS Location Resolving
The advanced location calculating algorithm is used to calculate the distance of the object within 1500 meters, accurately analyze the longitude and latitude of the object, and display the on the screen. It has a great auxiliary role in the enforcement of military and police.
Output Methods and Control
Mini Z10TIRM supports both Ethernet/IP output. Ethernet output default as 1080P and record is 1080p. It will support 360 degree endless pan. With Viewpro software Viewlink you can fulfill IP output, TTL control. PWM/S.BUS/UDP control is optional, please contact viewpro for special request.
Applications
"Our primary focus is on supplying equipment for various purposes such as firefighting, power tower maintenance, pipeline inspection, and search and rescue operations. Emergency situations demand a broad spectrum of monitoring and search capabilities to swiftly assess the situation and enhance response efficiency."
Specifications
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 570~2000mA @ 16V |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps) / SDI (1080P 30fps) |
| Local-storage | TF card (Up to 512G, class 10, FAT32) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |
| Card reading online | SMB read / HTTP read |
| Control method | PWM / TTL / S.BUS/ TCP (IP output version) / UDP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -33°～113°, Roll: ±40°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range | Pitch/Tilt: -30°～110°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| EO Camera Spec | |
| Imager Sensor | 1/3-type CMOS(Progressive Scan) |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 4.08MP |
| Lens optical zoom | 10x, F=3.3~33.0mm, F1.8~3.4 |
| Digital zoom | 16x |
| Min object distance | 10mm(wide end) to 800mm(tele end) |
| Horizontal viewing angle | 58.2°(wide end) ~ 6.9°(tele end) |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | 0.5 lx (1/30s, F1.8, 50%) |
| Gain | Auto / Manual |
| White balance | ATW1 (Narrow), ATW2 (Wide), One push, manual (B, R),indoor,outdoor |
| Shutter speed | 1/1s to 1/10,000s |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| OSD | Yes |
| IR Thermal imager spec | |
| Focus Length | 24mm |
| Horizontal FOV | 18.2° |
| Vertical FOV | 14.6° |
| Diagonal FOV | 23.2° |
| Detective Distance (Man: 1.8x0.5m) | 1000 meters |
| Recognize Distance (Man: 1.8x0.5m) | 250 meters |
| Verified Distance (Man: 1.8x0.5m) | 125 meters |
| Detective Distance (Car: 4.2x1.8m) | 3067 meters |
| Recognize Distance (Car: 4.2x1.8m) | 767 meters |
| Verified Distance (Car: 4.2x1.8m) | 383 meters |
| Working mode | Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel pitch | 12μm |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | ≤50mK (@25℃) |
| MRTD | ≤650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x ~ 12x |
| Sync correct time | Yes |
| EO / IR Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| IR Laser Rangefinder | |
| Range | 5~1800 meters |
| Resolution | 0.5m |
| Working current: | 80mA （max） |
| Light Beam | 905nm pulse laser |
| Divergent Angle | 3 mrad |
| Laser pulse frequency | 1HZ |
| Power | ＜ 1 mW (safe for eye) |
| Ranging mode | Pulse |
| Location Resolving | Latitude and longitude of target |
| Ranefinder | Target distance measuring |
| Packing Information | |
| N.W. | 692g(Viewport version) |
| Product meas. | 119.4*105.7*168.1mm / 119.4*105.7*173.8mm(Viewport version) |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 2264g |
| Package meas. | 300*250*200mm |
