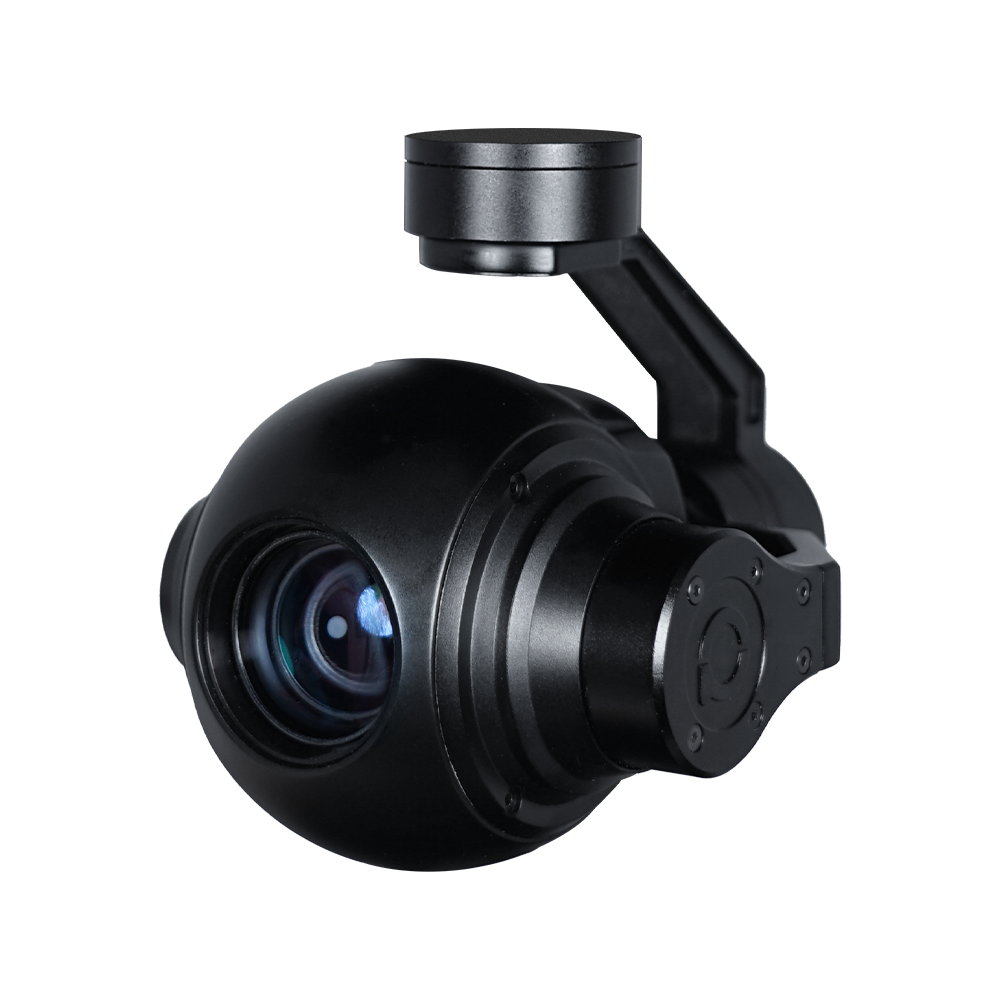

Q10N
Professional 3-axis High-precise FOC Program
The Q10N is a gimbal designed for 10X zoom camera for inspection,surveillance,search and rescue mission.It consists of HD 10X optical zooming camera and a 3-axis high stabilized gimbal, which is able to take and record 1080p 30fps video to an on board TF card, giving you a stable eye in the sky that can be controlled a secondary individual allowing for an overhead view that can cover a large amount of ground quickly and effectively. The 10X zoom function will allow you to remain at a distance yet zoom closely in on anything that requires your attention.
10x Optical Zoom Camera
Q10N gimbal and camera features an 10x optical zoom lens. It powered by 1/3 SENSOR CMOS module, supports approx.2.48 million effective pixels, with Color 0.05lux@F 1.6 ultra-low illumination, can still clearly display image features in the poor light environment, and has a wide dynamic range of 105dB. In the presence of backlight or strong light, the view of the over bright and over dark regions can sill be captured at the same time. Q10N has 2.48 Mega effective pixels, supports 10x optical qutofocus, and HD 1080P video recording.
IP Output with 360 degrees continuous
The Q10N support IP output with 360 degrees continuous. IP output as default is 720P.
Multi Control Methods
Defualt PWM, Serial port TTL and TCP control. Sbus is optional. With Viewpro software Viewlink you can fulfill TTL control.
Control box signal interfaces:
Applications
"Our primary focus is on supplying equipment for various purposes such as firefighting, power tower maintenance, pipeline inspection, and search and rescue operations. Emergency situations demand a broad spectrum of monitoring and search capabilities to swiftly assess the situation and enhance response efficiency."
Compatible with Viewport
Q10N is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.
Dimensions
Specifications
| Hardware Parameter | |
| Working voltage | 12V |
| Input voltage | 3S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 550mA @ 12V |
| Idle current | 450mA @ 12V |
| Power consumption | 3.85W |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | IP output (720p/1080P 25/30 fps) |
| Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Control method | PWM / TTL /S.BUS / TCP |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -35°～120°, Roll: ±60°, Yaw/Pan: ±300° / ±360°*N (IP output version)±90° |
| Controllable Range |
Pitch/Tilt: -35°～90°, Yaw/Pan: ±290° / ±360°*N (IP / SDI output version)
|
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| Camera Spec | |
| Imager Sensor | 1/3" CMOS |
| Total pixel | 2.48MP |
| Picture quality | Full HD 1080(1920*1080) |
| Optical zoom | 10x, F=5.1~51mm |
| Angle of View(D,H,V) | D: 68°(Wide end) ~ 6.7°(Tele end) |
| H: 54°(wide end) ~ 4.9°(tele end) | |
| V: 31°(wide end) ~ 4.0°(tele end) | |
| Photo storage format | JPG(1920*1080/1280*720) |
| Video storage format | MP4 (1080P/720P 25fps/30fps) |
| Sync system | Progressive scanning |
| Sync. System Internal | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.05lux, BW:0.1lux, Color DSS: 0.125lux, BW DSS:0.025 lux |
| Backlight compensation | Backlight compensation/strong light inhibition |
| Gain Control | Off/On |
| White balance | Auto/Manual |
| Shutter speed | Auto |
| Focus | Auto/Manual/One-time automatic focus |
| Iris | 0~20 steps |
| Exposure | Mode / AGC / Shut Speed / Iris / DSS / Flickerless / Brightness / WDR/BLC / D&N |
| Defog | Yes |
| OSD | Yes |
| Packing Information | |
| N.W. | 410g (Viewport version) |
| Product meas. | 91.6*111.4*143.1mm / 91.6*111.4*148.8mm(Viewport Version) |
| Accessories |
1pc gimbal camera device, screws, USB to TTL cable / Hight quality box with foam cushion
|
| Package meas. | 200*200*150mm |
