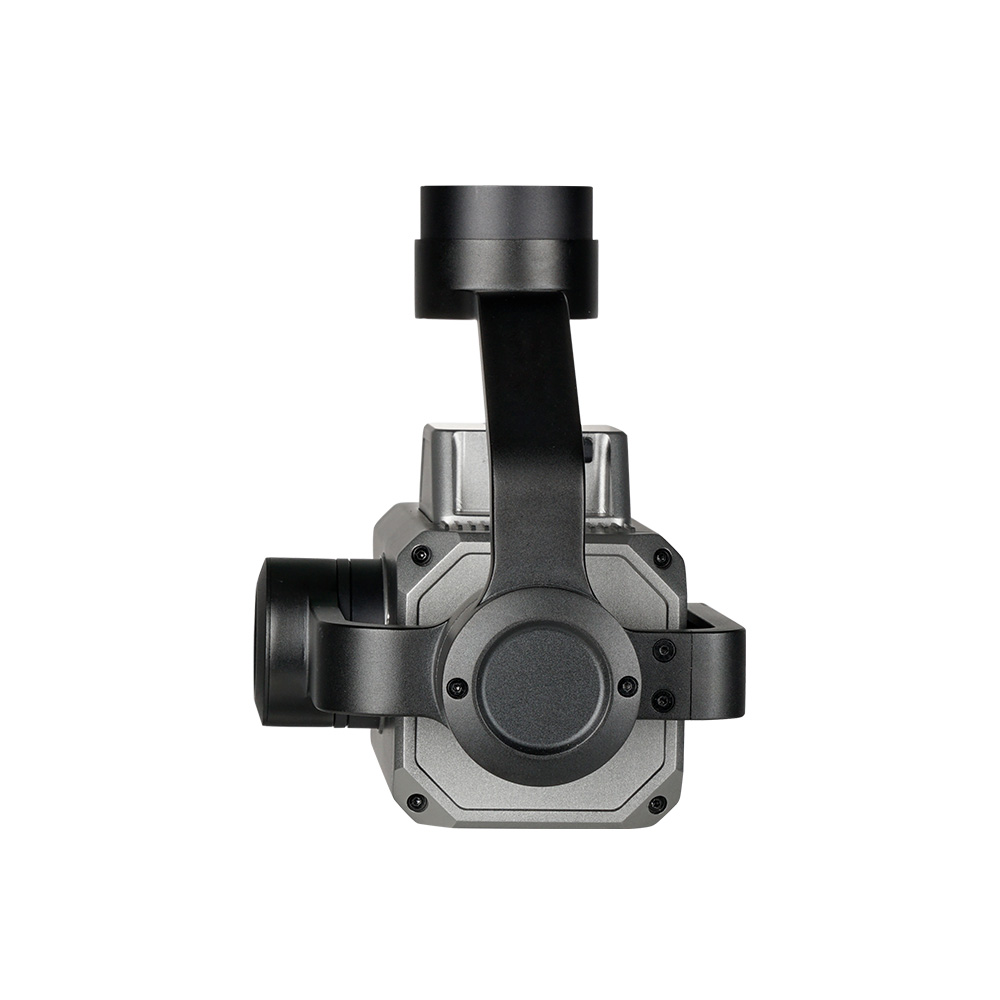

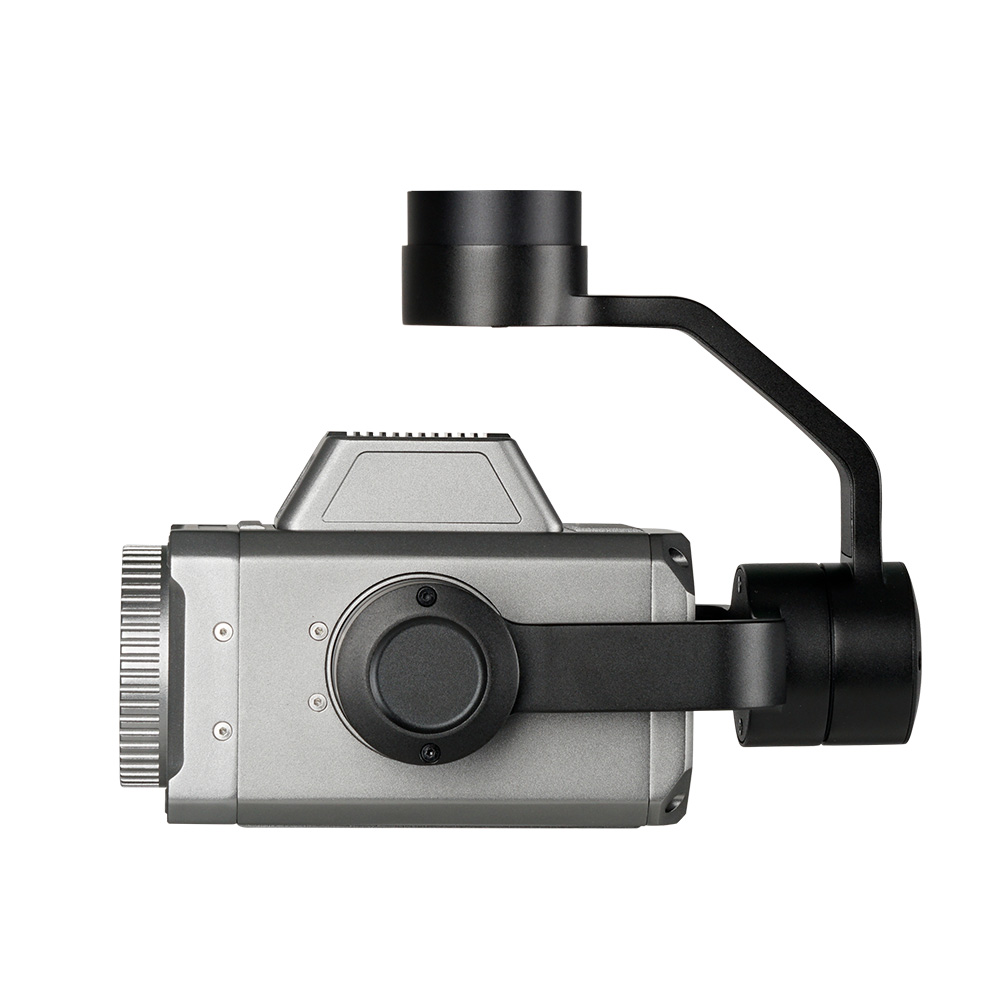

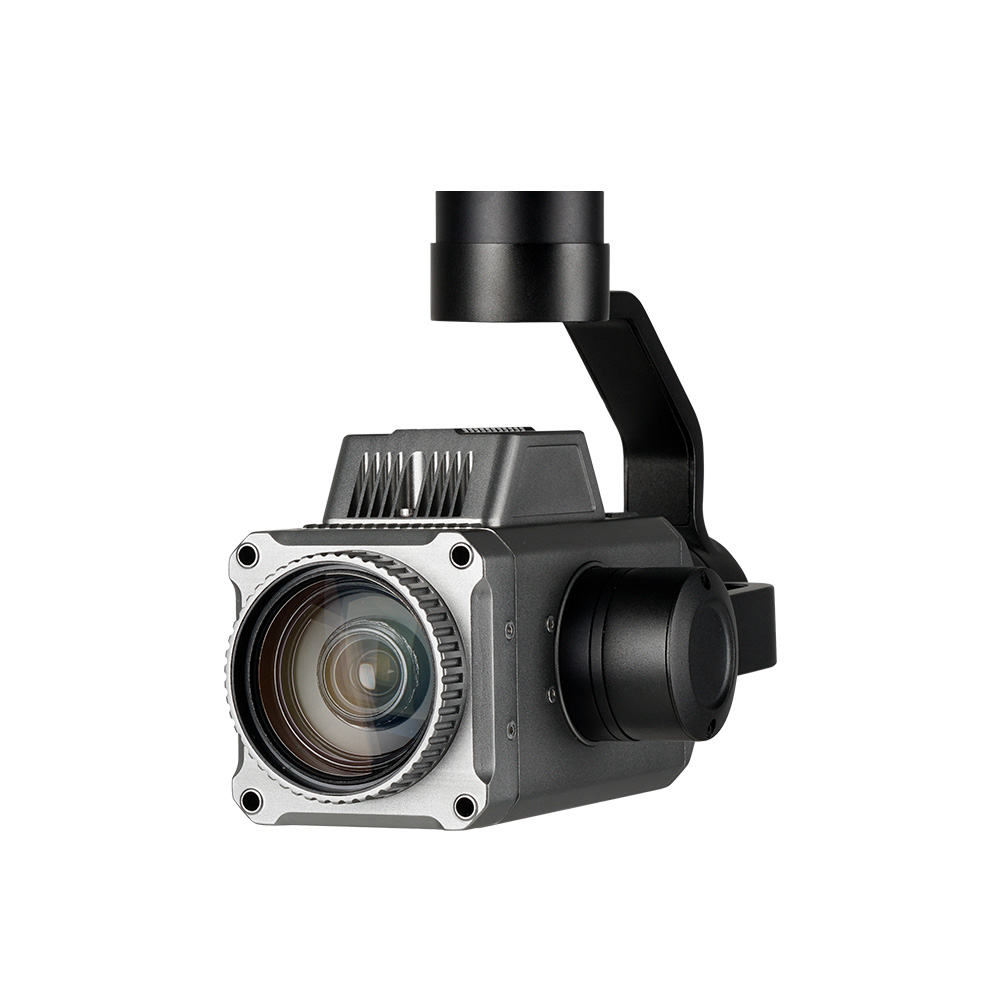

Z36T Cube
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 580~1150mA @ 16V |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps) / SDI (1080P 30fps) |
| Local-storage | SD card (Up to 512G,class 10, FAT32 format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |
| Card reading online | SMB read / HTTP read |
| Control method | PWM / TTL / S.BUS/ TCP (IP output version) / UDP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: ±120°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range | Pitch/Tilt: -45°～115°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| Camera Spec | |
| Imager Sensor | 1/2" Sony IMX385LQR-C CMOS Sensor |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13M pixels |
| Lens optical zoom | 36x, F= 6.0mm ~ 216.0mm |
| Digital zoom | Digital x32 Zoom |
| Angle of View (D, H, V) | Wide: 63.31° 56.5° 33.63° |
| Tele: 2.44° 2.12° 1.19° | |
| Sync system | Progressive scanning |
| S/N ratio | more than 50dB (AGC off) |
| Min. illumination (50%) | Color(1/30s, 77.7dB) : 0.01 lux , BW(1/30s, 77.7dB) : 0.002lux |
| Color DSS(1/1s, 77.7dB) : 0.001 lux , BW DSS(1/1s, 77.7dB) : 0.0002 lux | |
| Gain | Auto |
| White balance | Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext |
| Shutter speed | 1/30(25) ~ 1/60,000 sec |
| Brightness | 0 ~ 20 steps |
| Aperture control | 0 ~ 20 steps |
| Defog | Yes |
| OSD | Yes |
| Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| N.W. | 930g / 992g(Viewport Version) |
| Product meas. | 187.6*105.3*180.6mm /187.6*105.3*186.3mm(Viewport Version) |
| Accessories | 1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic box with foam cushion |
| G.W. | 3112g |
| Package meas. | 360*300*250mm |
