X30TL DJI

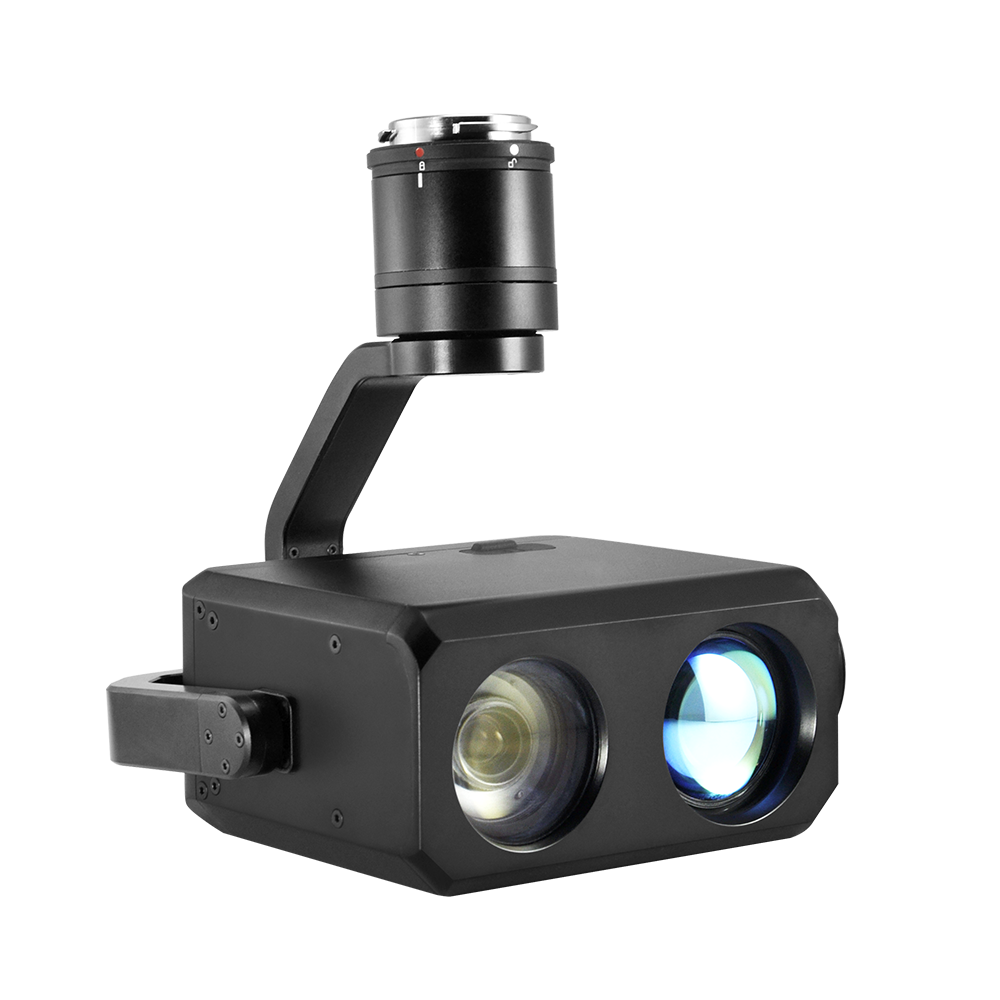

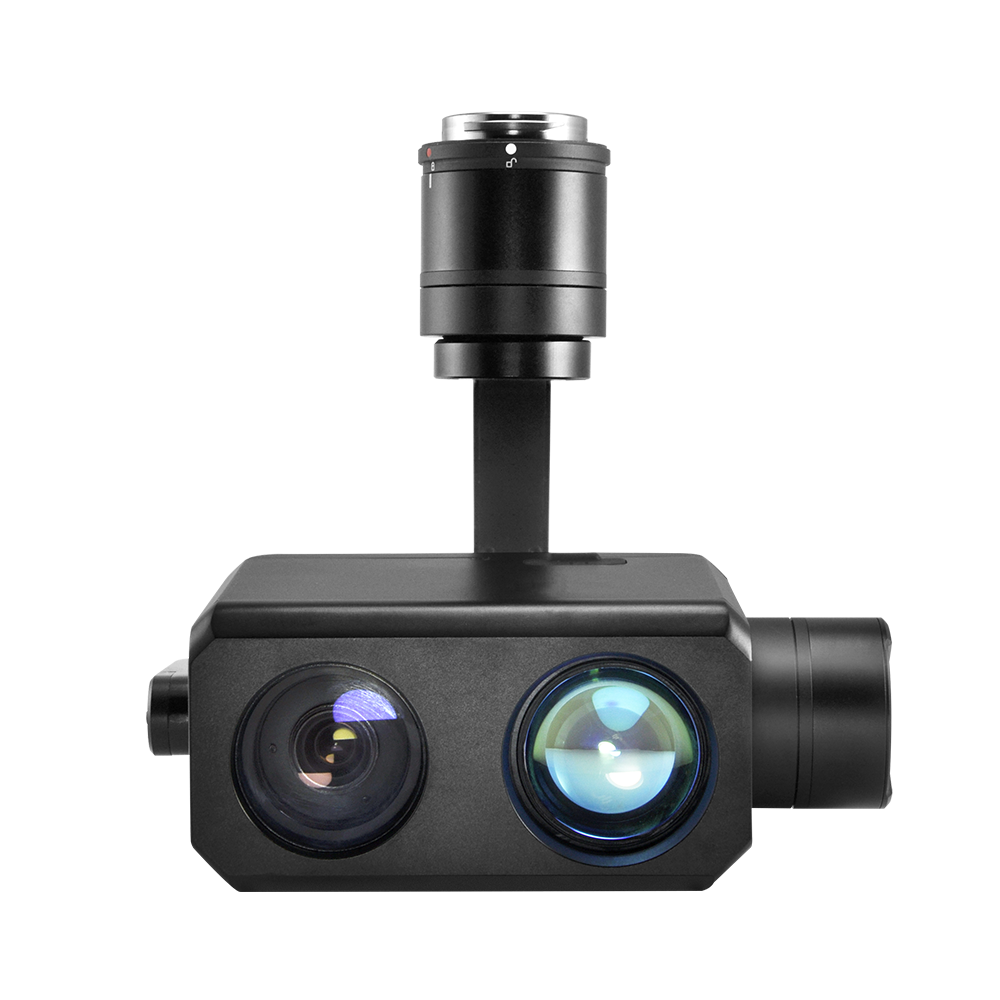

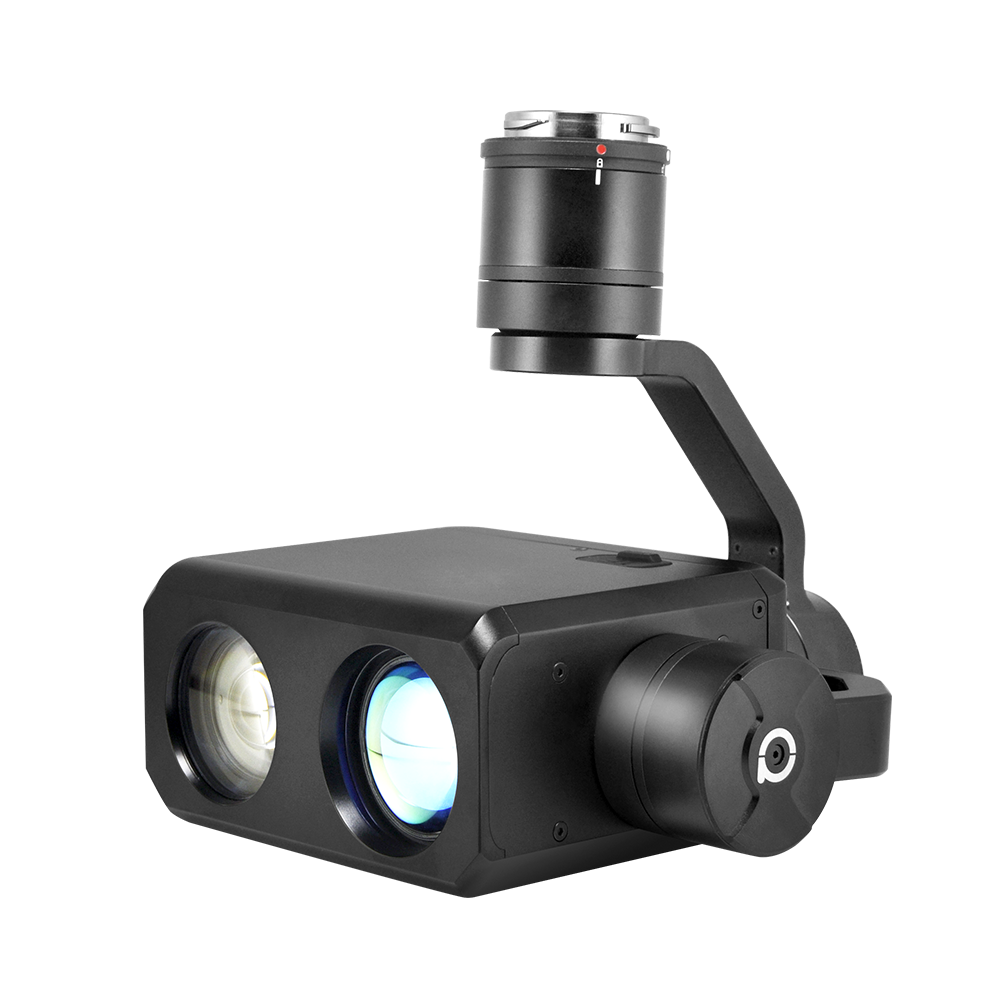

X30TL is a 3-axis high stabilized gimbal with a 30x optical zoom camera and a 500 meters laser supplement. The 3-axis gimbal based on FOC motor control technology, adopts pinpoint-precision encoder in each motor. It’ s developed based on DJI PSDK, compatible with DJI M200 / M210 / M210RTK & V2 series, M300 RTK. Controlled by APP “DJI Pilot” it can fulfill many powerful functions, such as: shoots or records with 30 times optical zoom, object tracking, IR laser night vision and so on. Moreover, the laser supplement supports people to observe even at pitch-dark night, engineering for night surveillance and search.





30x Optical Zoom Camera





Powered by SONY 1/2.8" CMOS, low illumination 0.05 lux@F1.6, X30TL can still clearly display image features in utter poor light environment. 2mega effective pixel and 1080p FHD image quality, combined with powerful 30x optical zoom technology, the observation range is up to 6.5Km.




500m IR Illumination



500 meters illumination supplement combined with 30x optical zoom, the observation range for X30TL is up to 500 meters in a pitch black environment, which can meet the application requirements of various domains such as night surveillance, research&rescue, obtain evidence...





Camera Object Tracking



Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.



Dimension




Applications

"Our primary focus is on supplying equipment for various purposes such as firefighting, power tower maintenance, pipeline inspection, and search and rescue operations. Emergency situations demand a broad spectrum of monitoring and search capabilities to swiftly assess the situation and enhance response efficiency."



Specifications



Hardware Parameter
Working voltage 14V ~ 16V
Input voltage 3S ~ 4S
Output voltage 5V (connect with PWM)
Dynamic current 1000mA @ 12V
Idle current 800mA @ 12V
Power consumption ≤ 12W
Working environment temp. -40 ~ +60
Output  Skyport
Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method DJI Pilot
Gimbal Spec
Pitch/Tilt ±90°
Roll ±85°
Yaw/Pan ±360°*N
Vibration angle Pitch/Roll: ±0.02°, Yaw±0.03°
One-key to center
Camera Spec
Imager Sensor SONY 1/2.8" "Exmor R" CMOS
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13MP
Lens optical zoom 30x, F=4.3~129mm
Digital zoom 12x (360x with optical zoom)
Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle 1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
720p mode: 63.7°(wide end) ~ 2.3°(tele end)
SD: 47.8°(wide end) ~ 1.7°(tele end)
Sync system Internal
S/N ratio more than 50dB
Min illumination Color 0.01lux@F1.6, AGC on, 1/30s
Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual
Shutter speed 1/1s to 1/10,000s, 22 steps
Backlight compensation Yes
Aperture control 16 steps
Defog Yes
OSD Yes
Fotoformate JPEG
Videoformate MP4
Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel <15ms
Minimum object contrast 5%
SNR 4
Minimum object size 16*16 pixel
Maximum object size 160*160 pixel
Tracking speed ±32 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel
IR Laser Illumination
Effective range 500 meters
Light wave length 850 ± 10nm (940nm, 980nm)
Illumination angle power zoom synchronously, 70°~2.0° adjustable
Zoom time 2s (wide end - tele end)
Power consumption of laser chipset 2 ± 0.2W
Illumination angle Tele end 2.0°: effective range 500 meters, spot diameter < 20 meters
Wide end 70°: effective range  40 meters
Working voltage DC12V ± 10%
Power consumption in total < 11W
Control system PWM/TTL
Communication system UART_TTL
Communication protocol PELCO-D (defualt baud rate 9600bps)
Packing Information
N.W. 770g
Product meas.
164*154*143mm
