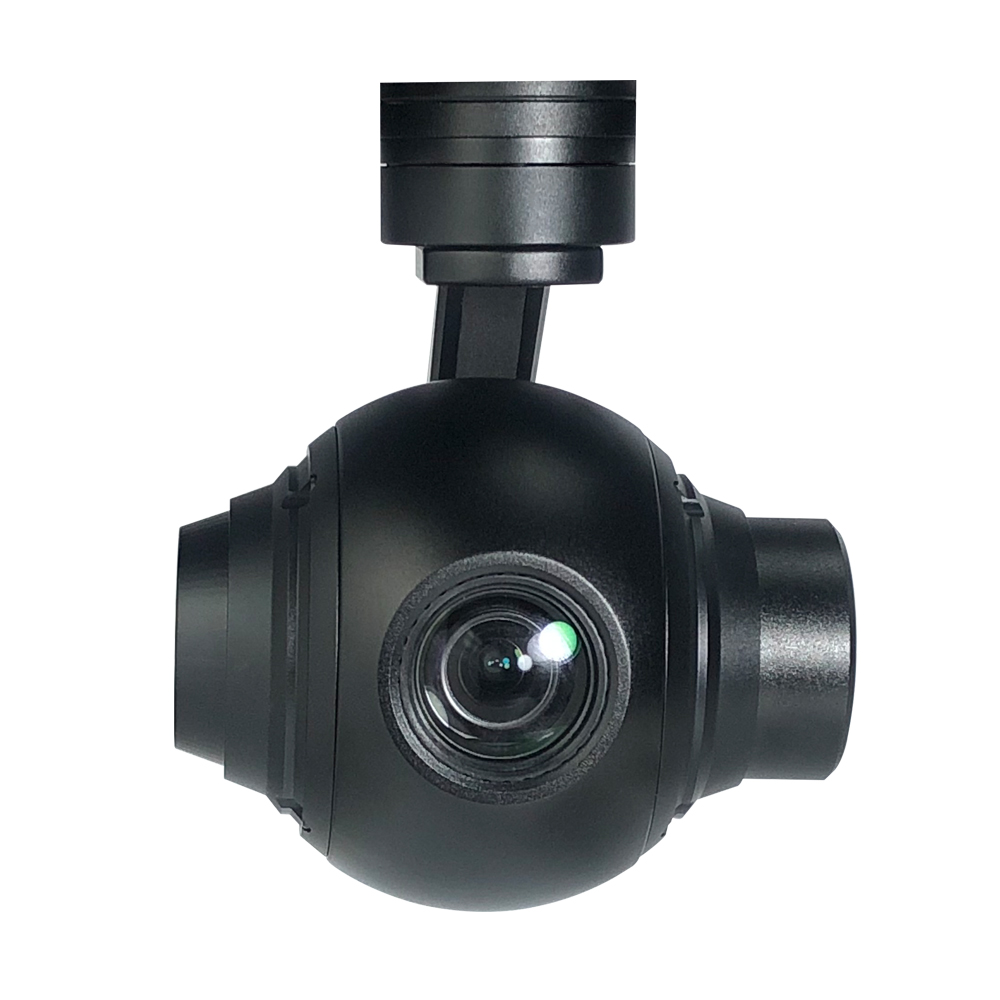

Q10F
Professional 3-axis High-precise FOC Program

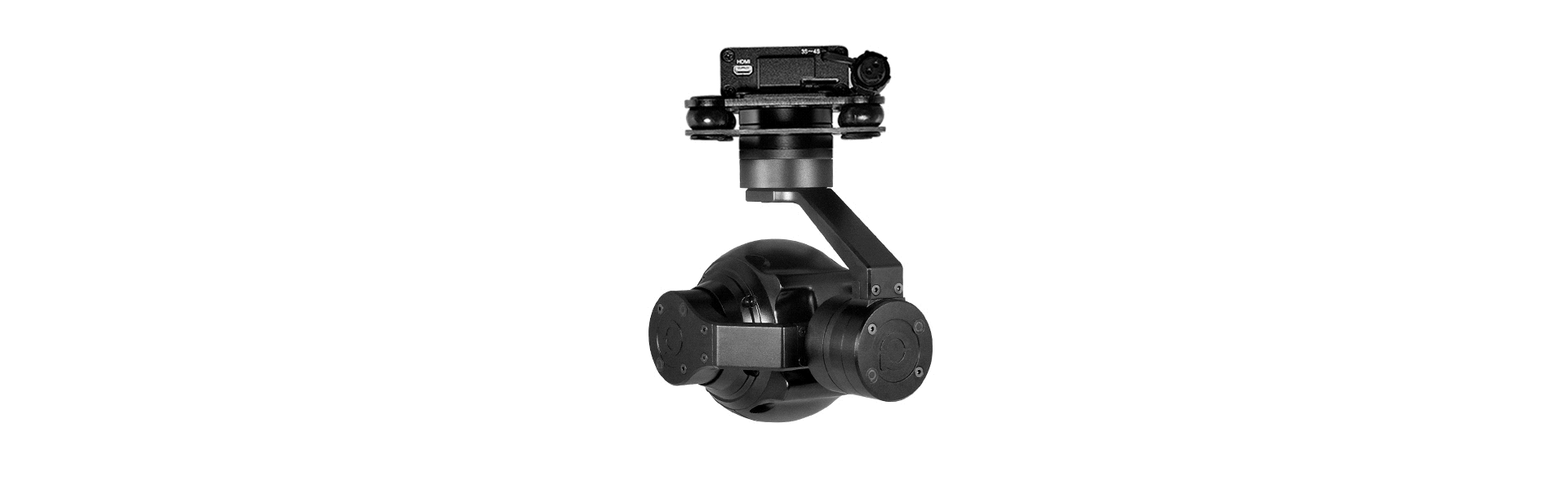

Stabilizing the Q10F is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. 300° rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even at high speed moving.
10x Optical Zoom Camera

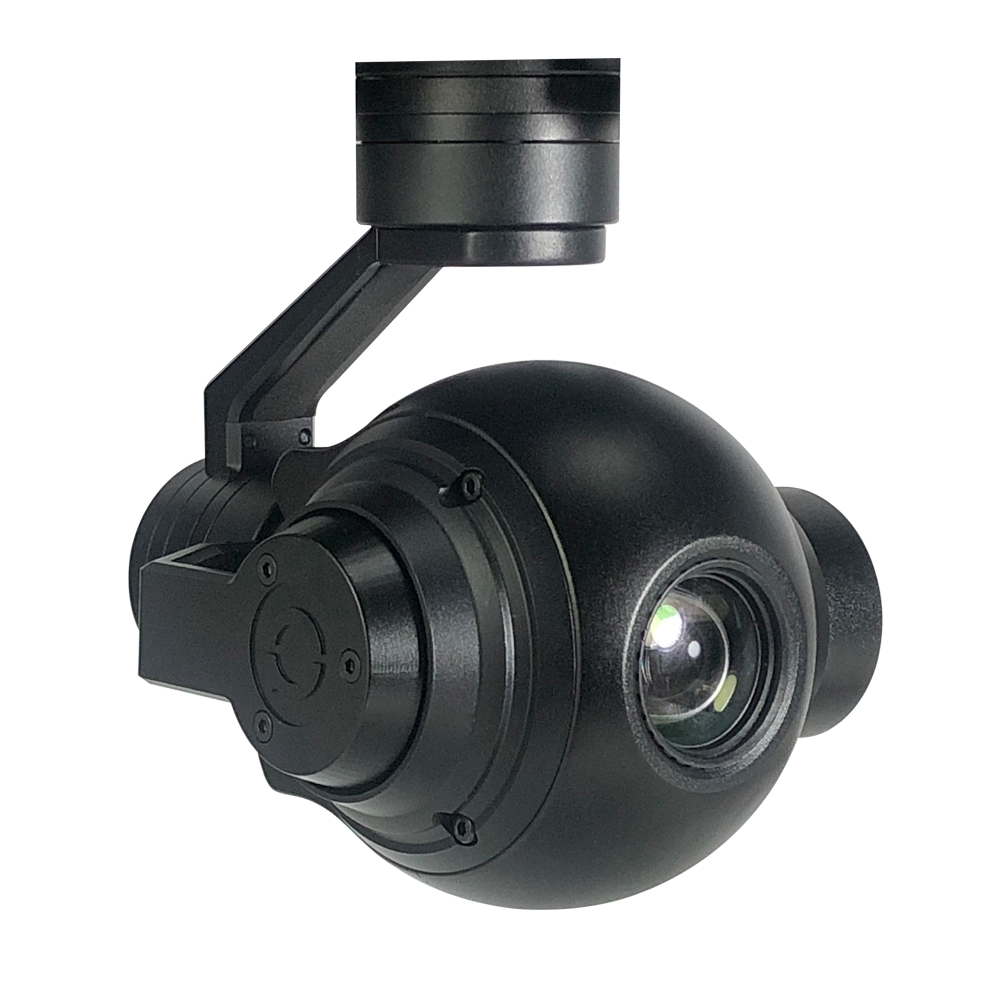

Q10F gimbal and camera features an 10x optical zoom lens. The type 1/3 inch CMOS sensor supports approx, 4 million effective pixels, HD 1080p video, fast auto-focus speed, small size.
3-axis Samll Size Gimbal Camera

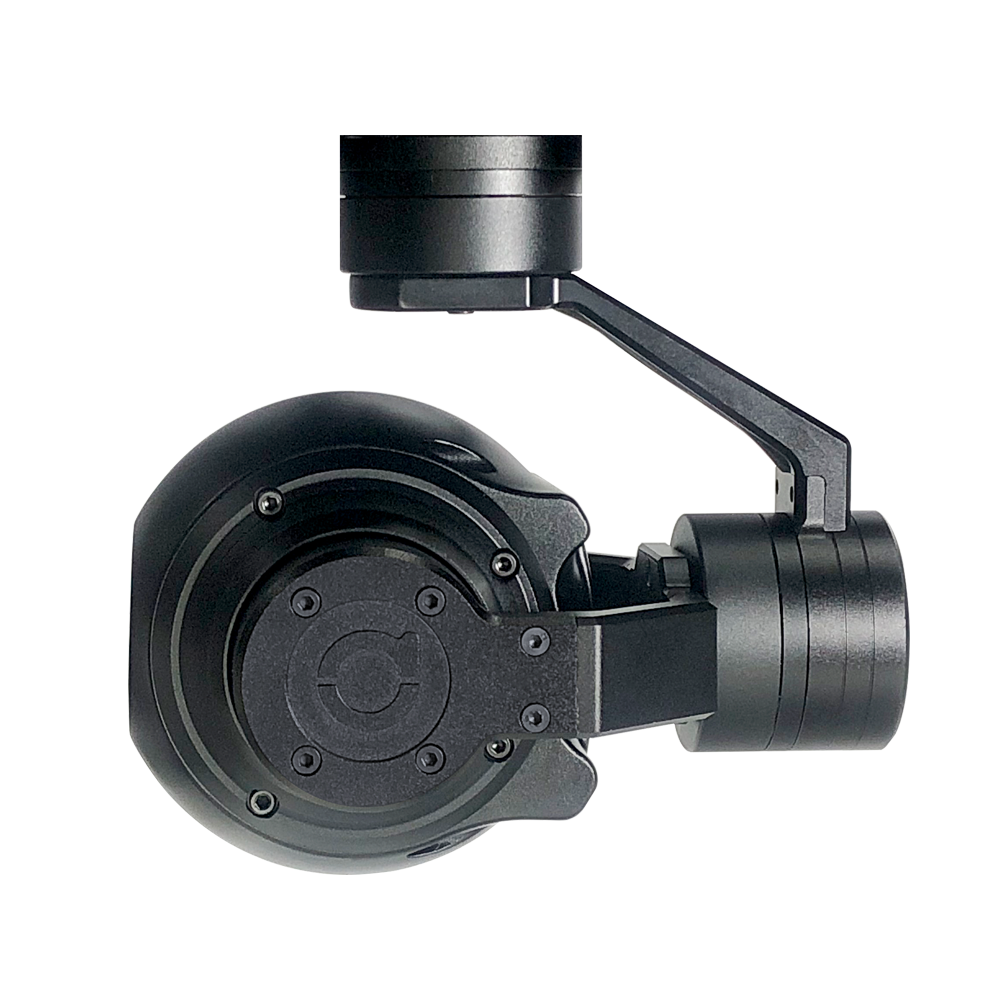

Q10F is a professional 3-axis gimbal which features high stability, small size, light weight and low power consumption.
Multi Output Methods Optional
The Q10F support HDMI and AV output. HDMI is 1080P and AV output is 720p.
Multi Control Methods
Defualt PWM and Serial port TTL control. Sbus is optional. With Viewpro software Viewlink you can fulfill TTL control.
Control box signal interfaces:
Applications
"Our primary focus is on supplying equipment for various purposes such as firefighting, power tower maintenance, pipeline inspection, and search and rescue operations. Emergency situations demand a broad spectrum of monitoring and search capabilities to swiftly assess the situation and enhance response efficiency."
Compatible with Viewport
Q10F is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.
Dimensions
Specifications
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 180~500mA @ 16V |
| Working environment temp. | -20℃ ~ +50℃ |
| Output | micro HDMI(HD output 1080P 60fps/30fps) / Analog |
| Local-storage | SD card (Up to 32G, class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG (1920*1080) |
| Video storage format | MOV (1080P 30fps) |
| Control method | PWM / SBUS / TTL |
| Geotagging | not support |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: ±120°, Roll: ±70°, Yaw/Pan:±300° |
| Controllable Range | Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| Camera Spec | |
| Image Sensor | 1/3inch CMOS |
| Total pixel | 4MP |
| Effective pixels | 2688*1520 |
| Dynamic range | 65dB |
| Lens | 5MP |
| Optical zoom | 10x, F=4.9~49mm |
| Min focus distance | 1.5m |
| Scope of observation | Horizontal: 53.2°(close focus) ~ 5.65°(far focus) |
| Vertical: 39.8°(close focus) ~ 4.2°(far focus) | |
| Focus: 66.6°(close focus) ~ 7.2°(far focus) | |
| Sync system | Progressive scanning |
| HD output | 1080P/720/480P 60fps HDMI1.4 |
| Analog output |
Standard CVBS 1Vp-p |
| SNR | 38dB |
| Min illumination | Chromatic color 0.05lux@F1.6 |
| Backlight compensation | Backlight compensation/strong light suppression |
| Gain | Auto |
| White balance | Auto/Manual |
| Electronic shutter | Auto |
| Control system | UART/IR/PWM |
| Communication protocol | PELCO-D, Hitachi protocol or VISCA |
| Focus | Auto/Manual/One-time automatic focus |
| Focus speed | 2s |
| Lens initialization | Built-in |
| User presetting bit | 20 sets |
| Image rotation | 180°, Horizontal/Vertical mirror image |
| OSD | Not support |
| Camera Object Tracking(Optional) | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 4s |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| N.W. | 437g / 530g(Viewport version) |
| Product meas. | 108*86.2*140.6mm / 108*86.2*146.3mm(Viewport version) |
| Accessories | 1pc gimbal camera device with damping system, screws / Hight quality box with foam cushion |
| G.W. | 820g |
| Package meas. | 200*200*150mm |
