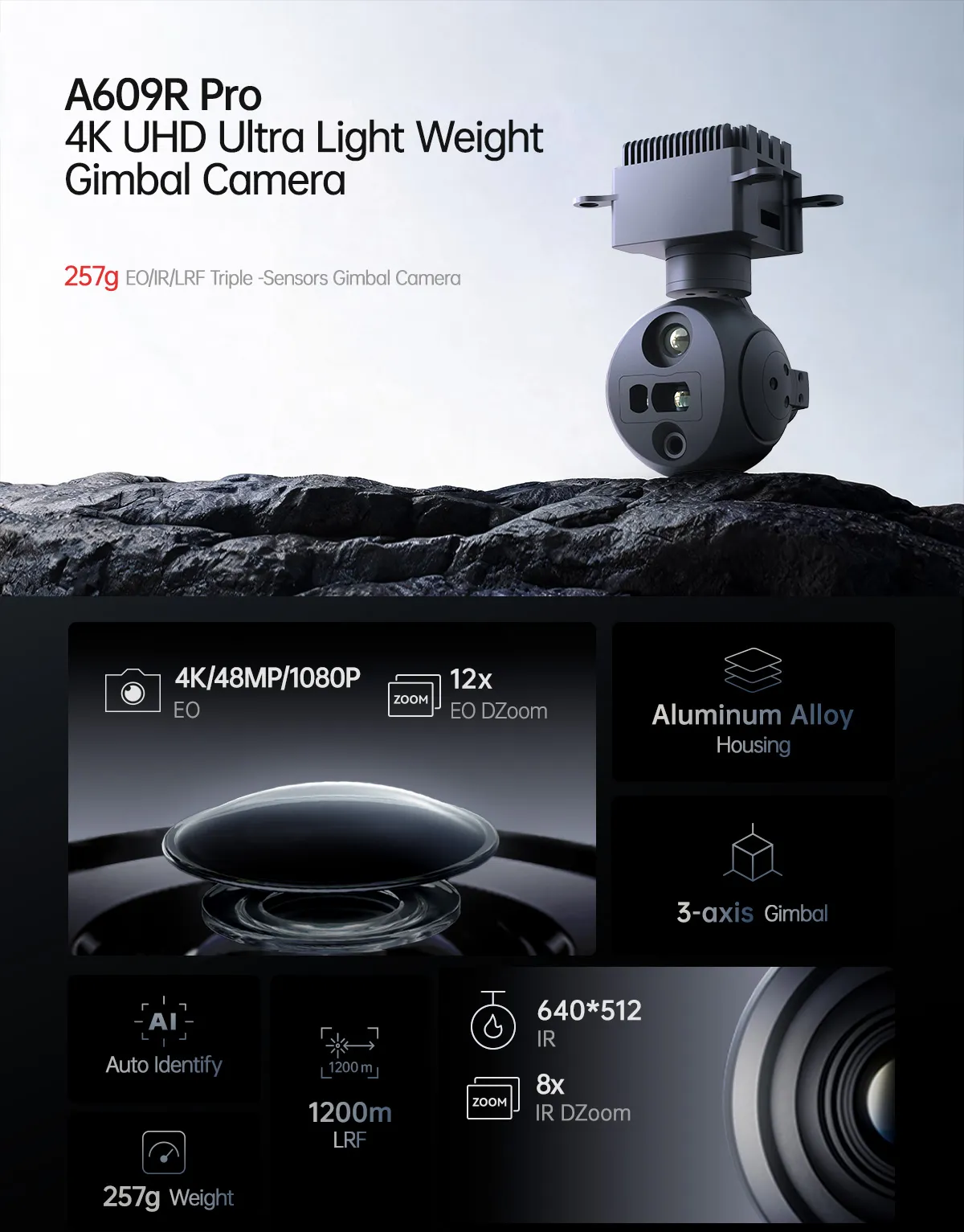

The A609R PRO is an upgraded version of the A609R. Its image sensor specifications are a 1/2" CMOS sensor with a 4.5mm focal length and 48 megapixels; the thermal imager specifications are 640x512 pixels, a 9mm focal length, and a 12μm aperture, with a target ranging range of up to 1200 meters. Weighing only 257 grams, it is a widely applicable miniature pod.
Specification
| Overall Specifications | |

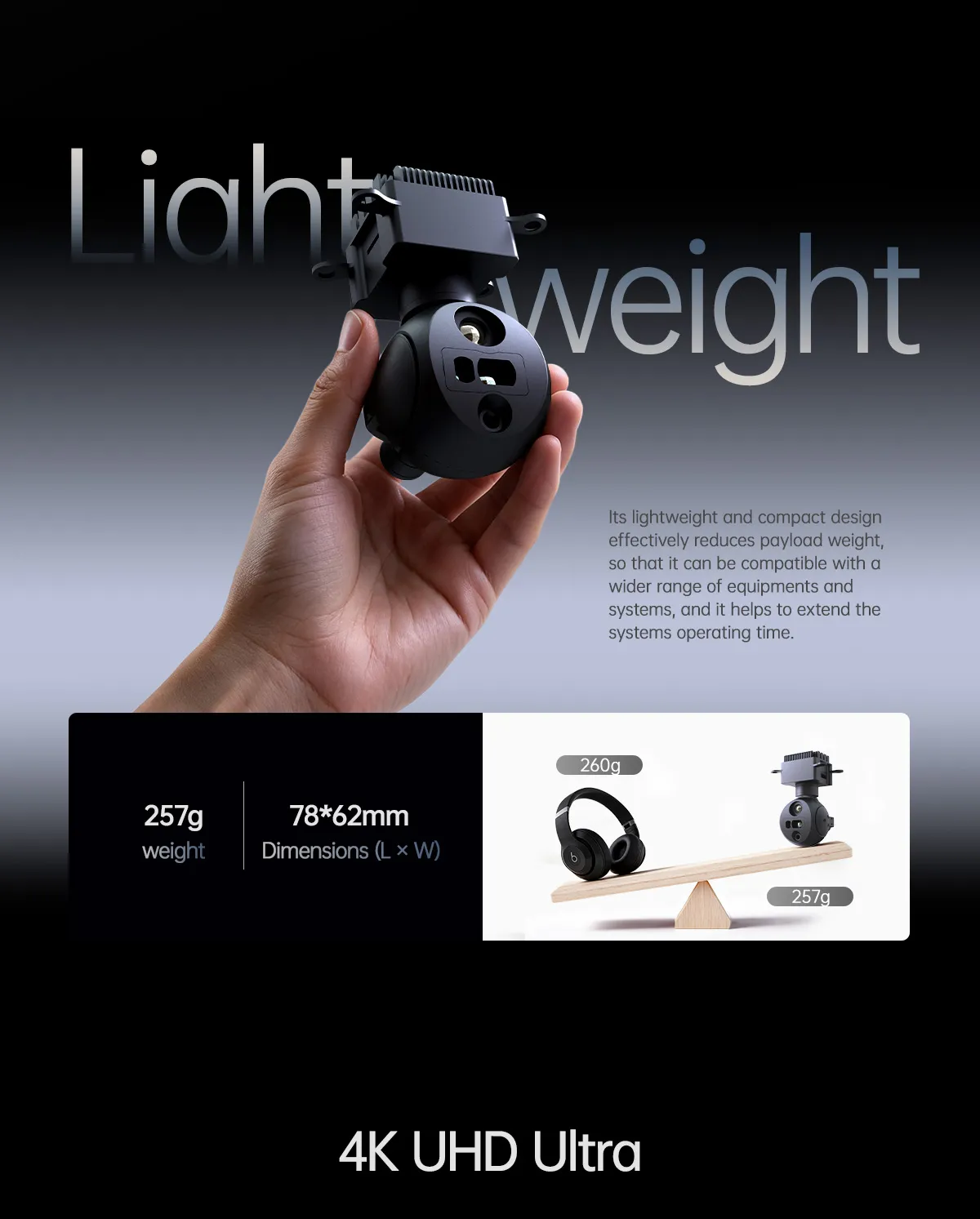

| N.W. | 257g |

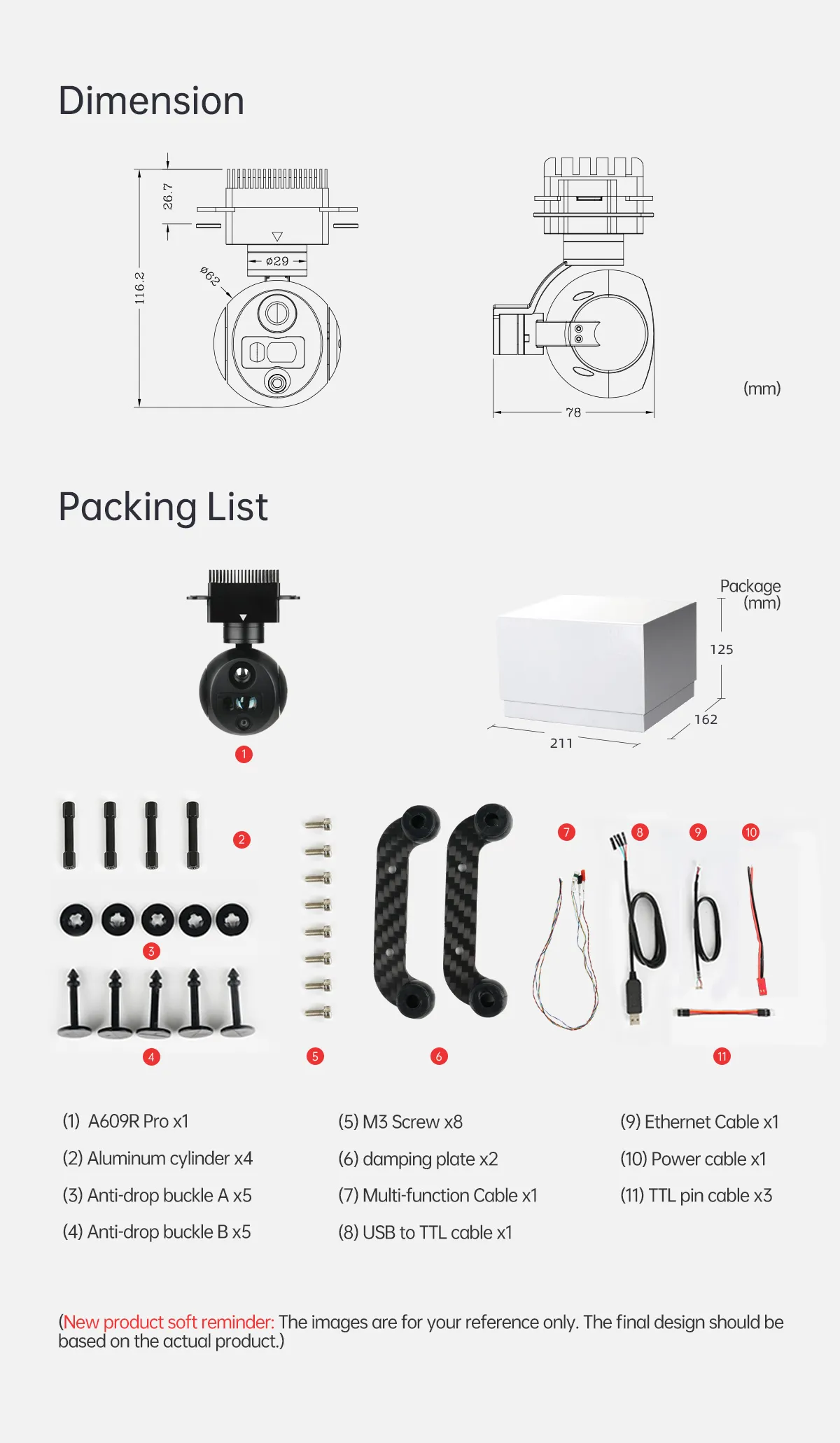

| Product meas. | 78*62*106.6mm |
| Input voltage | 14.8V~25.2V |
| Dynamic current | 500~1000mA @ 16V |
| Power consumption | Average 8W, Max 16W |
| Working environment temp. | -20℃ ~ +50℃ |
| IP rate | IP4X |
| Output | IP (RTSP/UDP 4K/1080p/720p@30fps H264/H265) |
| Storage | TF card (Up to 256G,class 10, FAT32) |
| Picture in TF Card | JPG (EO supports 4K/48M depending on the mode selected; IR supports 640x512) |
| Video in TF Card | MP4 (EO supports 4K/1080P/720P; IR supports 640x512) |
| Control method | TTL or S.BUS (choose one of them, and TTL by default), and TCP/UDP |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -45°(Up)～130°(Down), Roll: ±50°, Yaw/Pan: ±150° |
| Controllable Range | Pitch/Tilt: -40°～110°, Yaw/Pan: ±145° |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| EO Camera Spec | |
| Imager Sensor | 1/2" CMOS |
| Pixel size | 0.80 µm (H) × 0.80 µm (V); equivalent to 1.6 µm after 2x2 binning. |

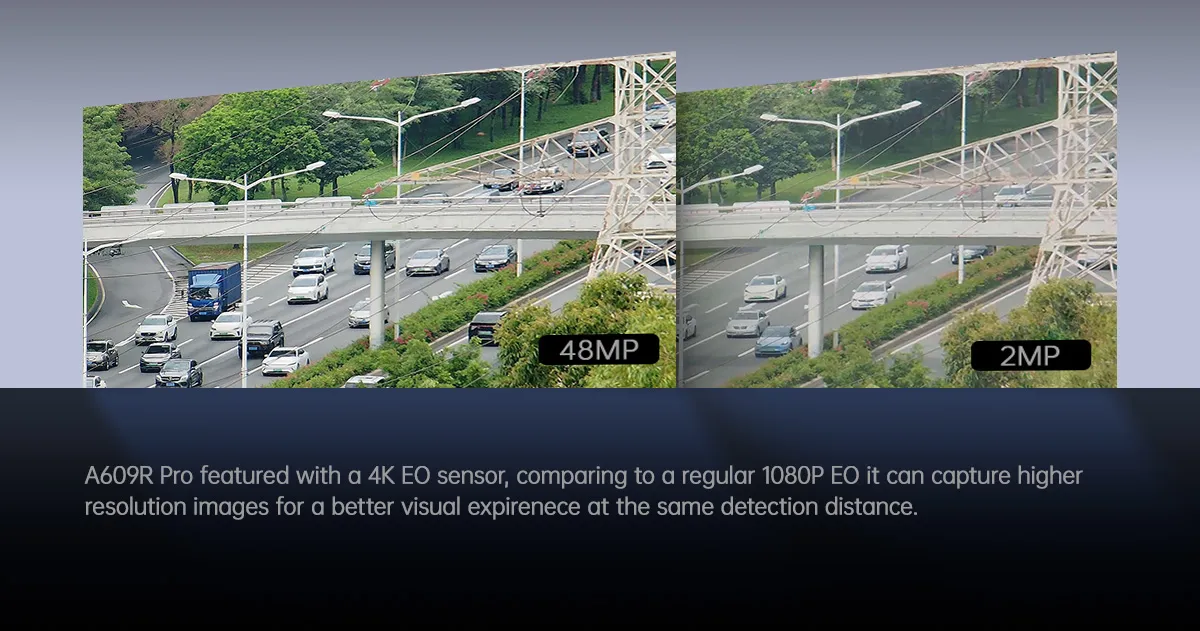

| Resolution | 48MP(8000*6000) |
| EFL | 4.5mm |
| Field of View (D,H,V) | FOV：D 76.1° H 68.6° V 42.0° |
| IR Thermal Imager Spec | |
| Focus Length | 9mm |
| Horizontal FOV | 46.2° |
| Vertical FOV | 37.7° |
| Diagonal FOV | 57.3° |

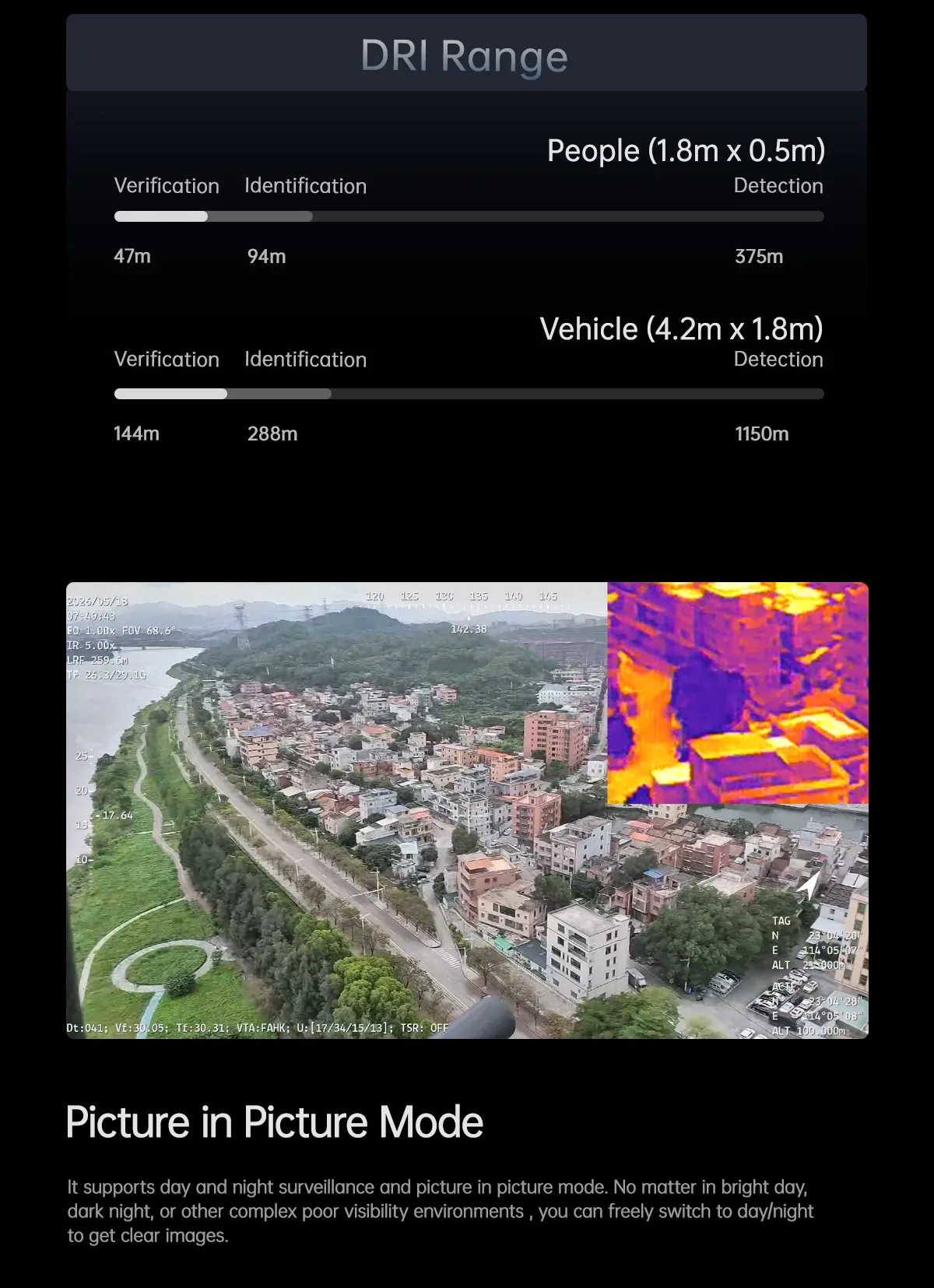

| Detective Distance (Man: 1.8x0.5m) | 375 meters |
| Recognize Distance (Man: 1.8x0.5m) | 94 meters |
| Identification Distance (Man: 1.8x0.5m) | 47 meters |
| Detective Distance (Car: 4.2x1.8m) | 1150 meters |
| Recognize Distance (Car: 4.2x1.8m) | 288 meters |
| Identification Distance (Car: 4.2x1.8m) | 144 meters |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤25mK(f /1.0 300K) |
| Color palette | White hot,black hot,Iron red |
| Digital zoom | 1x~8x |
| Laser Rangefinder | |
| Range | 5~1200 meters |
| Accuracy | 1m |
| Light Beam | 905nm pulse laser |
| Divergent Angle | ~6 mrad |
| Laser pulse frequency | 1~4Hz |
| Rangefinder | Measure the distance between the object at the center of screen and the laser rangefinder |
| Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | ±48 pixel/frame |
| Camera AI Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | ≥ 34 targets |
| Min contrast ratio | 5% |
| Min target size | 5×5 pixel |
| Car detection rate | ≥85% |
| False alarm rate | ≤10% |
