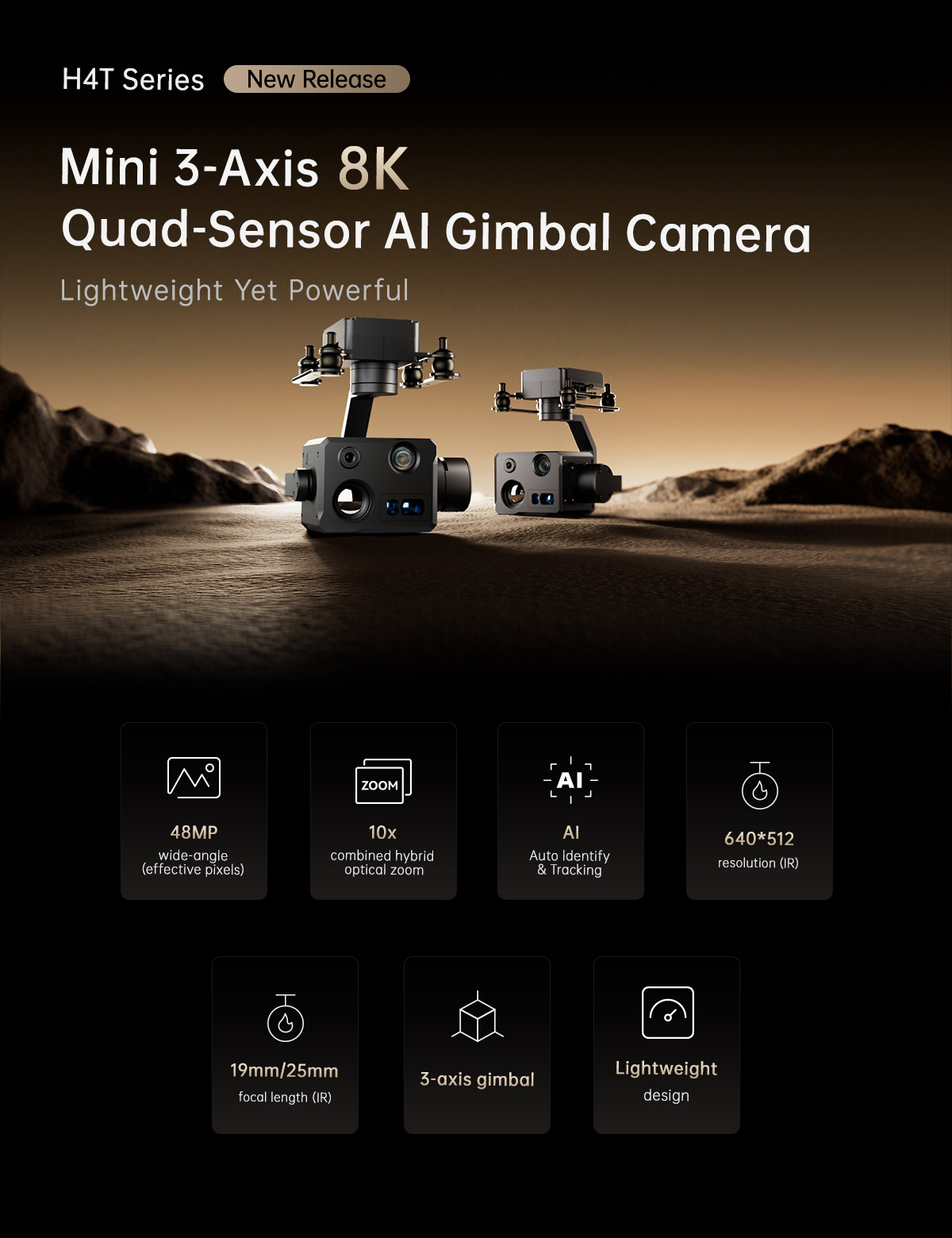

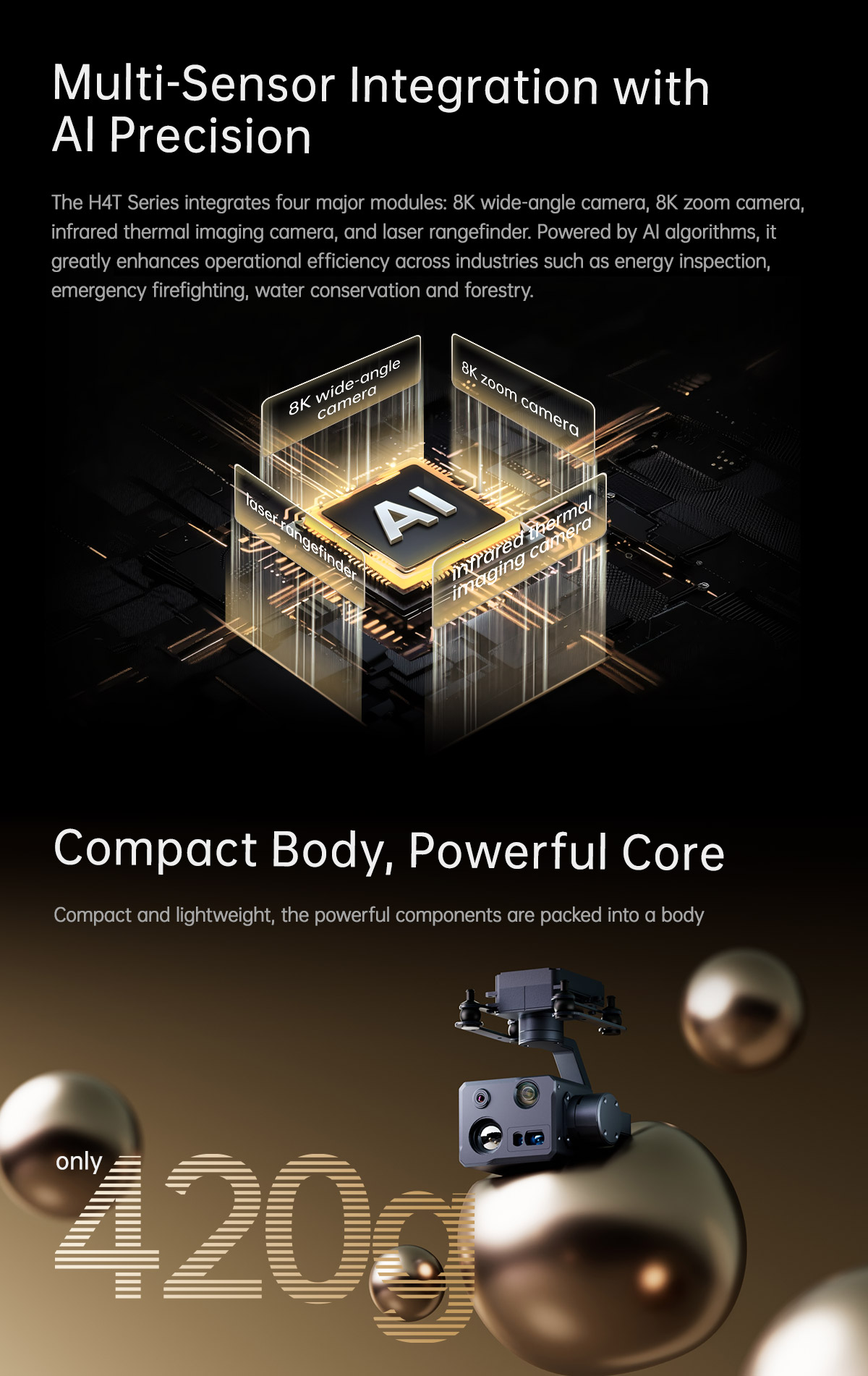

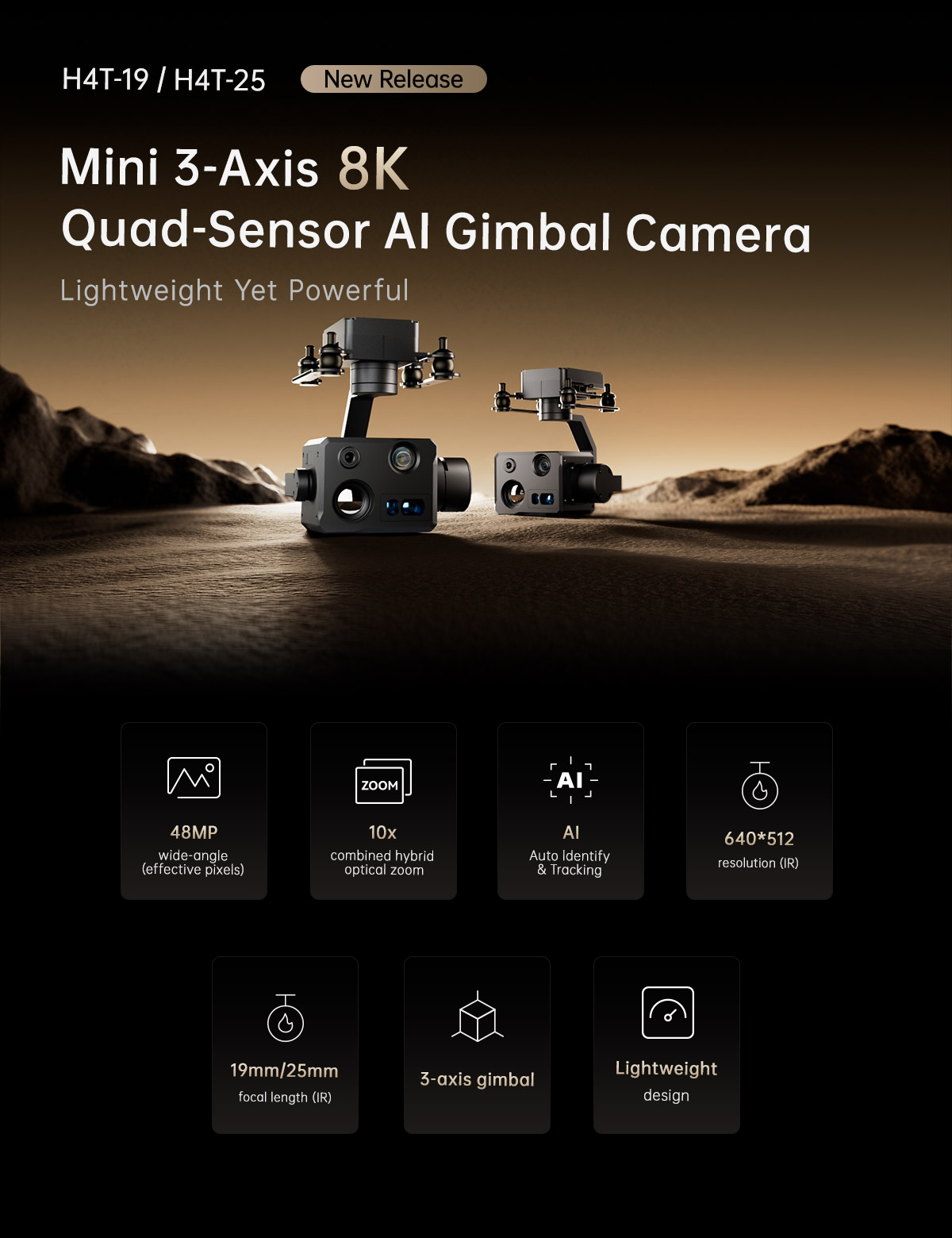

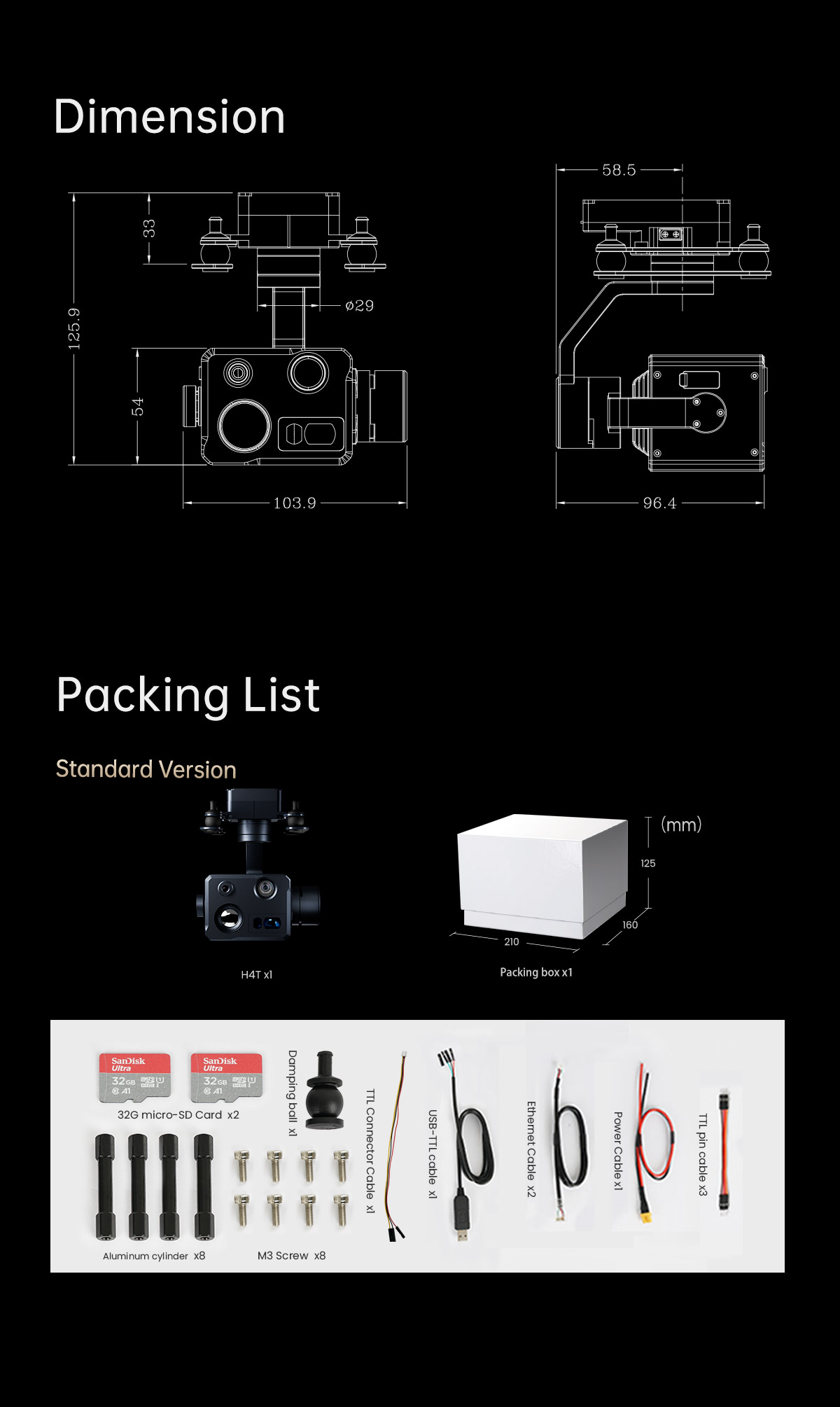

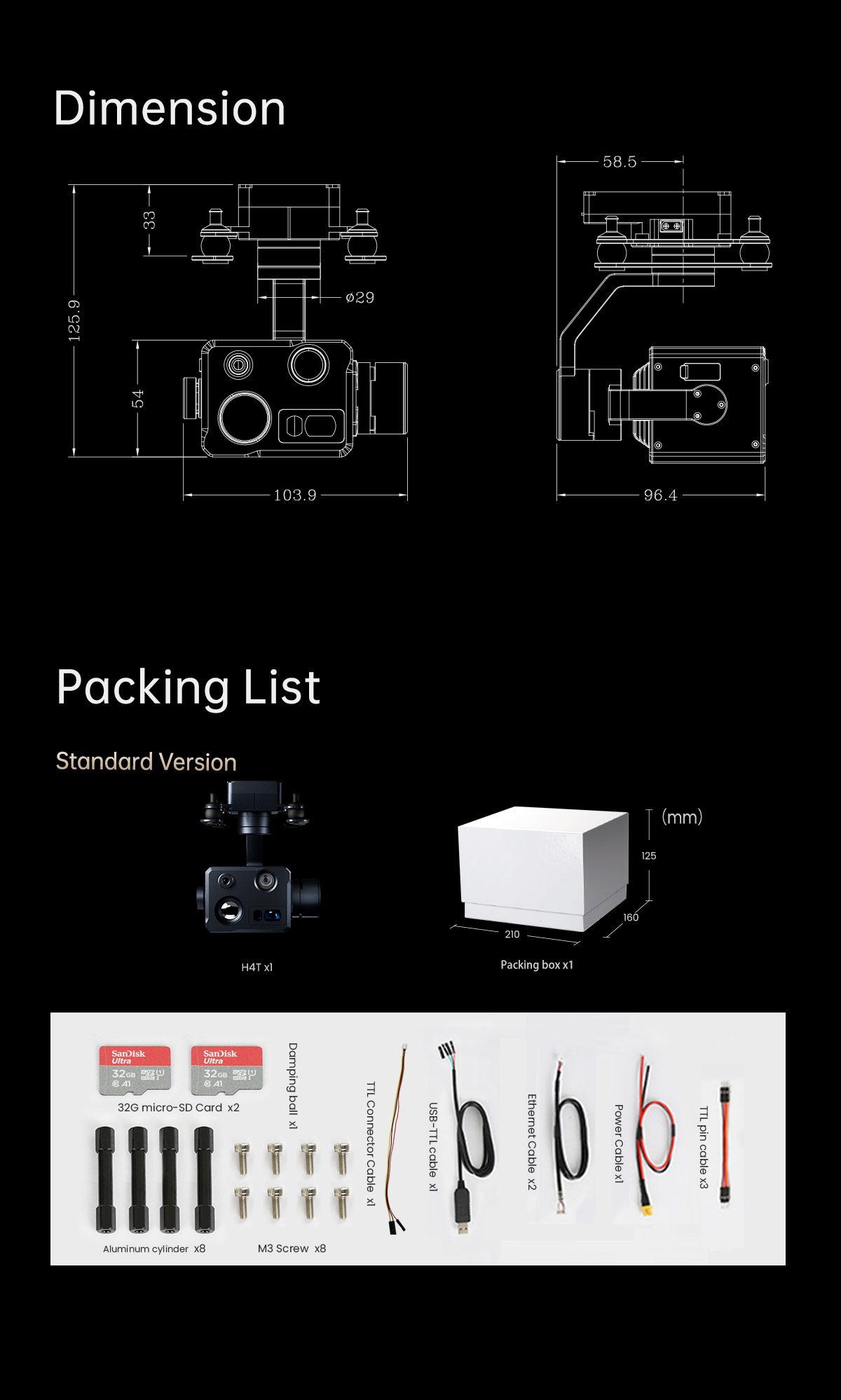

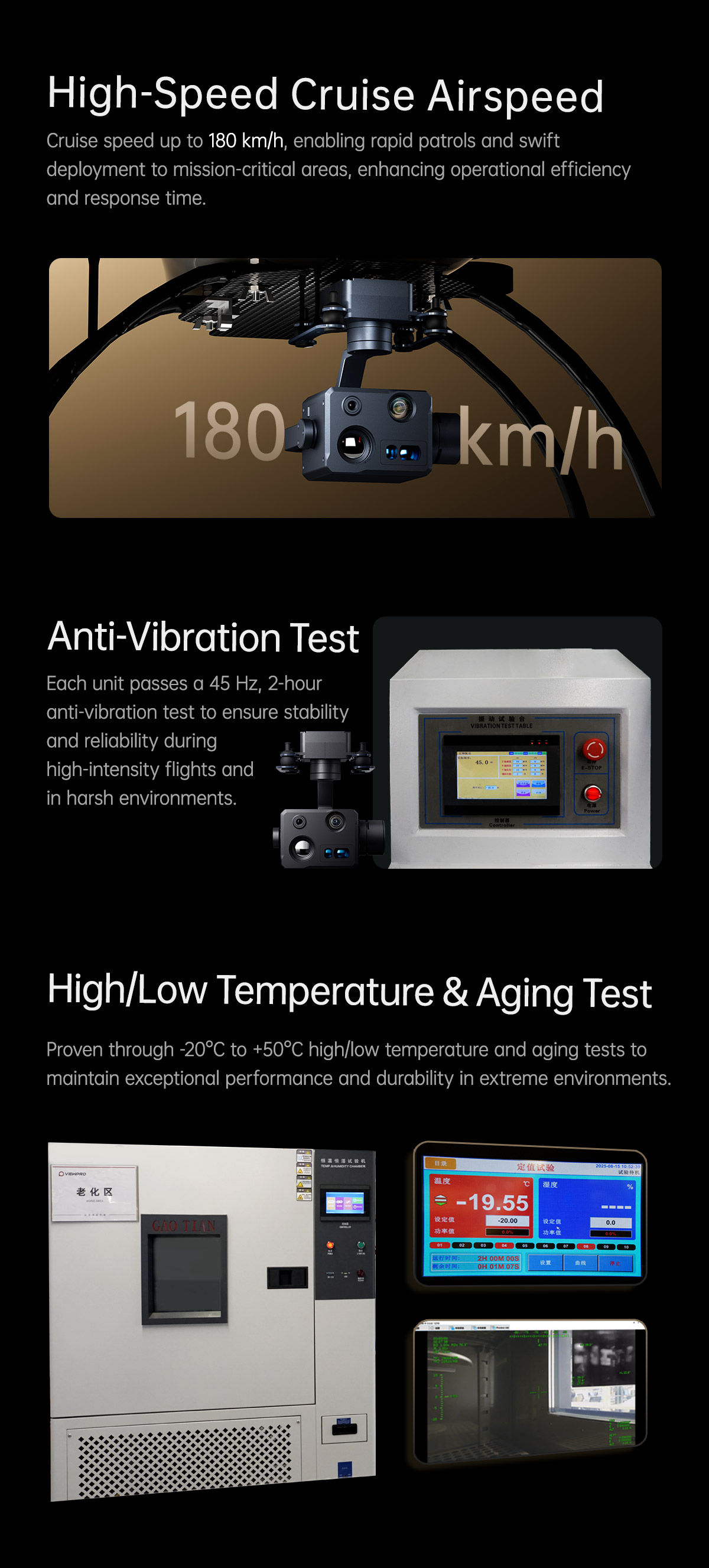

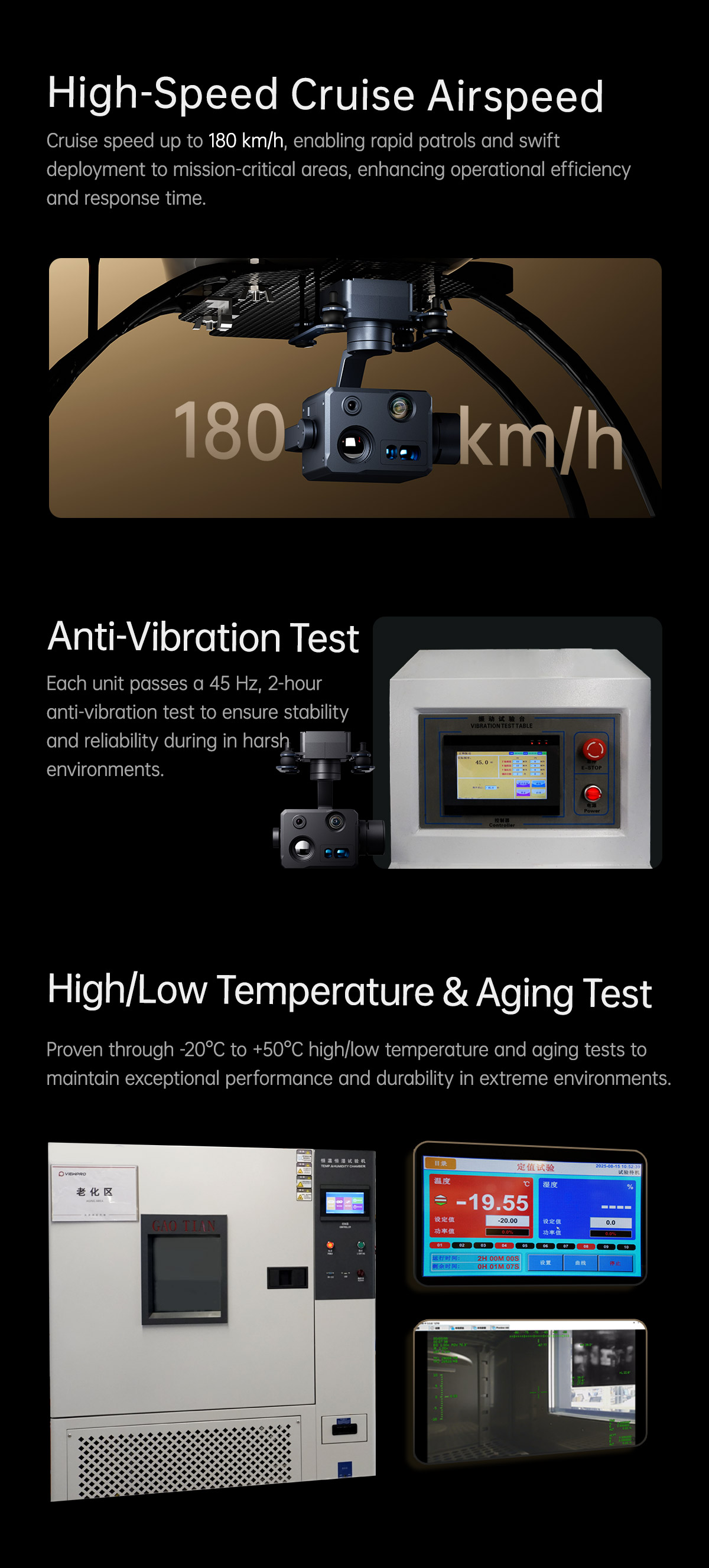

| Overall Specifications | |
| N.W. | 420g |
| Product meas. | 102.5*97.5*124.9mm |
| Input Voltage | 14.8V~25.2V |
| Dynamic current | 1250~1650mA @ 16V |
| Power consumption | Average 20W, Max 26.4W |
| Working environment temp. | -20℃~+50℃ |
| IP rate | IP4X |

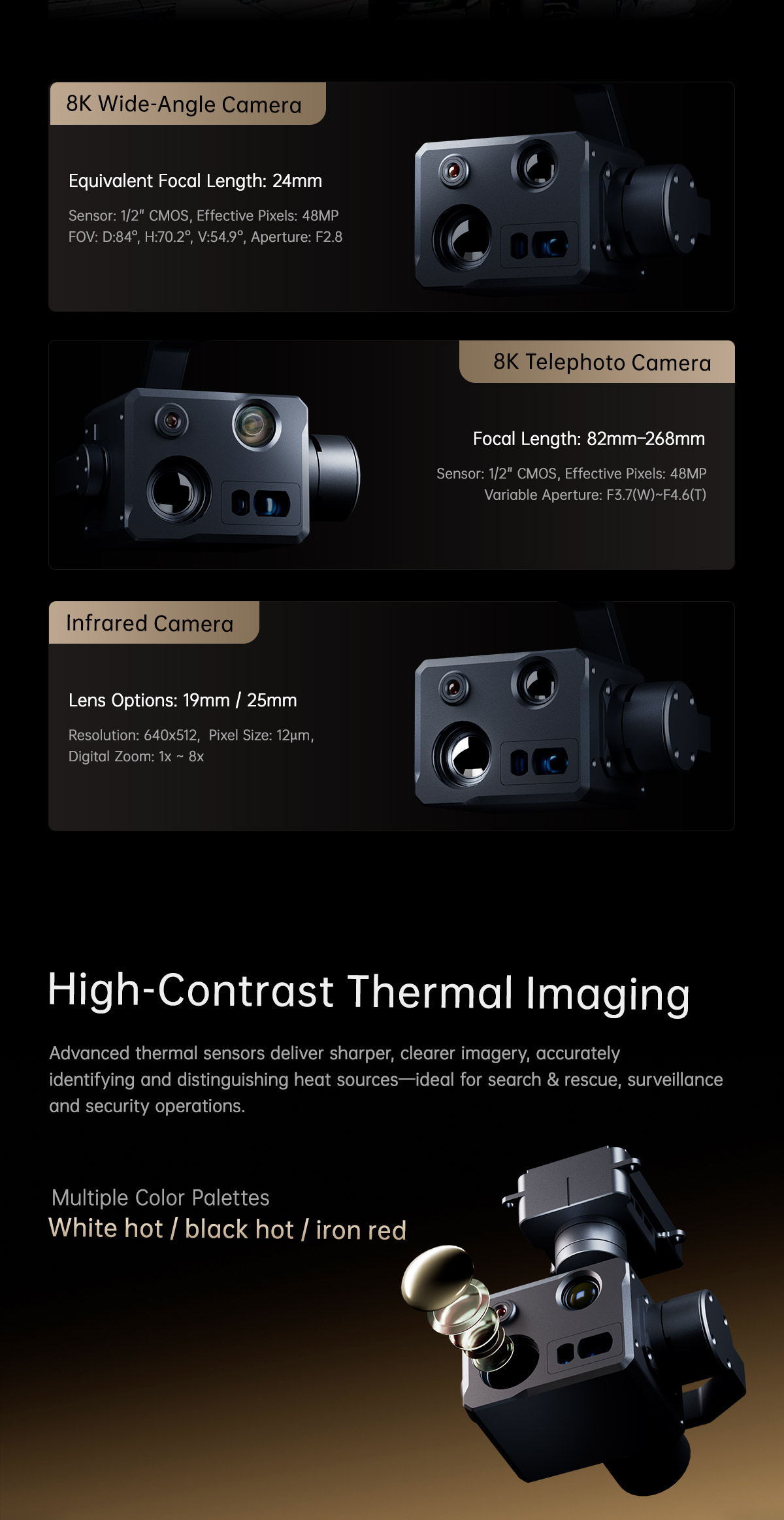

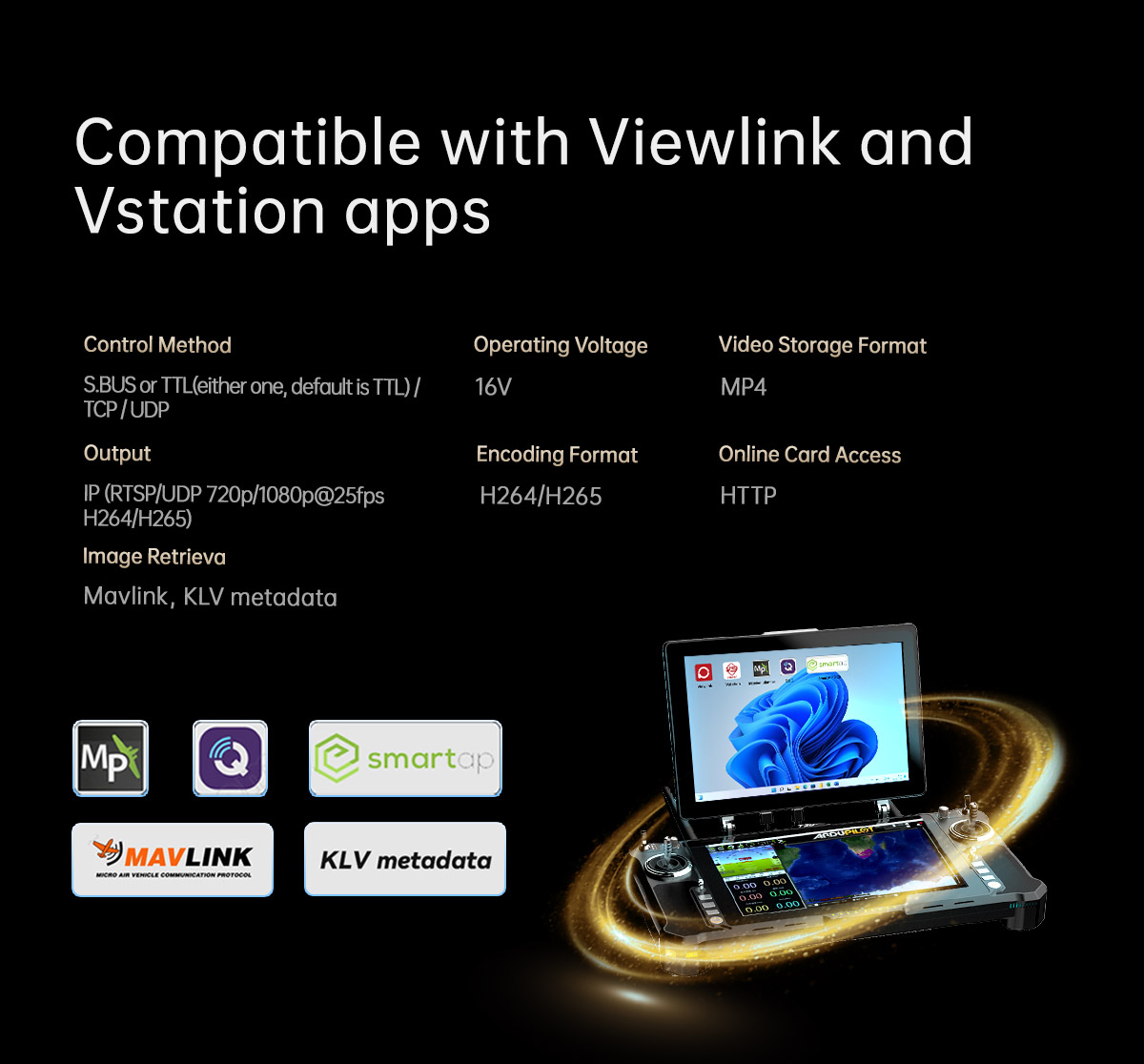

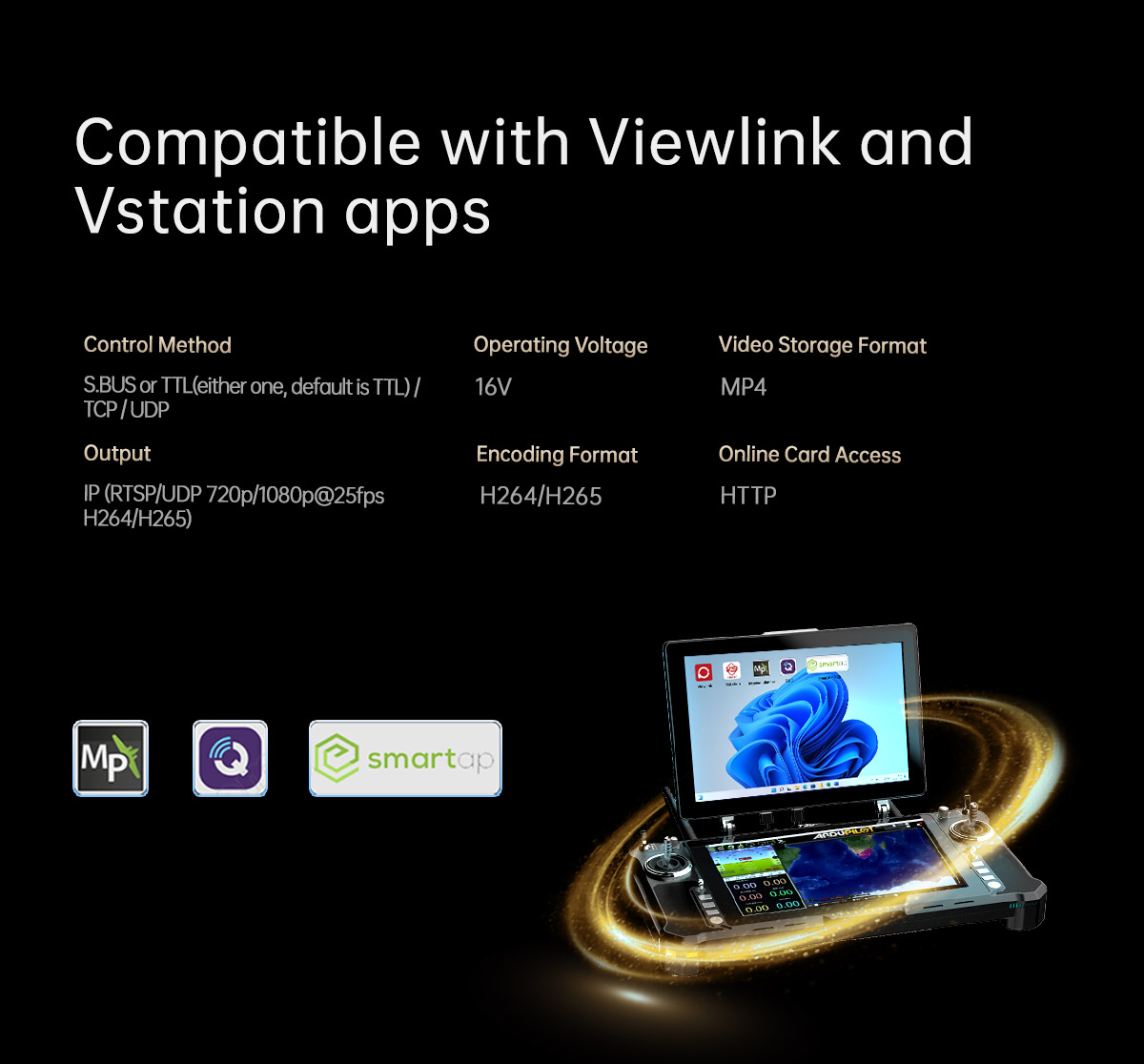

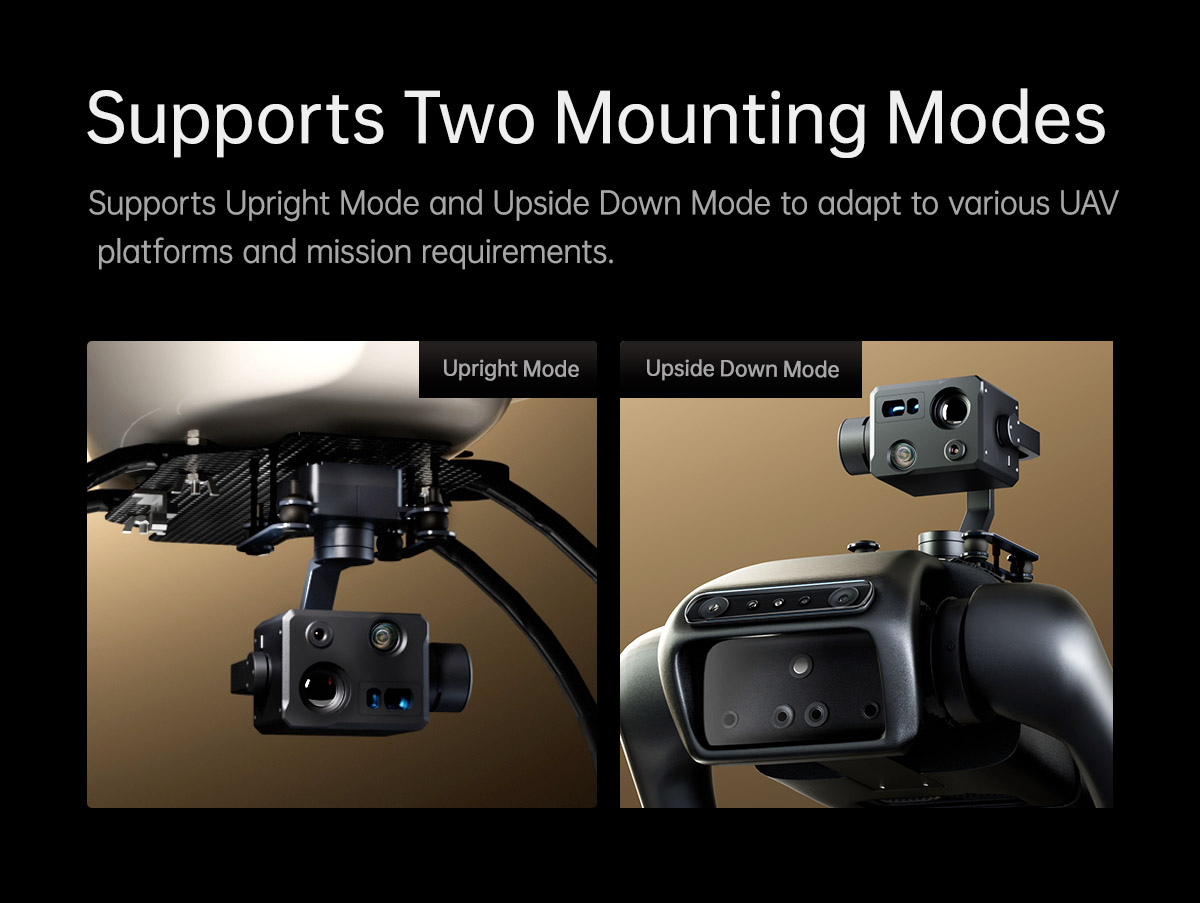

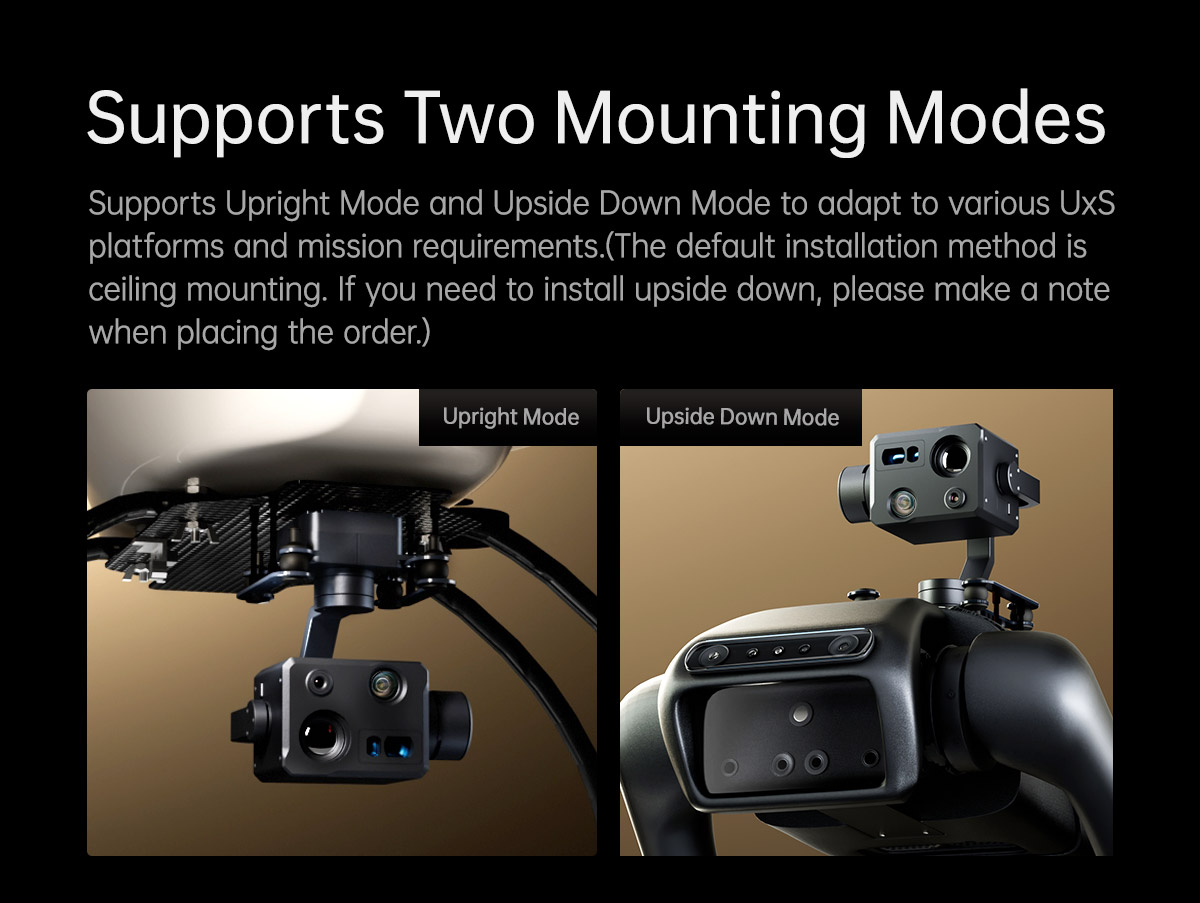

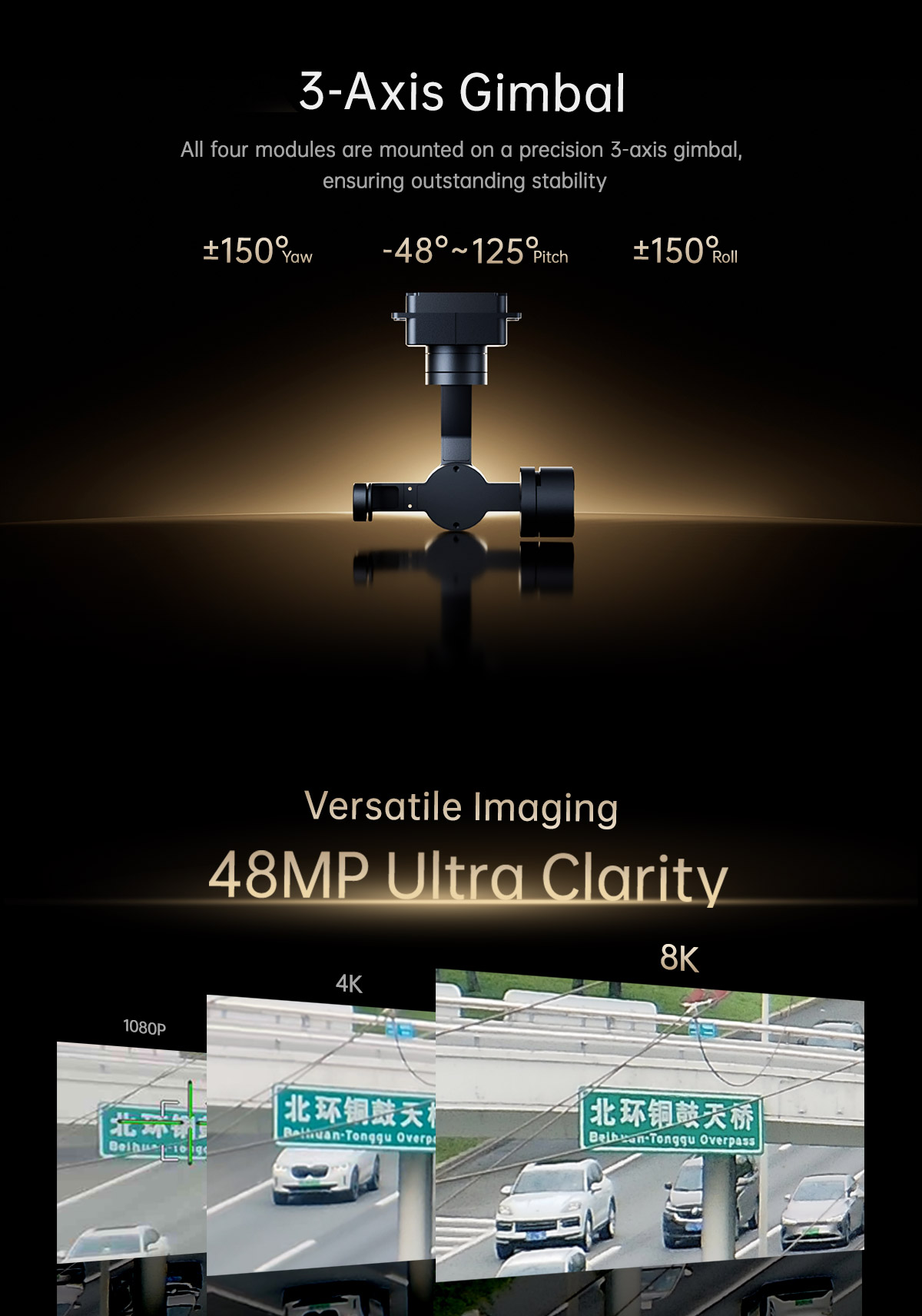

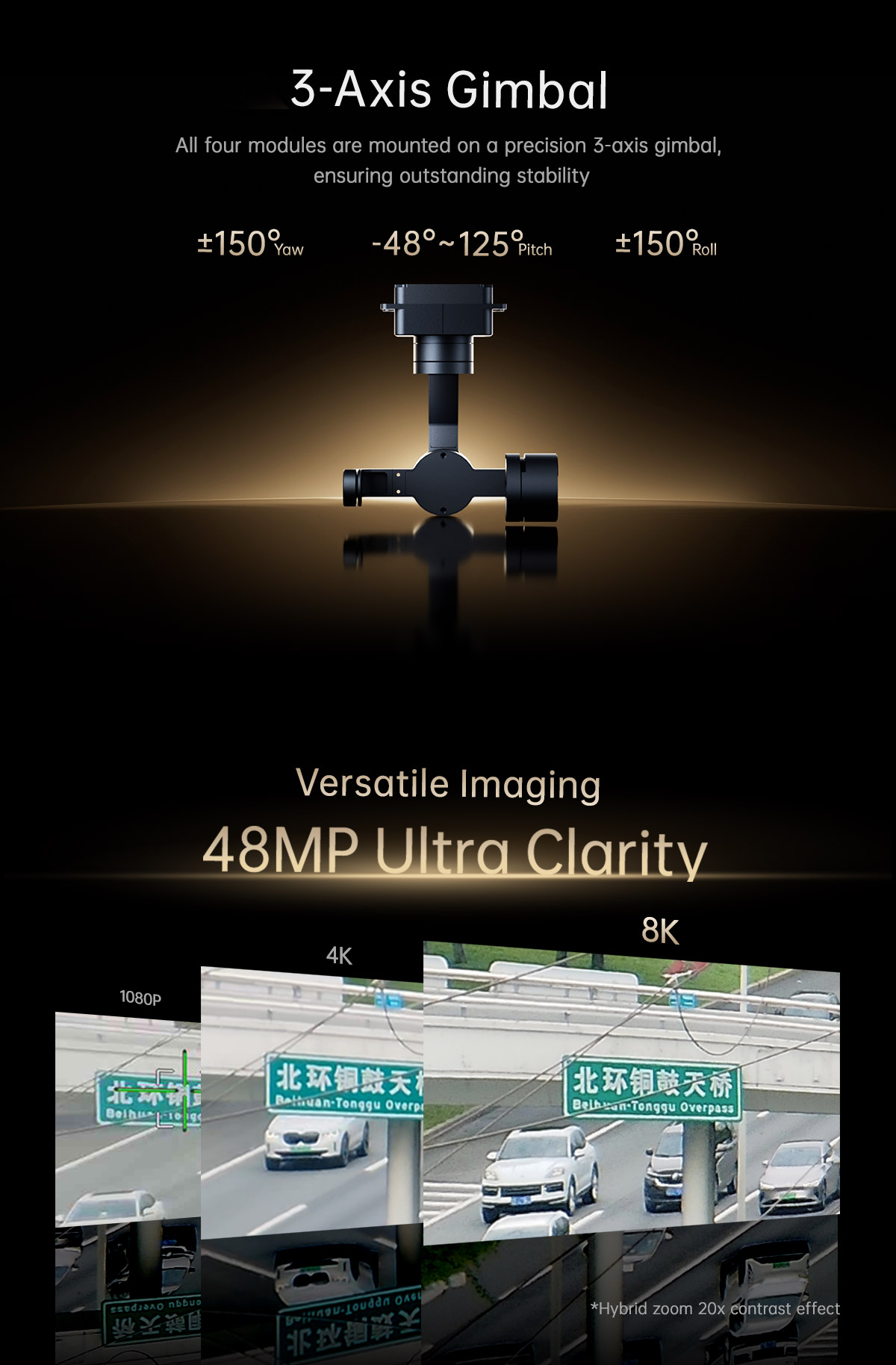

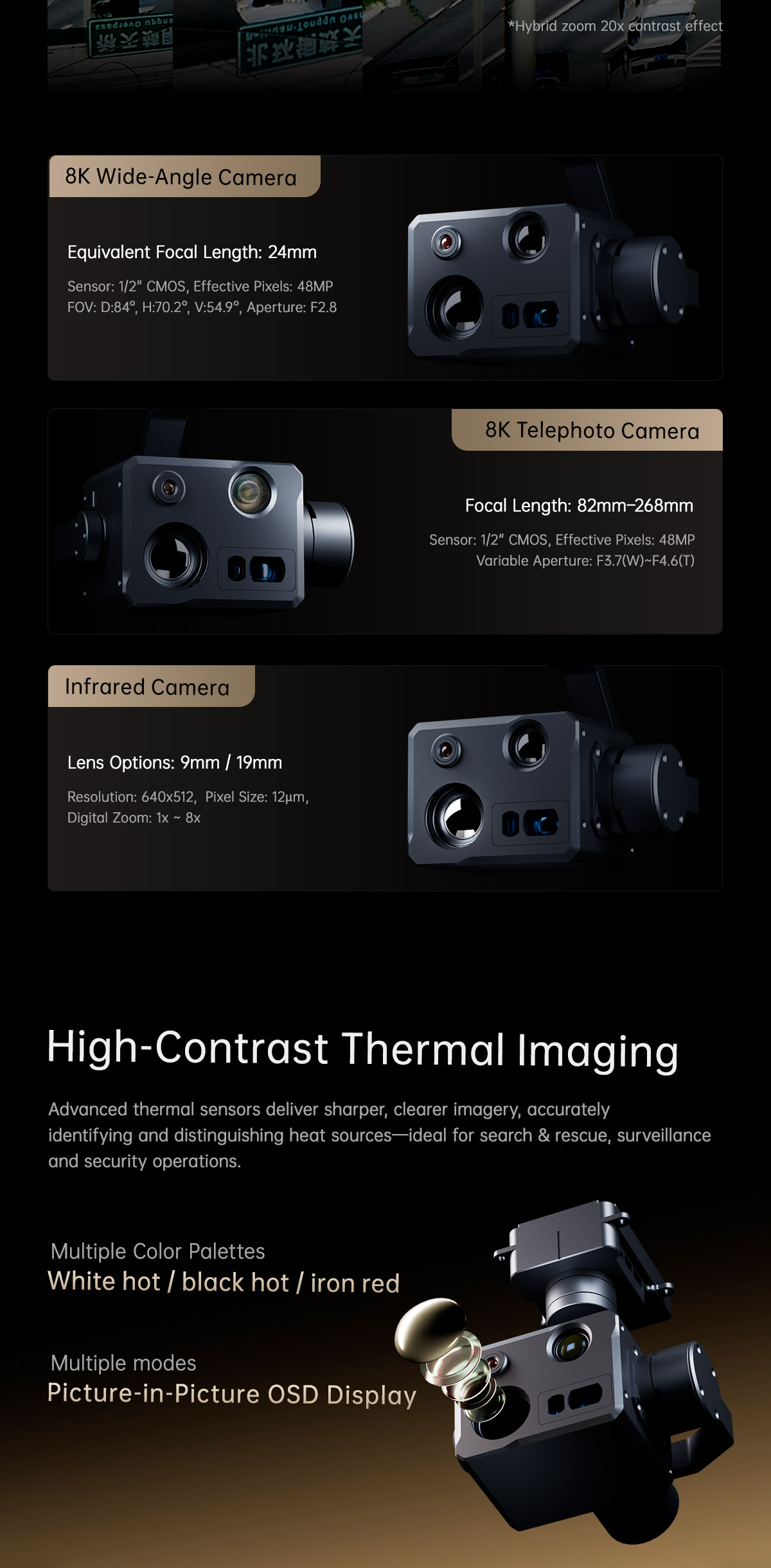

| EO camera zoom capability | 10x optical zoom, hybrid zoom 160x |
| Output | IP (RTSP/UDP 720p/1080p@25fps H264/H265) |
| Storage | TF card 1 (top slot)(Up to 256G,class 10, FAT32 format) TF card 2 (camera slot) (storage capacity within 512G, read and write speed A2 V30) |
| Picture in TF Card | TF card 1 (top slot): EO 1920*1080, IR 640*512 TF card 2 (camera slot): wide-angle camera 4000*3000, zoom camera 4000*3000 |
| Video in TF Card | TF card 1 (top slot): 1920×1080 @ 25 fps TF card 2 (camera slot): Wide-angle camera 4K@30fps, Zoom camera 4K@30fps |
| Control method | S.BUS or TTL(either one, default is TTL) / TCP / UDP |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -65°(Up)～135°(Down), Roll angle:±50°, Yaw/Pan: ±150° |
| Controllable Range | Pitch/Tilt: -45°～125°, Yaw/Pan: ±140° |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| Wide angle EO Camera Spec | |

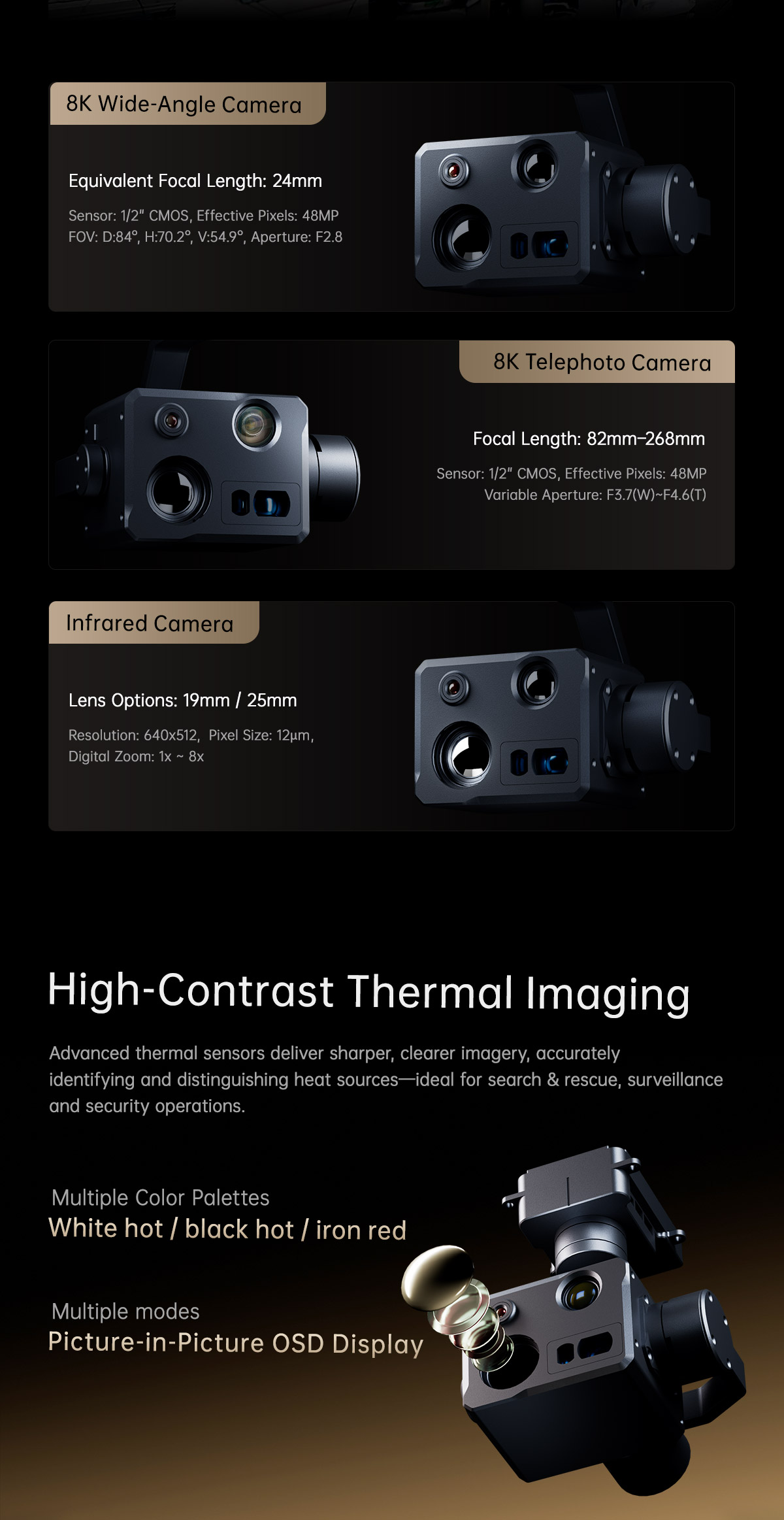

| Imager Sensor | 1/2" CMOS (H:6.4mm, V:4.8mm, D:8.0mm) |
| Pixel size | 0.80 µm (H) ×0.80 µm (V) |
| Resolution | 48MP(8000*6000) |
| EFL | 4.49mm |
| Equivalent focal length | 24.29mm |
| Aperture | F2.8 |
| Field of View | D:84° H:70.2° V:54.9° |
| Optical distortion | 2.50% |
| Optical zoom EO Camera Spec | |
| Imager Sensor | 1/2 inch CMOS (H:6.4mm, V:4.8mm, D:8.0mm) |
| Pixel size | 0.80 µm (H) ×0.80 µm (V) |
| Resolution | 48MP(8000*6000) |
| EFL | 15.3~49.7mm±5% |
| Equivalent focal length | 82.77-268.88mm, Aperture F3.7(W)~F4.6(T) |
| Field of View | D: 28.3°(W)~8.9°(T) H: 23.2°(W)~7.2°(T) V: 17.6°(W)~5.4°(T) |
| Optical distortion | 1.6%(Wide)~1.4% (Tele)， @∅8mm |
| IR Thermal Imager Spec | |
| Focus Length | 25mm |
| Aperture | F1.2 |
| Horizontal FOV | 17.5° |
| Vertical FOV | 14° |

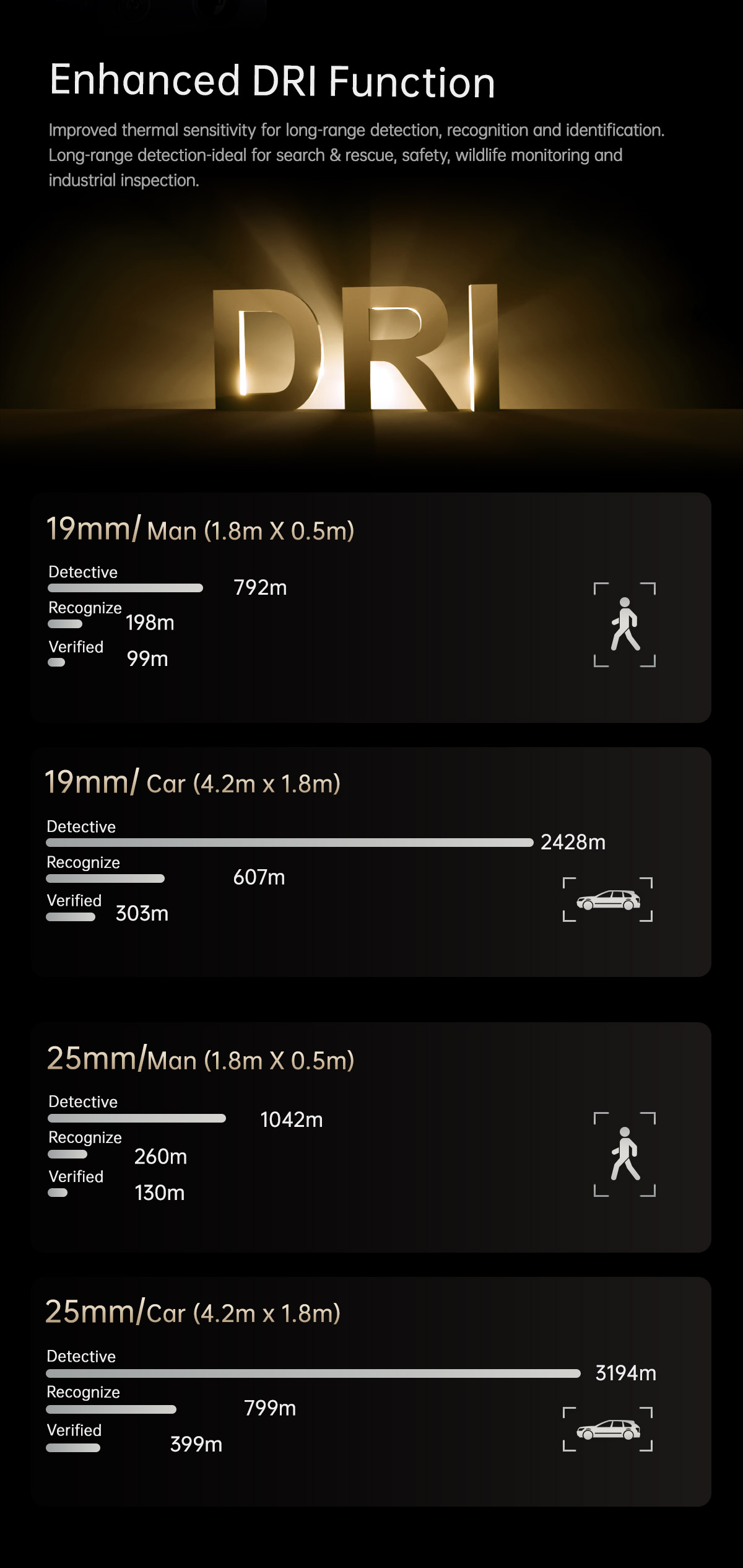

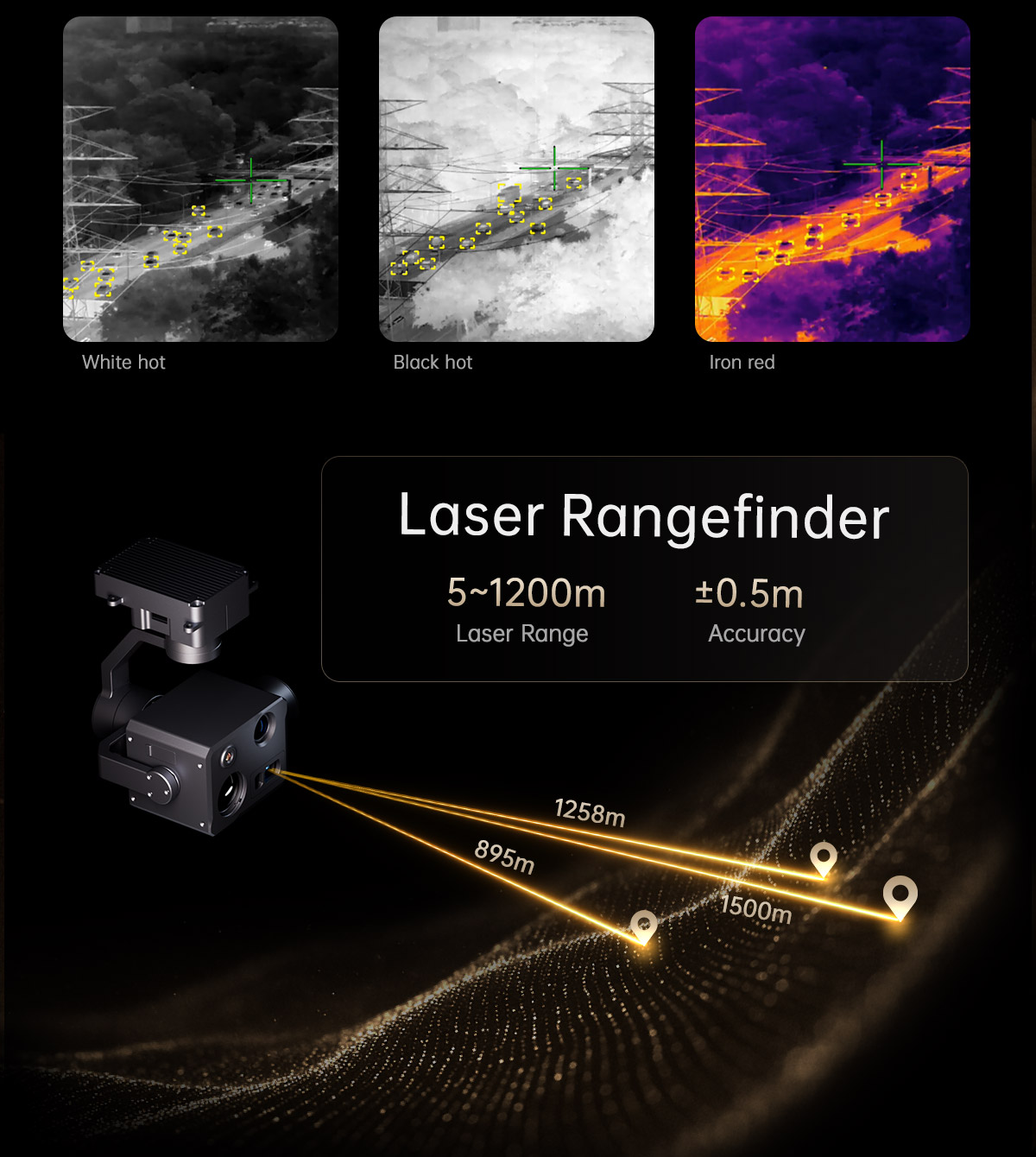

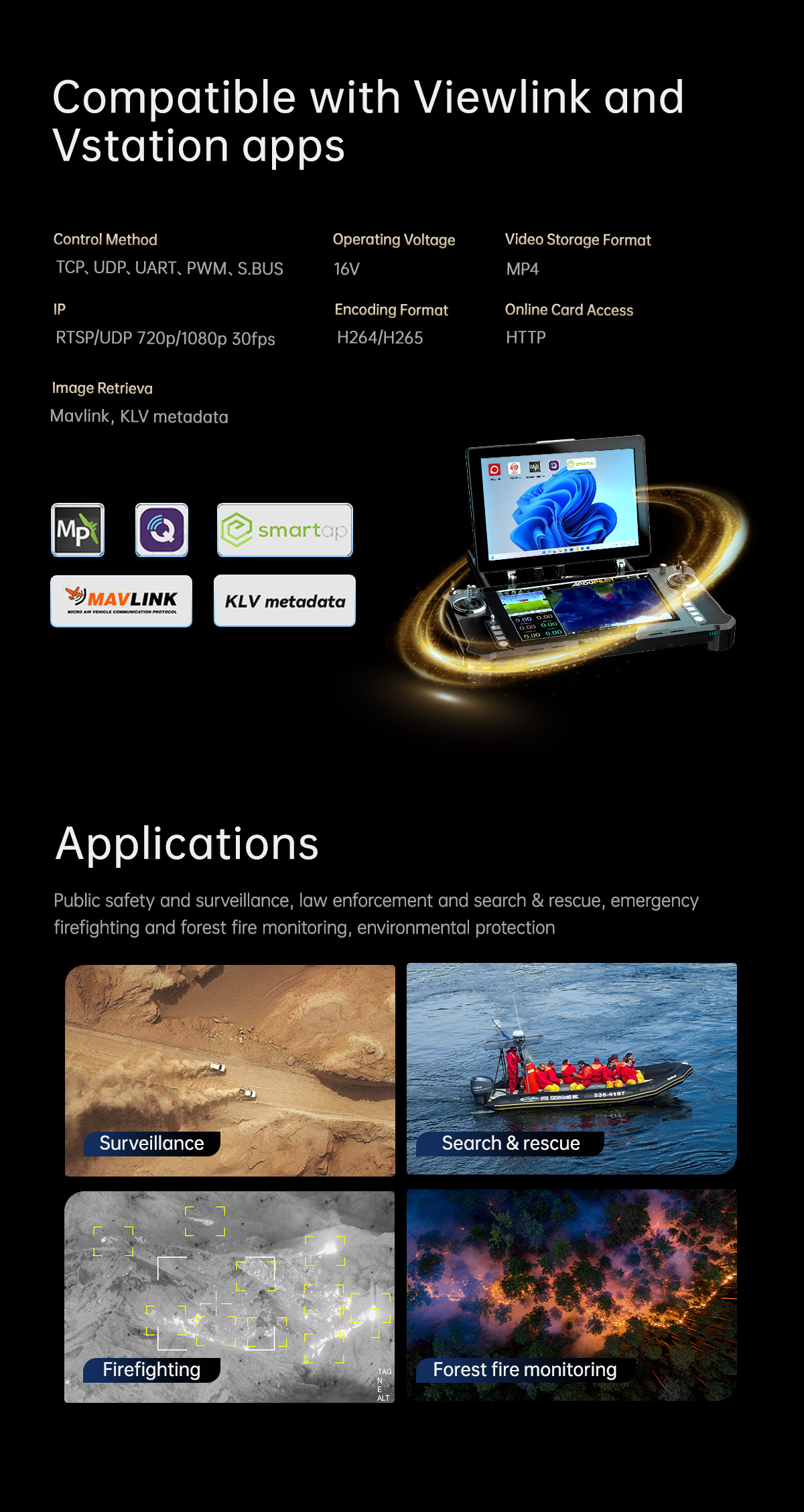

| Detective Distance (Man: 1.8x0.5m) | 1042 meters |
| Recognize Distance (Man: 1.8x0.5m) | 260 meters |
| Identification Distance (Man: 1.8x0.5m) | 130 meters |
| Detective Distance (Car: 4.2x1.8m) | 3194 meters |
| Recognize Distance (Car: 4.2x1.8m) | 799 meters |
| Identification Distance (Car: 4.2x1.8m) | 399 meters |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤50mK@F1.0 @25℃ |
| Color palette | White hot,black hot,Iron red |
| Digital zoom | 1x~8x |
| Radiometric function(Optional) | Optional range -20℃~+150℃, +100℃~+650℃ |
| Temperature measurement accuracy ±3℃ or ±3%(take larger value) | |
| EO Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| Minimum signal-to-noise ratio | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed (Car) | ±48 pixel/frame |
| Object memory time | 100 frames |
| EO/IR Camera AI Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | ≥ 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5×5 pixel |
| Car detection rate | ≥85% |
| False alarm rate | ≤10% |
| IR Laser Rangefinder | |
| Range | 5~1200m |
| Accuracy | ±1m |
| Frequency | 1~20Hz(5 40m);1~4Hz(40~1200m) |
| Light Beam | 905±5nm pulse laser |
| Divergent Angle | ~6 mrad |
| Location Resolving | Latitude and longitude of target |
| Rangefinder | Measure the distance between the object at the center of screen and the laser rangefinder |
| Eye safety level | Class 3R(IEC 60825-1) |
| Working power | ≤1.5W |
| Features | |
| OSD | Display the gimbal’s yaw and pitch angle, magnification, ranging value, TF card status, aircraft GPS and altitude, target ranging point GPS and altitude, date and time |
| Geotagging (POS) | Display time and GPS coordinate in picture exif |
| Card reading online | HTTP read pictures or videos |
| KLV (UDP) | Card recording or Viewlink video playback |
| ArduPilot / PX4 | Support(Mavlink protocol ) Optional: Support Ardupilot Follow me feature |
| Video stitching | EO+IR /IR+EO /EO /IR |
| Dual-channel video stream output (optional) | Support (one EO output, one IR output, video recording is not supported after it is enabled) |
