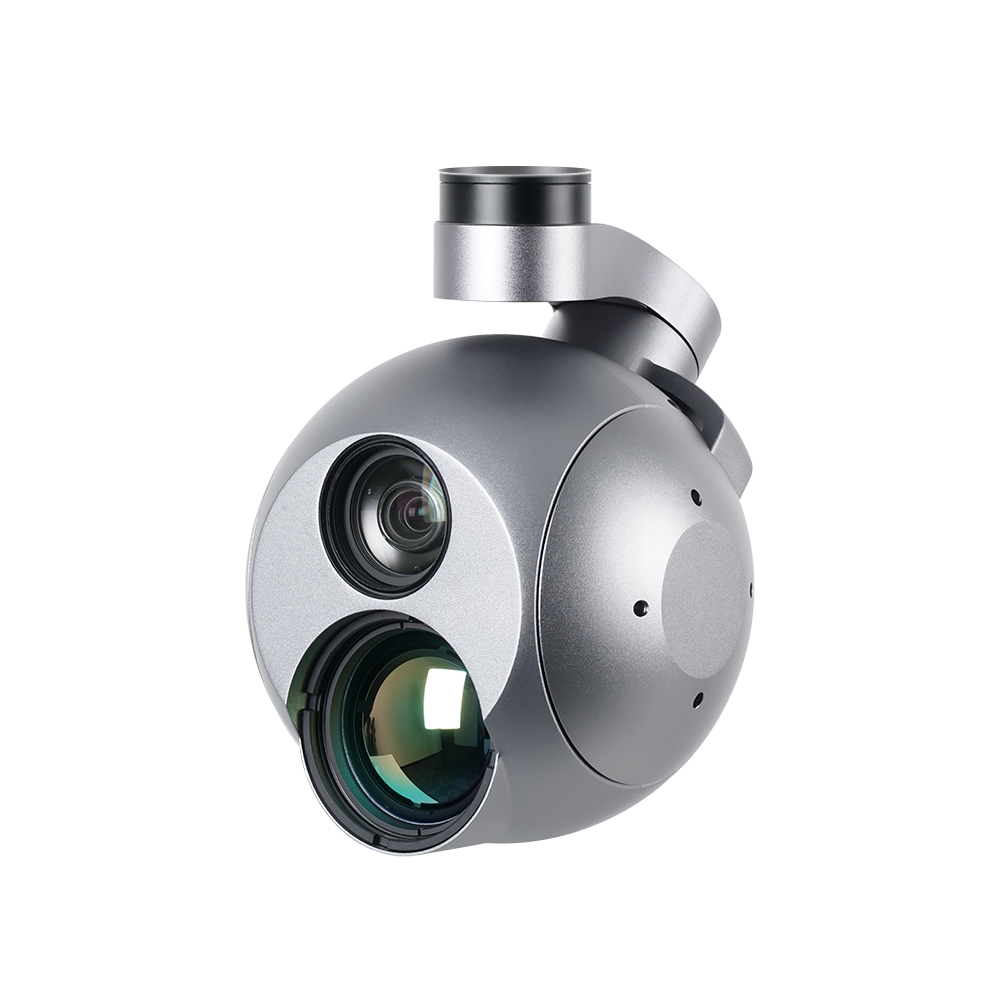

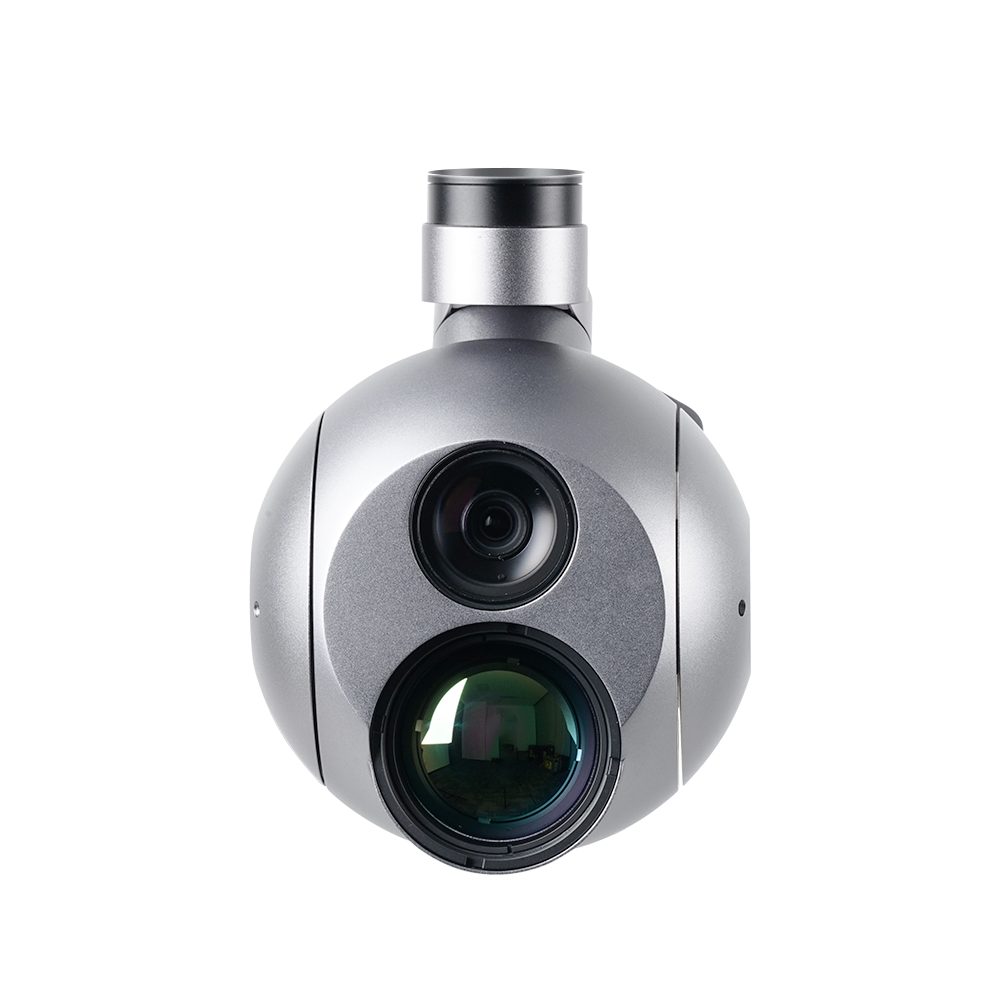

A30T-50
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S(16V~24V ) |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 850~1800mA @ 16V |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(1080P 30/60fps) / IP (RTSP/UDP 1080p/720p 30fps) |
| Local-storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |
| Card reading online | HTTP read pictures |
| Control method | PWM / TTL / S.BUS / TCP(IP output)/UDP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -55°～125°, Roll: ±40°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range | Pitch/Tilt: -45°～120°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| Camera spec | |
| Imager Sensor | SONY 1/2.8" "Exmor R" CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle | 1080p mode: 63.7°(wide end) ~ 2.3°(tele end) |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.01lux@F1.6 |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |
| IR Thermal Imager Spec | |
| Focus Length | 50mm |
| Coating Film | DLC |
| Horizontal FOV | 8.8° |
| Vertical FOV | 7.0° |
| Diagonal FOV | 11.2° |
| Detective Distance (Man: 1.8x0.5m) | 2083 meters |
| Recognize Distance (Man: 1.8x0.5m) | 521 meters |
| Verified Distance (Man: 1.8x0.5m) | 260 meters |
| Detective Distance (Car: 4.2x1.8m) | 6389 meters |
| Recognize Distance (Car: 4.2x1.8m) | 1597 meters |
| Verified Distance (Car: 4.2x1.8m) | 799 meters |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel pitch | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤50mK@F.0 @25℃ |
| Color palette | White hot, black hot, pseudo color |
| Digital zoom | 1x ~ 8x |
| Sync correct time | Yes |
| EO / IR Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames |
| EO Camera AI Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | ≥ 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5×5 pixel |
| Car detection rate | ≥85% |
| False alarm rate | ≤10% |
| Packing Information | |
| N.W. | 1352g (Viewport version) |
| Product meas. | 139.5*128*218.1mm (Standard version) / 139.5*128*223.8mm (Viewport version) |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 3321g |
| Package meas. | 350*300*250mm |
