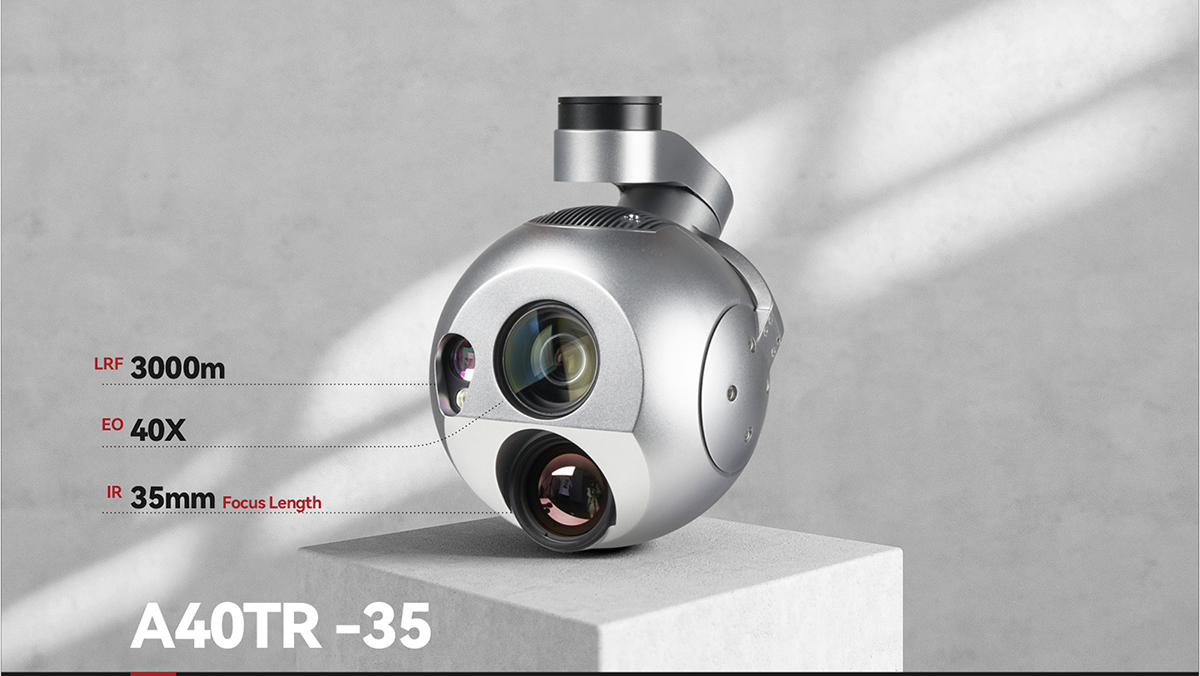

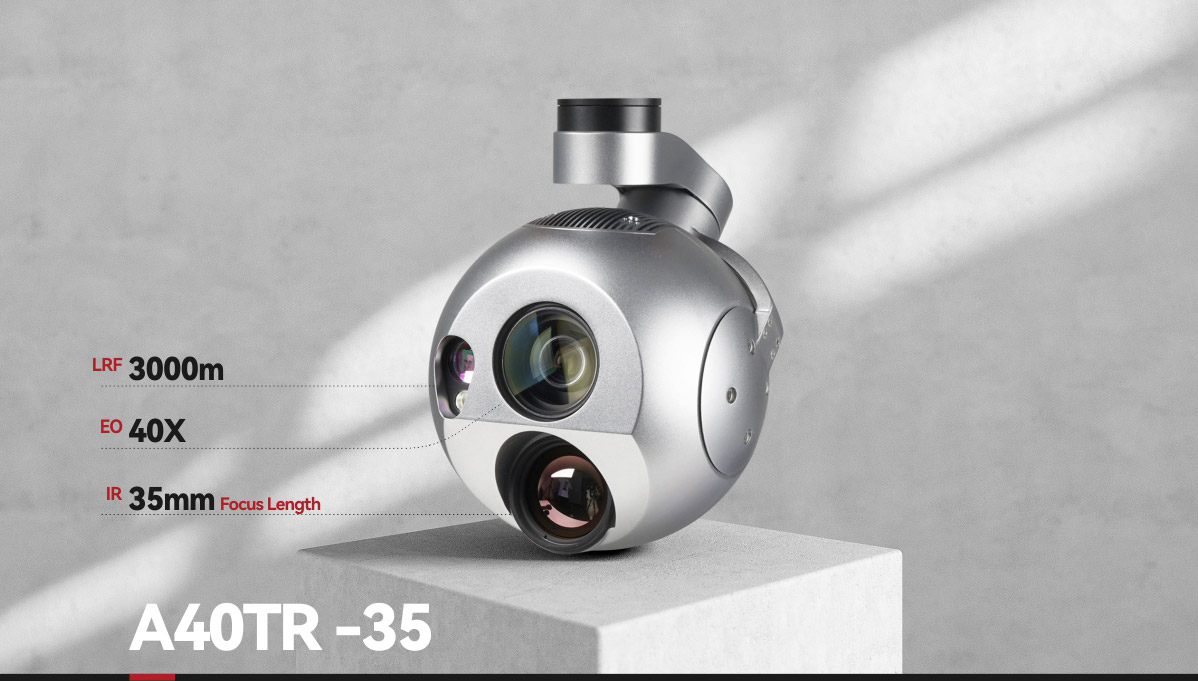

A40TR-35
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 700~2000mA @ 16V |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
| Local-storage | TF card (Up to 256G, class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4(1080P 30fps) |
| Network Read Card | HTTP Read TF Card Online |

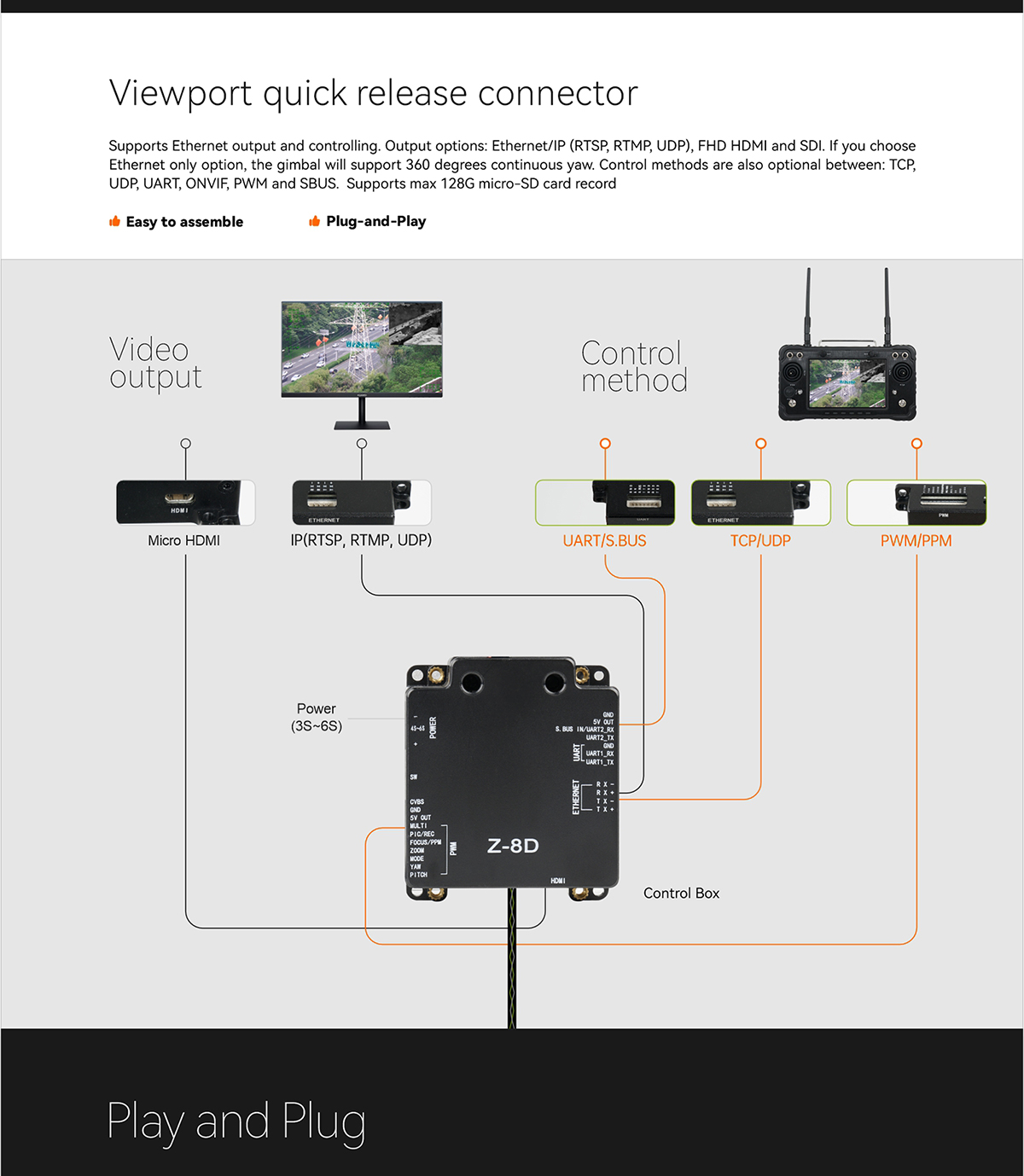

| Control method | PWM / TTL / S.BUS / TCP(IP output) / UDP(IP output) |
| Geotagging | Support, display time and GPS coordinate in picture exif |

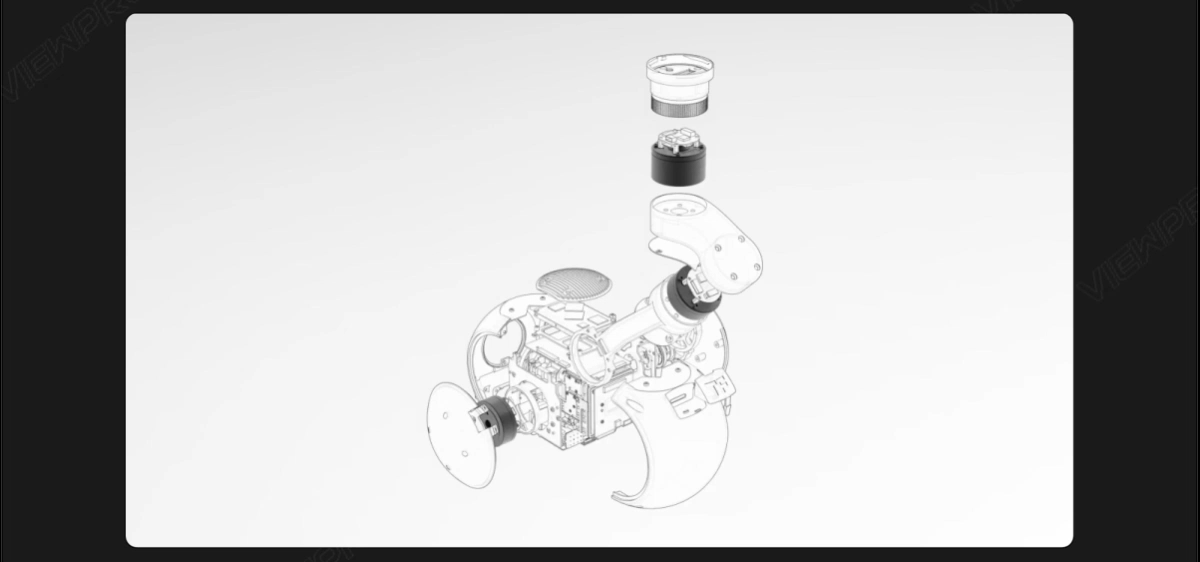

| Gimbal Spec | |

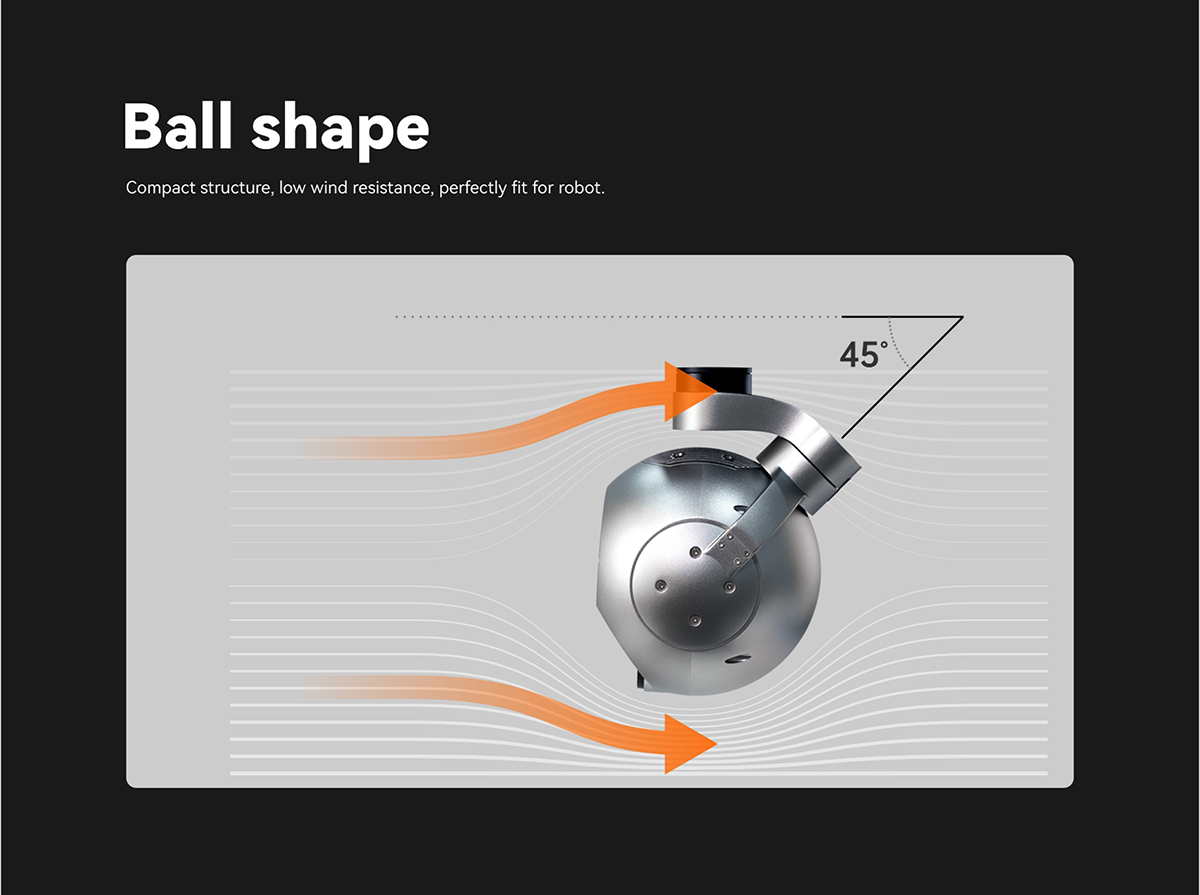

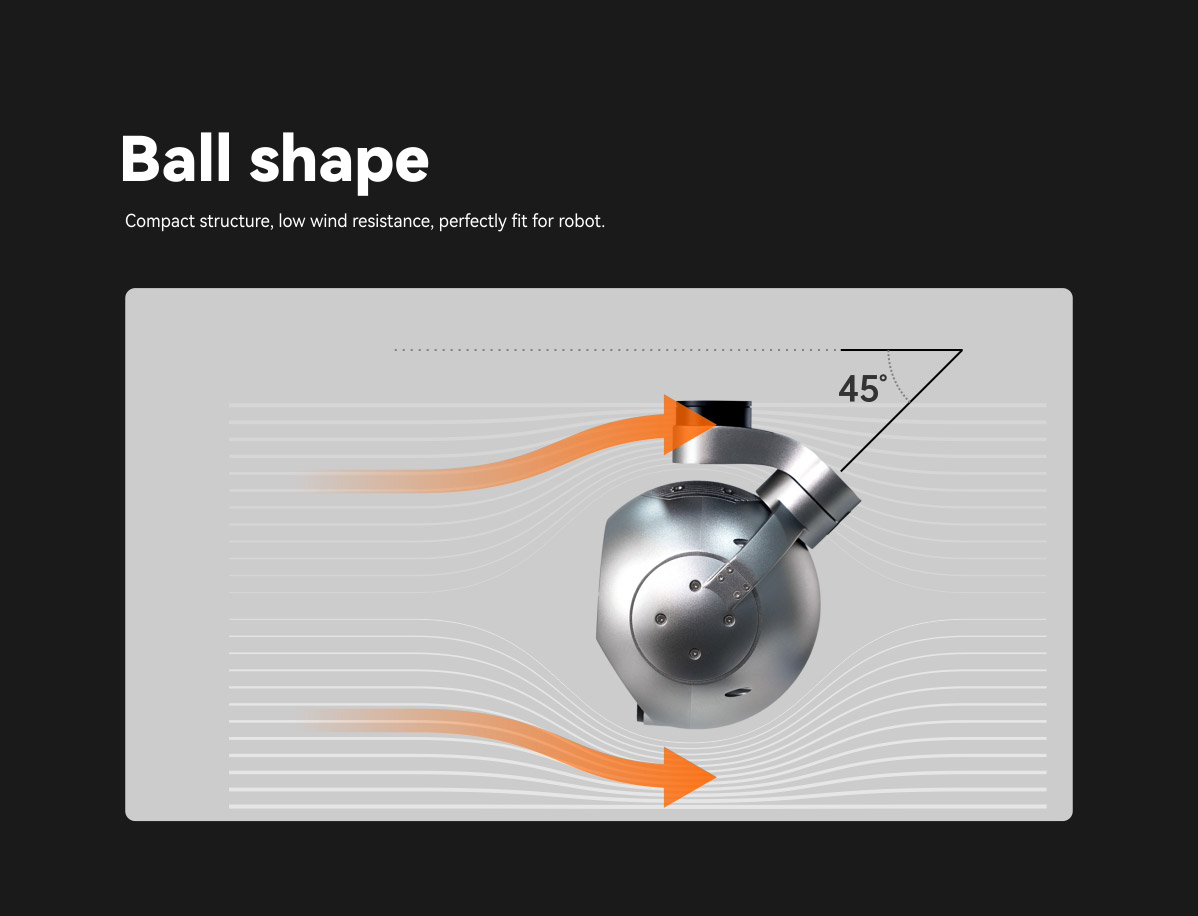

| Mechanical Range | Pitch/Tilt:-115°～125°, Roll: ±45°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range | Pitch/Tilt: -45°～120°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |

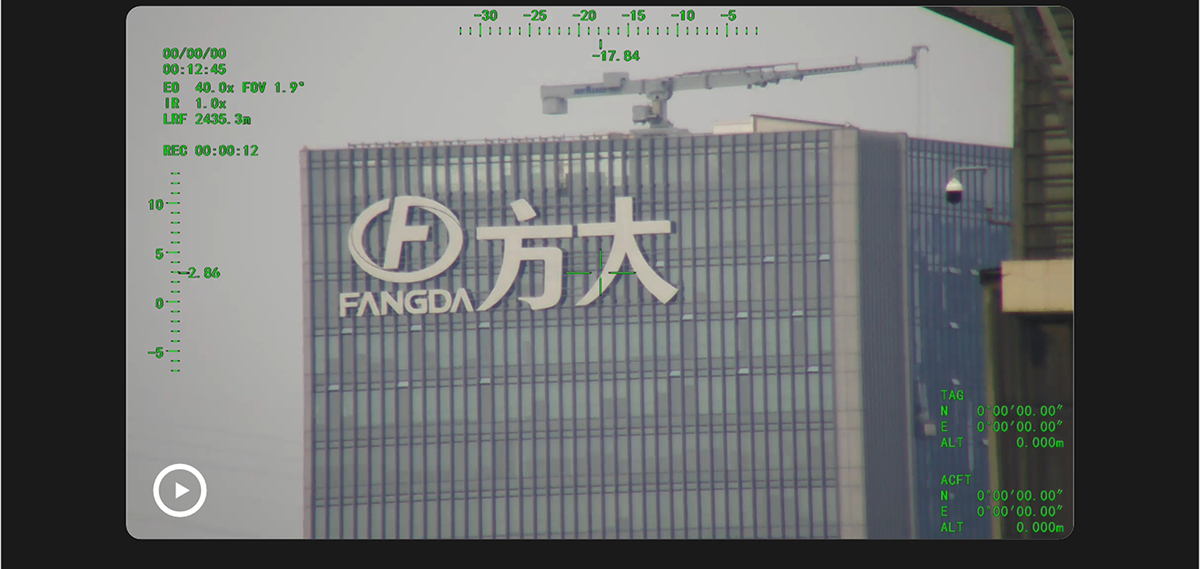

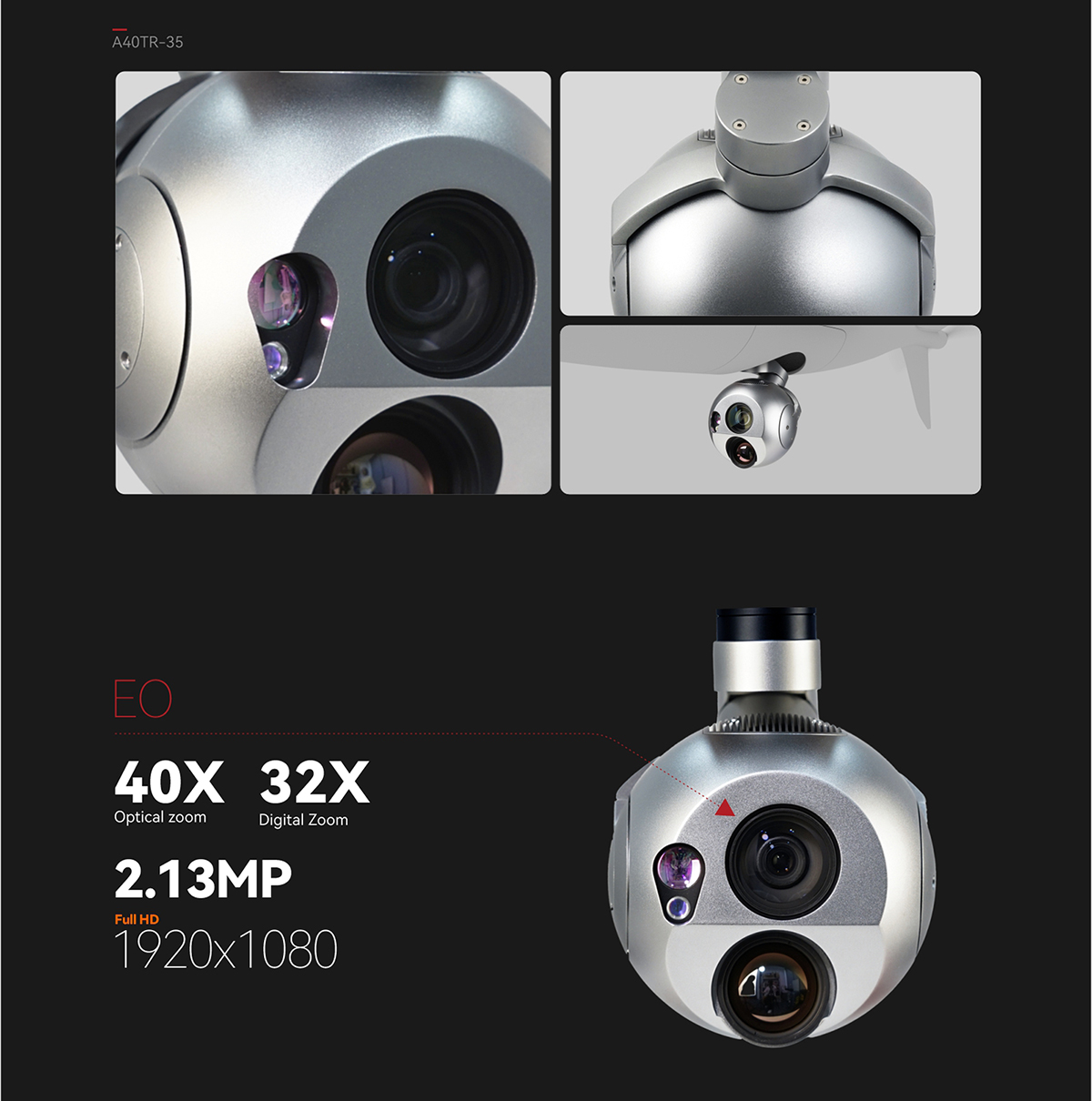

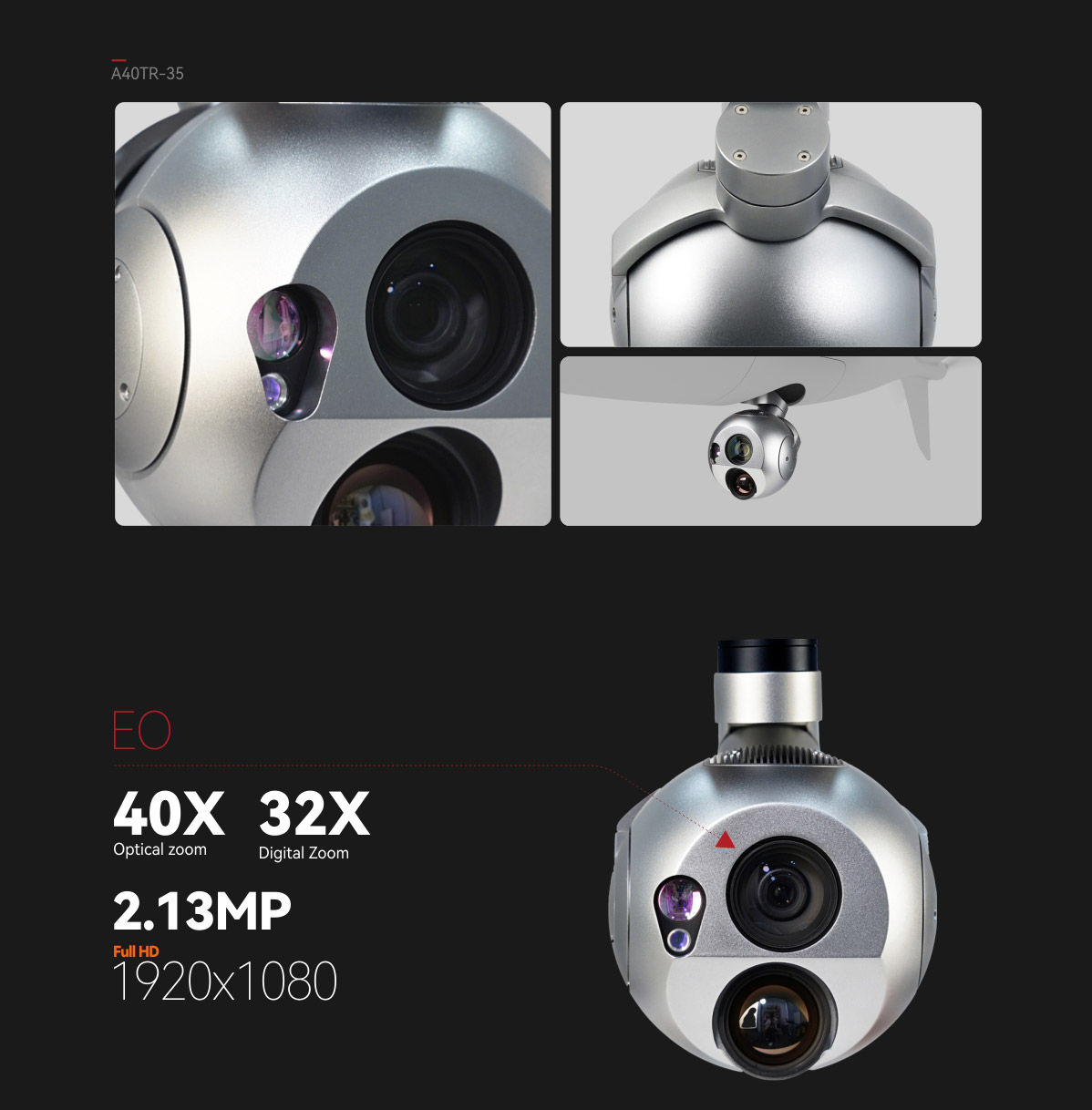

| EO Camera spec | |
| Imager Sensor | 1/2.8" Sony CMOS Sensor |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Photo storage format | JPG(1920*1080 / 1280*720) |
| Video storage format | MP4 (1080P/720P 25fps/30fps) |
| Lens optical zoom | 40x, F=4.25~170mm |
| Digital zoom | Off / MAX x2 ~ x32 |
| Min object distance | 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Angle of View (D, H, V) | Wide: 73.80° / 66.35° / 39.98° |
| Tele: 2.16° / 1.90° / 1.11° | |
| AF Mode | Auto / One Push / Manual |
| Iris | Close ~ F1.6 |
| Shutter speed | 1/1 ~ 1/30,000 sec |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color(1/30s, 79.5dB) : 0.01 lux , BW(1/30s, 79.5dB) : 0.002 lux |
| Color DSS(1/1s, 79.5dB) : 0.001 lux , BW DSS(1/1s, 79.5dB) : 0.0002 lux | |
| Exposure control | Auto / Iris. Priority / Shut. Priority / Manual |
| Gain Control(AGC) | 0 ~ 10 steps |
| White balance | Auto / One Push / Manual / Indoor / Outdoor |
| Back Light | Off / BLC / HLC / WDR |
| Defog | Off / Manual / Auto |

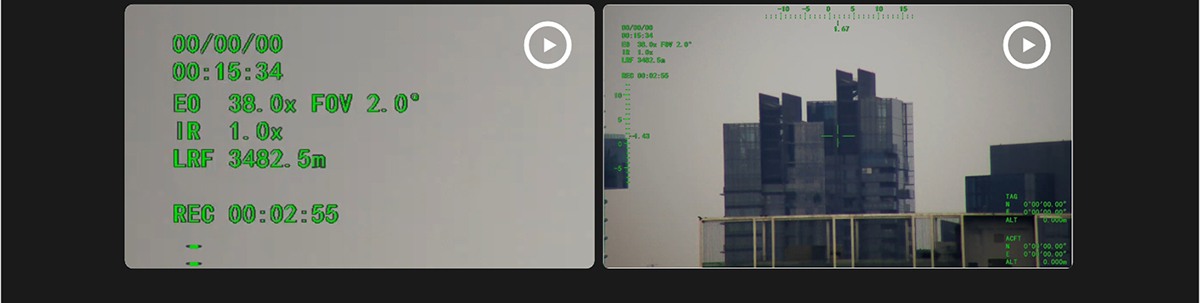

| OSD | Yes |

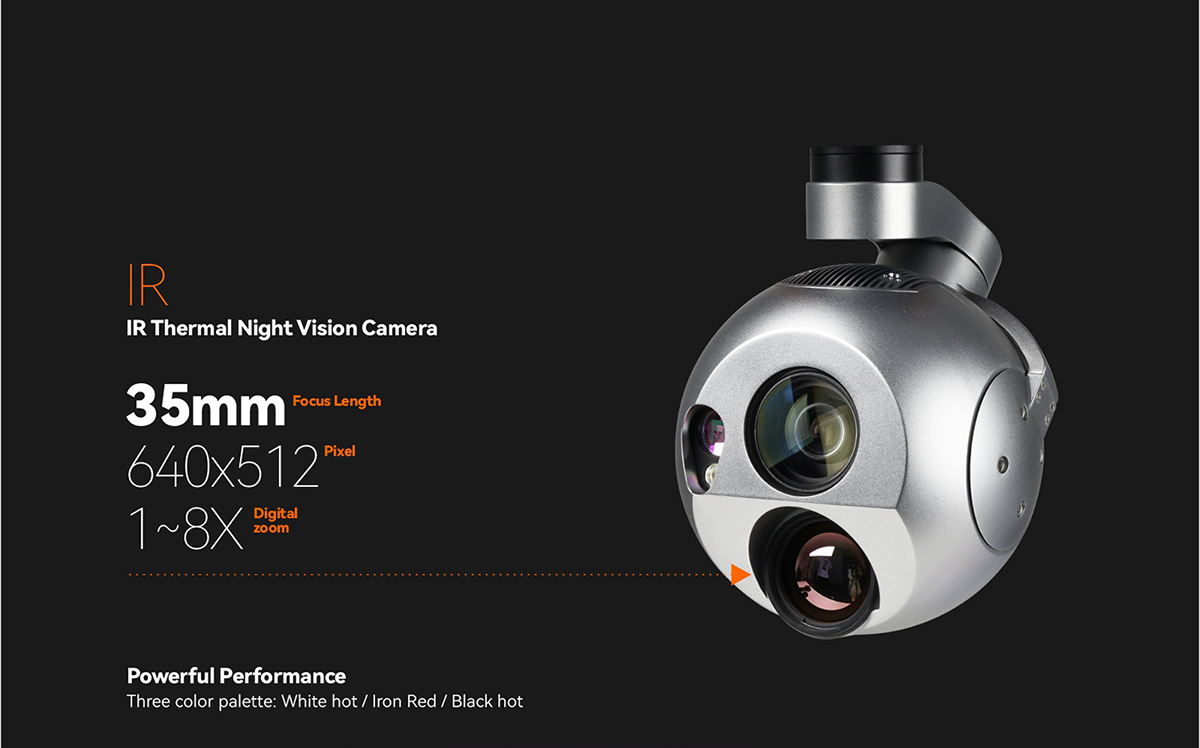

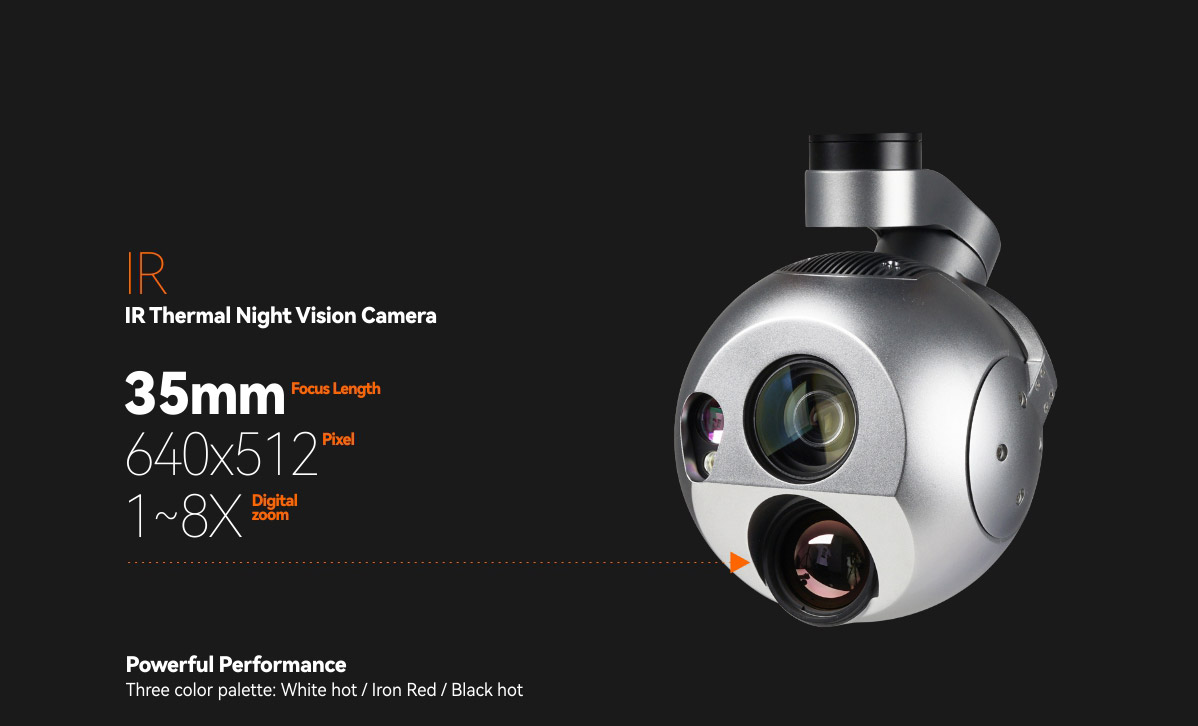

| IR Thermal Imager Spec | |
| Focus Length | 35mm |
| Coating Film | DLC |
| Horizontal FOV | 12.5° |
| Vertical FOV | 10.0° |
| Diagonal FOV | 16.0° |

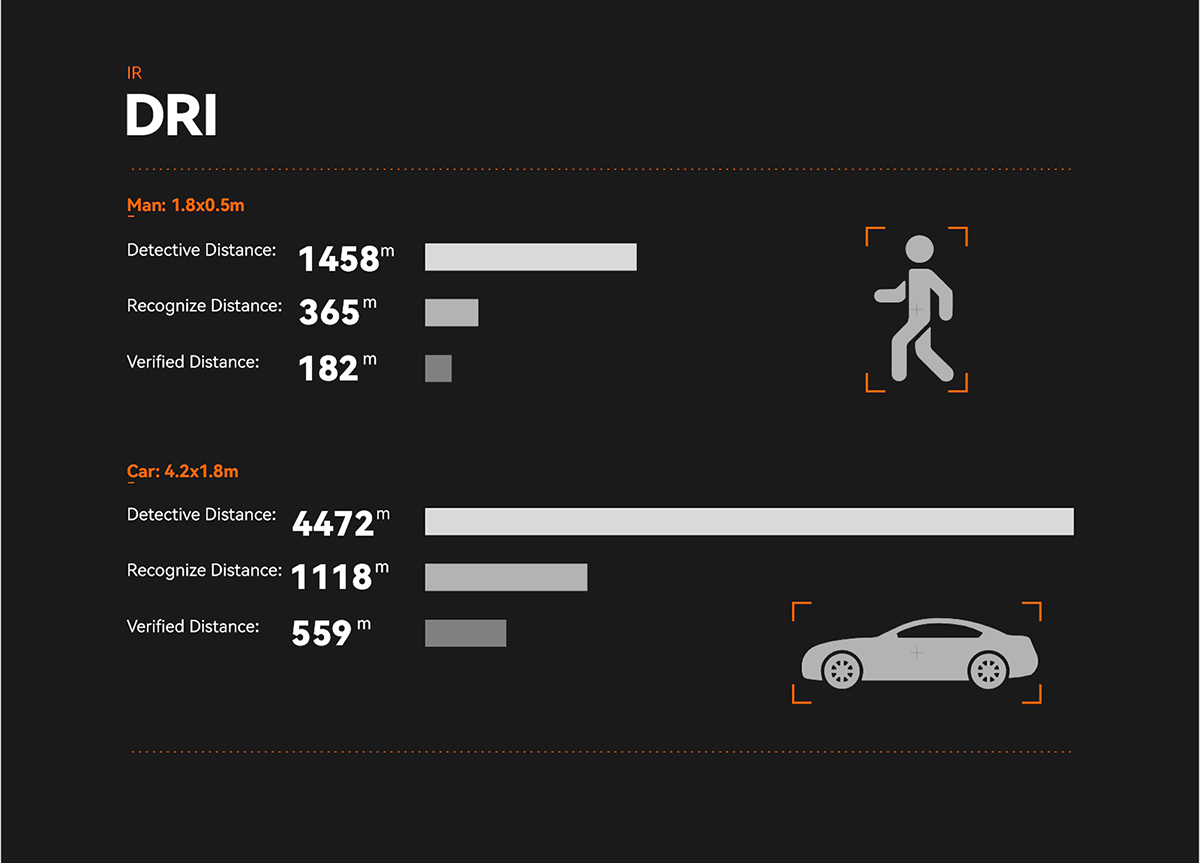

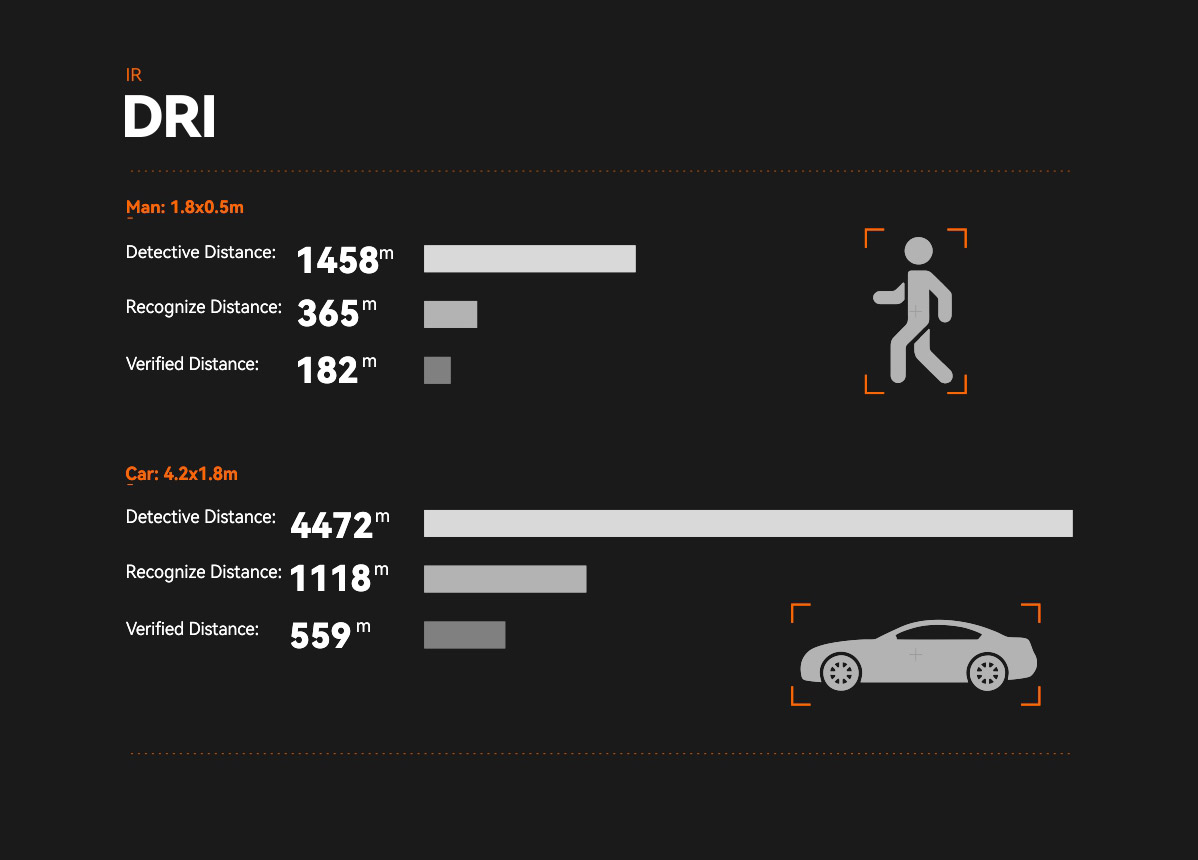

| Detective Distance (Man: 1.8x0.5m) | 1458 meters |
| Recognize Distance (Man: 1.8x0.5m) | 365 meters |
| Verified Distance (Man: 1.8x0.5m) | 182 meters |
| Detective Distance (Car: 4.2x1.8m) | 4472 meters |
| Recognize Distance (Car: 4.2x1.8m) | 1118 meters |
| Verified Distance (Car: 4.2x1.8m) | 559 meters |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel pitch | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤50mK@F.0 @25℃ |
| Color palette | White, iron red, pseudo color |
| Digital zoom | 1x ~ 8x |
| Sync correct time | Yes |
| Radiometric function | Optional （-20℃~+150℃, 0℃~+550℃） |
| Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames |
| AI auto-zoom | Yes |

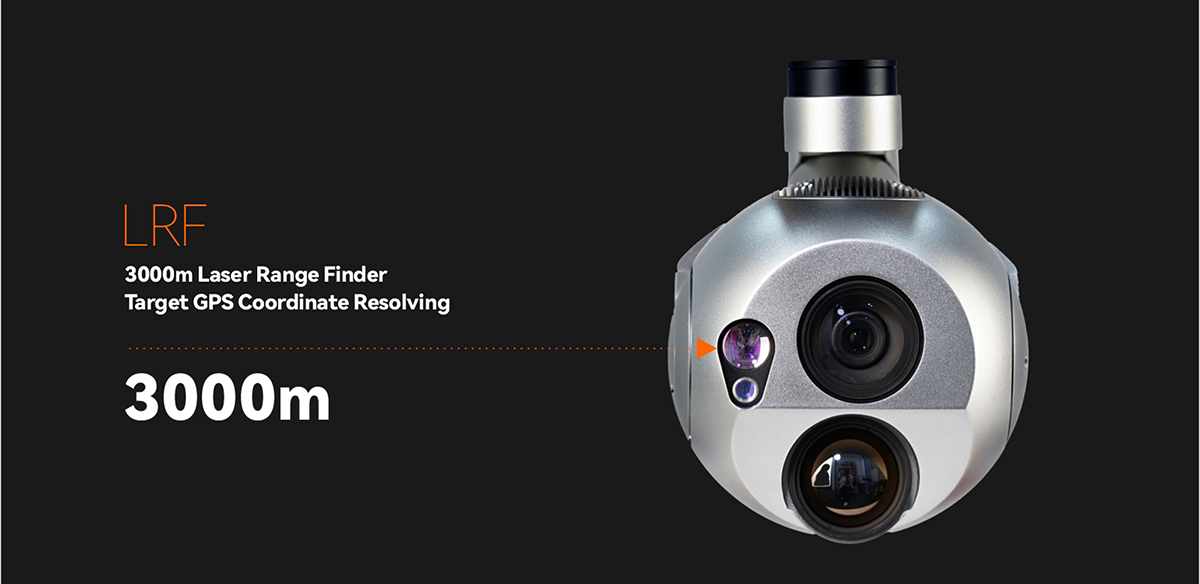

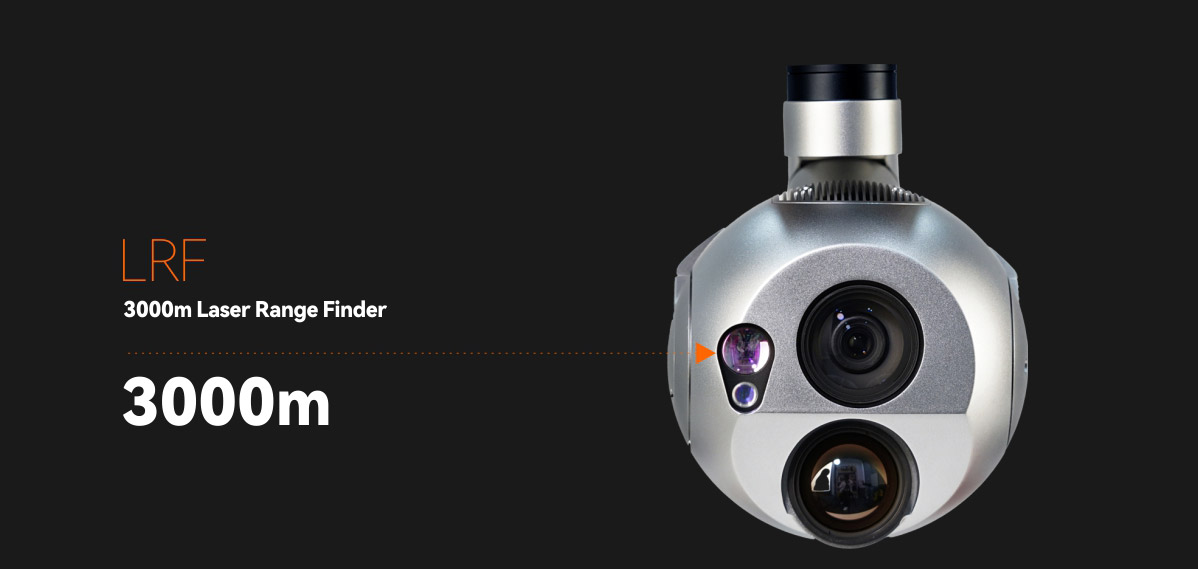

| IR Laser Rangefinder | |
| Range | for car ≥ 3000m; for human ≥ 2000m |
| Minimum range | 15m |
| Frequency | 1~10Hz |
| Accuracy | ±1m |
| Light Beam | 1535±5nm pulse laser |
| Divergent Angle | ~0.6 mrad |
| Location Resolving | Latitude and longitude of target |
| Ranefinder | Target distance measuring |
| EO Camera AI Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | ≥ 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5×5 pixel |
| Car detection rate | ≥85% |
| False alarm rate | ≤10% |
| Packing Information | |
| N.W. | 1185±10g(Viewport version with Viewport) |

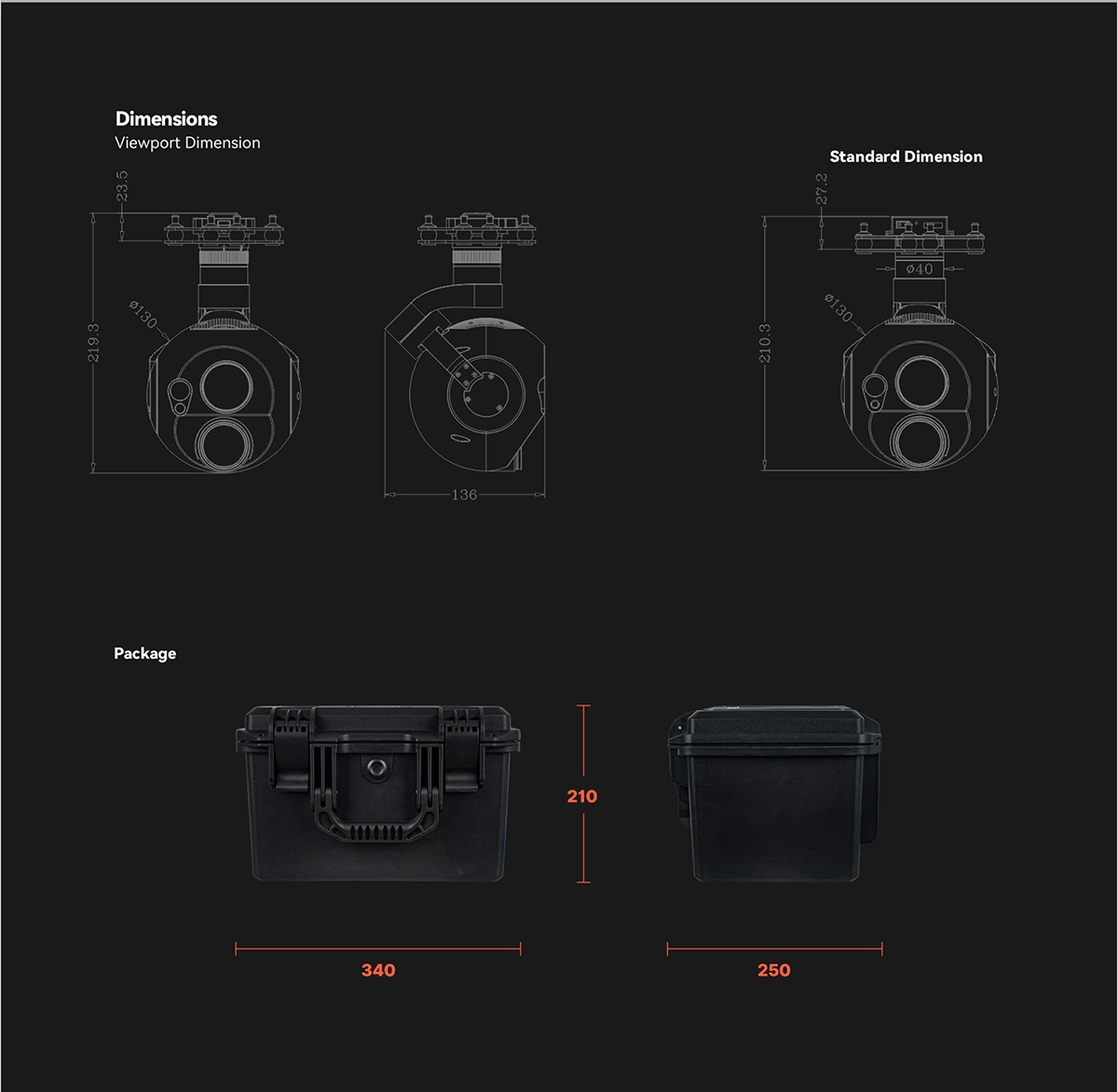

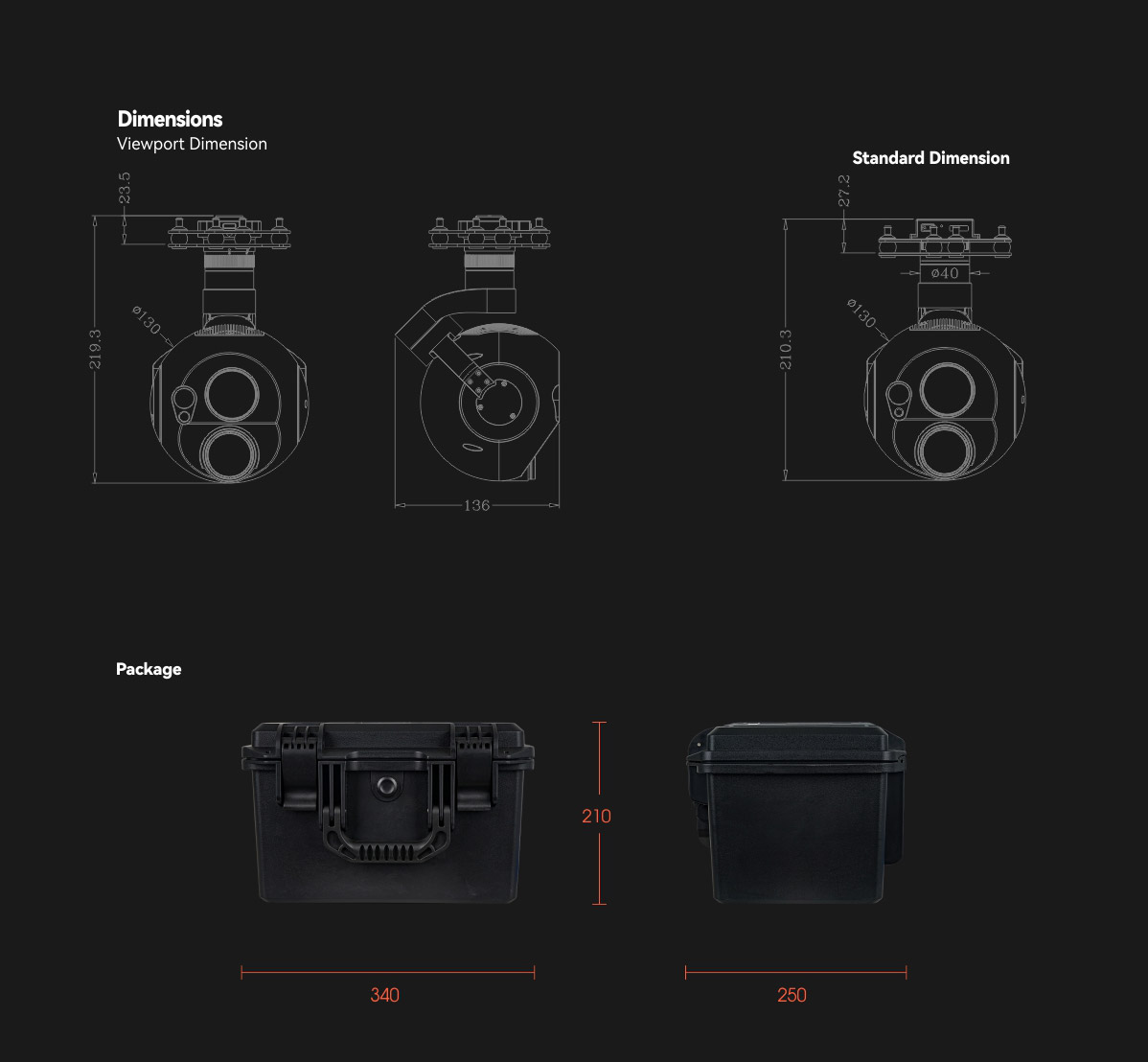

| Product meas. | 136*130*213.6mm / 136*130*219.3mm(Viewport Version) |

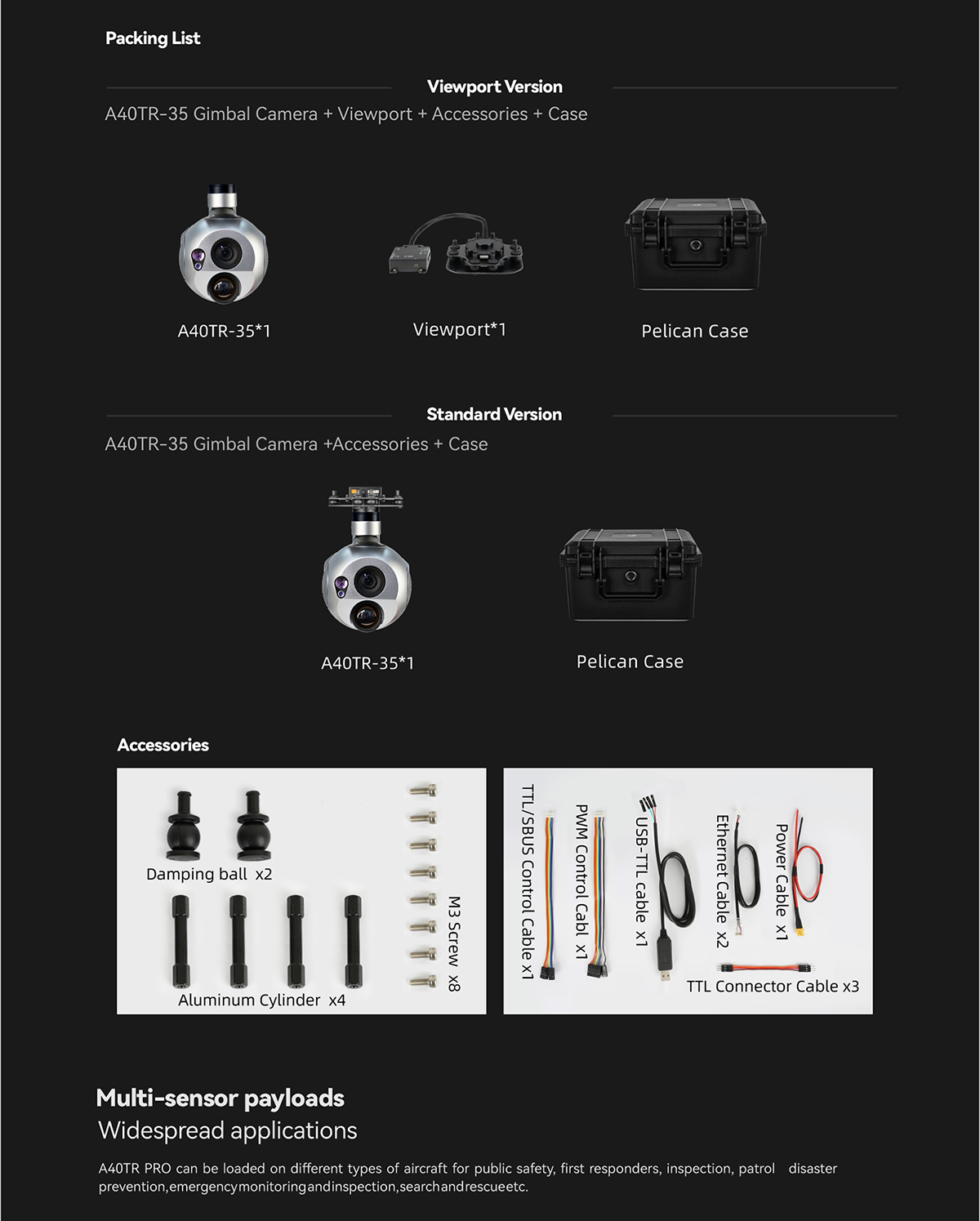

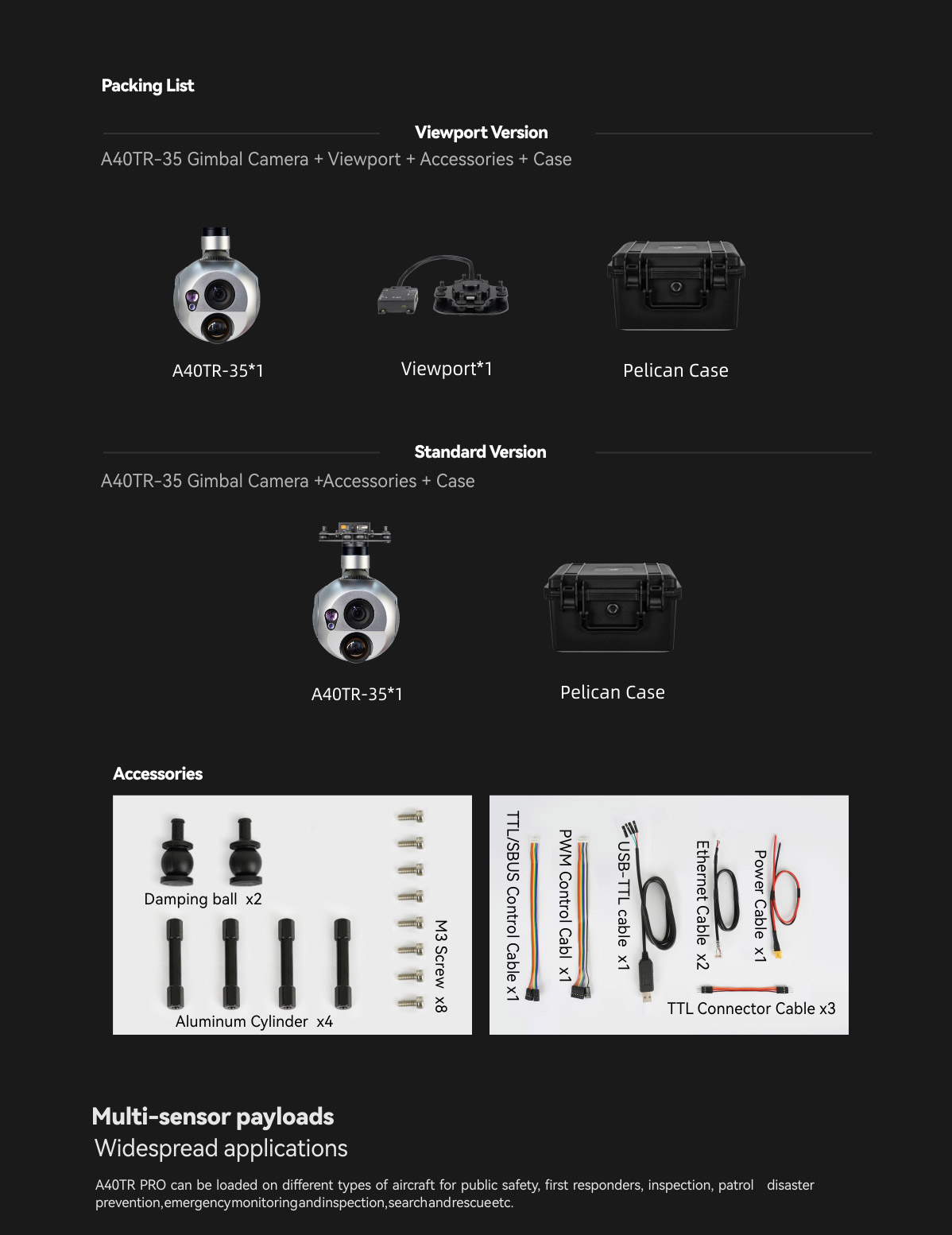

| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 3332g |
| Package meas. | 350*300*250mm |
