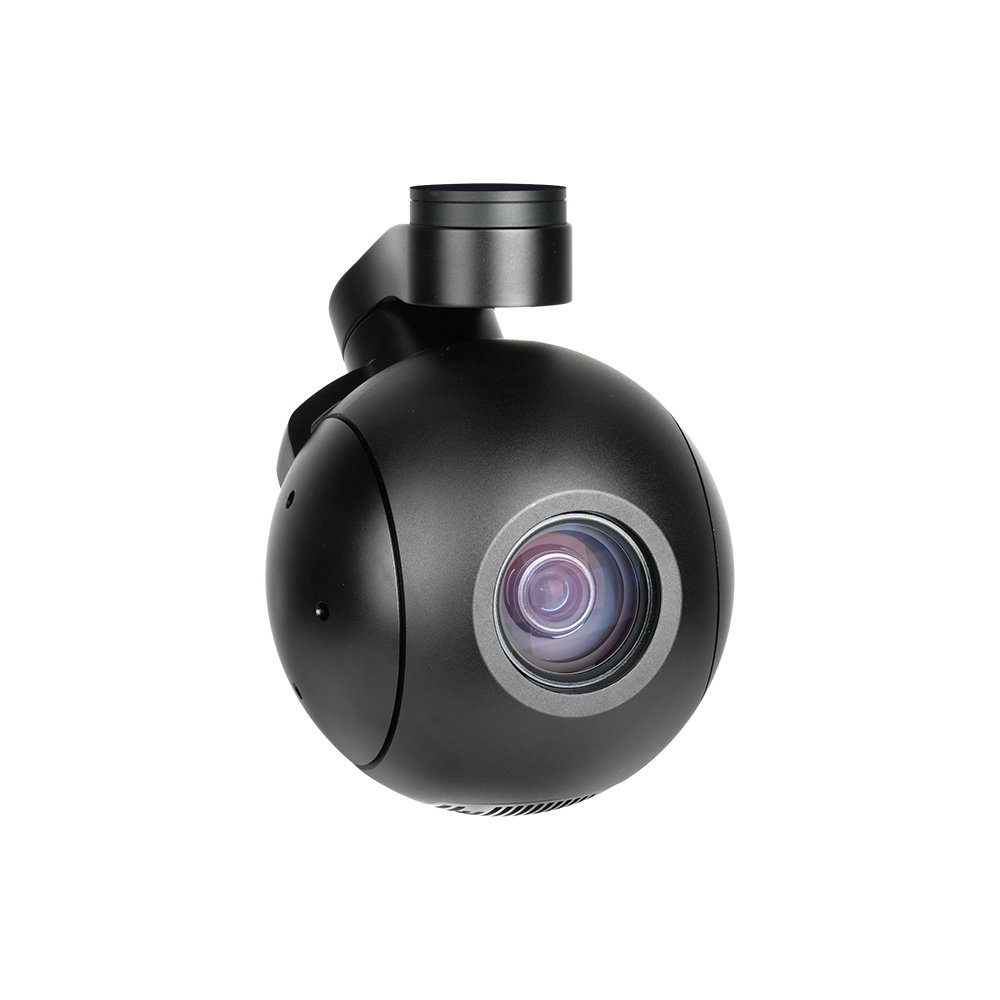

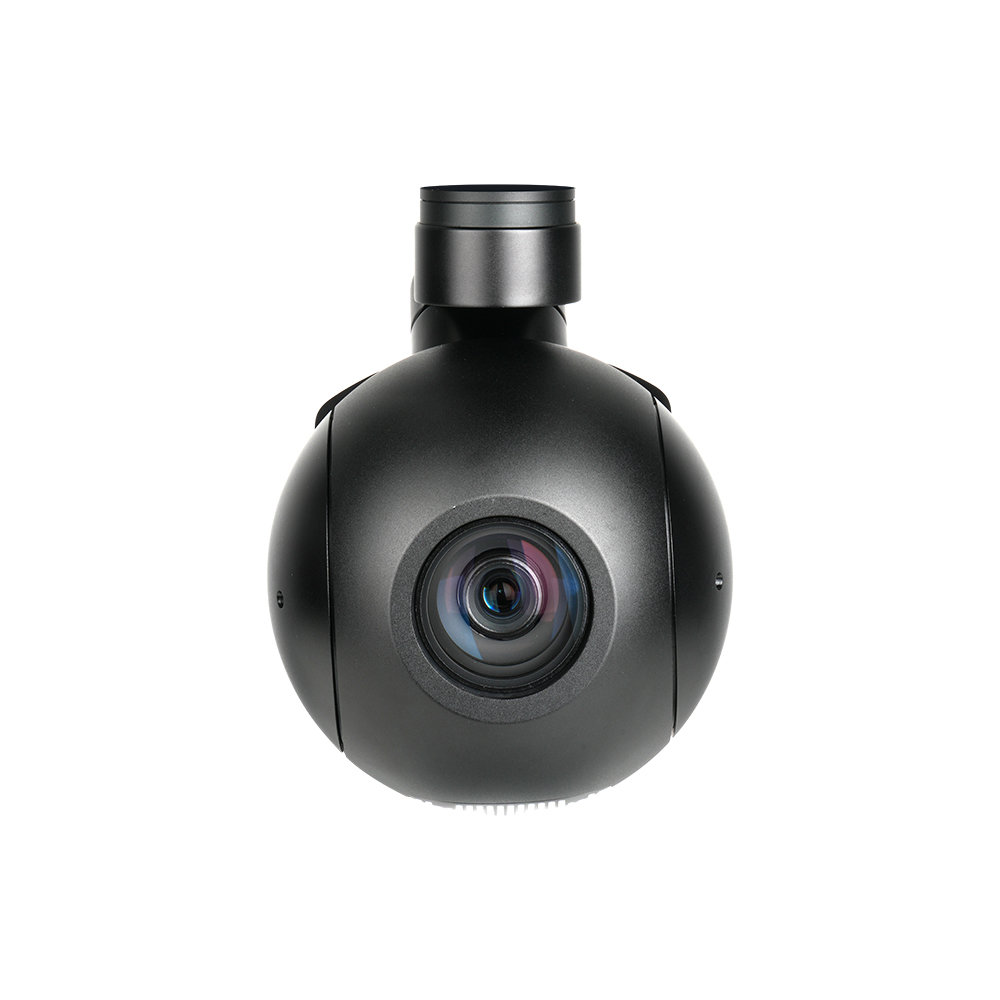

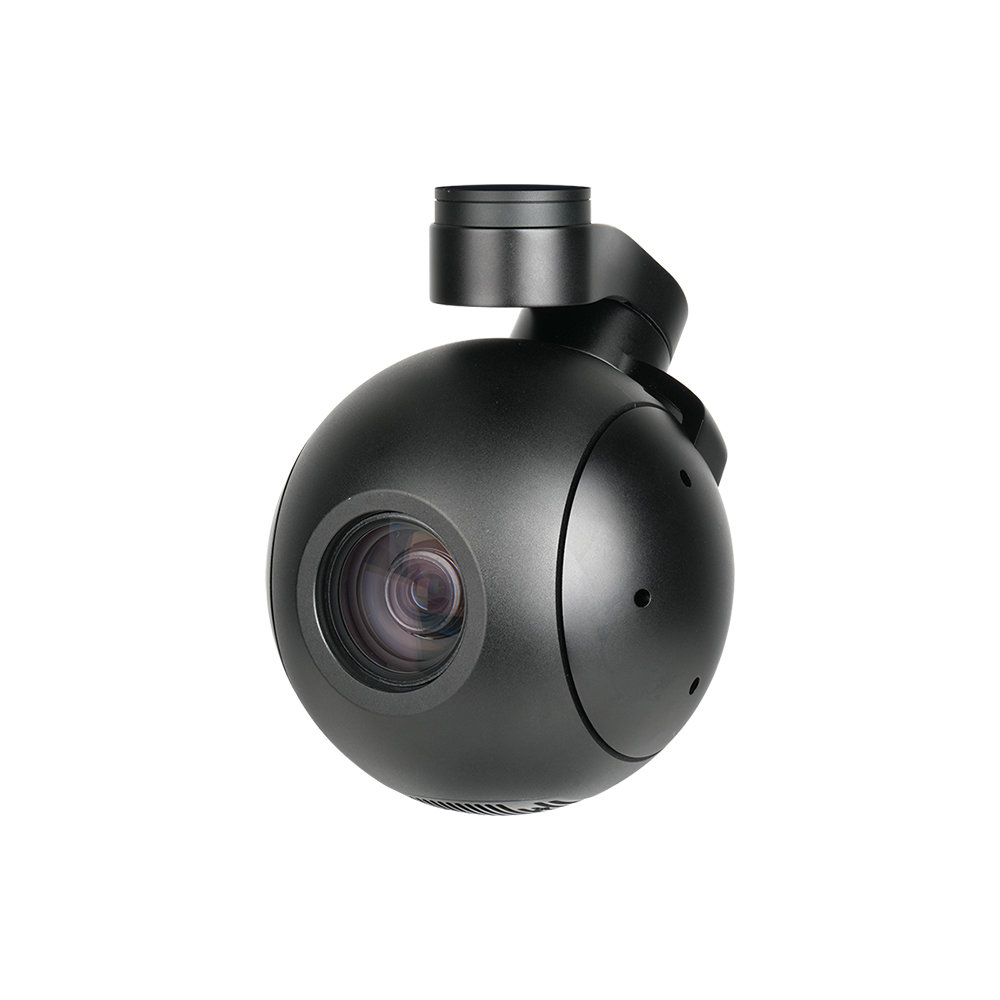

A40 Pro
Specification
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 500~1500mA @ 16V |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
| Local-storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |
| Car reading online | HTTP read pictures in TF card |
| Control method | PWM / TTL / S.BUS / TCP(IP output) / UDP(IP output) |
| Geotagging | Support, display time and GPS coordinate in picture exif |
| Gimbal Spec | |
| Angle range of structure design | Pitch/Tilt:-60°～130°, Roll: ±40°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Angle range of software design | Pitch/Tilt: -45°～125°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| EO Camera spec | |
| Imager Sensor | SONY 1/2.8" CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 40x, f=4.25mm(wide end)~170mm(tele end), F1.6~F4.95 |
| Digital zoom | 32x |
| Min object distance | 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Horizontal viewing angle | 66.35°(wide end) ~ 1.9°(tele end) |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority) |
| Focusing system | Auto , One Push, Manual |
| White balance | Auto, Indoor, Outdoor, One Push , Manual |
| Shutter speed | 1/1s to 1/30,000s |
| Auto ICR | Yes |
| Image stabilization | Yes |
| Progressive scan mode | Yes |
| Backlight compensation | Yes |
| Defog | Yes |
| OSD | Yes |
| Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames |
| AI auto-zoom | Yes |
| EO Camera AI Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | ≥ 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5×5 pixel |
| Car detection rate | ≥85% |
| False alarm rate | ≤10% |
| Packing Information | |
| N.W. | 1074g(Viewport Version with Viewport) |
| Product meas. | 134.5*118*197.7mm / 134.5*118*203.4mmmm(Viewport Version) |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 2646g |
| Package meas. | 360*300*250mm |
