U30TIR

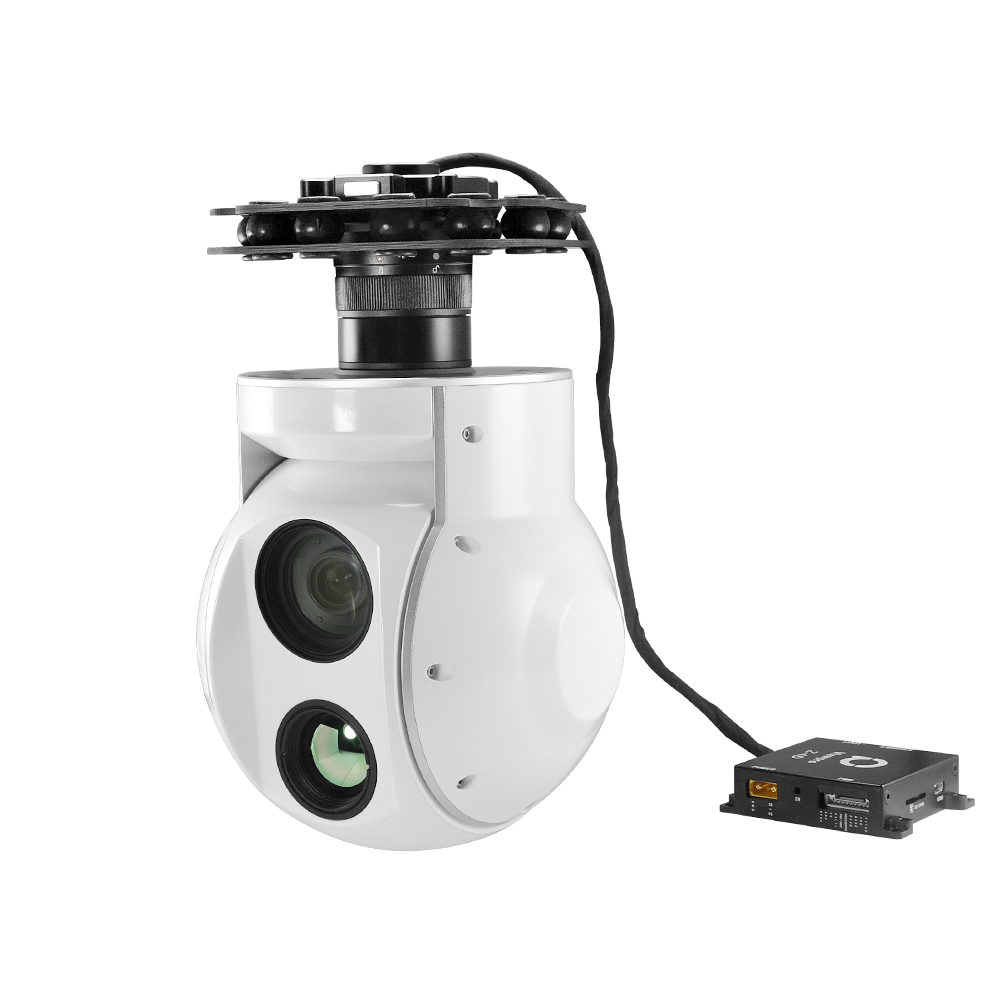

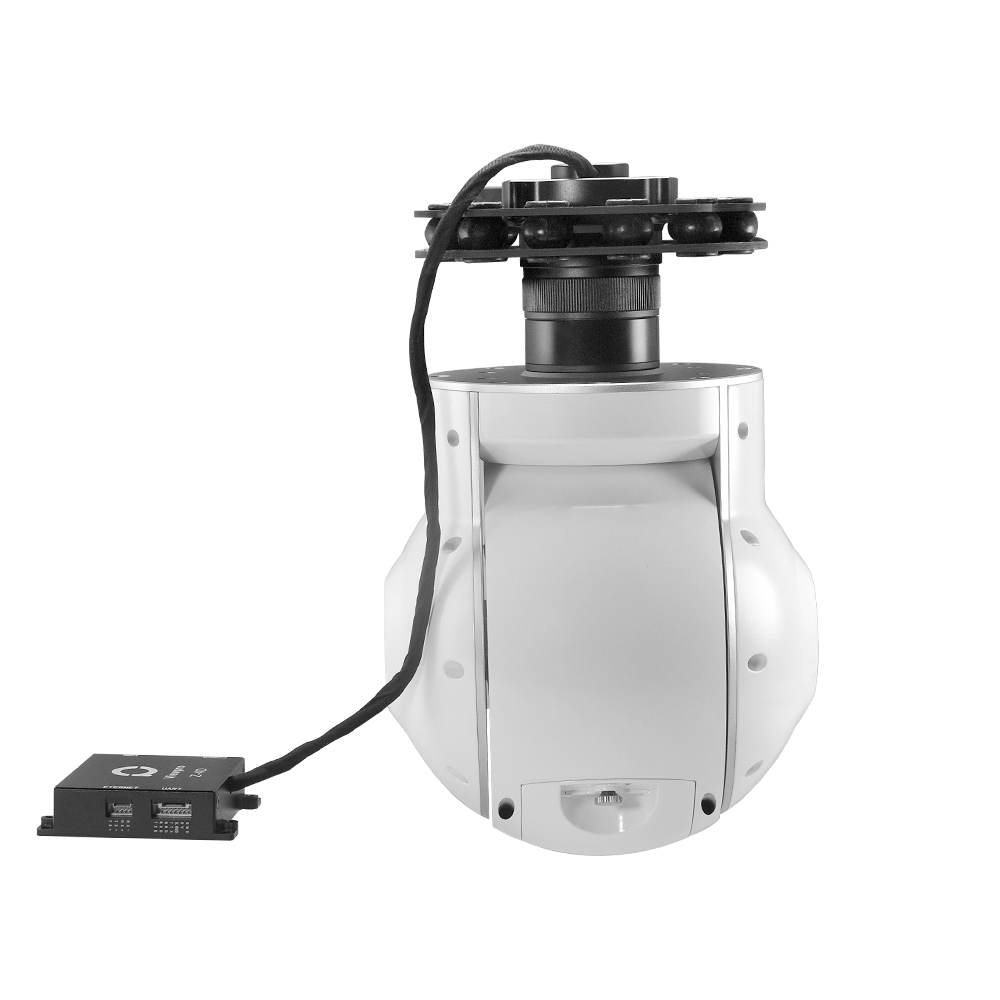

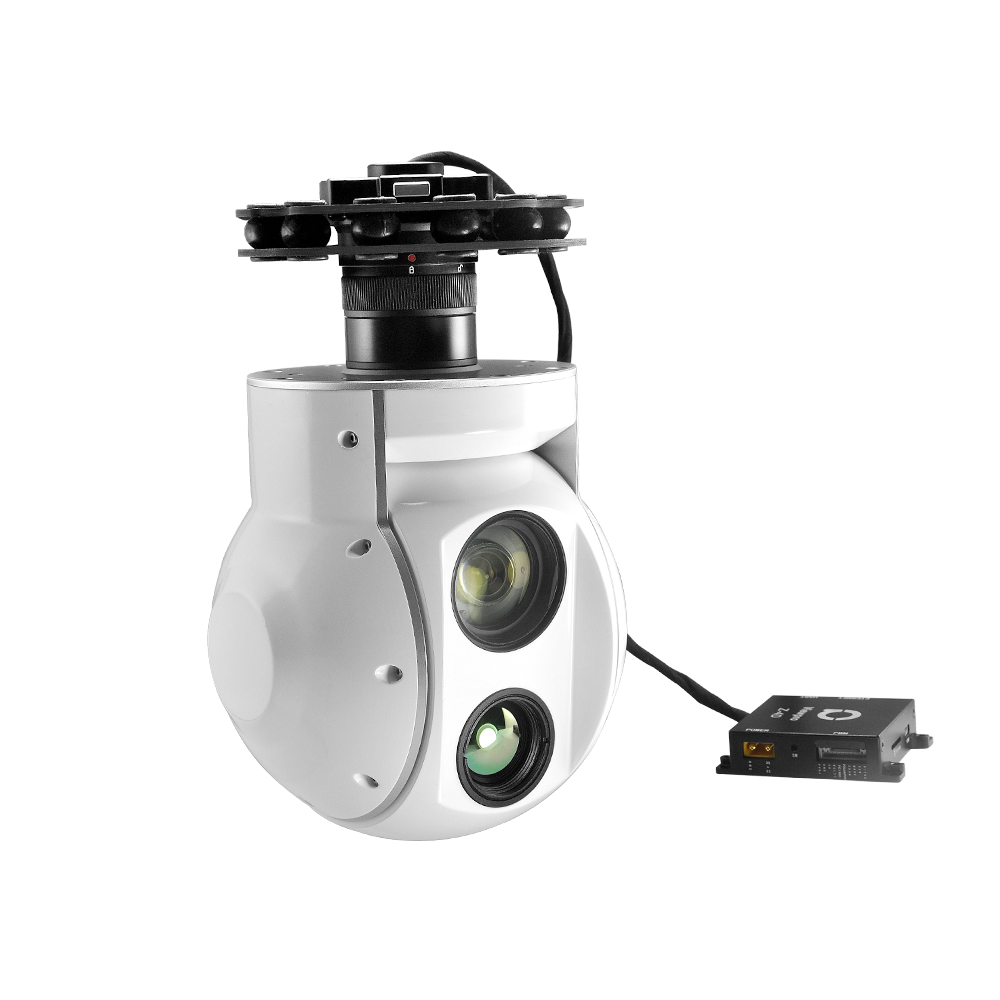

U30TIR gimbal camera features an 30x optical zoom lens. It's powered by SONY 1/2.8” “Exmor R”, 2.13 mega effective pixels, fast auto-focus speed, 1080p HD image quality, as well as visible light, thermal imaging tracking. It is compact size, support PWM, S. BUS and TTL. Detecting by heat source, the 25mm thermal can reveal the damage of buildings, fire spark in forest, the location of people or animal and more. It's widely used in day and night surveillance, search, inspection and firefighting.
SONY 30x Zoom Starlight Camera
Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, U30TIR can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.
Professional Thermal Imager
Integrated high-precision uncooled long wave (8μm ~14μm ) thermal image sensor, U30TIR can record and transmit thermal image and visible images at the same time in PIP format.
Optional thermometry version: With temperature measuring sensor, it could accurately attain the temperature of objects and individuals. The thermal sensor allows three points’ temperature ranging between 0℃~120℃ to be measured and displayed on screen. Adjust the different colors applied to the thermal data based on the needs of specific scenarios.
*Temp bar: Indicates gradually variation temperature with corresponding colors.
*Temp measurement: Display average, highest, and lowest temperatures in real time.
*Temp alarm: Don't miss a thing when object temperatures exceed pre-set alert values.
Visible Light and Thermal Imager Dual Sensors Object Tracking
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame,object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4dB, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.
Multi Output Methods Optional
U30TIR supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.
Multi Control Methods
Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.
Control box signal interfaces:
Compatible with Viewport
U30TIR is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.
For more information about Viewport, please check below video instruction:
Applications
"Our primary focus is on supplying equipment for various purposes such as firefighting, power tower maintenance, pipeline inspection, and search and rescue operations. Emergency situations demand a broad spectrum of monitoring and search capabilities to swiftly assess the situation and enhance response efficiency."
Dimension
Specifications
| Hardware Parameter | |
| Working voltage | 12V ~ 16V |
| Input voltage | 3S ~ 4S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 500mA @ 12V |
| Idle current | 400mA @ 12V |
| Power consumption | ≤ 6W |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(HD output 1080P 60fps) / IP / SDI |
| Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Control method | PWM / TTL / S.BUS (subject to actual product) |
| Gimbal spec | |
| Pitch/Tilt | ±90° |
| Roll | No support |
| Yaw/Pan | ±170° / ±360°*N (IP / SDI output) |
| Vibration angle | Pitch/Roll: ±0.01°, Yaw：±0.01° |
| One-key to center | √ |
| Camera spec | |
| Imager Sensor | SONY 1/2.8" "Exmor R" CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle | 1080p mode: 63.7°(wide end) ~ 2.3°(tele end) |
| 720p mode: 63.7°(wide end) ~ 2.3°(tele end) | |
| SD: 47.8°(wide end) ~ 1.7°(tele end) | |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.01lux@F1.6 |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |
| Fotoformate | JPEG |
| Videoformate | MP4 |
| Camera Object tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | <15ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 160*160 pixel |
| Tracking speed | ±32 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Thermal imager spec | |
| Lens size | 25mm |
| Horizontal FOV | 24.6° |
| Vertical FOV | 18.5° |
| Diagonal FOV | 30.4° |
| Detective Distance (Man: 1.8x0.5m) | 735 meters |
| Recognize Distance (Man: 1.8x0.5m) | 184 meters |
| Verified Distance (Man: 1.8x0.5m) | 92 meters |
| Detective Distance (Car: 4.2x1.8m) | 2255 meters |
| Recognize Distance (Car: 4.2x1.8m) | 564 meters |
| Verified Distance (Car: 4.2x1.8m) | 282 meters |
| Working mode | Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*480 |
| Pixel size | 17μm |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | ≤50mK (@25℃) |
| MRTD | ≤650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x, 3x |
| Sync correct time | Yes |
| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning | 0℃~100℃ |
| Thermal Object Tracking | |
| Update rate of deviation pixel | 25Hz |
| Output delay of deviation pixel | <3ms |
| Minimum object size | 16*16 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±32 pixel/frame |
| Object memory time | 100 frames (4s) |
| Packing Information | |
| N.W. | 981g |
| Product meas. | 127*122*177.1mm |
| Accessories | 1pc gimbal camra device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic box with foam cushion |
