Hardware Parameter
Working voltage 12V(3S)
Output voltage 5V (connect with PWM)
Dynamic current 650~1000mA @ 12V
Idle current 650mA @ 12V
Working environment temp. -20℃~+60℃

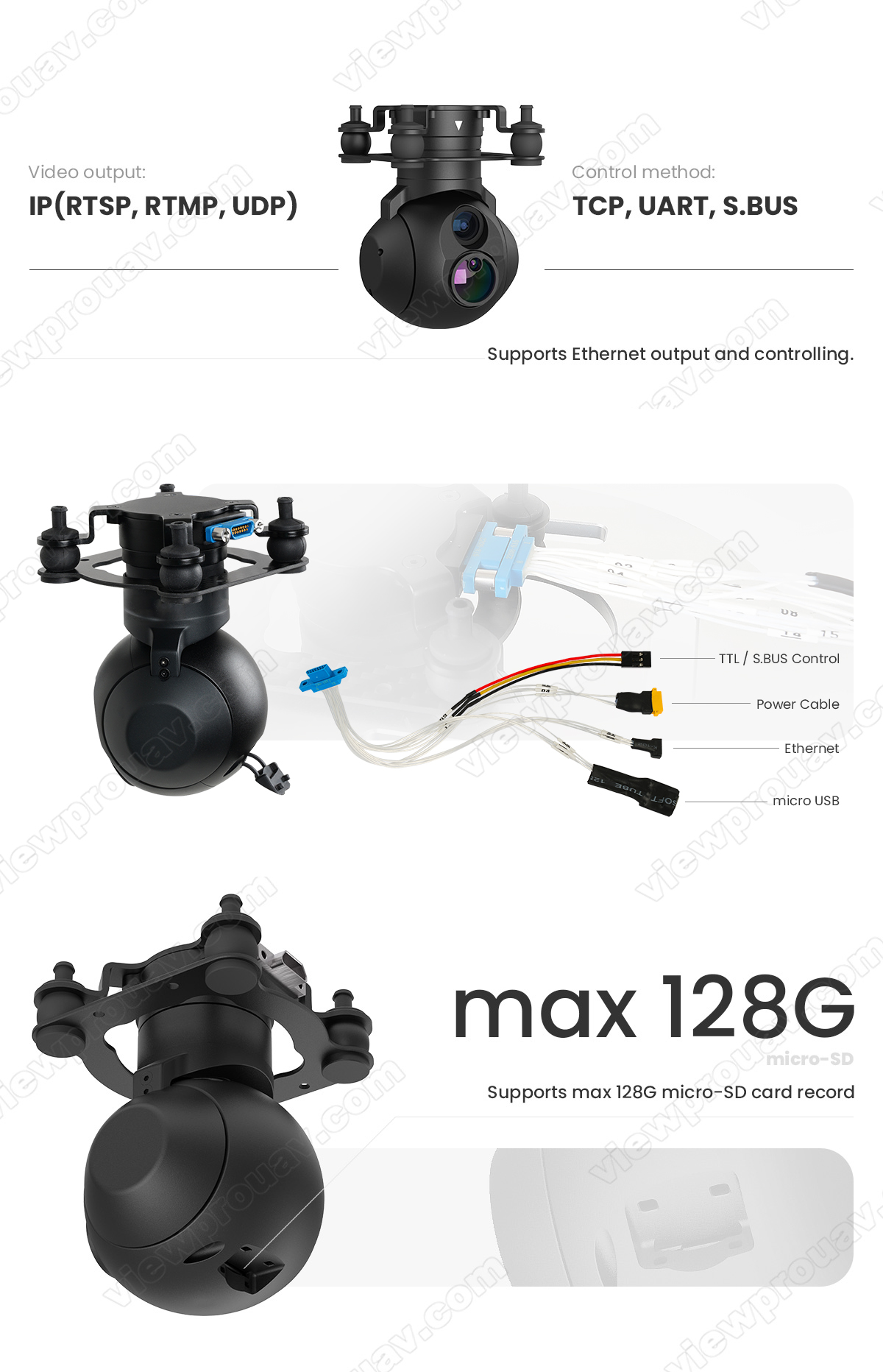

Output IP rtsp (1080p 30fps)
Local-storage SD card (Up to 128G,class 10, FAT32 or ex FAT format)
Photo storage format JPG(1920*1080)
Video storage format MP4  (1080P 25fps)
Control method TTL / S.BUS/ TCP
Gimbal Spec
Angle scope of structure design Pitch/Tilt: -60°~120°,    Yaw/Pan: ±360°*N
Angle scope of software design Pitch/Tilt: -45°~90°,   Yaw/Pan: ±360°*N
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
One-key to center

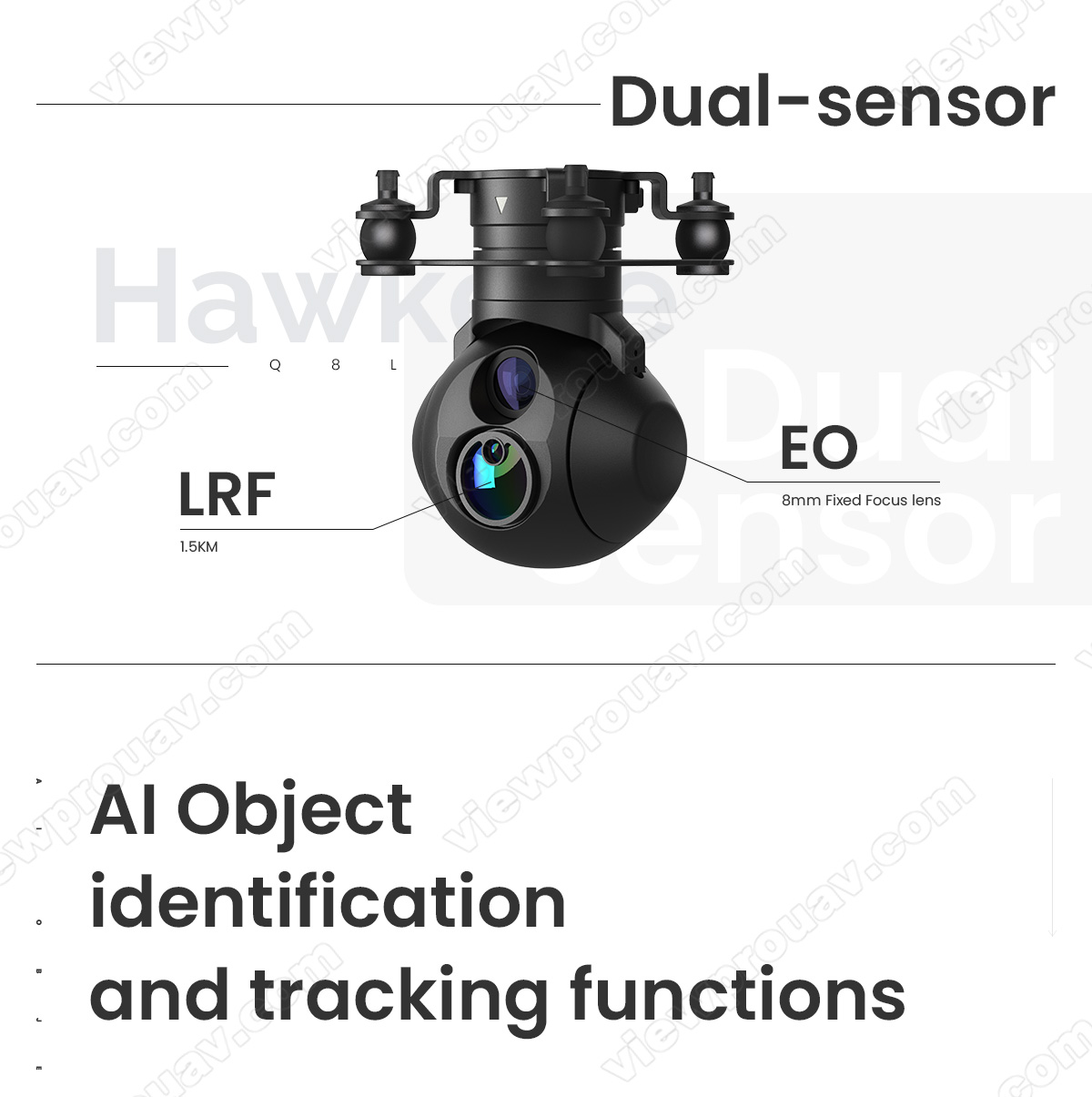

EO Camera Spec
Resolution 1920*1080 @60fps
Focus Length 8mm
Angle of View 38°*22°
EO  Camera Object Tracking
Update rate of deviation pixel 60Hz
Minimum object contrast 5%
Minimum object size 16*16 pixel
Maximum object size 128*128 pixel
Tracking speed ±48 pixel/frame
Object memory time 100 frames
IR Laser Rangefinder
Range 5~1500 meters
Resolution 1:<400±1      2:>400±0.4%
Light Beam 905nm pulse laser
Divergent Angle 3~10 mrad
Measuring Respond Time 1:<0.06s/m(≤100)  2:<0.28s/m(≥100~600)   3:<0.85s/m(≥600~1000)   4:<1s/m(≥1000~1500)
Power 0.5~0.9W

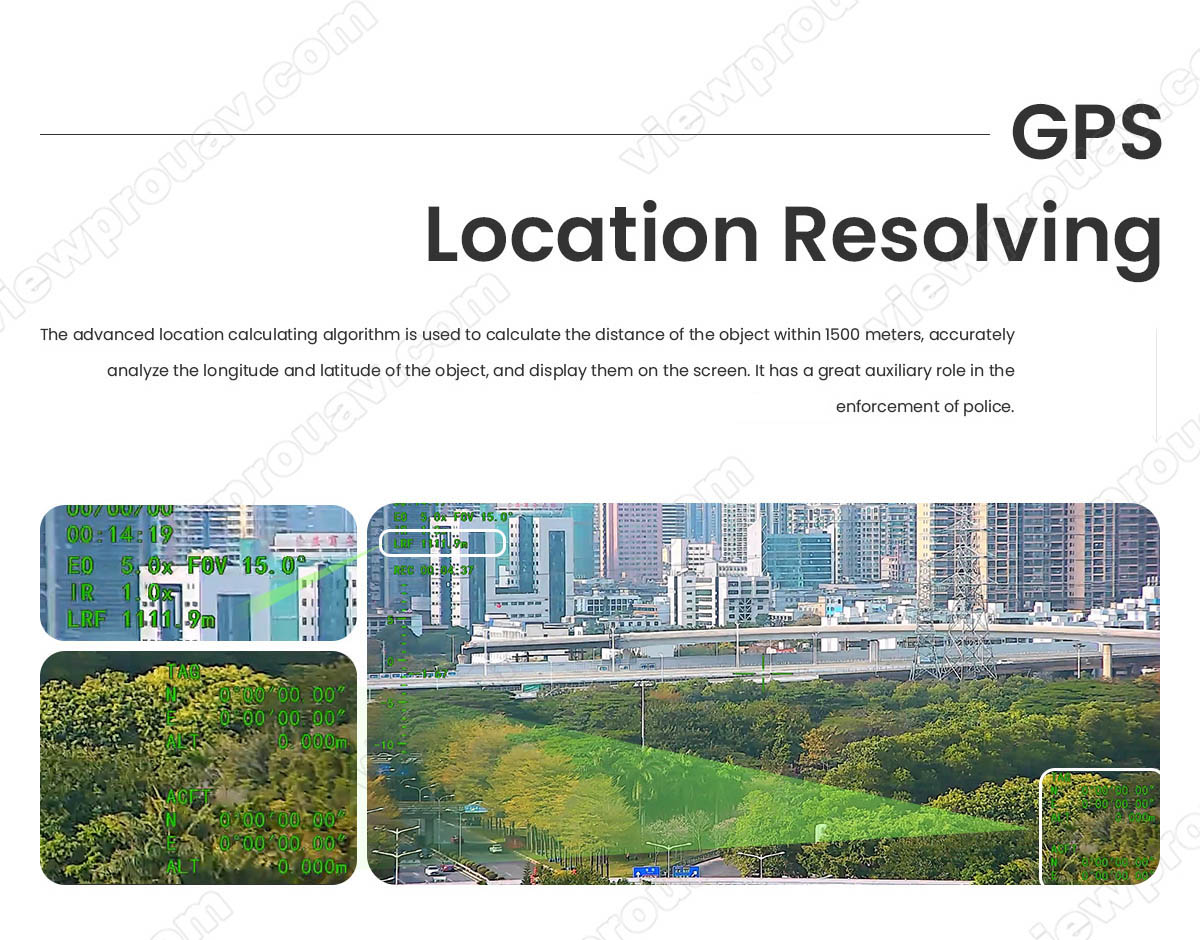

Location Resolving Latitude and longitude of target
Ranefinder Target distance measuring
Packing Information
N.W. 240g (with damping system)

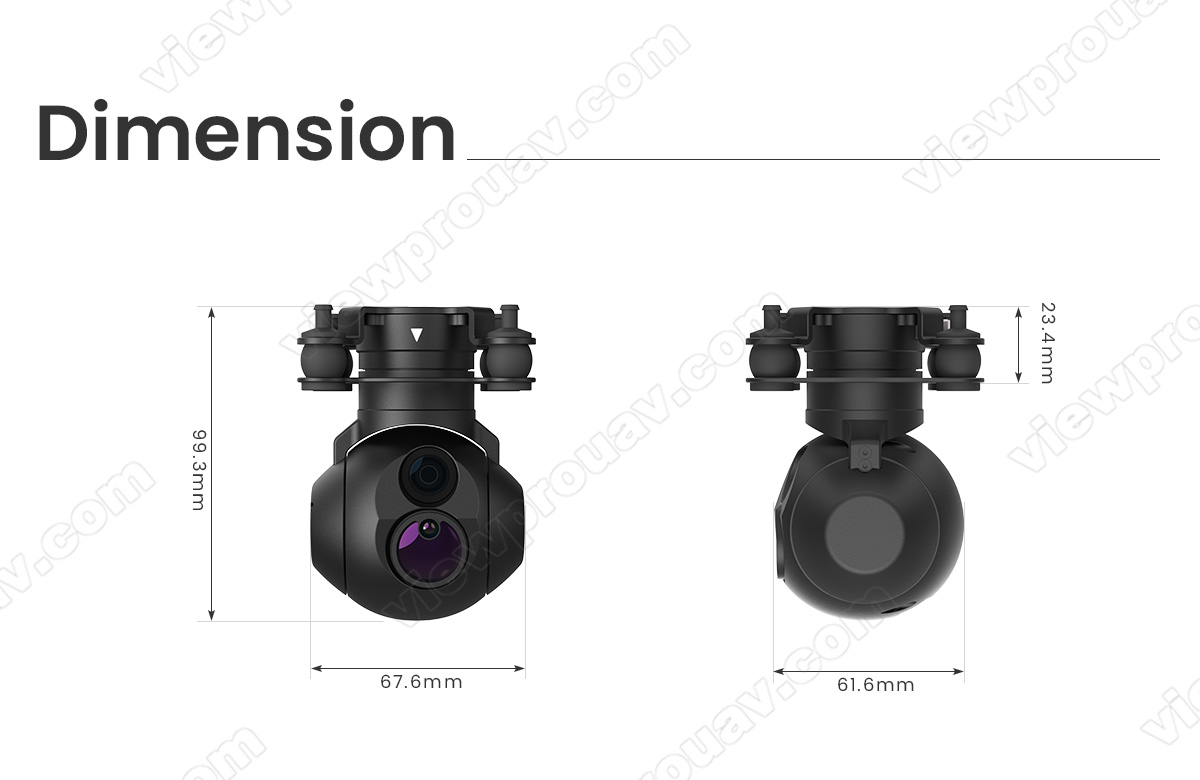

Product meas. 67.6*61.6*99.3mm

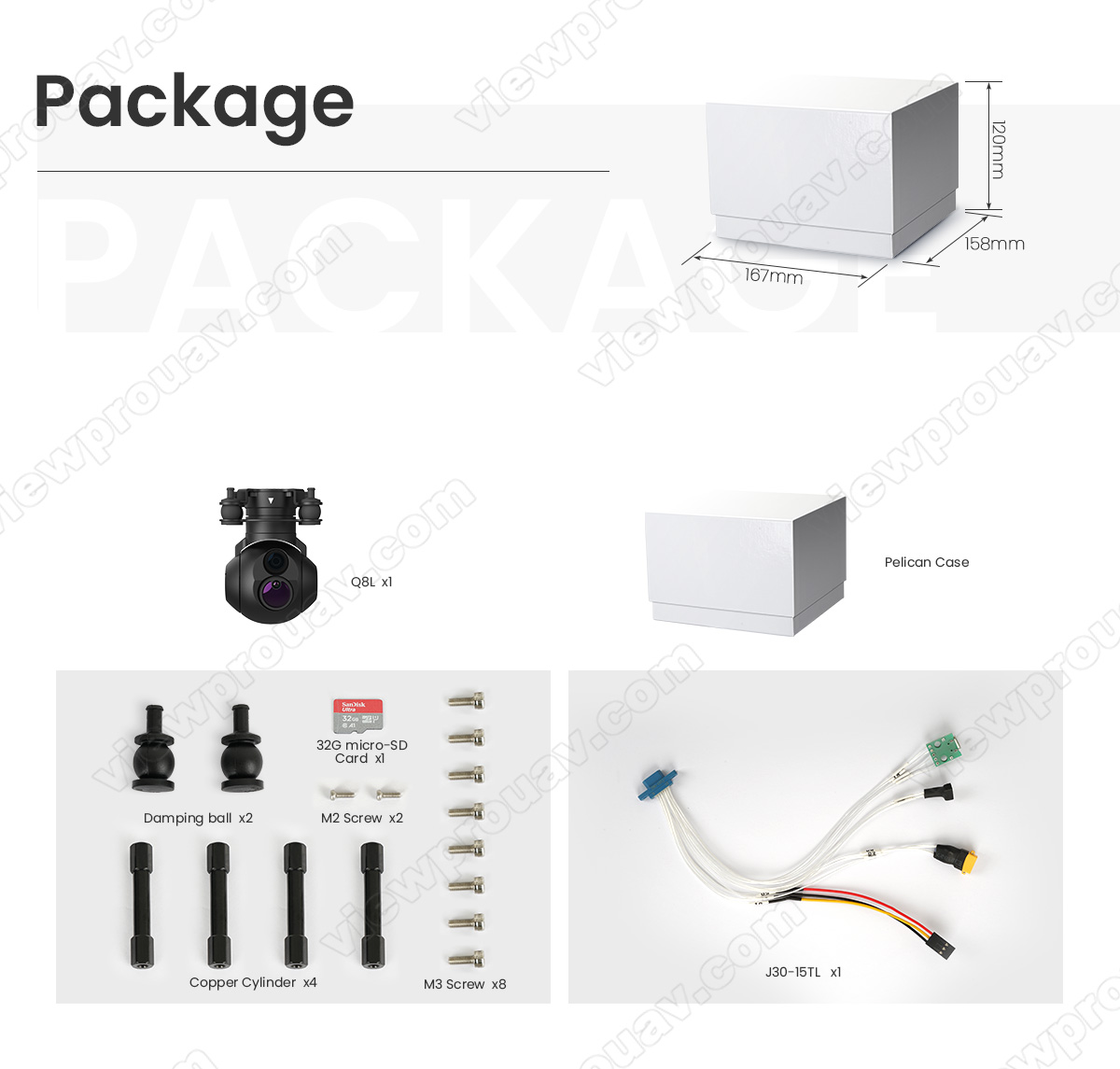

Accessories 1pc gimbal camera device, screws, USB to TTL cable  / Hight quality plastic box with foam cushion
G.W. 240g
Package meas. 167*158*120mm
