Q40T gimbal camera features a 40x optical zoom lens. It is powered by a SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6, 2.13 million effective pixels, HD 1080p video, and fast auto-focus speed. At the same time, Q40T can achieve target tracking. Factory, all the parameters have been perfectly set, The gimbal can be controlled in three directions: YAW, ROLL, and PITCH, we use an FOC solution that can greatly . The image is very stable even at forty optical zoom times. Q40T has been widely used in various fields like electric power, fire, surveillance, and other industries.
SONY 40x Zoom Starlight Camera
Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, Q40T can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 40x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.

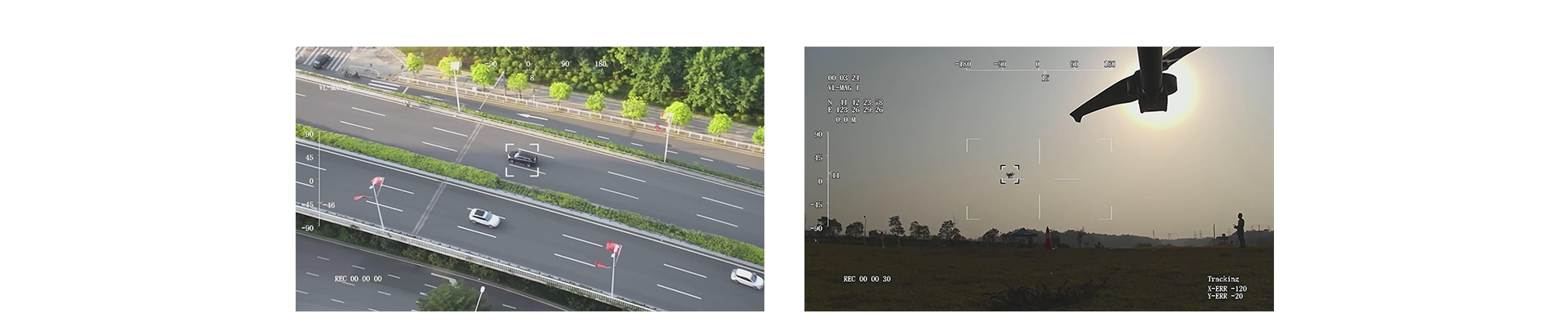

Single Sensor Visible Light Camera Object Tracking
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 48pixel/frame, object size range is from 32*32 pixel to 128*128 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.
Multi Output Methods Optional
Multi Control Methods
Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.
Control box signal interfaces:
Applications
"Our primary focus is on supplying equipment for various purposes such as firefighting, power tower maintenance, pipeline inspection, and search and rescue operations. Emergency situations demand a broad spectrum of monitoring and search capabilities to swiftly assess the situation and enhance response efficiency."
Specifications
| Hardware Parameter | |
| Working voltage | 12V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 500mA @ 12V |
| Idle current | 400mA @ 12V |
| Power consumption | ≤ 6W |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(HD output 1080P 60fps)/IP/SDI |
| Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Control method | PWM / TTL / S.BUS/TCP(IP Version) |
| Gimbal spec | |
| Pitch/Tilt | ±90° |
| Roll | ±85° |
| Yaw/Pan | ±150° |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.03° |
| One-key to center | √ |
| Camera spec | |
| Imager Sensor | SONY 1/2.8" "Exmor R" CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 40x, F=4.25~170mm |
| Digital zoom |
x2 ~ x32
|
| Min object distance |
0.1 / 1.5 / 3.0 / 5.0 / 10.0 m
|
| Horizontal viewing angle | 1080p mode: 73.8°(wide end) ~ 2.16°(tele end) |
| 720p mode: 66.35°(wide end) ~ 1.9°(tele end) | |
| SD: 39.98°(wide end) ~ 1.11°(tele end) | |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.01lux@F1.6 |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |
| Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | <10ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±48 ~ ±192 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| N.W. | 732g (Viewport Version) |
| Product meas. | 118.2*133.6*196.1mm |
| Accessories | 1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic box with foam cushion |
| Package meas. | 360*300*250mm |
