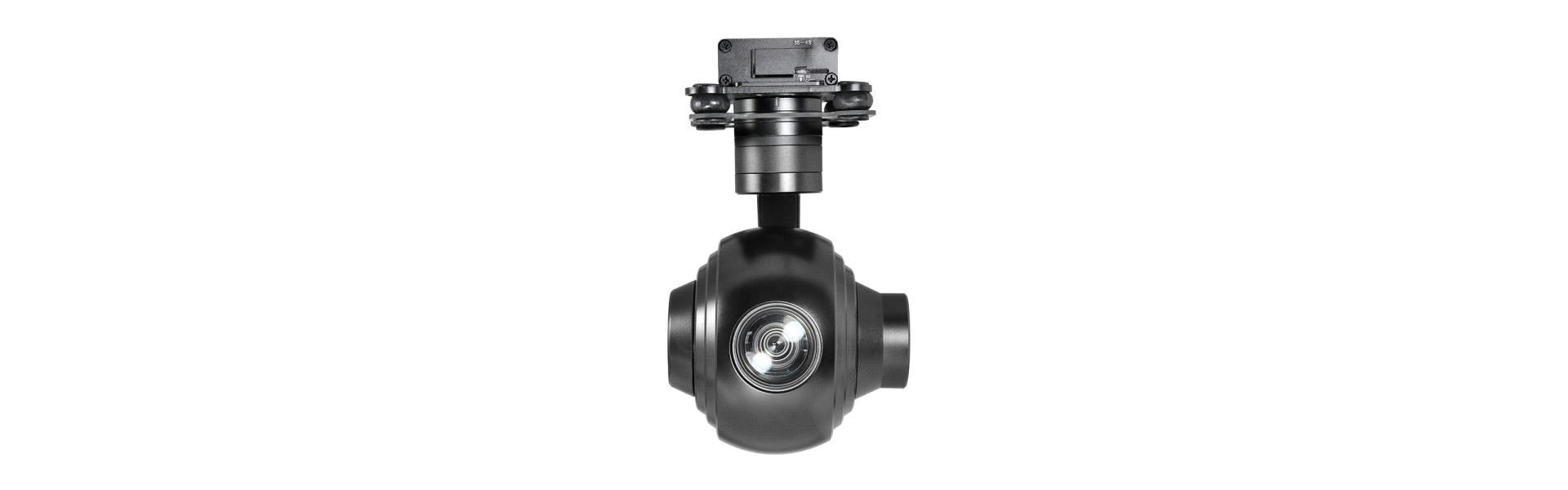

Q10T features 10x optical zoom and auto tracking function.  Alluminum alloy hosing is ideal for light weight meanwhile keeping perfectly anti-interference and cooling. It outputs and records FHD 1080p video with OSD. Connected to GPS module it has geo tagging funcion. Combining with high-precise stabilisation system and automatic thermal compensation algorithm, the gimbal can fulfill high level stablization requirements without thermal drifting.



10x Time Optical Zoom EO Camera



Powered by 10x optical zoom high resolution camera module, Q10T can recognize cars in 1000 meters, which can meet the application requirements of various domains.





Built-in Auto-tracking Function



Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 32*32 pixel to 128*1280 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.











Multi Output Methods Optional



Q10T support both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.



Multi Control Methods



Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.



Control box signal interfaces:




Compatible with Viewport

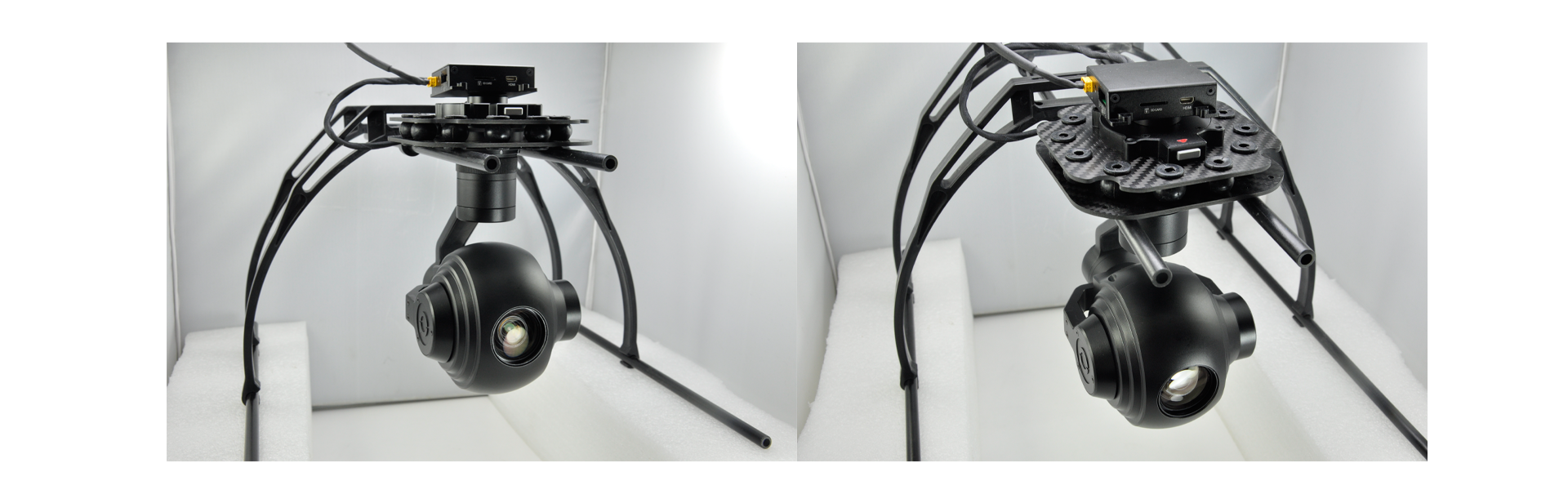

Q10T is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.

For more information about Viewport, please check below video instruction:






Applications

"Our primary focus is on supplying equipment for various purposes such as firefighting, power tower maintenance, pipeline inspection, and search and rescue operations. Emergency situations demand a broad spectrum of monitoring and search capabilities to swiftly assess the situation and enhance response efficiency."

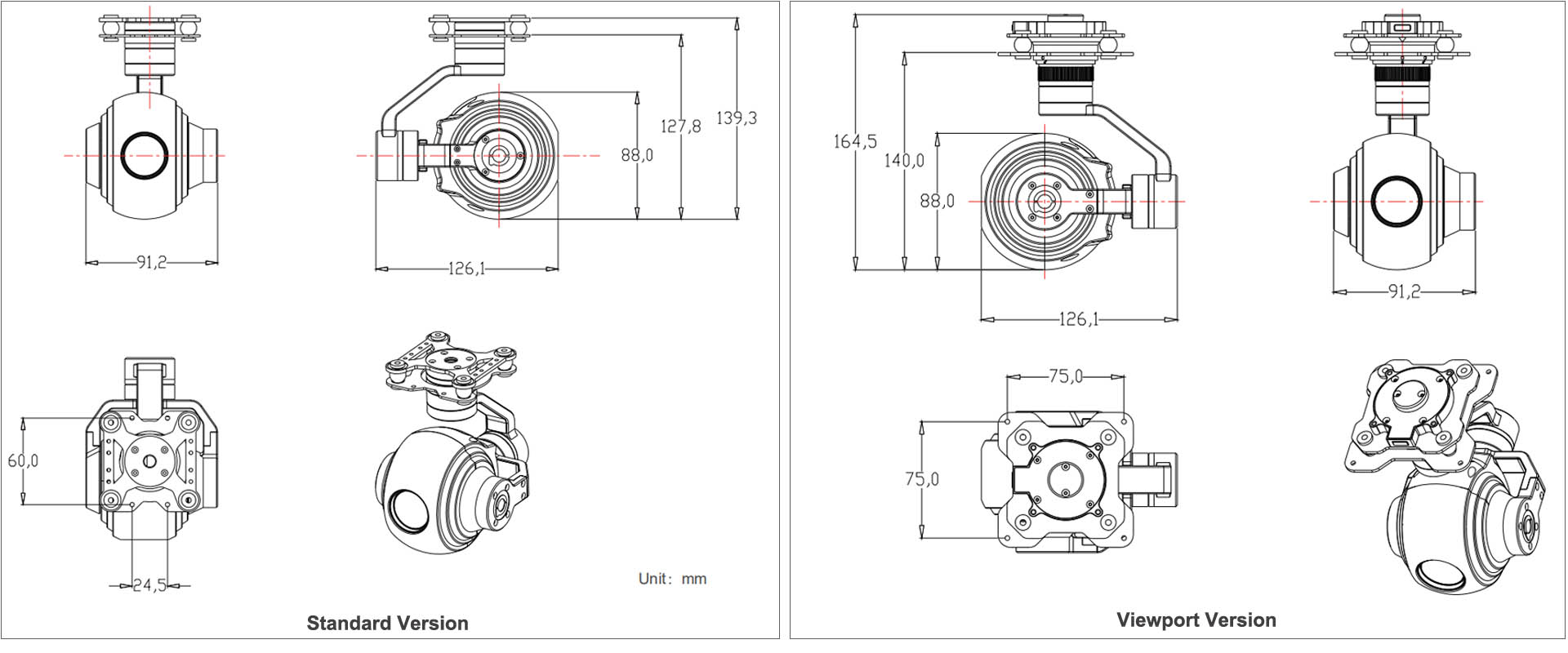

Dimensions







Specifications


Hardware Parameter
Working voltage 16V
Input voltage 4S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 530~1200mA @ 16V
Working environment temp. -20 ~ +60
Output  micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p  25fps/30fps) / SDI (1080P 30fps)
Local-storage SD card (Up to 512G,class 10, FAT32 format)
Photo storage format JPG(1920*1080)
Video storage format MP4  (1080P 30fps)
Card reading online SMB read/ HTTP read
Control method PWM  / TTL / S.BUS/ TCP(IP output version)/UDP(IP output version)
Geotagging Support, display time and GPS coordinate in picture exif
Gimbal Spec
Angle scope of structure design Pitch/Tilt: -125°125°,    Roll: ±70°,     Yaw/Pan: ±300° / ±360°*N (IP / SDI output version)
Angle scope of software design Pitch/Tilt: -45°120°,   Yaw/Pan: ±290° / ±360°*N (IP / SDI output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw±0.02°
One-key to center
Camera Spec
Imager Sensor  1/3" Panasonic CMOS Sensor
Total pixel  2.48M
Picture quality Full HD 1080 (1920*1080)
Optical zoom 10x, f = 5.1mm ~ 51mm
Digital zoom 32x
Angle of View (D, H, V) D:  68°(Wide end) ~ 6.7° (Tele end)
H: 54°(wide end) ~ 4.9°(tele end)
V: 31°(wide end) ~ 4.0°(tele end)
Sync system Progressive Scan
Sync. System Internal Internal
S/N ratio more than 50dB
Min illumination Color : 0.5 lux , BW : 0.1lux
Color DSS : 0.125 lux , BW DSS : 0.025 lux
Gain Control (AGC) Off / On
White balance Auto / One Push / Manual / Indoor / Outdoor
Shutter speed 1/30(25) ~ 1/30,000 sec
Focus Auto / One Push / Manual
Iris 0 ~ 20 steps
Exposure  Mode / AGC / Shut Speed / Iris / DSS / Flickerless / Brightness / WDR/BLC / D&N
Defog Yes
OSD Yes
Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel 5ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed ±48 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel
Packing Information
N.W. 550g / 642g(Viewport version)
Product meas. 126.1*91.2*158.8mm / 126.1*91.2*164.5mm(Viewport Version)
Accessories 1pc gimbal camera device, screws, USB to TTL cable  / Hight quality plastic box with foam cushion
G.W. 1934g
Package meas. 300*250*200mm
